2023 FORD MUSTANG winter tires

Wheels and Tires
General Information...................................301
Tire Sealant and Inflator Kit....................301
Tire Care.........................................................307
Using Summer Tires..................................322
Using Winter Tires......................................325
Using Snow Chains....................................325
Tire Pressure Monitoring System..........326
Changing a Road Wheel..........................330
Driving at High Speed................................335
Technical Specifications..........................336
Capacities and Specifications
Engine Specifications - 2.3L EcoBoost™........................................................................337
Engine Specifications - 5.0L, Mach 1........................................................................337
Engine Specifications - 5.0L..................339
Brake System Specifications - Mach 1........................................................................339
Suspension Specifications - Mach 1......341
Motorcraft Parts - 2.3L EcoBoost™.....342
Motorcraft Parts - 5.0L.............................343
Motorcraft Parts - 5.0L, Mach 1.............344
Vehicle Identification Number...............345
Capacities and Specifications - 2.3LEcoBoost™...............................................345
Capacities and Specifications - 5.0L,Mach 1.........................................................353
Capacities and Specifications - 5.0L........................................................................359
Bulb Specification Chart.........................366
Connected Vehicle
What Is a Connected Vehicle.................368
Connected Vehicle Requirements.......368
Connected Vehicle Limitations.............368
Connecting the Vehicle to a MobileNetwork.....................................................368
Connecting the Vehicle to a Wi-FiNetwork.....................................................368
Connected Vehicle – Troubleshooting -Vehicles With: Modem.........................369
Connected Vehicle – Troubleshooting -Vehicles With: SYNC 3..........................370
Vehicle Wi-Fi Hotspot
Creating a Vehicle Wi-Fi Hotspot..........372
Changing the Vehicle Wi-Fi HotspotName or Password.................................372
Audio System
General Information...................................373
Audio Unit - Vehicles With: 4.2 InchCenter Display Screen...........................373
Audio Unit - Vehicles With: 8 Inch CenterDisplay Screen.........................................375
Digital Radio..................................................377
Satellite Radio..............................................379
USB Port........................................................382
SYNC™
General Information..................................383
Using Voice Recognition..........................384
Using SYNC™ With Your Phone..........386
SYNC™ Applications and Services......387
Using SYNC™ With Your Media Player.......................................................................390
SYNC™ Troubleshooting.........................391
SYNC™ 3
General Information.................................400
Using Voice Recognition..........................402
Entertainment.............................................409
Climate............................................................419
Phone...............................................................421
Navigation.....................................................423
Apps................................................................428
Settings...........................................................431
SYNC™ 3 Troubleshooting.....................433
6
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingTable of Contents

4.Wrap the dual purpose hose (blacktube) around the channel on thebottom of the housing/casing.
5.Wrap the power cord around thehousing and stow the accessory powerplug into its storage area.
Note:If you experience any difficulties withthe removal or installation of the sealantcanister, consult an authorized dealer forassistance.
Make sure you check the sealantcompound’s use-by date regularly. Theuse-by date is on a label on the sealantcanister, which you can see through therectangular viewing window on the bottomof the kit. Replace the sealant canisterwhen the sealant expires.
TIRE CARE
Information About UniformTire Quality Grading
Tire Quality Grades apply to newpneumatic passenger car tires.The Quality grades can be foundwhere applicable on the tiresidewall between tread shoulderand maximum section width. Forexample: Treadwear 200Traction AA Temperature A.
These Tire Quality Grades aredetermined by standards that theUnited States Department ofTransportation has set.
Tire Quality Grades apply to newpneumatic passenger car tires.They do not apply to deep tread,winter-type snow tires,space-saver or temporary usespare tires, light truck or LT typetires, tires with nominal rimdiameters of 10 to 12 inches orlimited production tires as definedin Title 49 Code of FederalRegulations Part 575.104 (c)(2).
307
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE175989 E175990 E142542

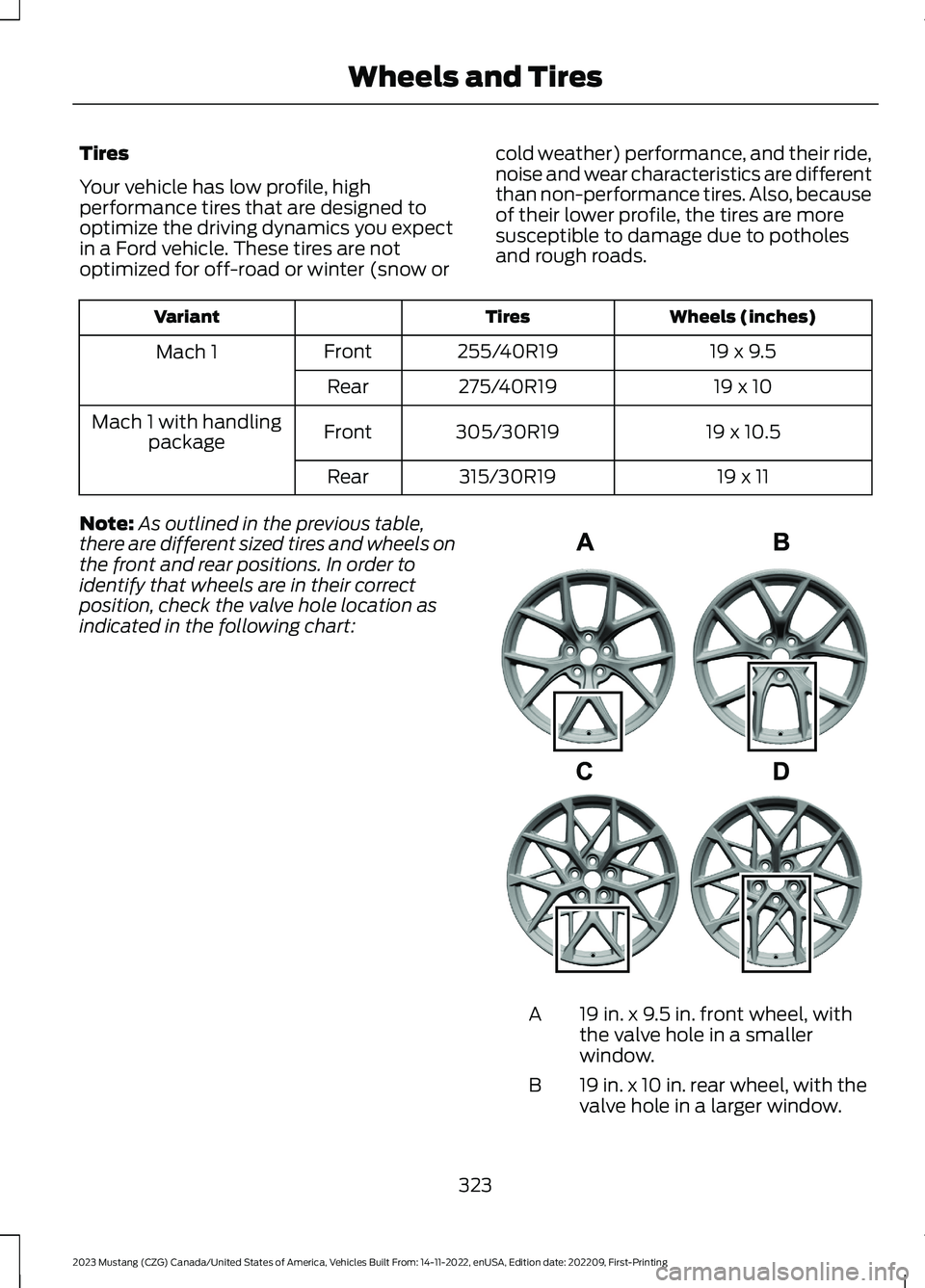

Tires
Your vehicle has low profile, highperformance tires that are designed tooptimize the driving dynamics you expectin a Ford vehicle. These tires are notoptimized for off-road or winter (snow or
cold weather) performance, and their ride,noise and wear characteristics are differentthan non-performance tires. Also, becauseof their lower profile, the tires are moresusceptible to damage due to potholesand rough roads.
Wheels (inches)TiresVariant
19 x 9.5255/40R19FrontMach 1
19 x 10275/40R19Rear
19 x 10.5305/30R19FrontMach 1 with handlingpackage
19 x 11315/30R19Rear
Note:As outlined in the previous table,there are different sized tires and wheels onthe front and rear positions. In order toidentify that wheels are in their correctposition, check the valve hole location asindicated in the following chart:
19 in. x 9.5 in. front wheel, withthe valve hole in a smallerwindow.
A
19 in. x 10 in. rear wheel, with thevalve hole in a larger window.B
323
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE340110

USING WINTER TIRES
Inflate the winter tires to the same tirepressures as those listed in the tirepressures table.
WARNING: Snow tires must be thesame size, load index and speed ratingas those originally provided by Ford. Useof any tire or wheel not recommendedby Ford can affect the safety andperformance of your vehicle, which couldresult in an increased risk of loss ofcontrol, vehicle rollover, personal injuryand death. Additionally, the use ofnon-recommended tires and wheels cancause steering, suspension, axle, transfercase or power transfer unit failure.Follow the Ford recommended tireinflation pressure found on the SafetyCompliance Certification Label (on thedoor hinge pillar, door latch post or thedoor edge that meets the door latchpost, next to the driver seat), or TireLabel on the B-Pillar or the edge of thedriver door. Failure to follow the tirepressure recommendations can causeuneven treadwear patterns andadversely affect the way your vehiclehandles.
USING SNOW CHAINS
WARNING: Aggressive driving inany road conditions can cause you tolose control of your vehicle increasingthe risk of severe personal injury orproperty damage. The traction controlactivating is an indication that at leastsome of the tires have exceeded theirability to grip the road; this may lead toan increased risk of loss of vehiclecontrol, vehicle rollover, personal injuryand death. If you experience a severeroad event,slow down.
The tires on your vehicle could haveall-weather treads to provide traction inrain and snow. In some climates you willneed to use snow tires and chains on yourvehicle in emergency situations or ifrequired by law.
Note:The suspension insulation andbumpers will help prevent vehicle damage.Do not remove these components from yourvehicle when using snow tires and chains.
Follow these guidelines when using snowtires and chains:
•When possible, avoid fully loading yourvehicle.
•Chains could damage aluminumwheels.
•Use ultra low profile cables, 10 mm orless in dimension as measured on thesidewall of your tire, with 235/55R 17,235/50R18 and 255/40R19 on the rearaxle only.
•Do not use snow chains or cables with265/40R19, 275/40R19, 305/30R19,315/30R19, and 265/35R20
•Not all S-class snow chains or cablesmeet these restrictions. Chains of thissize restriction will include a tensioningdevice.
325
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE278852

1.T-type mini-spare: This spare tirebegins with the letter T for tire size andmay have Temporary Use Only molded inthe sidewall.
2.Full-size dissimilar spare with labelon wheel: This spare tire has a label onthe wheel that states: THIS WHEEL ANDTIRE ASSEMBLY FOR TEMPORARY USEONLY.
When driving with one of the dissimilarspare tires listed above, do not:
•Exceed 50 mph (80 km/h).
•Load the vehicle beyond maximumvehicle load rating listed on the SafetyCompliance Label.
•Use snow chains on the end of thevehicle with the dissimilar spare tire.
•Use more than one dissimilar spare tireat a time.
•Use commercial car washingequipment.
•Try to repair the dissimilar spare tire.
Use of one of the dissimilar spare tireslisted above at any one wheel location canlead to impairment of the following:
•Handling, stability and brakingperformance.
•Comfort and noise.
•Ground clearance and parking at curbs.
•Winter weather driving capability.
•Wet weather driving capability.
•All-wheel driving capability.
3.Full-size dissimilar spare withoutlabel on wheel
When driving with the full-size dissimilarspare wheel and tire assembly, do not:
•Exceed 75 mph (120 km/h).
•Use more than one dissimilar sparewheel and tire assembly at a time.
•Use commercial car washingequipment.
•Use snow chains on the end of thevehicle with the dissimilar spare wheeland tire assembly.
The usage of a full-size dissimilar sparewheel and tire assembly can lead toimpairment of the following:
•Handling, stability and brakingperformance.
•Comfort and noise.
•Ground clearance and parking at curbs.
•Winter weather driving capability.
•Wet weather driving capability.
•All-wheel driving capability.
When driving with the full-size dissimilarspare wheel and tire assembly additionalcaution should be given to:
•Driving vehicles with a load on thecargo rack.
Drive cautiously when using a full-sizedissimilar spare wheel and tire assemblyand seek service as soon as possible.
Tire Change Procedure
WARNING: To help prevent yourvehicle from moving when changing awheel, shift the transmission into park(P), set the parking brake and use anappropriate block or wheel chock tosecure the wheel diagonally opposite tothe wheel being changed. For example,when changing the front left wheel,place an appropriate block or wheelchock on the right rear wheel.
331
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and Tires
