2023 FORD MUSTANG heater

Enabling Remote Start..............................123
Remotely Starting the Engine.................123
Extending the Remote Start Duration.........................................................................123
Remotely Stopping the Engine...............124
Remote Start Remote Control Indicators.........................................................................124
Remote Start Settings...............................124
Climate Control
Manual Climate Control............................126
Automatic Climate Control......................127
Hints on Controlling the Interior Climate- Vehicles With: Manual TemperatureControl.........................................................129
Hints on Controlling the Interior Climate- Vehicles With: AutomaticTemperature Control.............................130
Heated Rear Window..................................131
Heated Exterior Mirrors...............................131
Interior Air Quality
What Is the Cabin Air Filter.......................132
Locating the Cabin Air Filter.....................132
Replacing the Cabin Air Filter..................132
Seats
Sitting in the Correct Position.................133
Head Restraints............................................133
Manual Seats................................................135
Power Seats..................................................136
Memory Function........................................136
Rear Seats......................................................138
Climate Controlled Seats.........................138
Garage Door Opener
What Is the Garage Door Opener..........140
How Does the Garage Door Opener Work........................................................................140
Garage Door Opener Precautions.........140
Garage Door Opener Limitations..........140
Programming the Garage Door Openerto Your Hand-Held Transmitter..........141
Programming the Garage Door Openerto Your Garage Door Opener Motor..........................................................................141
Programming the Garage Door Openerto Your Gate Opener Motor.................142
Clearing the Garage Door Opener.........142
Reprogramming the Garage Door Opener.........................................................................143
Garage Door Opener Radio Frequencies.........................................................................143
Auxiliary Power Points
Auxiliary Power Points...............................144
Storage Compartments
Center Console.............................................145
Glasses Holder.............................................145
Starting and Stopping theEngine
General Information...................................146
Keyless Starting...........................................146
Steering Wheel Lock...................................147
Starting a Gasoline Engine.......................147
Engine Block Heater...................................150
Fuel and Refueling
Safety Precautions......................................152
Fuel Quality....................................................152
Fuel Filler Funnel Location.......................153
Running Out of Fuel....................................153
Refueling.........................................................155
Fuel Consumption.......................................157
Engine Emission Control
Emission Law................................................159
Catalytic Converter.....................................160
3
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingTable of Contents

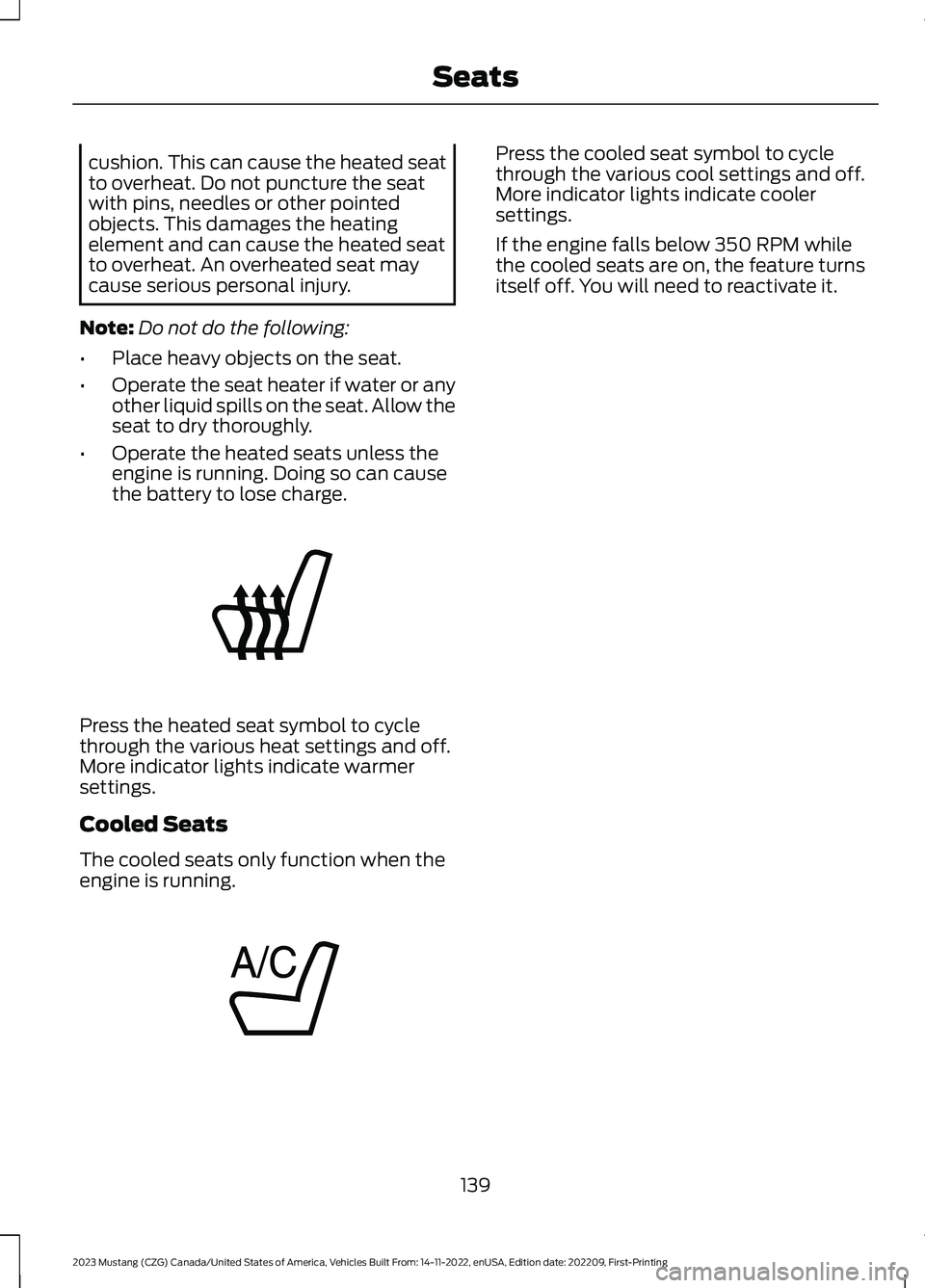

cushion. This can cause the heated seatto overheat. Do not puncture the seatwith pins, needles or other pointedobjects. This damages the heatingelement and can cause the heated seatto overheat. An overheated seat maycause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat.
•Operate the seat heater if water or anyother liquid spills on the seat. Allow theseat to dry thoroughly.
•Operate the heated seats unless theengine is running. Doing so can causethe battery to lose charge.
Press the heated seat symbol to cyclethrough the various heat settings and off.More indicator lights indicate warmersettings.
Cooled Seats
The cooled seats only function when theengine is running.
Press the cooled seat symbol to cyclethrough the various cool settings and off.More indicator lights indicate coolersettings.
If the engine falls below 350 RPM whilethe cooled seats are on, the feature turnsitself off. You will need to reactivate it.
139
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingSeatsE146322 E146309

Important Ventilating Information
If you stop your vehicle and the leave theengine idling for long periods, werecommend that you do one of thefollowing:
•Open the windows at least 1 in(2.5 cm).
•Set your climate control to outside air.
ENGINE BLOCK HEATER (IF
EQUIPPED)
WARNING: Failure to follow engineblock heater instructions could result inproperty damage or serious personalinjury.
WARNING: Do not use your heaterwith ungrounded electrical systems ortwo-pronged adapters. There is a risk ofelectrical shock.
WARNING: Do not fully close thehood, or allow it to drop under its ownweight when using the engine blockheater. This could damage the powercable and may cause an electrical shortresulting in fire, injury and propertydamage.
Note:The heater is most effective whenoutdoor temperatures are below 0°F(-18°C).
The heater acts as a starting aid bywarming the engine coolant. This allowsthe climate control system to respondquickly. The equipment includes a heaterelement, installed in the engine block anda wire harness. You can connect thesystem to a grounded 120-volt ACelectrical source.
We recommend that you do the followingfor a safe and correct operation:
•Use a 16-gauge outdoor extension cordthat is product certified byUnderwriter’s Laboratory (UL) orCanadian Standards Association(CSA). This extension cord must besuitable for use outdoors, in coldtemperatures, and be clearly markedSuitable for Use with OutdoorAppliances. Do not use an indoorextension cord outdoors. This couldresult in an electric shock or become afire hazard.
•Use as short an extension cord aspossible.
•Do not use multiple extension cords.
•Make sure that when in operation, theextension cord plug and heater cordplug connections are free and clear ofwater. This could cause an electricshock or fire.
•If the block heater cord is under thehood, Do Not remove the wiring fromits original location. Do Not close thehood on the extension wiring.
•Make sure your vehicle is parked in aclean area, clear of combustibles.
•Make sure the heater, heater cord andextension cord are firmly connected.
•Check for heat anywhere in theelectrical hookup once the system hasbeen operating for approximately 30minutes.
•Make sure the system is unplugged andproperly stowed before starting anddriving your vehicle. Make sure theprotective cover seals the prongs of theblock heater cord plug when not in use.
•Make sure the heater system ischecked for proper operation beforewinter.
150
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingStarting and Stopping the Engine

Using the Engine Block Heater
Make sure the receptacle terminals areclean and dry prior to use. Clean them witha dry cloth if necessary.
The heater uses 0.4 to 1.0 kilowatt-hoursof energy per hour of use. The system doesnot have a thermostat. It achievesmaximum temperature afterapproximately three hours of operation.Using the heater longer than three hoursdoes not improve system performance andunnecessarily uses electricity.
151
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingStarting and Stopping the Engine

Vehicles equipped withdifferent size tires on the frontand rear axle
USING SUMMER TIRES
Summer tires provide superiorperformance on wet and dry roads.Summer tires do not have the Mud andSnow (M+S or M/S) tire traction rating onthe tire sidewall. Since summer tires do nothave the same traction performance asAll-season or Snow tires, we do notrecommend using summer tires whentemperatures drop to about 45°F (7°C) orbelow (depending on tire wear andenvironmental conditions) or in snow and
ice conditions. Like any tire, summer tireperformance is affected by tire wear andenvironmental conditions. If you must drivein those conditions, we recommend usingMud and Snow (M+S, M/S), All-season orSnow tires.
Always store your summer tires indoors attemperatures above 19°F (-7°C). Therubber compounds used in these tires loseflexibility and may develop surface cracksin the tread area at temperatures below19°F (-7°C). If the tires have beensubjected to 19°F (-7°C) or less, warmthem in a heated space to at least 41°F(5°C) for at least 24 hours before installingthem on a vehicle, or moving the vehiclewith the tires installed, or checking tireinflation. Do not place tires near heatersor heating devices used to warm the roomwhere the tires are stored. Do not applyheat or blow heated air directly on the tires.Always inspect the tires after storageperiods and before use.
Mach 1 Handling Package (If Equipped)
Wheels
Your vehicle has unique wheels matchedto the tires. These wheels are moresusceptible to damage due to theirdiameter, width, and low profile tires.
To avoid damage to your wheels:
•Maintain proper tire pressure
•When installing wheels, always torquelug nuts to specification with a torquewrench.
•Inspect your wheels for damage on aregular basis. If a wheel is damaged,replace it immediately.
•In the event that you encounter aabnormally harsh impact, inspect theouter diameter of your wheels, bothinside and out, for damage.
322
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE142548 E209823

SiriusXM Traffic and Travel Link (If
Equipped)
WARNING: Driving while distractedcan result in loss of vehicle control, crashand injury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is thesafe operation of your vehicle. Werecommend against the use of anyhand-held device while driving andencourage the use of voice-operatedsystems when possible. Make sure youare aware of all applicable local lawsthat may affect the use of electronicdevices while driving.
Note:SiriusXM Traffic and Travel Link maynot be available in all markets.
Note:In order to use SiriusXM Traffic andTravel Link, your vehicle must havenavigation.
Note:A paid subscription is required toaccess and use these features. Go towww.siriusxm.com/travellink for moreinformation.
Note:Visit www.siriusxm.com/traffic andclick on Coverage map and details for acomplete listing of all traffic areas coveredby SiriusXM Traffic and Travel Link.
Note:Neither Sirius nor Ford is responsiblefor any errors or inaccuracies in the SiriusXMTraffic and Travel Link services or its use invehicles.
When you subscribe to SiriusXM Trafficand Travel Link, it can help you locate thebest gas prices, find movie listings, getcurrent traffic alerts, view the currentweather map, get accurate ski conditionsand see scores to current sports games.
Action and DescriptionMenu Item
Touch these buttons to identify traffic incidents on your route,near your vehicle’s current location or near any of your favoriteplaces, if programmed.
Traffic on Route
Traffic Nearby
Touch this button to view fuel prices at stations close to yourvehicle’s location or on an active navigation route.Fuel Prices
Touch this button to view nearby movie theaters and theirshow times, if available.Movie Listings
Touch this button to view the nearby weather, current weather,or the five-day forecast for the chosen area.Weather
Select to see the weather map,which can show storms, radarinformation, charts and winds.
Map
430
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingSYNC™ 3 (If Equipped)

Multi-Point Inspection
In order to keep your vehicle running right,it is important to have the systems on yourvehicle checked regularly. This can helpidentify potential issues and prevent major
problems. We recommend having thefollowing multi-point inspection performedat every scheduled maintenance intervalto help make sure your vehicle keepsrunning great.
Multi-Point inspection
Hazard warning system operation.Accessory drive belts.
Horn operation.Battery performance.
Radiator, cooler, heater and air conditioninghoses.Engine air filter.
Suspension components for leaks ordamage.Exhaust system.
Steering and linkage.Exterior lamps operation.
Tires, including spare, for wear and proper
pressure.2Fluid levels; fill if necessary.1
Windshield for cracks, chips or pits.For oil and fluid leaks.
Washer spray and wiper operation.Half-shaft dust boots.
1 Brake, coolant recovery reservoir, automatic transmission and window washer.2 If your vehicle is equipped with a temporary mobility kit, check the tire sealant expirationUse By date on the canister. Replace as needed.
Be sure to ask your dealership serviceadvisor or technician about the multi-pointvehicle inspection. It is a comprehensiveway to perform a thorough inspection ofyour vehicle. Your checklist gives youimmediate feedback on the overallcondition of your vehicle.
NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle has an Intelligent Oil-LifeMonitor that determines when you shouldchange the engine oil based on how youuse your vehicle. By using severalimportant factors in its calculations, themonitor helps reduce the cost of owningyour vehicle and reduces environmentalwaste at the same time.
452
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingScheduled Maintenance

E
Electromagnetic Compatibility..............496Emission Law.................................................159Enabling Remote Start...............................123End User License Agreement.................499Engine Block Heater....................................150Engine Coolant Check...............................265Engine Emission Control............................159Engine ImmobilizerSee: Passive Anti-Theft System.....................73Engine Oil Check..........................................262Engine Oil Dipstick......................................262Engine Specifications - 2.3LEcoBoost™..................................................337Engine Specifications - 5.0L, Mach1........................................................................337Engine Specifications - 5.0L...................339Entertainment..............................................409Environment.....................................................22Essential Towing Checks...........................221Event Data RecordingSee: Data Recording.............................................15Export Unique Options..................................21Extending the Remote StartDuration.........................................................123Exterior Mirrors................................................87
F
Fastening the Seatbelts...............................41Flat TireSee: Changing a Road Wheel.......................330Flat Tire InflationSee: Tire Sealant and Inflator Kit.................301Floor Mats........................................................231Fog Lamps - FrontSee: Front Fog Lamps........................................82Ford Credit.........................................................19Ford Protect...................................................447Front Fog Lamps............................................82Front Passenger Sensing System............50Fuel and Refueling.......................................152Fuel Consumption........................................157Fuel Filler Funnel Location........................153Fuel Filter.........................................................275Fuel Quality.....................................................152Fuel Shutoff...................................................234
Fuses................................................................246Fuse Specification Chart..........................246
G
Garage Door Opener...................................140Garage Door Opener Limitations...........140Garage Door Opener Precautions..........140Garage Door Opener RadioFrequencies.................................................143Gauges - Mach 1.............................................90Gauges - Vehicles With: 12.3 InchInstrument Cluster DisplayScreen.............................................................90Gauges - Vehicles With: 4.2 InchInstrument Cluster DisplayScreen..............................................................92GearboxSee: Transmission..............................................163General Information on RadioFrequencies...................................................58General Maintenance Information.......449Getting Assistance Outside the U.S. andCanada.........................................................242Getting the Services You Need...............239Glasses Holder...............................................145Global Opening..............................................86
H
HandbrakeSee: Parking Brake..............................................172Hazard Flashers............................................234Headlamp AdjustingSee: Adjusting the Headlamps.....................274Headlamp Exit Delay.....................................81HeadrestSee: Head Restraints.........................................133Head Restraints.............................................133Heated Exterior Mirrors................................131Heated Rear Window...................................131HeatingSee: Climate Control.........................................126Hill Start Assist..............................................173Hints on Controlling the Interior Climate- Vehicles With: AutomaticTemperature Control...............................130
527
