Exterior Lighting
Exterior Lighting Control.............................92
Headlamps......................................................92
Headlamps – Troubleshooting................93
Autolamps.......................................................93
Exterior Lamps...............................................94
Automatic High Beam Control................95
Automatic High Beam Control –Troubleshooting........................................97
Interior Lighting
Switching All of the Interior Lamps Onand Off.........................................................98
Switching the Front Interior Lamps Onand Off.........................................................98
Switching the Rear Interior Lamps Onand Off.........................................................98
Interior Lamp Function...............................98
Adjusting the Instrument Panel LightingBrightness...................................................98
Ambient Lighting..........................................98
Interior Lighting – Troubleshooting.......99
Windows
Opening and Closing the Windows......100
Window Bounce-Back..............................100
Locking the Rear Window Controls.......101
Opening and Closing the SlidingWindows......................................................101
Interior Mirror
Interior Mirror Precautions.......................102
Manually Dimming the Interior Mirror.........................................................................102
Exterior Mirrors
Adjusting the Exterior Mirrors.................103
Folding the Exterior Mirrors - VehiclesWith: Manual Folding Mirrors.............104
Moonroof
Opening and Closing the Sunshade.....105
Opening and Closing the Moonroof......105
Venting the Moonroof...............................105
Moonroof Bounce-Back...........................106
Instrument Cluster
Instrument Cluster Overview - Gasoline,Vehicles With: 4.2 Inch Screen...........107
Instrument Cluster Overview - Gasoline,Vehicles With: 6.5 Inch Screen..........108
Instrument Cluster Overview - HybridElectric Vehicle (HEV), Vehicles With:4.2 Inch Screen........................................109
Instrument Cluster Overview - HybridElectric Vehicle (HEV), Vehicles With:6.5 Inch Screen.........................................110
Tachometer - Gasoline..............................110
Power Gauge - Hybrid Electric Vehicle(HEV)............................................................110
Speedometer..................................................111
Fuel Gauge.......................................................111
Engine Coolant Temperature Gauge...........................................................................111
What Is the Information Bar......................111
What Are the Instrument ClusterWarning Lamps..........................................111
Instrument Cluster Warning Lamps......112
What Are the Instrument ClusterIndicators.....................................................113
Instrument Cluster Indicators..................113
Instrument Cluster Display
Using the Instrument Cluster DisplayControls........................................................115
Instrument Cluster Display Main Menu -Vehicles With: 4.2 Inch Screen............115
Instrument Cluster Display Main Menu -Vehicles With: 6.5 Inch Screen............116
Customizing the Instrument ClusterDisplay - Vehicles With: 4.2 InchScreen...........................................................116
3
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingTable of Contents

IDENTIFYING THE CLIMATE
CONTROL UNIT
Depending on your vehicle options, thecontrols could look different than what yousee here.
SWITCHING CLIMATE
CONTROL ON AND OFF
Press the button.
SWITCHING RECIRCULATED
AIR ON AND OFF
Press the button to recirculateair currently in the passengercompartment.
Note:Recirculated air may turn offautomatically, or prevent you from switchingon in all air flow modes except MAX A/C toreduce the risk of fogging. Recirculation mayalso turn on and off automatically in variousair distribution control combinations toimprove heating or cooling efficiency.
SWITCHING AIR
CONDITIONING ON AND OFF
Press the button.
Note:Under certain conditions, the airconditioning compressor could continue tooperate after you switch air conditioning off.
Note:To keep the system and itscomponents fully functional, switch airconditioning on and let your vehicle idle atleast once per month for a minimum of twominutes.
SWITCHING MAXIMUM
DEFROST ON AND OFF
Press the button.
Air flows through the windshield air vents,and the blower motor adjusts to thehighest speed.
You can also use this setting to defog andclear the windshield of a thin covering ofice.
Note:To prevent window fogging, youcannot select recirculated air whenmaximum defrost is on.
Note:The heated wiper park also turns onwhen you select maximum defrost.
SWITCHING MAXIMUM
COOLING ON AND OFF
Press the button.
Note:When you switch maximum coolingoff, air conditioning remains on.
SWITCHING THE HEATED
WIPER PARK ON AND OFF (IF
EQUIPPED)
When you switch the heatedmirrors on, the heated wiper parkalso turns on.
125
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingClimate Control - Vehicles With: Dual Automatic TemperatureControl (DATC)E352781 E351062 E266189

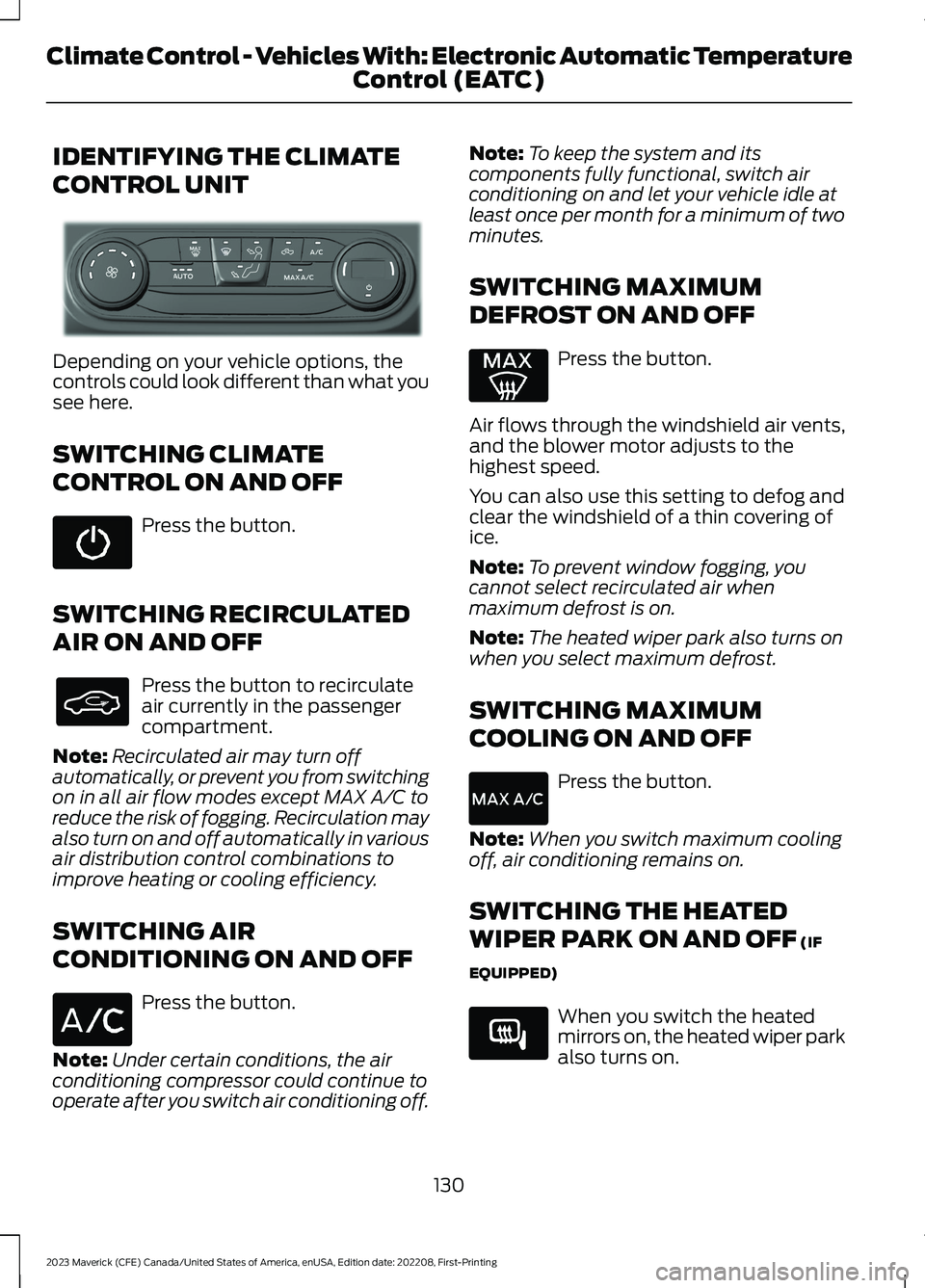

IDENTIFYING THE CLIMATE
CONTROL UNIT
Depending on your vehicle options, thecontrols could look different than what yousee here.
SWITCHING CLIMATE
CONTROL ON AND OFF
Press the button.
SWITCHING RECIRCULATED
AIR ON AND OFF
Press the button to recirculateair currently in the passengercompartment.
Note:Recirculated air may turn offautomatically, or prevent you from switchingon in all air flow modes except MAX A/C toreduce the risk of fogging. Recirculation mayalso turn on and off automatically in variousair distribution control combinations toimprove heating or cooling efficiency.
SWITCHING AIR
CONDITIONING ON AND OFF
Press the button.
Note:Under certain conditions, the airconditioning compressor could continue tooperate after you switch air conditioning off.
Note:To keep the system and itscomponents fully functional, switch airconditioning on and let your vehicle idle atleast once per month for a minimum of twominutes.
SWITCHING MAXIMUM
DEFROST ON AND OFF
Press the button.
Air flows through the windshield air vents,and the blower motor adjusts to thehighest speed.
You can also use this setting to defog andclear the windshield of a thin covering ofice.
Note:To prevent window fogging, youcannot select recirculated air whenmaximum defrost is on.
Note:The heated wiper park also turns onwhen you select maximum defrost.
SWITCHING MAXIMUM
COOLING ON AND OFF
Press the button.
Note:When you switch maximum coolingoff, air conditioning remains on.
SWITCHING THE HEATED
WIPER PARK ON AND OFF (IF
EQUIPPED)
When you switch the heatedmirrors on, the heated wiper parkalso turns on.
130
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingClimate Control - Vehicles With: Electronic Automatic TemperatureControl (EATC)E352780 E266189
