2023 FORD F150 turn signal bulb

EXTERIOR BULBS
EXTERIOR BULB SPECIFICATIONCHART
Replacement bulbs are specified in thechart below. Headlamp bulbs must be
marked with an authorized D.O.T. markingfor North America to make sure they havethe proper lamp performance, lightbrightness, light pattern and safe visibility.The correct bulbs will not damage thelamp assembly or void the lamp assemblywarranty and will provide quality bulbillumination time.
Power (Watt)SpecificationLamp
16912Central high mounted stop lamp.
LEDLEDCentral high mounted cargo lamp.Vehicles with cargo box.
LEDLEDDaytime running lamp (XLT optional,Lariat, Platinum, King Ranch, Limited,Raptor).
55H11Daytime running lamp (XLT optional,XL).
LEDLEDFront turn signal and parking lamp(XLT optional, Lariat, Platinum, KingRanch, Limited).
21/54257NAFront turn signal and parking lamp(XLT optional, XL).
LEDLEDFront fog lamp (XLT optional, Lariat,Platinum, King Ranch, Limited,Raptor).
559140Front fog lamp (XL and XLT optional).
LEDLEDFront side marker lamp (Lariatoptional, Platinum, King Ranch,Limited).
5W5WFront side marker lamp (Lariatoptional, XL, XLT).
LEDLEDHeadlamp (XLT optional, Lariat, Plat-inum, King Ranch, Limited).
55H11Headlamp low beam (XLT optional,XL).
659005Headlamp high beam (XLT optional,XL).
517
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenance

Replacing the Halogen High Beamand Low Beam Bulbs
Low beam headlamp bulb.A.
Turn signal lamp bulb.B.
High beam headlamp bulb.C.
1.Make sure the headlamps are off.
2.For the high beam and low beam bulbs,remove the rubber cap to access thebulbs.
3.Remove the bulb holder from the lampassembly by turning itcounterclockwise and pulling it straightout.
4.Disconnect the bulb from the electricalconnector.
5.To install, reverse the removalprocedure.
Note:Handle a halogen headlamp bulbcarefully and keep out of children’s reach.Grasp the bulb only by its plastic base anddo not touch the glass. The oil from yourhand could cause the bulb to break the nexttime the headlamps are operated.
520
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenance E183500 E183763

Note:If the bulb is accidentally touched,clean it with rubbing alcohol beforeinstalling it.
CHANGING A FRONT TURNSIGNAL LAMP BULB
WARNING: Make sure the bulbshave cooled down before removingthem. Failure to follow this warning couldresult in serious personal injury.
1.Rotate the steering wheel to theopposite side of the bulb needingreplacement.
2.Remove the screws and push pins fromthe front of the wheel liner.
3.Pull the wheel liner back toward thetire to gain access to the bulb.
Low beam headlamp bulb.A.
Turn signal lamp bulb.B.
High beam headlamp bulb.C.
521
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE183762 E183500

4.Remove the bulb holder from the lampassembly by turning itcounterclockwise and pulling it straightout.
5.Disconnect the bulb from the electricalconnector.
6.To install, reverse the removalprocedure.

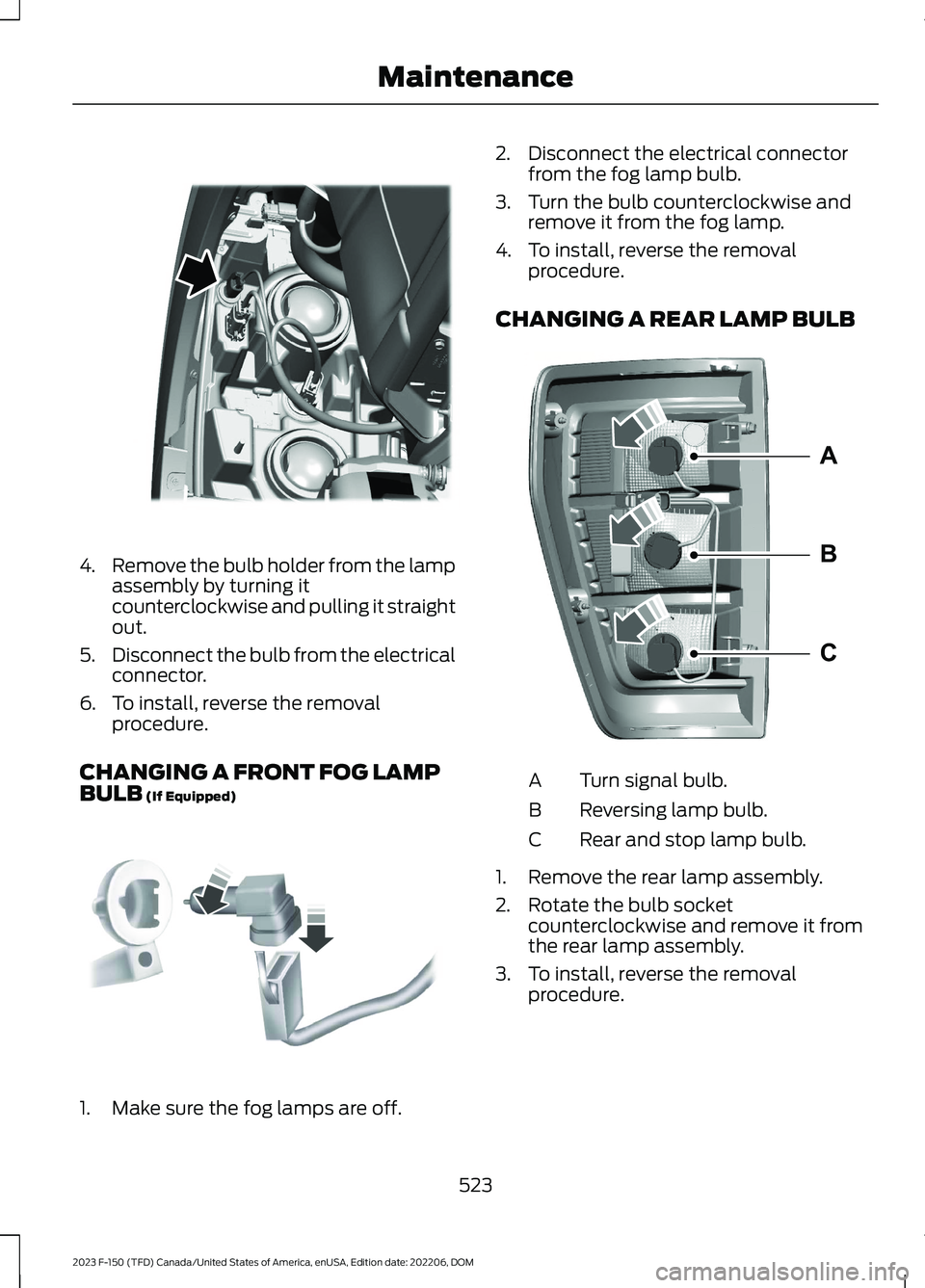

CHANGING A FRONT FOG LAMPBULB (If Equipped)
1.Make sure the fog lamps are off.
2.Disconnect the electrical connectorfrom the fog lamp bulb.
3.Turn the bulb counterclockwise andremove it from the fog lamp.
4.To install, reverse the removalprocedure.
CHANGING A REAR LAMP BULB
Turn signal bulb.A
Reversing lamp bulb.B
Rear and stop lamp bulb.C
1.Remove the rear lamp assembly.
2.Rotate the bulb socketcounterclockwise and remove it fromthe rear lamp assembly.
3.To install, reverse the removalprocedure.
523
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE338050 E163826 ABCE358899

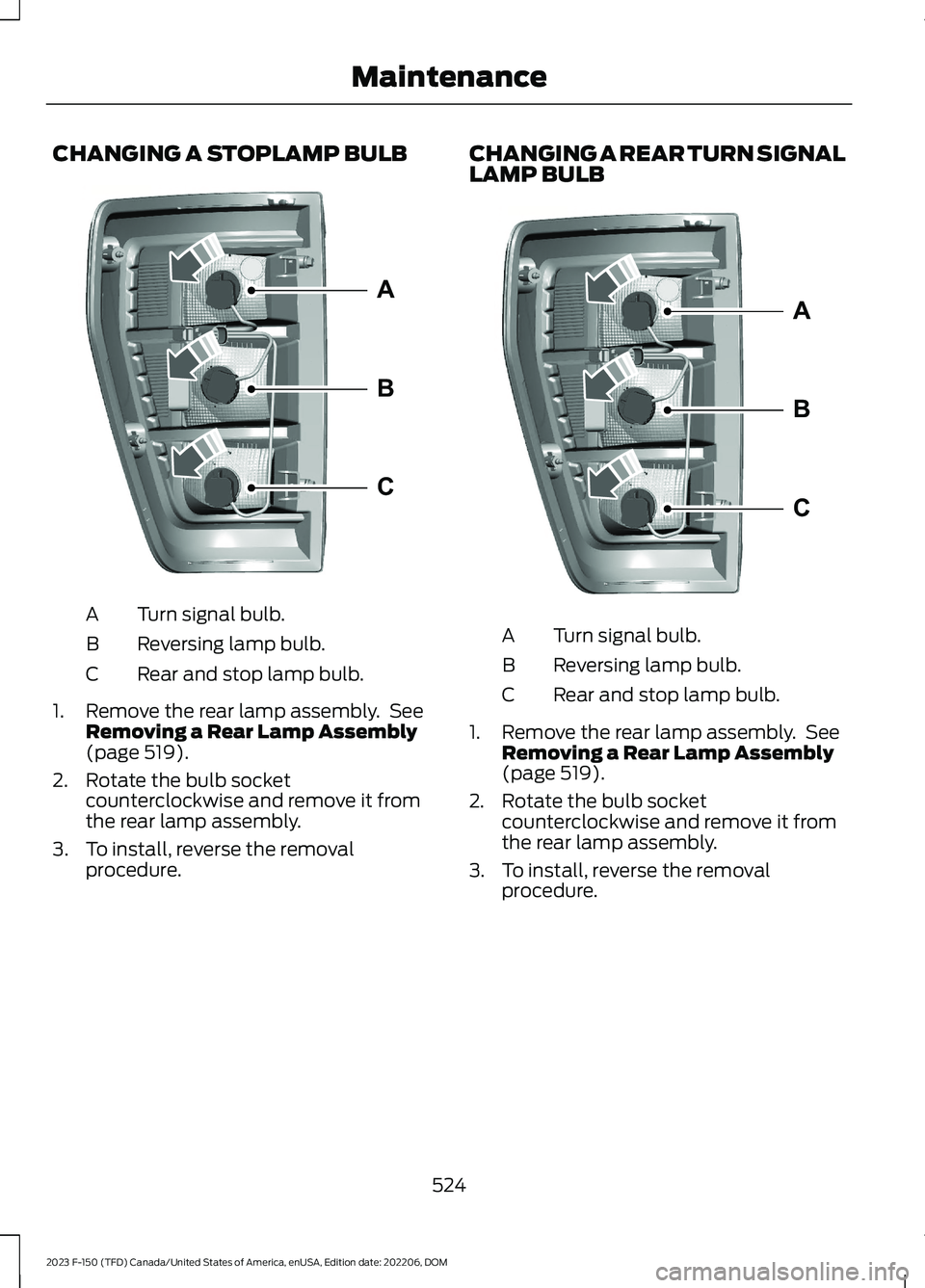

CHANGING A STOPLAMP BULB
Turn signal bulb.A
Reversing lamp bulb.B
Rear and stop lamp bulb.C
1.Remove the rear lamp assembly. SeeRemoving a Rear Lamp Assembly(page 519).
2.Rotate the bulb socketcounterclockwise and remove it fromthe rear lamp assembly.
3.To install, reverse the removalprocedure.
CHANGING A REAR TURN SIGNALLAMP BULB
Turn signal bulb.A
Reversing lamp bulb.B
Rear and stop lamp bulb.C
1.Remove the rear lamp assembly. SeeRemoving a Rear Lamp Assembly(page 519).
2.Rotate the bulb socketcounterclockwise and remove it fromthe rear lamp assembly.
3.To install, reverse the removalprocedure.
524
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceABCE358899 ABCE358899

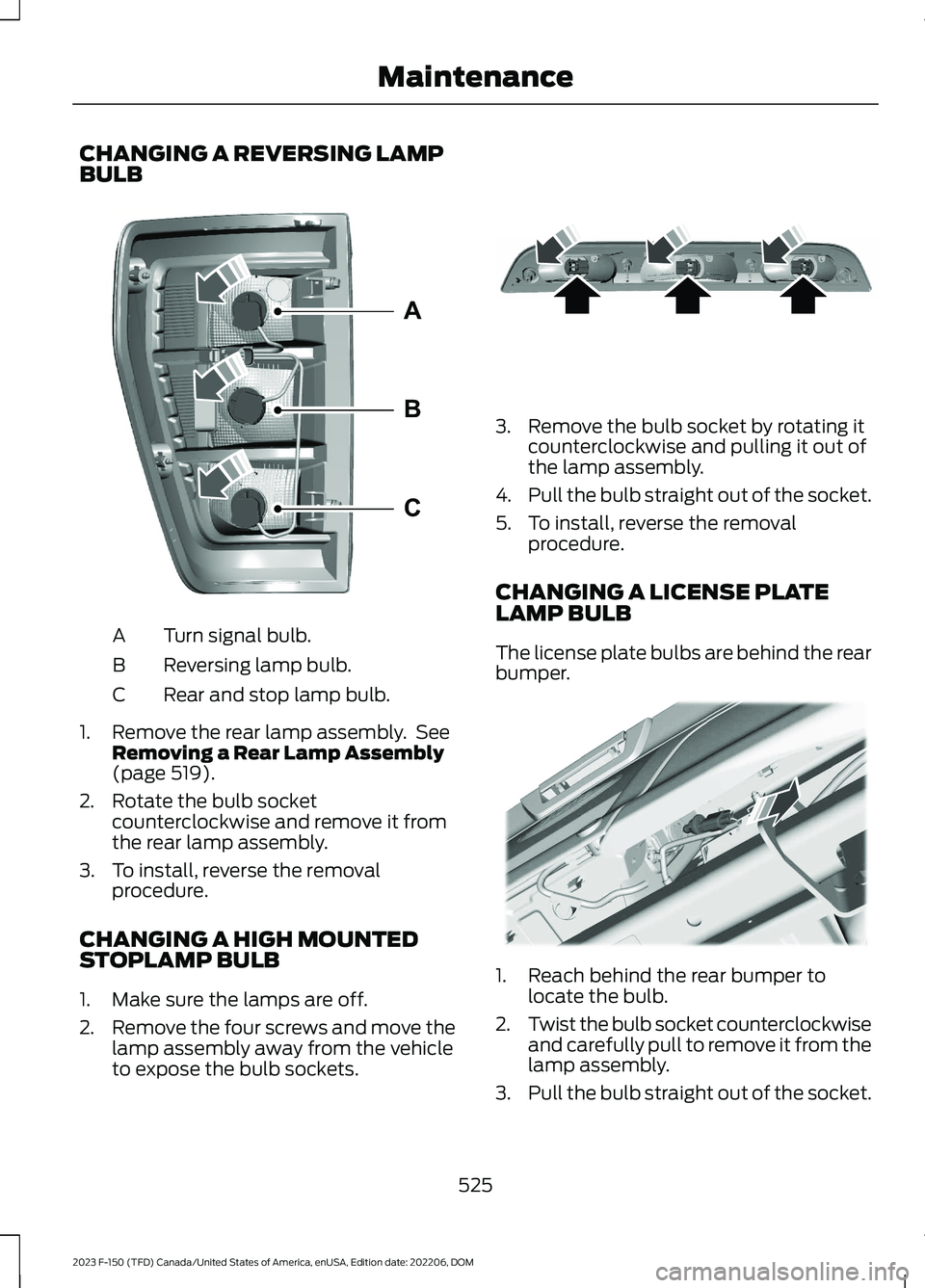

CHANGING A REVERSING LAMPBULB
Turn signal bulb.A
Reversing lamp bulb.B
Rear and stop lamp bulb.C
1.Remove the rear lamp assembly. SeeRemoving a Rear Lamp Assembly(page 519).
2.Rotate the bulb socketcounterclockwise and remove it fromthe rear lamp assembly.
3.To install, reverse the removalprocedure.
CHANGING A HIGH MOUNTEDSTOPLAMP BULB
1.Make sure the lamps are off.
2.Remove the four screws and move thelamp assembly away from the vehicleto expose the bulb sockets.
3.Remove the bulb socket by rotating itcounterclockwise and pulling it out ofthe lamp assembly.
4.Pull the bulb straight out of the socket.
5.To install, reverse the removalprocedure.
CHANGING A LICENSE PLATELAMP BULB
The license plate bulbs are behind the rearbumper.
1.Reach behind the rear bumper tolocate the bulb.
2.Twist the bulb socket counterclockwiseand carefully pull to remove it from thelamp assembly.
3.Pull the bulb straight out of the socket.
525
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceABCE358899 E187290 E187794
