Starting the vehicle
To start your E-MEHARI, you should:
1.Unlock your E-MEHARI using your
personal RFID key ring.
2. Insert the key in the starting switch then
turn it to the MAR position. The welcome
screen appears.
3. When you are invited to do so, turn
the key to the AV V position, holding it
until you hear an audible signal (beep).
Release the key, the switch automatically
returns to the MAR position. The
message "Ready to move off, Select D
or R" appears in the instrument panel
screen. 4.
Press the brake pedal.
5. Put the drive selector to position "D"
(Drive) or "R" (Reverse).
6. Release the manual parking brake.
Your E-MEHARI is a silent electric vehicle.
Your E-MEHARI does not generate any
noise when its electrical motor is started.
When performing any manoeuvre:
please pay increased attention to your
environment, especially to pedestrians,
cyclists and other vehicles moving on the
road.
Switching off the vehicle
To park your E-MEHARI, you should:
1. Place the vehicle in a
secure area
suitable for parking.
2. Immobilise the vehicle.
3. Put the drive selector to position "N".
4. Apply the manual parking brake.
5. Switch off and remove the key from the
starting switch.
Control pedals
Your E-MEHARI has two control pedals:
(1) Accelerator pedal.
(2) Brake pedal.
Ensure that the pedals are always freely
accessible.
Driving

61

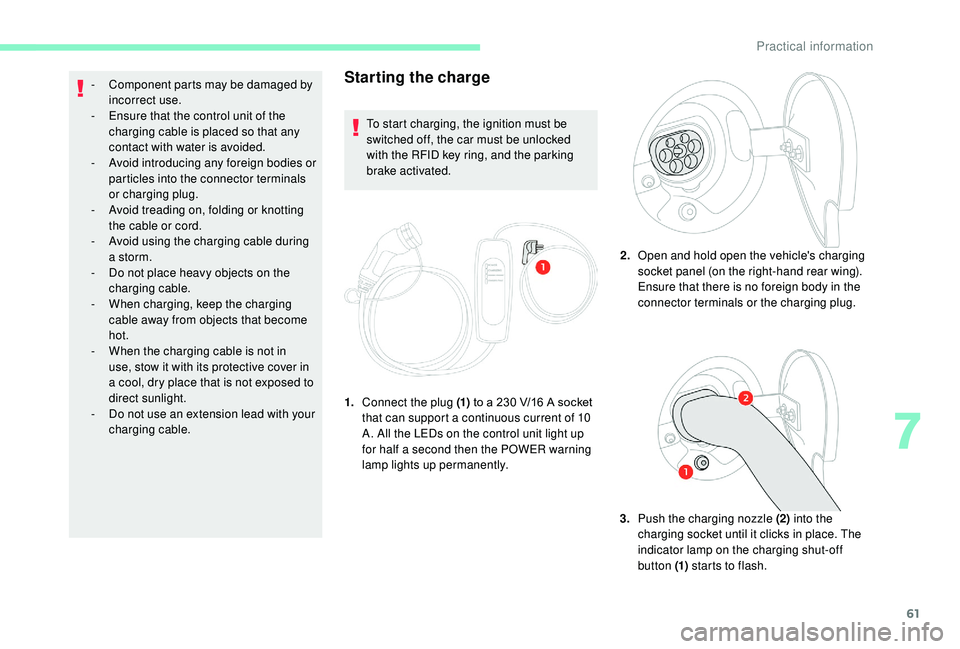

Starting the charge
To start charging, the ignition must be
switched off, the car must be unlocked
with the RFID key ring, and the parking
brake activated.
1. Connect the plug (1) to a
230 V/16 A socket
that can support a
continuous current of 10
A. All the LEDs on the control unit light up
for half a
second then the POWER warning
lamp lights up permanently. 2.
Open and hold open the vehicle's charging
socket panel (on the right-hand rear wing).
Ensure that there is no foreign body in the
connector terminals or the charging plug.
3. Push the charging nozzle (2) into the
charging socket until it clicks in place. The
indicator lamp on the charging shut-off
button (1) starts to flash.
-

C

omponent parts may be damaged by
incorrect use.
-
E
nsure that the control unit of the
charging cable is placed so that any
contact with water is avoided.
-

A

void introducing any foreign bodies or
particles into the connector terminals
or charging plug.
-

A

void treading on, folding or knotting
the cable or cord.
-
A

void using the charging cable during
a


storm.
-

D

o not place heavy objects on the
charging cable.
-
W

hen charging, keep the charging
cable away from objects that become
hot.
-

W

hen the charging cable is not in
use, stow it with its protective cover in
a

cool, dry place that is not exposed to
direct sunlight.
-

D

o not use an extension lead with your
charging cable.
7
Practical information

62
Stopping the charge
The charging nozzle will only disconnect if
your E-MEHARI is unlocked using the personal
RFID key ring.
1.Press the charging shut-off button in
the charging socket panel, wait until the
charging nozzle is unlocked then pull it
out. If you do not remove the charging
nozzle within the next 10
seconds, the
vehicle star ts charging again. You will
then have to star t the operation again.
2. Refit the protective cover on the charging
nozzle.
3. Disconnect the plug from the power point.
4.
Charging starts automatically. The
CHARGING indicator lamp on the control
unit comes on to indicate that charging is
in progress.
Several signals indicate that the vehicle's
battery is charging:
-

T

he right-hand rear lamp flashes 5

times at
the start of the charge.
-

T

he charging indicator lamp (in the form of
a

green plug) in the display screen flashes
continuously.
Flashing green continuously: charging is in
progress.
Fixed green: charging is complete.
-

T

he indicator lamp on the charging shut-off
button gives the same indication as the
charging indicator lamp on the display.
Flashing green continuously: charging is in
progress.
Fixed green: charging is complete.
If the central screen is lit, the message
"Charging" will be displayed as well as an
estimate of the charge time remaining. Notes on charging
Once you have connected your
E-MEHARI, you have 30

seconds to lock
the vehicle.
After this, your E-MEHARI will remain
unlocked.
However, as a

security measure, the
driving permissions will be cancelled.
-

I

f you wish to use your E-MEHARI
again, offer up your key ring in front of
the RFID reader to regain the driving
permissions.
-

T

o lock your E-MEHARI, scan twice.
The 1
st time will be interpreted as
a

recovery of the driving permissions, the
2
nd time will lock the vehicle.
Practical information

65
If you notice when driving that the bonnet
is not closed correctly, slow down and
stop where it is safe to do so, and then
close the bonnet correctly.
Underbonnet layout
(1)Drive train
(2) Your E-MEHARI's heating system
(3) Motor coolant
Return the stay to its original position and allow
the bonnet to drop and latch home.
Check that the bonnet has latched correctly.
There are high voltage components under
the bonnet of your E-MEHARI.
We recommend that you do not attempt
to per form maintenance on your vehicle
yourself.
Incorrect handling of these components
could cause an electric shock and serious
or fatal injuries.
Brake fluid and motor
coolant levels
Make a regular visual check of the brake fluid
an d coolant levels.
These levels should be topped up by
a
CITROËN authorised repairer or a qualified
professional.
If work is needed on your vehicle, contact
a
CITROËN authorised repairer or
a


qualified professional without delay.
(4)
Brake fluid
(5) Screenwash fluid reservoir
(6) Heating system fluid
Screenwash fluid level
Always per form the following operations in
the order indicated before carrying out any
operations under the bonnet of your E-MEHARI
to top up the screenwash fluid level:
1.Park the vehicle in a
safe place
2. Press and hold the brake pedal in this
position until you have switched off the
ignition
3. Apply the parking brake fully
4. Move the drive selector to position "N"
5. Switch off the ignition and remove the key
from the switch
6. Keep children and other persons away
from the underbonnet
7. Ensure that the vehicle is correctly
immobilised
Failure to follow the list of operations
above risks causing serious injury.
Always carry out the operations in the
order given and always obser ve the safety
recommendations.
7
Practical information

66
To top up the screenwash fluid: remove the cap
from the reser voir, place a funnel in the neck
of the reser voir and fill the reser voir up to the
"MAX" mark.
In low temperatures, use a
screenwash
fluid with adequate protection against
freezing.
Always be extremely vigilant when
filling the screenwash reservoir and
take account of the general safety
recommendations mentioned in this
handbook.
Hibernation mode
Hibernation mode allows the consumption
of energy from the battery to be reduced to
a


minimum.
In this way you can park your E-MEHARI, not
connected and therefore with no consumption
of electrical energy, for several weeks or even
several months.
Coming out of hibernation mode takes 4
hours
and is followed by the charging time (a
maximum of between 8
and 13 hours).
You cannot put your E-MEHARI into
hibernation with a
battery state of charge
of less than 25%.
Going into hibernation
mode
Maximum hibernation period
depending on the state of charge
of the battery
In hibernation, the battery will self-discharge by
between 0.5% and 1% per day.
Therefore, the maximum duration of
hibernation depending on the battery charge
level is:
100%: 4
months
75% – 99%: 3
months
50% – 74%: 2
months
25% – 49%: 1
month 2.
If necessary, unlock your vehicle and
disconnect the charging plug.
3. Turn the ignition key to the first position,
the screen then displays:
4. Press the settings button (1) on the
right of the screen. The screen displays
various possible choices.
5. Select "Extended dormancy" using the
arrows.
6. Press and hold the settings button for
5


seconds.
7. Switch off the ignition. Entry into
hibernation mode is confirmed.
1. Move your vehicle close to a
charging
point.
Practical information

69
Temporary puncture
repair kit
Access to the repair kit
Your E-MEHARI's puncture repair kit is located
under the boot floor hatch.
The boot floor hatch is opened with the grip
located at the left-hand side of the boot floor
(only if your E-MEHARI is unlocked using your
personal RFID key ring).
Using the repair kit
Refer to the instructions provided with the
compressor.Never remove from a
tyre a foreign body
that has caused a puncture.
The sealant product contained in the
compressor is toxic and is an irritant.
Never ingest it, never spray it onto the
body, face or eyes. If it is ingested, call the emergency services
immediately (fire service, ambulance, etc.) or
go to a


hospital's emergency department.
If it enters the eyes, wash with abundant
clean water and consult a doctor without
d e l ay.
If the symptoms persist, consult a specialist.
Keep the sealant product out of the reach
of children.
Do not simply throw the old cartridge
away after use; take it to your CITROËN
authorised repairer or to a waste recovery
organisation that specialises in this type
of product.
Once the tyre has been repaired, go
to a
CITROËN authorised repairer or
a
qualified professional as soon as
possible.
If you are unable to obtain the desired
pressure after a
few minutes of operation
of the compressor, this means that the
tyre cannot be repaired.
Contact CITROËN ASSISTANCE who will
send a


roadside recovery agent.
Replacing a bulb
All maintenance on the vehicle's lamps must be
carried out by a
CITROËN authorised repairer
or a


qualified professional.
If a
headlamp has to be replaced on your
E-MEHARI: go to a
CITROËN authorised
repairer or a qualified professional.
8
In the event of a breakdown

77
Access, charging socket .....................10, 58, 61
Accessories .................................................... 34
Adjusting the time


.......................................... 7- 9
Advice on driving


............................................ 50
Airbags
...............................

............39-41, 43-46
Airbags, curtain


......................................... 4 0 - 41
Airbags, front ....................................... 4 0 - 41, 4 4
Airbags, lateral


.......................................... 4 0 - 41
Air conditioning


......................................... 28-29
Anti-theft/Immobiliser


...............................10, 36
Assistance call
...............................

.....29, 35 -36
Care of interior trim

......................................... 57
C

are of the bodywork...................................... 57
Central locking
........................................... 1

0 -11
Characteristics (components)


....................72-73
Charger, built-in


.............................................. 73
Child seats

..............................
......42- 43, 47- 48
Conditioning, air


........................................ 28-29
Controls


.......................................................... 7- 9
Coolant, motor


................................................ 65
Courtesy lamp
................................................. 29A
B
C
Battery ..................................... 3 - 6, 66 - 67, 72-73
Bonnet ....................................................... 64-65
Boot flap


.......................................................... 17
Braking
...............

............................................. 76
Brightness


...................................................... 7- 9
Bulbs


............................................................... 69
F
H
I
Fault, electric .................................................5-6
Flap, charging ..................................... 1
0, 58, 61
Foglamp, rear


............................................. 31- 32
Fuses
.......................................................... 7

0 -71
Hard top (rigid roof)

.................................... 18

-21
Hazard warning lamps


..............................48-49
Headlamps, automatic illumination


................32
Headlamps, dipped beam


..........................31- 32
Headlamps, main beam


.............................31- 32
Heating
............................................................ 26
Hi

bernation mode

..................................... 66 - 67
High voltage


........3 - 6, 35 -36, 58, 64- 65, 70, 73 Identification, vehicle


......................................
72
Indicators: speed – time – temperature .........
7- 9
Inflating tyres

.............................................
74 -75
Instrument panel

............................................
7- 9
Instruments and controls ..................................
3
ISOFIX mountings ..................................... 47- 4 8
D
Dashboard ...................................................... 7- 9
Daytime running lamps ...................................31
Deactivating the passenger airbag


.....40, 43 - 46
Demisting/defrosting the windscreen


.............28
Design


........................................................... 3-6
Dimensions
..............................

.......................73
Direction indicators


................................... 31, 4 8
Doors


.......................................................... 10 -12
Drive selector
.................................................. 54K
Key ring, personal RFID ......................1 0 -11, 3 6
Lamps, indicator/warning
.............................. 7-

9
Levels


........................................................ 65-66
Lighting, exterior


........................................ 31- 33
Lighting, interior
...............................

...............29
Locking, central
...............................

...........11 -12
L
M
Maintenance ................................................... 57
Maintenance, mechanical .........................64-66
Mirrors
...............................

..............................25
Mobility, electric


............................................ 3-6
Motor characteristics


...................................... 72
O
Opening (access) ...................................... 10 -21
.
Alphabetical index
