2023 CITROEN DS4 display

7
Playing a CD
Insert 12 cm diameter circular compact discs
o n l y.
Some anti-pirating systems, on original discs
or CDs copied using a personal recorder, may
cause faults which are no reflection on the
quality of the original player.
Without pressing the EJECT button, insert a
CD in the player, play begins automatically.
To play a disc which has already
been inserted, press the SOURCE
or SRC button several times in
succession and select " CD".
Press one of the buttons to select a
track on the CD.
Press LIST to display the list of
tracks on the CD.
Press and hold one of these buttons
for fast for ward or rewind.
Playing a compilation
Insert an MP3 compilation in the CD
player or connect a memory stick to the
USB port, directly or via an extension
lead.
The system creates playlists (temporary
memory) , which can take from a few seconds
to several minutes.
The playlists are updated every time the
ignition is switched off or a USB memory stick
is connected.
Play starts automatically after a certain amount
of time depending on the capacity of the USB
memory stick.
At the first connection, the order suggested
is by folder. When connecting again, the
previously chosen order is retained.
To play a disc or memory stick which
has already been inserted, press
SOURCE or SRC several times
in succession and select " CD" or
" USB ".
Press one of the buttons to select
the next or previous track.
Press one of the buttons to select
the next or previous folder in the
order chosen. Press LIST
to display the structure
of the folders in the compilation.
Select a line in the list.
Select a track or a folder.
Go up a level in the menu.
Skip a track.
Streaming – Playing audio
files via Bluetooth
Depending on the compatibility of the
phone
Streaming allows music files on a telephone to
be heard via the vehicle's speakers.
The telephone must support the appropriate
Bluetooth profiles (Profiles A2DP/AVRCP).
Pair/connect the telephone: see the
TELEPHONE section. Press and hold one of these buttons
for fast for ward or rewind.
Bluetooth® audio system

8
Activate the streaming source by
pressing SOURCE or SRC. Control
of playback is via the audio system.
Contextual information may be
displayed in the screen.
In certain cases, playback of the audio
files must be initiated from the telephone.
The audio quality depends on the quality of
transmission by the telephone.
Play mode
The play modes available are:
- N ormal: the tracks are played in order,
depending on the classification of the
selected files.
-

R
andom: the tracks in an album or
folder are played in a random order.
-

R
andom all: all of the tracks saved in
the media are played in random order.
-

R
epeat: the tracks played are only
those from the current album or folder. Press OK
for access to the context
menu.
or
Press MENU .
Select " Multimedia " and confirm.
Select " Media settings " and
confirm.
Select " Play mode " and confirm.
Select the desired play mode
and confirm OK to save the
modifications.
Information and advice
The audio system will only play files with
extension ".mp3" or ".wma" and a compression
rate that is constant or variable between
32
Kbps and 320 Kbps.
To avoid any playback or display issues, it is
advisable to create file names that have less
than 20 characters and without using any
special characters (e.g. " ? . ; ù).
Playlists accepted are types .m3u and .pls.
The number of files is limited to 5,000 in
500
directories on a maximum of 8 levels.
On a single disc, the CD player can
read up to 255 MP3 files spread
over 8 directory levels. However, it is
recommended that this be kept to 2 levels
so as to limit the time taken to access and
play the CD.
The folder structure is not obser ved during
playback.
In order to be able to play a burned CDR or
CDRW, select standards ISO 9660 level 1, 2 or
Joliet if possible when burning the CD.
If the disc is burned in another format, it may
not be played correctly.
Bluetooth® audio system

9
It is recommended that the same burning
standard is always used on an individual disc,
with the lowest speed possible (4x maximum)
for the best acoustic quality.
In the particular case of a multi-session CD, the
Joliet standard is recommended.
Use only USB memory sticks formatted to FAT
32 (File Allocation Table).Do not connect a hard disk or USB device
other than audio players to the USB port.Telephone
Pairing a telephone
First-time connection
The services offered depend on the network,
the SIM card and the compatibility of the
Bluetooth telephone used.
Consult your telephone's manual and your
operator to find out which ser vices are
available to you.
As a safety measure and because they
require prolonged attention on the part
of the driver, the operations for pairing
of the Bluetooth mobile telephone with
the Bluetooth hands-free system of your
audio system must be carried out with the
vehicle stationary and the ignition on.
Visit www.dsautomobiles.co.uk for more
information (compatibility, more help, etc.).
Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (refer to the
telephone user guide). Press MENU . Select "
Bluetooth connection " and
confirm.
Select " Search for a device ".
A " Search in progress… " window is displayed.
Select the telephone to be
connected from the list. Only one
telephone can be connected at a
time.
In some cases, the reference number of the
telephone or the Bluetooth address may appear
instead of the name of the telephone. A virtual keypad is displayed on the
screen: enter a code with at least
4
digits and confirm with OK.
A message is displayed on the screen of the
telephone: enter the same code and confirm.
Bluetooth® audio system

10
In case of failure, the number of attempts is not
restricted.
Accept the connection on the telephone.
A message appears in the screen to confirm
successful connection.Pairing can also be initiated from the
telephone by searching for detected
Bluetooth devices.
The directory and the call list can
be accessed after the necessary
synchronisation period (if the telephone is
compatible).
Automatic connection must be configured
in the telephone to allow the connection
each time the vehicle is started.
Managing connections
The telephone connection automatically
includes hands-free operation and audio
streaming.
The ability of the system to connect to just
one profile depends on the telephone. Two
profiles can be connected by default. Press MENU
.
Select " Bluetooth connection " and
confirm.
Select " Connections
management " and confirm. The list
of paired telephones is displayed.
Indicates that a device is
connected.
Indicates connection of the audio
streaming profile.
Indicates the hands-free
telephone profile. Select a telephone and confirm.
Then select and confirm:
-
"
Connect telephone "/
" Disconnect telephone ":
to connect/disconnect the
telephone or the hands-free
connection only.
- "
Connect media player "/
" Disconnect media player ":
to connect/disconnect only
streaming.
- "
Connect telephone +
media player "/ "Disconnect
telephone + media player ":
to connect/disconnect the
telephone (hands-free and
streaming).
- "
Delete connection ": to delete
the pairing.
Bluetooth® audio system

11
To display the "TELEPHONE" menu:
- M ake a long press on SOURCE
or SRC .
-

O
r, press OK to display the
context menu. Select "Call" and
confirm.
-

O
r, press MENU , select
" Telephone " and confirm.
Select "Call" and confirm.
Select " Dial" to enter a number and
confirm.
Select numbers one at a time using
the 7 and 8 buttons and confirm.
Correction allows numbers to be deleted one
at a time. Select OK and confirm to start the
call.
Making a call – Recently
called numbers
To display the " TELEPHONE" menu:
- M ake a long press on SRC/TEL .
-

O
r, press the thumb wheel to
display the contextual menu.
Select "Call" and confirm.
-

O
r, press MENU , select
" Telephone " and confirm.
Select "Call" and confirm.
Select " Calls list " and confirm.
Select the number and confirm to
start the call.
Making a call – Dialling
(Depending on the compatibility of the phone)
The calls list includes calls sent and
received in the vehicle using the
connected telephone.
Making a call – From the
directory of contacts
It is possible to make a call directly from
the telephone; park the vehicle first as a
safety measure. To display the " TELEPHONE" menu:
-

M
ake a long press on SRC/TEL .
-

O
r, press the thumb wheel to
display the contextual menu.
Select "Call" and confirm.
-

O
r, press MENU , select
" Telephone " and confirm.
Select "Call" and confirm.
Select " Directory " and confirm.
Select a contact then confirm.

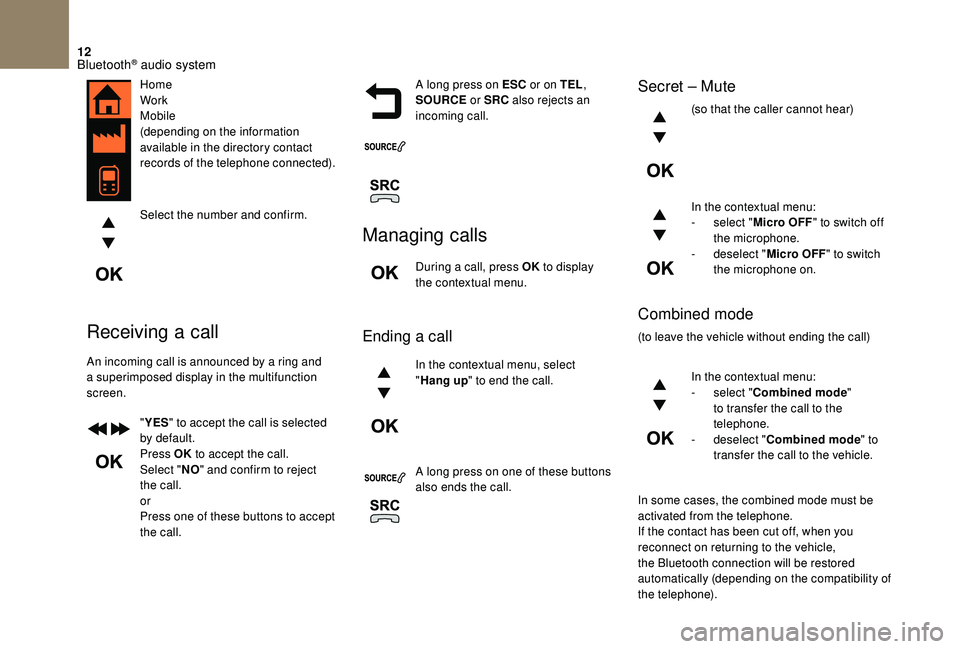

Bluetooth® audio system

12
Receiving a call
An incoming call is announced by a ring and
a superimposed display in the multifunction
screen."YES " to accept the call is selected
by default.
Press OK to accept the call.
Select " NO" and confirm to reject
the call.
or
Press one of these buttons to accept
the call. A long press on ESC
or on TEL,
SOURCE

or SRC
also rejects an
incoming call.
Managing calls
Home
Work
Mobile
(depending on the information
available in the directory contact
records of the telephone connected).
Select the number and confirm.
During a call, press OK to display
the contextual menu.
Ending a call
In the contextual menu, select
" Hang up " to end the call.
A long press on one of these buttons
also ends the call.
Secret – Mute
(so that the caller cannot hear)
In the contextual menu:
-

s
elect " Micro OFF " to switch off
the microphone.
-

d
eselect " Micro OFF " to switch
the microphone on.
Combined mode
(to leave the vehicle without ending the call)
In the contextual menu:
-

s
elect "Combined mode "
to transfer the call to the
telephone.
-

d
eselect "Combined mode " to
transfer the call to the vehicle.
In some cases, the combined mode must be
activated from the telephone.
If the contact has been cut off, when you
reconnect on returning to the vehicle,
the Bluetooth connection will be restored
automatically (depending on the compatibility of
the telephone).
Bluetooth® audio system

13
Interactive voice response
From the contextual menu, select
"DTMF tones " and confirm to use
the numerical keypad to navigate in
the interactive voice response menu.
Consultation call
From the contextual menu, select
" Switch " and confirm to return to a
call left on hold.
Directory
To access the directory, press and
hold SOURCE or SRC.
or press OK , and
select " Call" and confirm.
Select " Directory " to see the list of
contacts. To modify the contacts saved in the
system, press MENU
then select
" Telephone " and confirm.
Select " Directory management "
and confirm.
Yo u c a n :
- "
Consult an entr y ",
- "
Delete an entry ",
- "
Delete all entries ".
The system accesses the
telephone's contacts directory,
depending on its compatibility, and
while it is connected by Bluetooth.
With certain telephones connected
by Bluetooth you can send a contact
to the directory of the audio system.
Contacts imported in this way are
saved in a permanent directory
visible to all, whatever the telephone
connected.
The menu for the directory is not
accessible if it is empty.
Audio settings
Screen C
Press ¯ to display the audio
settings menu.
The settings available are:
-


Ambience,
-

Bass,
-


Treble,
-


Loudness,
-

D

istribution: Personalised or Driver,
-
L

eft/right balance ,
-
F

ader (front/rear balance),
-
Aut

o. volume Select and confirm " Other
settings… " to display the rest of the
list of settings available.
Bluetooth® audio system

16
The reception quality of the
tuned radio station gradually
deteriorates or the stored
stations are not working (no
sound, 87.5 Mhz is displayed,
e t c .) .The vehicle is too far from the transmitter of the station
or no transmitter is present in the geographical area.
Activate the RDS mode and start a new search for the
station so that the system can check whether a stronger
transmitter is available in the geographic area.
The environment (hills, buildings, tunnels, basement car
parks, etc.) block reception, including in RDS tracking
mode. This phenomenon is normal and does not indicate a
failure of the audio equipment.
The aerial is absent or has been damaged (for example
when going through an automatic car wash or in an
underground car park). Have the aerial checked in the dealer network.
Sound cut-outs of 1 to
2
seconds in radio mode. During this brief sound cut-out, the RDS searches for
another frequency giving better reception of the station. Switch off the RDS function if the phenomenon is too
frequent and always on the same route.
Traffic announcement (TA) is
displayed. I do not receive any
traffic information. The radio station does not broadcast traffic information. Tune to a radio station which broadcasts traffic
information.
The stored stations are not
found (no sound, 87.5 MHz is
displayed...). An incorrect waveband is selected.
Press the BAND button to return to the waveband on
which the stations are stored.
The CD is ejected every time or
is not played. The CD is upside down, cannot be read, does not
contain audio files or contains audio files of a format
that cannot be played by the audio system.
The CD is protected by an anti-pirating system not
recognised by the audio system. -

C
heck that the CD is inserted in the player the right
way up.
-

C
heck the condition of the CD: the CD cannot be
played if it is too badly damaged.
-

C
heck the content in the case of a recorded CD:
consult the advice in the "Audio" section.
-

T
he audio system’s CD player does not read DVDs.
-

B
ecause of low quality, certain burned CDs will not
be read by the audio system.
Bluetooth® audio system
