2023 CITROEN BERLINGO sensor

200
Practical information
With an automatic gearbox
and electric parking brake
/
To release them
► With the engine running and while depressing
the brake pedal, set the gear selector to N
.
►

While depressing the brake pedal, switch off
the engine.
►


Release the brake pedal, then switch on the
ignition again.
►


While depressing the brake pedal, press the
control lever to release the parking brake.
►


Release the brake pedal, then switch off the
ignition.
Reverting to normal operation
► While depressing the brake pedal, restart the
engine and select mode P .
With drive selector and
electric parking brake
/
Release procedure
► With the vehicle stationary and the engine
running, depress the brake pedal and select
mode
N.
Within 5
seconds:
► Depress and hold the brake pedal, then
observe this order: switch off the engine and
move the push selector forwards or backwards.
►

Release the brake pedal, then switch on the
ignition.
►


Place your foot on the brake and press the
electric parking brake control to release it.
►


Release the brake pedal, then switch off the
ignition.
A message is displayed on the instrument panel to confirm the unlocking
of the wheels for 15
minutes.
When the vehicle is free-wheeling, the
audio system cannot be updated (message
displayed on the instrument panel).
After 15 minutes or reverting to normal
operation
► While depressing the brake pedal, restart the
engine and select mode P .
Advice on care and maintenance
General recommendations
Observe the following recommendations to avoid
damaging the vehicle.
Exterior
Never use a high-pressure jet wash in
the engine compartment - risk of
damaging the electrical components!
Do not wash the vehicle in bright sunshine or
extremely cold conditions.
When washing the vehicle in an
automatic roller-brush car wash, be sure
to lock the doors and, depending on version,
move the electronic key away.
When using a pressure washer, keep the jet
nozzle at a minimum distance of 30 cm from
the vehicle (particularly when cleaning areas
containing chipped paint, sensors or seals).
Promptly clean up any stains containing
chemicals liable to damage the vehicle's
paintwork (including tree resin, bird
droppings, insect secretions, pollen and tar).
Depending on the environment, clean the
vehicle frequently to remove salty deposits
(in coastal areas), soot (in industrial areas)
and mud/salts (in wet or cold areas). These
substances can be highly corrosive.
Contact a CITROËN dealer or a qualified
workshop for advice on removing stubborn
stains requiring special products (such as tar
or insect removers).
Preferably, have paint touch-ups performed
by a CITROËN dealer or a qualified
workshop.

285

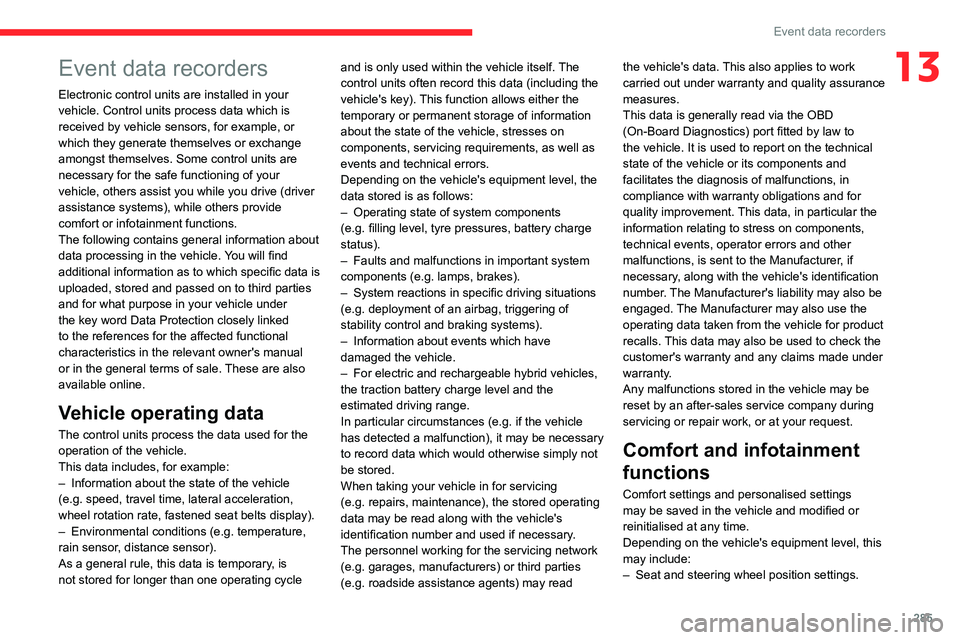

Event data recorders
13Event data recorders
Electronic control units are installed in your
vehicle. Control units process data which is
received by vehicle sensors, for example, or
which they generate themselves or exchange
amongst themselves. Some control units are
necessary for the safe functioning of your
vehicle, others assist you while you drive (driver
assistance systems), while others provide
comfort or infotainment functions.
The following contains general information about
data processing in the vehicle. You will find
additional information as to which specific data is
uploaded, stored and passed on to third parties
and for what purpose in your vehicle under
the key word Data Protection closely linked
to the references for the affected functional
characteristics in the relevant owner's manual
or in the general terms of sale. These are also
available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display).
–

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–

Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's
identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g.
roadside assistance agents) may read the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request.
Comfort and infotainment
functions
Comfort settings and personalised settings
may
be saved in the vehicle and modified or
reinitialised at any time.
Depending on the vehicle's equipment level,
this
may
include:
–

Seat and steering wheel position settings.

288
Alphabetical index
A
ABS 95
Accelerated charging unit (Wallbox)
179
Accessories

92
Access to the 3rd row

58
Access to the spare wheel

206–207
Active Safety Brake

152–154
AdBlue®

197
AdBlue® tank

198
Additive, Diesel

195–196
Adjusting headlamps

88
Adjusting head restraints

59
Adjusting seat

51, 58
Adjusting the air distribution

75–76
Adjusting the air flow

75–76
Adjusting the date

258, 280
Adjusting the height and reach of
the steering wheel

53
Adjusting the lumbar support

51
Adjusting the temperature

75–76
Adjusting the time

244, 257, 281
Advanced Grip Control

97–98
Advice on care and maintenance

177, 200
Advice on driving

8, 117–118
Airbags

103, 105–107
Airbags, curtain

104–106
Airbags, front

104–105, 108
Airbags, lateral

104–105
Air conditioning

73, 76, 79
Air conditioning, digital

77
Air conditioning, dual-zone automatic

75–76
Air conditioning, electronic
(with display screen)
79
Air conditioning, manual

74–75
Air intake

75–76
Air vents

73
Alarm

45–46
Alarm, volumetric

46
Android Auto connection

272
Anti-lock braking system (ABS)

95
Antitheft / Immobiliser

33
Apple CarPlay connection

254, 271
Applications

272
Area, loading

34, 42, 67
Armrest

51
Armrest, front

60
Assistance call

92–93
Assistance, emergency braking

95, 154
Audible warning

95
Audio streaming (Bluetooth)

241, 253, 276
B
Battery, 12 V 187, 195, 214–217
Battery, ancillaries
214–215
Battery, charging

216–217
Battery, remote control

40, 81
Bench seat, one-piece, fixed

58
Blanking screen (snow shield)

188
Blind spot sensors

158
BlueHDi

195, 202
Bluetooth (hands-free)

242–243, 255, 277
Bluetooth (telephone) 242–243, 255–256,
277–278
Bluetooth touch screen audio system

28
Bodywork

201
Bonnet

192
Boot lid

37, 39
Bottle holder

60
Brake discs

196
Brake lamps

213
Brakes

196
Braking

133
Braking assistance system

95
Braking, automatic emergency

152–154
Braking, dynamic emergency

124–125
Brightness

244, 257
Bulbs

210
Bulbs (changing)

209–210
Bulbs (changing, type)

210
C
Cable, audio 275
Cable, Jack
275
Capacity, fuel tank

174–175
Cap, fuel filler

174–175
Care of the bodywork

201
CD

241
CD, MP3

241
Central locking

32, 37
Changing a bulb

209–210
Changing a fuse

214

292
Alphabetical index
N
Navigation 266–268
Navigation, connected
269–271
Net

65–66
Net, high load retaining

64
Number plate lamps

214
O
Obstacle detection 161
Oil change
193
Oil consumption

193
OIl, engine

193
On-board tools

202–203
Opening the bonnet

192
Opening the boot

32–33
Opening the doors

32–33
Overhead storage

60
P
Pads, brake 196
Paint
201, 236
Paint colour code

236
Park Assist

169
Parking brake

123, 196
Parking brake, electric

123–125, 197
Parking sensors, audible and visual

161
Parking sensors, front

162
Parking sensors, rear 161
Passenger compartment temperature pre-
conditioning (Electric)

81
Passenger's air bag

70
Pedestrian horn (Electric)

95, 118
Personalisation

12–13
Plates, identification

236
Player, Apple®

241, 253, 276
Player, USB

241, 252, 275
Port, USB

62, 241, 252–253, 271, 275
Power indicator (Electric)

9
Pressures, tyres

197, 206, 209, 236
Pre-tensioning seat belts

102
Priming pump

202
Priming the fuel system

202
Profiles

256, 280
Programmable cruise control

146
Protecting children

104, 106–108, 110, 114–116
Public fast charging station

179, 185
Puncture

204, 206
R
Radar (warnings) 139
Radio
239–241, 250–251, 274
Radio, digital (Digital Audio
Broadcasting - DAB)

240, 252, 275
Range, AdBlue®

195
RDS

240, 251, 274
Rear screen, demisting

78
Recharging the battery

216–217
Recharging the traction battery 180
Recharging the traction battery
(Electric)

176, 183, 185–186
Recirculation, air

75–76
Recovery

218
Recovery of the vehicle

218
Reduction of electrical load

188
Regeneration of the particle filter

196
Regenerative braking (deceleration by engine
braking)

132–133
Reinitialisation of the under-inflation
detection system

137
Reinitialising the remote control

41
Reminder, key in ignition

121
Reminder, lighting on

84
Remote control

32–35, 37–38, 119
Remotely operable functions (Electric)

81, 186
Removing a wheel

207–208
Removing the mat

60
Replacing bulbs

209–210
Replacing fuses

214
Replacing the air filter

196
Replacing the oil filter

196
Replacing the passenger compartment
filter

196
Reservoir, screenwash

195
Rev counter

10, 12
Reversing camera

139, 163, 166–167
Reversing lamps

213
Roof

60
Roof bars

191
Roof flap

44

293
Alphabetical index
Running out of fuel (Diesel) 202
S
Safety, children 104, 106–108, 110, 114–116
Saturation of the particle filter (Diesel)
196
Screen, cold climate

188
Screen menu map

254
Screenwash

89
Screenwash, front

88
Screenwash, rear

89
SCR (Selective Catalytic Reduction)

197
Seat belts

99–102, 109
Seat, bench front, 2-seat

55–56, 100
Seat, rear bench

56, 58
Seats, front

50–52, 55–56
Seats, front bench

55–56
Seats, heated

52–53
Seats, Multiflex ~ Extenso Cab

68
Seats, rear

50, 55–58, 107
Selector, gear

130–132
Sensors (warnings)

140
Serial number, vehicle

236
Service indicator

20
Servicing

20, 195
Settings, equipment

29–30
Settings, system

244, 257, 280
Shield, snow

188
Sidelamps

83–85, 210–211
Side parking sensors

162
Side repeater

2 11
Silent vehicle warning sound (Electric)

95, 118
Sliding side door, electric 37, 44
Smartphone
62
Snow chains

137, 188
Snow screen

188
Socket, 12 V accessory

60–61
Socket, 220 V

62
Socket, auxiliary

241, 252, 275
Socket, Jack

275
Speed limiter

142–145, 152
Speed limit recognition

140, 142
Speedometer

10, 12, 140
Sport mode

134
Stability control (ESC)

95–98
Starting a Diesel engine

174
Starting the engine

119, 121
Starting the vehicle

120, 122, 127–129, 131
Starting using another battery

122, 215
Station, radio

239–240, 250–251, 274
Stay, bonnet

192
Steering mounted controls, audio

237–238, 248, 261
Steering wheel, adjustment

53
Stickers, customising ~ Stickers,
expressive

201
Stopping the vehicle

121–122,
127–129, 131–132
Stop & Start

28, 74, 78, 134–136, 174, 192, 195, 218
Storage

60
Storage boxes

63
Stowing rings

67
Sunshine sensor

73
Super-fast charging (Electric)

185–186, 236Surround Rear Vision 164
Switching off the engine
119, 121
Synchronising the remote control

41
T
Tables of engines 236
Tank, fuel
174–175
Technical data

227–231, 235, 236
Telephone

242–243, 255–256, 277–279
Time (setting)

244, 257, 281
TMC (Traffic info)

268
Tools

203
Topping-up AdBlue®

198
Touch screen

28–30, 81
Towbar

96, 189
Towed loads

227–231, 235, 236
Towing another vehicle

218–219
Towing eye

219
Traction battery charge

180
Traction battery (Electric)

30, 176–177, 236
Traction control (ASR)

96–98
Traffic information (TMC)

268
Trailer

96, 189
Trailer stability assist (TSA)

96
Trajectory control systems

95
Triangle, warning

67
Trip computer

27–28
Type of bulbs

210
Tyres

197, 236
Tyre under-inflation detection

136–137, 206
