2023 CHRYSLER PACIFICA HYBRID USB

MULTIMEDIA181
14.Play/Pause Button ‖ — Begin/resume or pause disc
play.
15. Channel +/- — Push the up or down arrow button on
the Channel button to browse channels available in
Fire TV.
16. Recent — Push to access recently viewed content on
Fire TV.
17. Gear/Settings — Push to bring up setting options for
Fire TV.
18. App 2 — Push to launch App 2.
19. Vehicle Button — Push to activate the Vehicle menu.
Replacing the Voice Remote with Alexa
Batteries
Each Voice Remote with Alexa requires two AAA batteries
for operation.
To replace the batteries:

1. Locate the battery compartment on the back of the
Voice Remote with Alexa, then slide the battery
cover downward.

2. Remove the old batteries and follow battery recycling procedures for your area.
3. Install new batteries, making sure to orient them according to the polarity diagram shown inside the
battery compartment.
4. Slide the battery compartment cover back on.
REAR SEAT ENTERTAINMENT WITH FIRE
TV
BUILT-IN STREAMING (USING THE
F
RONT RADIO AND REAR SCREENS)
Access Using Launch Source
To access Rear Seat Entertainment with Fire TV built-in
from the front radio, press the Media tab located on the
bottom menu bar. Then select the Rear Seat option
located on the top menu bar. Select “Launch Source”, and
then under “Inputs” select “Fire TV Home”.
Access Using Browse Media
Selecting “Browse Media” on the front radio screen will
give access to different media within Rear Seat
Entertainment with Fire TV built-in.
These options will be in the top menu of “Browse Media”
and include:
 Fire TV — Selecting “Fire TV” will show streaming
options for categories and to select apps. This option
will be selectable on the left slider menu in “Browse
Media”. While in “Browse Media” under Fire TV, it will
display recent activity under “Recent”. This will display
recent videos viewed from Fire TV and recent down -
loads as well.
 USB Video — Under “USB Videos”, videos will appear
that are options with a USB device connected to Rear
Seat Entertainment with Fire TV built-in.
 USB Music — Under “USB Music”, music will appear
that are options with a USB device connected to Rear
Seat Entertainment with Fire TV built-in. Access Using the Voice Remote with Alexa and Rear
Screens
Rear passengers will be able to access some options for
streaming by pressing the “Prime Video”, “App 1”, or
“App 2” button on the Voice Remote with Alexa. Selecting
one of those buttons on the Voice Remote with Alexa will
take you to the home page for that respective streaming
service. Turning on either of the rear screens will launch
Fire TV. By default, the rear screens will always launch in
Fire TV. More streaming options can be selected on the
Fire TV home page.
Fire TV
Fire TV is your source for online streaming with Rear Seat
Entertainment with Fire TV built-in.
NOTE:A data source needs to be connected to the system for
streaming to be accessible. This can be set up when Fire
TV is turned on for the first time from the rear screens.
Some of these options can be an in-vehicle 4G Wi-Fi hot
spot, capable Wi-Fi hot spot from a mobile device, or Wi-Fi
from an outside source like a home or a garage.
To access Fire TV on the front screen, select “Launch
Source” on the front touchscreen, rear seat screen, and
then “Fire TV Home” under “Inputs”.
Viewing from the front radio screen mirrors or controls the
Fire TV experience from one of the rear Fire TV displays.
The menu bar for Fire TV will have the options for “Home”,
“Find”, “Library”, “Brand”, and “Live”.
Below the menu bar will be streaming options linked to
your Prime account like “Prime Video”.
5

23_RUP_OM_EN_USC_t.book Page 181

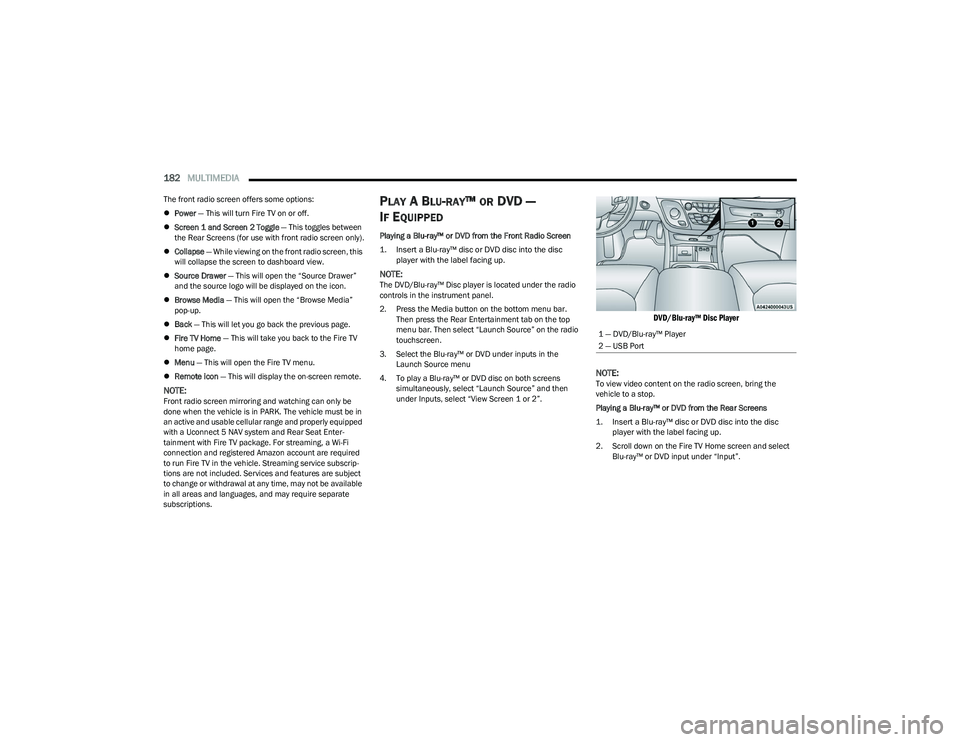

182MULTIMEDIA
The front radio screen offers some options:
Power — This will turn Fire TV on or off.
 Screen 1 and Screen 2 Toggle — This toggles between
the Rear Screens (for use with front radio screen only).
 Collapse — While viewing on the front radio screen, this
will collapse the screen to dashboard view.
 Source Drawer — This will open the “Source Drawer”
and the source logo will be displayed on the icon.
 Browse Media — This will open the “Browse Media”
pop-up.
 Back — This will let you go back the previous page.
 Fire TV Home — This will take you back to the Fire TV
home page.
 Menu — This will open the Fire TV menu.
 Remote icon — This will display the on-screen remote.
NOTE:Front radio screen mirroring and watching can only be
done when the vehicle is in PARK. The vehicle must be in
an active and usable cellular range and properly equipped
with a Uconnect 5 NAV system and Rear Seat Enter -
tainment with Fire TV package. For streaming, a Wi-Fi
connection and registered Amazon account are required
to run Fire TV in the vehicle. Streaming service subscrip -
tions are not included. Services and features are subject
to change or withdrawal at any time, may not be available
in all areas and languages, and may require separate
subscriptions.
PLAY A BLU-RAY™ OR DVD —
I
F EQUIPPED
Playing a Blu-ray™ or DVD from the Front Radio Screen

1. Insert a Blu-ray™ disc or DVD disc into the disc
player with the label facing up.

NOTE:The DVD/Blu-ray™ Disc player is located under the radio
controls in the instrument panel.
2. Press the Media button on the bottom menu bar. Then press the Rear Entertainment tab on the top
menu bar. Then select “Launch Source” on the radio
touchscreen.
3. Select the Blu-ray™ or DVD under inputs in the Launch Source menu
4. To play a Blu-ray™ or DVD disc on both screens simultaneously, select “Launch Source” and then
under Inputs, select “View Screen 1 or 2”.

DVD/Blu-ray™ Disc Player

NOTE:
To view video content on the radio screen, bring the
vehicle to a stop.
Playing a Blu-ray™ or DVD from the Rear Screens

1. Insert a Blu-ray™ disc or DVD disc into the disc player with the label facing up.

2. Scroll down on the Fire TV Home screen and select Blu-ray™ or DVD input under “Input”.
1 — DVD/Blu-ray™ Player
2 — USB Port

23_RUP_OM_EN_USC_t.book Page 182

MULTIMEDIA183

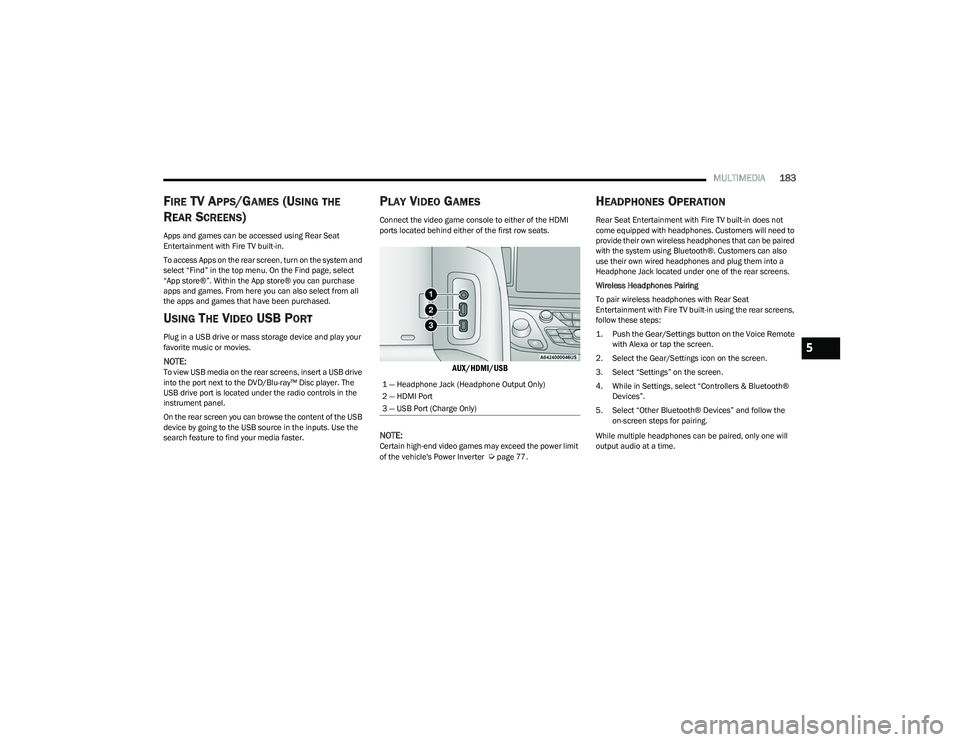

FIRE TV APPS/GAMES (USING THE
R
EAR SCREENS)
Apps and games can be accessed using Rear Seat
Entertainment with Fire TV built-in.
To access Apps on the rear screen, turn on the system and
select “Find” in the top menu. On the Find page, select
“App store®”. Within the App store® you can purchase
apps and games. From here you can also select from all
the apps and games that have been purchased.
USING THE VIDEO USB PORT
Plug in a USB drive or mass storage device and play your
favorite music or movies.
NOTE:To view USB media on the rear screens, insert a USB drive
into the port next to the DVD/Blu-ray™ Disc player. The
USB drive port is located under the radio controls in the
instrument panel.
On the rear screen you can browse the content of the USB
device by going to the USB source in the inputs. Use the
search feature to find your media faster.
PLAY VIDEO GAMES
Connect the video game console to either of the HDMI
ports located behind either of the first row seats.

AUX/HDMI/USB

NOTE:
Certain high-end video games may exceed the power limit
of the vehicle's Power Inverter Úpage 77.
HEADPHONES OPERATION
Rear Seat Entertainment with Fire TV built-in does not
come equipped with headphones. Customers will need to
provide their own wireless headphones that can be paired
with the system using Bluetooth®. Customers can also
use their own wired headphones and plug them into a
Headphone Jack located under one of the rear screens.
Wireless Headphones Pairing
To pair wireless headphones with Rear Seat
Entertainment with Fire TV built-in using the rear screens,
follow these steps:

1. Push the Gear/Settings button on the Voice Remote with Alexa or tap the screen.

2. Select the Gear/Settings icon on the screen.
3. Select “Settings” on the screen.
4. While in Settings, select “Controllers & Bluetooth® Devices”.
5. Select “Other Bluetooth® Devices” and follow the on-screen steps for pairing.
While multiple headphones can be paired, only one will
output audio at a time.
1 — Headphone Jack (Headphone Output Only)
2 — HDMI Port
3 — USB Port (Charge Only)
5

23_RUP_OM_EN_USC_t.book Page 183

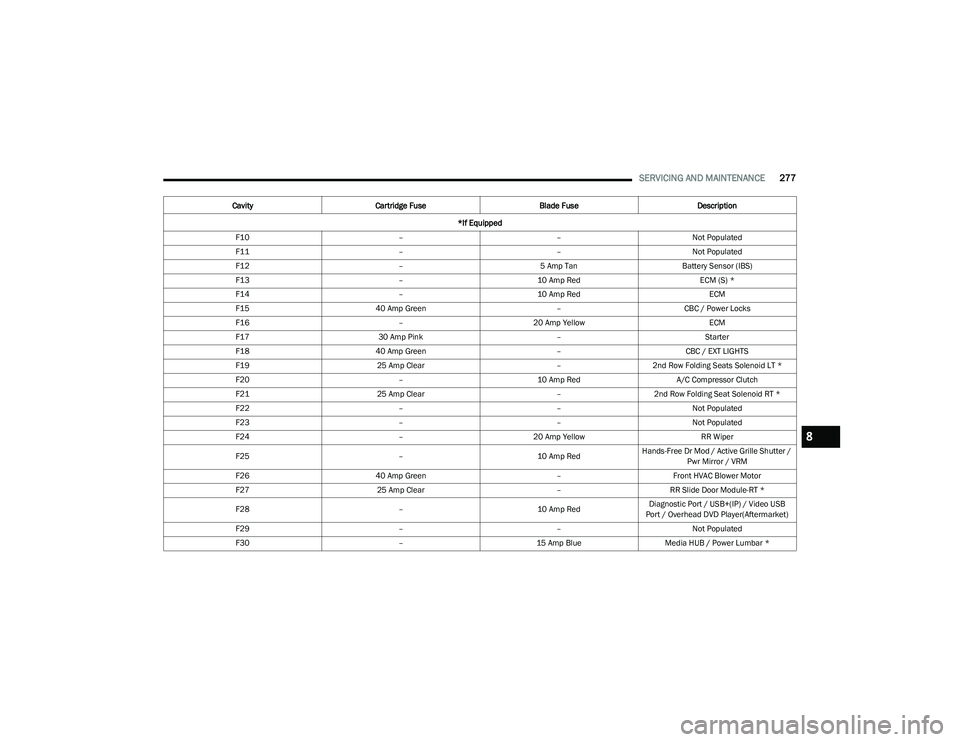

SERVICING AND MAINTENANCE277
F10 ––Not Populated
F11 ––Not Populated
F12 –5 Amp TanBattery Sensor (IBS)
F13 –10 Amp Red ECM (S) *
F14 –10 Amp Red ECM
F15 40 Amp Green –CBC / Power Locks
F16 –20 Amp Yellow ECM
F17 30 Amp Pink –Starter
F18 40 Amp Green –CBC / EXT LIGHTS
F19 25 Amp Clear –2nd Row Folding Seats Solenoid LT *
F20 –10 Amp Red A/C Compressor Clutch
F21 25 Amp Clear –2nd Row Folding Seat Solenoid RT *
F22 ––Not Populated
F23 ––Not Populated
F24 –20 Amp Yellow RR Wiper
F25 –10 Amp RedHands-Free Dr Mod / Active Grille Shutter /
Pwr Mirror / VRM
F26 40 Amp Green –Front HVAC Blower Motor
F27 25 Amp Clear –RR Slide Door Module-RT *
F28 –10 Amp RedDiagnostic Port / USB+(IP) / Video USB
Port / Overhead DVD Player(Aftermarket)
F29 ––Not Populated
F30 –15 Amp BlueMedia HUB / Power Lumbar *
Cavity
Cartridge Fuse Blade FuseDescription
*If Equipped
8

23_RUP_OM_EN_USC_t.book Page 277

280SERVICING AND MAINTENANCE
F72 –10 Amp Red Heated Mirror *
F73 30 Amp Pink –Rear Defroster
F74 20 Amp Blue –Trailer Tow Backup Lights*
F75 –5 Amp TanOverhead Console / RR Center Stack
F76 –20 Amp YellowUconnect / Center Display / Telematics
F77 –10 Amp RedRR Entertainment / Media HUB / USB(S) /
Rain Sensor / Sunroof / RR View Mirror/ Overhead DVD Player / INT Monitoring Camera / Wireless Charging Pad
F78 –15 Amp BlueTCM (ZF) / E-Shifter / Cluster
F79 –10 Amp RedICS / HVAC / SCCM/ EPB SW
F80 ––Not Populated
F81 ––Not Populated
F82 ––Not Populated
F83 20 Amp Blue
–TT Park Lights *
30 Amp Pink –Headlamp Washer Pump *
F84 30 Amp Pink –Drive Train Control MOD *
F85 –20 Amp Yellow Cigar Lighter
F86 ––Not Populated
F87 ––Not Populated
F88 –20 Amp Yellow Front Heated Seats *
F89 –20 Amp Yellow Rear Heated Seats *
F90 ––Not Populated
Cavity
Cartridge Fuse Blade FuseDescription
*If Equipped

23_RUP_OM_EN_USC_t.book Page 280

SERVICING AND MAINTENANCE281
30 Amp mini fuse is substituted for 25 Amp Circuit Breaker.F91
–15 Amp BlueFront Ventilated Seats/Heated Steering
Wheel *
F92 –5 Amp Tan Security Gateway
F93 ––Not Populated
F94 40 Amp Green –ESC Motor Pump
F95A –10 Amp RedUSB Charge Port — ACC/RUN
F95B –10 Amp Red
Selectable Fuse Location – USB IP (Direct) B+

F96 –10 Amp Red Airbag
F97 –10 Amp Red Airbag
F98 –15 Amp Blue Left HID Headlamp *
F99 30 Amp Pink –Trailer Tow Elect Brake Module *
F100 –10 Amp RedHeadlamp Level / RR Camera / Blindspot /
Humidity SNSR / In Car Temp SNSR / Headlamp SW *
Circuit Breakers
CB1 25 AmpPower Seats (Driver)
CB2 25 Amp *Power Seats (Pass)
CB3 25 AmpFRT PWR Window W/O Door Nodes + RR
PWR Window Lockout
Cavity
Cartridge Fuse Blade FuseDescription
*If Equipped
8

23_RUP_OM_EN_USC_t.book Page 281

321
Sizes ........................................................................ 284
Snow Tires ............................................................... 294Spare Tires ............................................240
, 295, 296
Spinning .................................................................. 292
Trailer Towing .......................................................... 152
Tread Wear Indicators ............................................ 293
Wheel Nut Torque ................................................... 303
To Open Hood..................................................................82
Tongue Weight/Trailer Weight .................................... 151
Towing ........................................................................... 147 Disabled Vehicle ..................................................... 256
Guide ....................................................................... 149Recreational ............................................................ 154
Weight...................................................................... 149
Towing Behind A Motorhome ...................................... 154
Traction ......................................................................... 155
Traction Control............................................................ 191
Trailer Sway Control (TSC) ........................................... 192
Trailer Towing ............................................................... 147 Hitches .................................................................... 149
Minimum Requirements ........................................ 151
Tips .......................................................................... 153
Trailer And Tongue Weight ..................................... 151
Wiring....................................................................... 152
Trailer Towing Guide .................................................... 149
Trailer Weight ............................................................... 149
Transaxle Automatic ................................................................ 117Operation................................................................. 117 Transmission................................................................. 118
Automatic ....................................................... 118, 274
Maintenance............................................................274
Transporting Pets ......................................................... 233
Tread Wear Indicators ..................................................293
Turn Signals ................................................. 54
, 108, 282
UUconnect 4C/4C Nav With 8.4-Inch Display ............... 158
Uconnect Settings Customer Programmable Features .......................... 21
Passive Entry Programming ...................................... 21
Uniform Tire Quality Grades ......................................... 298
Universal Garage Door Opener (HomeLink®) —
If Equipped

b
............................................................... 51
Unleaded Gasoline ....................................................... 304
Untwisting Procedure, Seat Belt ..................................204
USB .................................................................................. 74
VVacuum ........................................................................... 86 Stow ‘n Vac ................................................................ 86
Vanity Mirrors .................................................................. 48
Vehicle Identification Number (VIN) ............................ 303
Vehicle Loading................................................... 146
, 288
Vehicle Maintenance ....................................................264
Vehicle Modifications/Alterations ................................... 8
Vehicle Storage ............................................................... 70
Ventilated Seats ............................................................. 44
Voice Command.............................................................. 47
Voice Recognition System (VR) ...................................... 47
WWarning Lights Red........................................................................... 102
Yellow....................................................................... 105
Warning Lights And Messages .................................... 102
Warranty Information ................................................... 310
Washers, Windshield ................................................... 263
Washing Vehicle ........................................................... 300
Water Driving Through ....................................................... 156
Wheel And Wheel Tire Care ......................................... 296
Wheel And Wheel Tire Trim.......................................... 296
Wind Buffeting ................................................................ 79
Window Fogging ............................................................. 70
Windows.......................................................................... 78 Power ......................................................................... 78
Windshield Defroster ................................................... 234
Windshield Washers ............................................. 59
, 263
Fluid ......................................................................... 263
Windshield Wiper Blades ............................................. 268
Wipers Blade Replacement ......................................... 268
Wipers, Intermittent ....................................................... 59 Wireless Charging Pad ................................................... 77
Wrecker Towing ............................................................ 256
11

23_RUP_OM_EN_USC_t.book Page 321
