Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
Introduction 9
1.Head-Up Display (HUD) 0129 (If
Equipped).
2. Air Vents 0190.
3. Turn Signal Lever. See Turn and
Lane-Change Signals 0141.
Windshield Wiper/Washer 099.
4. Range Selection Mode. See Manual Mode
(Mechanical Shifter) 0227 or
Manual Mode (Electronic Shifter) 0229.
5. Instrument Cluster (Base Level) 0106 or
Instrument Cluster (Uplevel) 0107.
6. Infotainment Controls. See Overview
(Base Radio) 0148 or
Overview (Uplevel Radio) 0149.
7. Infotainment System. See Overview (Base
Radio) 0148 or
Overview (Uplevel Radio) 0149.
8. Light Sensor. See Automatic Headlamp
System 0139.
Vehicle Alarm System. See Vehicle
Security 029.
9. Upper Glove Box. See Glove Box093.
10. Lower Glove Box. See Glove Box093.
11. Upper Glove Box Button. See Glove Box
0 93.
12. Lane Keep Assist (LKA) 0292. Auto Stop Disable Switch (If Equipped).
See
Stop/Start System 0213.
Power Release Tailgate (If Equipped). See
Tailgate 021.
Hazard Warning Flashers 0140.
Traction Control/Electronic Stability
Control 0237.
Hill Descent Control Switch (If Equipped).
See Hill Descent Control (HDC) 0239.
Power Assist Steps 028 (If Equipped).
Express Window Down Button (If
Equipped). See Power Windows 038.
Tow/Haul Mode 0229 (On Some
Models).
Exhaust Brake (If Equipped). See Duramax
Diesel Supplement.
Power Take-Off (PTO) (If Equipped). See
Duramax Diesel Supplement.
13. USB Port 0158.
14. Climate Control Systems 0185 (If
Equipped).
Dual Automatic Climate Control System
0 187 (If Equipped).
Heated and Ventilated Front Seats 049
(If Equipped).
15. Front Center Console Storage. 16.
Cupholders 093.
17. Shift Lever. See Automatic Transmission
(Electronic Shifter) 0223 or
Automatic Transmission (Mechanical
Shifter) 0220.
18. Trailer Brake Control Panel (If Equipped). See“Integrated Trailer Brake Control
System” underTowing Equipment 0307.
19. ENGINE START/STOP. See Ignition
Positions 0211.
20. Steering Wheel Controls 0150.
Driver Information Center (DIC) Controls.
See Driver Information Center (DIC) (Base
Level) 0126 or
Driver Information Center (DIC) (Uplevel)
0 127.
21. Horn 099.
22. Steering Wheel Adjustment 098 (Out
of View).
23. Hood Release. See Hood0333.
24. Cruise Control 0245.
Adaptive Cruise Control (Camera) 0247
(If Equipped).
Super Cruise 0258 (If Equipped).
Forward Collision Alert (FCA) System
0 284 (If Equipped).

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
12 Keys, Doors, and Windows
If the vehicle has the Keyless Access system,
the remote key has a button on the side of
the remote key used to remove the key.
This key is used for the driver door and
glove box.
Press the button to remove the key. Never
pull the key out without pressing the
button.
See your dealer if a replacement key or
additional key is needed.
If it becomes difficult to turn a key, inspect
the key blade for debris. Periodically clean
with a brush or pick.With an active OnStar or connected service
plan, an OnStar Advisor may remotely
unlock the vehicle. See
OnStar Overview
0 441.
If locked out of the vehicle, see Roadside
Assistance Program 0433.
If equipped with memory seats, remote keys
1 and 2 are linked to seating positions of
memory 1 or 2. See Memory Seats047.
Remote Key
See Radio Frequency Statement 0438.
If there is a decrease in the remote key
operating range:
.Check the distance. The remote key may
be too far from the vehicle.
.Check the location. Other vehicles or
objects may be blocking the signal.
.Check the remote key's battery. See
“Battery Replacement” later in this
section.
.If the remote key is still not working
correctly, see your dealer or a qualified
technician for service.
Remote Key Operation
The Keyless Access system allows for vehicle
entry when the remote key is within 1 m
(3 ft). See “Keyless Access Operation” later
in this section.
The remote key functions may work up to
60 m (197 ft) away from the vehicle.
Other conditions can affect the performance
of the remote key. See Remote Key012.
The key that is part of the remote key can
be used for all locks.
Remove the key by pressing the button on
the side of the remote key near the bottom
and pull the key out. Never pull the key out
without pressing the button.

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
Storage 93
Storage
Storage Compartments
Storage Compartments . . . . . . . . . . . . . . . . . 93
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Underseat Storage . . . . . . . . . . . . . . . . . . . . . 94
Rear Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Center Console Storage . . . . . . . . . . . . . . . . 94
Floor Console Storage . . . . . . . . . . . . . . . . . . 95
Additional Storage Features
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . 95
Storage Compartments{
Warning
Do not store heavy or sharp objects in
storage compartments. In a crash, these
objects may cause the cover to open and
could result in injury.
Glove Box
To open the upper glove box, push the
button below the air outlet, to the left of
the glove box.
To open the lower glove box, pull the
handle to the left. Use the vehicle key to
lock or unlock.
Cupholders
Front
There may be cupholders on the center
front seat console armrest.
Rear
If equipped, pull the rear seat armrest down
to access the cupholders.

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22

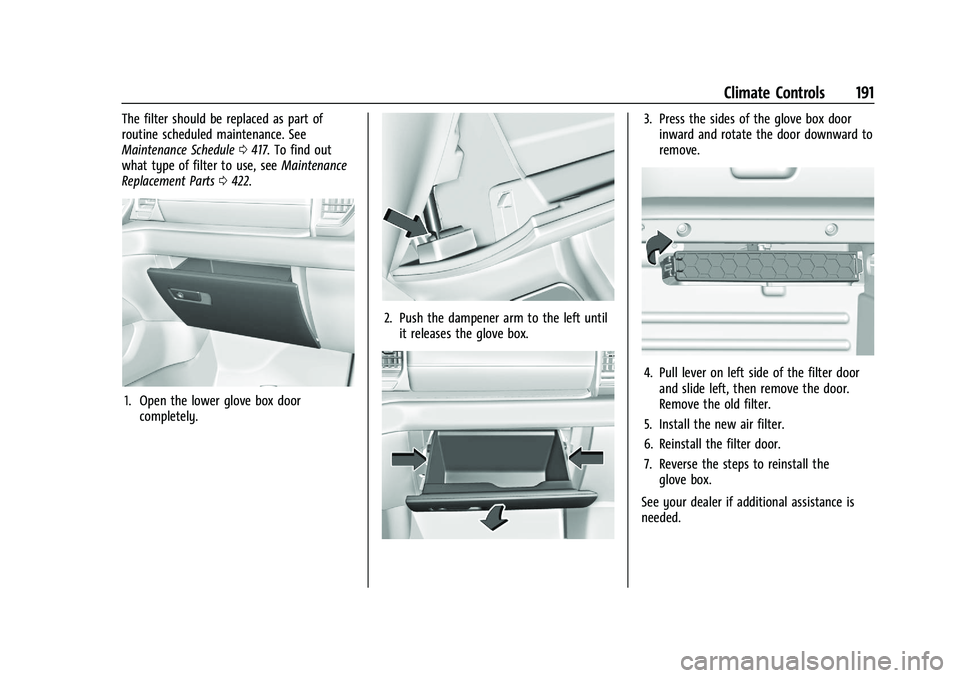

Climate Controls 191
The filter should be replaced as part of
routine scheduled maintenance. See
Maintenance Schedule0417. To find out
what type of filter to use, see Maintenance
Replacement Parts 0422.
1. Open the lower glove box door
completely.
2. Push the dampener arm to the left untilit releases the glove box.
3. Press the sides of the glove box doorinward and rotate the door downward to
remove.
4. Pull lever on left side of the filter doorand slide left, then remove the door.
Remove the old filter.
5. Install the new air filter.
6. Reinstall the filter door.
7. Reverse the steps to reinstall the glove box.
See your dealer if additional assistance is
needed.

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22

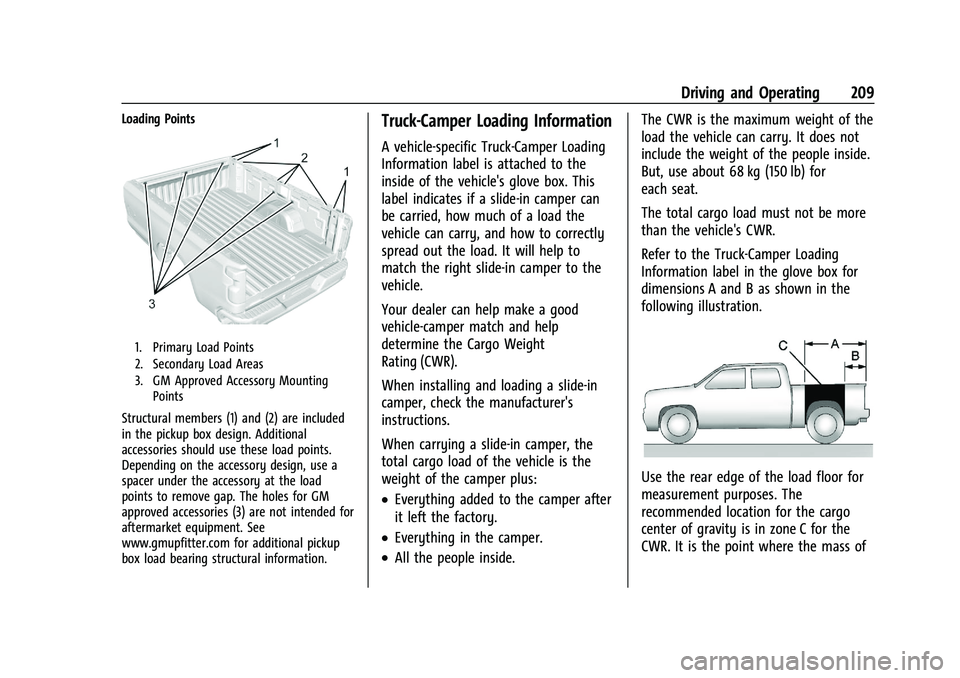

Driving and Operating 209
Loading Points
1. Primary Load Points
2. Secondary Load Areas
3. GM Approved Accessory MountingPoints
Structural members (1) and (2) are included
in the pickup box design. Additional
accessories should use these load points.
Depending on the accessory design, use a
spacer under the accessory at the load
points to remove gap. The holes for GM
approved accessories (3) are not intended for
aftermarket equipment. See
www.gmupfitter.com for additional pickup
box load bearing structural information.
Truck-Camper Loading Information
A vehicle-specific Truck-Camper Loading
Information label is attached to the
inside of the vehicle's glove box. This
label indicates if a slide-in camper can
be carried, how much of a load the
vehicle can carry, and how to correctly
spread out the load. It will help to
match the right slide-in camper to the
vehicle.
Your dealer can help make a good
vehicle-camper match and help
determine the Cargo Weight
Rating (CWR).
When installing and loading a slide-in
camper, check the manufacturer's
instructions.
When carrying a slide-in camper, the
total cargo load of the vehicle is the
weight of the camper plus:
.Everything added to the camper after
it left the factory.
.Everything in the camper.
.All the people inside. The CWR is the maximum weight of the
load the vehicle can carry. It does not
include the weight of the people inside.
But, use about 68 kg (150 lb) for
each seat.
The total cargo load must not be more
than the vehicle's CWR.
Refer to the Truck-Camper Loading
Information label in the glove box for
dimensions A and B as shown in the
following illustration.
Use the rear edge of the load floor for
measurement purposes. The
recommended location for the cargo
center of gravity is in zone C for the
CWR. It is the point where the mass of

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
Technical Data 425
Technical Data
Vehicle Identification
Vehicle Identification Number (VIN) . . . 425
Service Parts Identification . . . . . . . . . . . . 425
Vehicle Data
Capacities and Specifications . . . . . . . . . . 426
Engine Drive Belt Routing . . . . . . . . . . . . . 429
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front corner of
the instrument panel, on the driver side of
the vehicle. It can be seen through the
windshield from outside. The Vehicle
Identification Number (VIN) also appears on
the Vehicle Certification label and certificates
of title and registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See“Engine
Specifications” underCapacities and
Specifications 0426 for the vehicle's
engine code.
Service Parts Identification
There may be a large barcode on the
certification label on the center pillar that
you can scan for the following information:
.Vehicle Identification Number (VIN)
.Model designation
.Paint information
.Production options
If there is not a large barcode on this label,
then you will find this same information on
a label inside of the glove box.

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
Index 453
ExteriorCargo Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Lamp Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Lamps Off Reminder . . . . . . . . . . . . . . . . . . . 139
Lighting Battery Saver . . . . . . . . . . . . . . . . . 146
F
Fan
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Filter Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 341
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Flashers, Hazard Warning . . . . . . . . . . . . . . . . 140
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389
Floor Console Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
Fluid Automatic Transmission . . . . . . . . . . . . . . . 340
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Fog Lamp Light Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Forward Collision Alert (FCA) System . . . . . . . . . . . 284 Four-Wheel Drive . . . . . . . . . . . . . . . . . . . 230, 353
Four-Wheel-Drive
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438
Front Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Heated and Ventilated Seats . . . . . . . . . . . . 49
Locking Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Pedestrian Braking (FPB) System . . . . . . . 288
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Economy, Driving for Better . . . . . . . . . . . 194
Filling a Portable Fuel Container . . . . . . . 298
Filling the Tank . . . . . . . . . . . . . . . . . . . 295, 297
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 295
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Low Fuel Warning Light . . . . . . . . . . . . . . . 124
Management, Active . . . . . . . . . . . . . . . . . . . 219
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 295
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 294
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Full-Size Spare Tire . . . . . . . . . . . . . . . . . . . . . . . 399
Fuses
Engine Compartment Fuse Block . . . . . . . 362
Fuses and Circuit Breakers . . . . . . . . . . . . . 361 Fuses (cont'd)
Instrument Panel Fuse Block . . . . . . 365, 367
G
Garage Door Opener . . . . . . . . . . . . . . . . . . . . . .134
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Gauges Engine Coolant Temperature . . . . . . . . . . . . 112
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 111
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Transmission Temperature . . . . . . . . . . . . . . 113
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 110
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Warning Lights and Indicators . . . . . . . . . 105
General Information Service and Maintenance . . . . . . . . . . . . . . 416
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Glass Replacement . . . . . . . . . . . . . . . . . . . . . . . 355
Global Positioning System (GPS) . . . . . . . . . . 161
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
Index 459
StepsPower Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Stop/Start System . . . . . . . . . . . . . . . . . . . . . . . . 213
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 358
Storage Center Console . . . . . . . . . . . . . . . . . . . . . . . . . 94
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Floor Console . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Underseat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Super Cruise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Surround Vision System . . . . . . . . . . . . . . . . . 275
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
System Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Brake Pad Life . . . . . . . . . . . . . . . . . . . . . . . . . 349
Driver Assistance . . . . . . . . . . . . . . . . . . . . . . 272
Engine Air Filter Life . . . . . . . . . . . . . . . . . . . 341
Forward Collision Alert (FCA) . . . . . . . . . . . 284 System (cont'd)
Global Positioning . . . . . . . . . . . . . . . . . . . . . . 161
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . 440
Rear Cross Traffic Alert . . . . . . . . . . . . . . . . 284
Surround Vision . . . . . . . . . . . . . . . . . . . . . . . . 275
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Taillamps
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 358
Task Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Text Telephone (TTY) Users . . . . . . . . . . . . . . 432
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . . 31
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
All-Terrain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 383
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 372
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 385
Full-Size Spare . . . . . . . . . . . . . . . . . . . . . . . . . 399
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 387
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381 Tires (cont'd)
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . 123
Pressure Monitor Operation . . . . . . . . . . . 377
Pressure Monitor System . . . . . . . . . . . . . . 377
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . . 371
Terminology and Definitions . . . . . . . . . . . 374
Uniform Tire Quality Grading . . . . . . . . . . 385
Wheel Alignment and Tire Balance . . . . 386
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 386
When It Is Time for New Tires . . . . . . . . . 383
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . . . 229
Tow/Haul Mode Light . . . . . . . . . . . . . . . . . . . 120
Towing App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Driving Characteristics . . . . . . . . . . . . . . . . . 299
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
General Information . . . . . . . . . . . . . . . . . . . 298
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 403
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Trailer Sway Control (TSC) . . . . . . . . . . . . . 316
Traction Control System (TCS)/StabiliTrak
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Control/Electronic Stability Control . . . . 237
