Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
Service and Maintenance 417
Because of the way people use vehicles,
maintenance needs vary. There may need to
be more frequent checks and services. The
Additional Required Services - Normal are for
vehicles that:
.Carry passengers and cargo within
recommended limits on the Tire and
Loading Information label. SeeVehicle
Load Limits 0204.
.Are driven on reasonable road surfaces
within legal driving limits.
.Use the recommended fuel. See
Recommended Fuel (6.2L V8 Engine) 0294
or
Recommended Fuel (2.7L L4 and 5.3L
V8 Engines) 0294.
Refer to the information in the Maintenance
Schedule Additional Required Services -
Normal Service.
The Additional Required Services - Severe are
for vehicles that are:
.Mainly driven in heavy city traffic in hot
weather.
.Mainly driven in hilly or mountainous
terrain.
.Frequently towing a trailer.
.Used for high speed or competitive
driving.
.Used for taxi, police, or delivery service.
Refer to the information in the Maintenance
Schedule Additional Required Services -
Severe Service.
{Warning
Performing maintenance work can be
dangerous and can cause serious injury.
Perform maintenance work only if the
required information, proper tools, and
equipment are available. If they are not,
see your dealer to have a trained
technician do the work. See Doing Your
Own Service Work 0333.
Maintenance Schedule
Tire Rotation and Required Services
Every 12 000 km (7,500 mi)
Tires are rotated to achieve a more uniform
wear for all tires. The first rotation is the
most important.
Anytime unusual wear is noticed, rotate the
tires as soon as possible, check for proper
tire inflation pressure, and check for
damaged tires or wheels. If the unusual
wear continues after the rotation, check the wheel alignment. See
When It Is Time for
New Tires 0383 and
Wheel Replacement 0386.
.Perform Multi-Point Vehicle Inspection.
See Multi-Point Vehicle Inspection (MPVI)
0 419.
.Lubricate body components. See Exterior
Care 0407.
Extended Idle Use
When the vehicle is used in a way that
requires extended idle time, one hour of use
shall be deemed the same as 53 km (33 mi).
See Driver Information Center (DIC) (Base
Level) 0126 or
Driver Information Center (DIC) (Uplevel)
0 127 for hourmeter, if equipped.
Additional Required Services —Normal
Service
Every 12 000 km (7,500 mi)
.Check engine oil level and oil
life percentage. If needed, change engine
oil and filter, and reset oil life system. Or
when the CHANGE ENGINE OIL SOON
message displays, have the engine oil and
filter changed within the next 1 000 km/
600 mi. If driven under the best
conditions, the engine oil life system may

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
418 Service and Maintenance
not indicate the need for vehicle service
for up to a year. The engine oil and filter
must be changed at least once a year and
the oil life system must be reset. Your
trained dealer technician can perform this
work. If the engine oil life system is reset
accidentally, service the vehicle within
5 000 km/3,000 mi since the last service.
Reset the oil life system when the oil is
changed. SeeEngine Oil Life System
0 340.
.When the REPLACE AT NEXT OIL CHANGE
message displays, the engine air filter
should be replaced at the next engine oil
change. When the REPLACE ENGINE AIR
FILTER SOON message displays, the
engine air filter should be replaced at the
earliest convenience. Reset the engine air
filter life system after the engine air filter
is replaced. See Engine Air Filter Life
System 0341.
Every 36 000 km (22,500 mi)
.Replace passenger compartment air filter.
Or every 24 months, whichever comes
first. More frequent passenger
compartment air filter replacement may
be needed if driving in areas with heavy
traffic, poor air quality, high dust levels,
or environmental allergens. Passenger compartment air filter replacement may
also be needed if there is reduced airflow,
window fogging, or odors. Your GM
dealer can help determine when to
replace the filter.
Every 96 000 km (60,000 mi)
.Replace spark plugs. Inspect spark plug
wires and/or boots. (2.7L L4 Turbo
Engine Only)
Every 156 000 km (97,500 mi)
.Replace spark plugs. Inspect spark plug
wires and/or boots. (5.3L and 6.2L
V8 Engines Only)
Every 161 000 km (100,000 mi)
.Replace hood and/or body lift support gas
struts. Or every 10 years, whichever
comes first. See Gas Strut(s)0356.
.Change transfer case fluid, if equipped
with 4WD. Do not directly power wash
the transfer case and/or front/rear axle
output seals. High pressure water can
overcome the seals and contaminate the
transfer case fluid. Contaminated fluid will
decrease the life of the transfer case and/
or axles and should be replaced. Every 240 000 km (150,000 mi)
.Drain and fill engine cooling system. Or
every six years, whichever comes first.
See
Cooling System 0343.
Severe Conditions Requiring More
Frequent Maintenance*
.Public service, military, or commercial use
vehicles to include the following:
‐ Ambulances, police cars, and
emergency rescue vehicles.
‐ Civilian vehicles such as light duty
pick-up trucks, SUVs, and passenger
cars that are used in military
applications.
‐ Recovery vehicles such as tow trucks
and flatbed single vehicle carriers or
any vehicle that is consistently used in
towing trailers or other loads.
‐ High use commercial vehicles such as
courier delivery vehicles, private
security patrol vehicles, or any vehicles
that operate on a 24–hour basis.
‐ Any vehicle consistently operated in a
high sand or dust environment such as
those used on oil pipelines and similar
applications.

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22

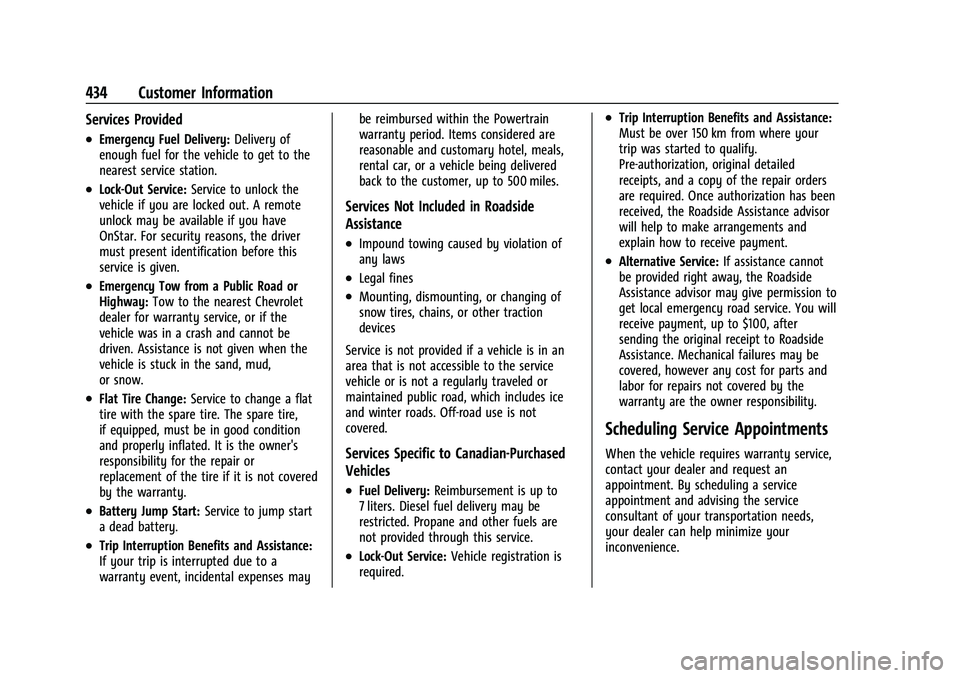

434 Customer Information
Services Provided
.Emergency Fuel Delivery:Delivery of
enough fuel for the vehicle to get to the
nearest service station.
.Lock-Out Service: Service to unlock the
vehicle if you are locked out. A remote
unlock may be available if you have
OnStar. For security reasons, the driver
must present identification before this
service is given.
.Emergency Tow from a Public Road or
Highway: Tow to the nearest Chevrolet
dealer for warranty service, or if the
vehicle was in a crash and cannot be
driven. Assistance is not given when the
vehicle is stuck in the sand, mud,
or snow.
.Flat Tire Change: Service to change a flat
tire with the spare tire. The spare tire,
if equipped, must be in good condition
and properly inflated. It is the owner's
responsibility for the repair or
replacement of the tire if it is not covered
by the warranty.
.Battery Jump Start: Service to jump start
a dead battery.
.Trip Interruption Benefits and Assistance:
If your trip is interrupted due to a
warranty event, incidental expenses may be reimbursed within the Powertrain
warranty period. Items considered are
reasonable and customary hotel, meals,
rental car, or a vehicle being delivered
back to the customer, up to 500 miles.
Services Not Included in Roadside
Assistance
.Impound towing caused by violation of
any laws
.Legal fines
.Mounting, dismounting, or changing of
snow tires, chains, or other traction
devices
Service is not provided if a vehicle is in an
area that is not accessible to the service
vehicle or is not a regularly traveled or
maintained public road, which includes ice
and winter roads. Off-road use is not
covered.
Services Specific to Canadian-Purchased
Vehicles
.Fuel Delivery: Reimbursement is up to
7 liters. Diesel fuel delivery may be
restricted. Propane and other fuels are
not provided through this service.
.Lock-Out Service: Vehicle registration is
required.
.Trip Interruption Benefits and Assistance:
Must be over 150 km from where your
trip was started to qualify.
Pre-authorization, original detailed
receipts, and a copy of the repair orders
are required. Once authorization has been
received, the Roadside Assistance advisor
will help to make arrangements and
explain how to receive payment.
.Alternative Service: If assistance cannot
be provided right away, the Roadside
Assistance advisor may give permission to
get local emergency road service. You will
receive payment, up to $100, after
sending the original receipt to Roadside
Assistance. Mechanical failures may be
covered, however any cost for parts and
labor for repairs not covered by the
warranty are the owner responsibility.
Scheduling Service Appointments
When the vehicle requires warranty service,
contact your dealer and request an
appointment. By scheduling a service
appointment and advising the service
consultant of your transportation needs,
your dealer can help minimize your
inconvenience.

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22

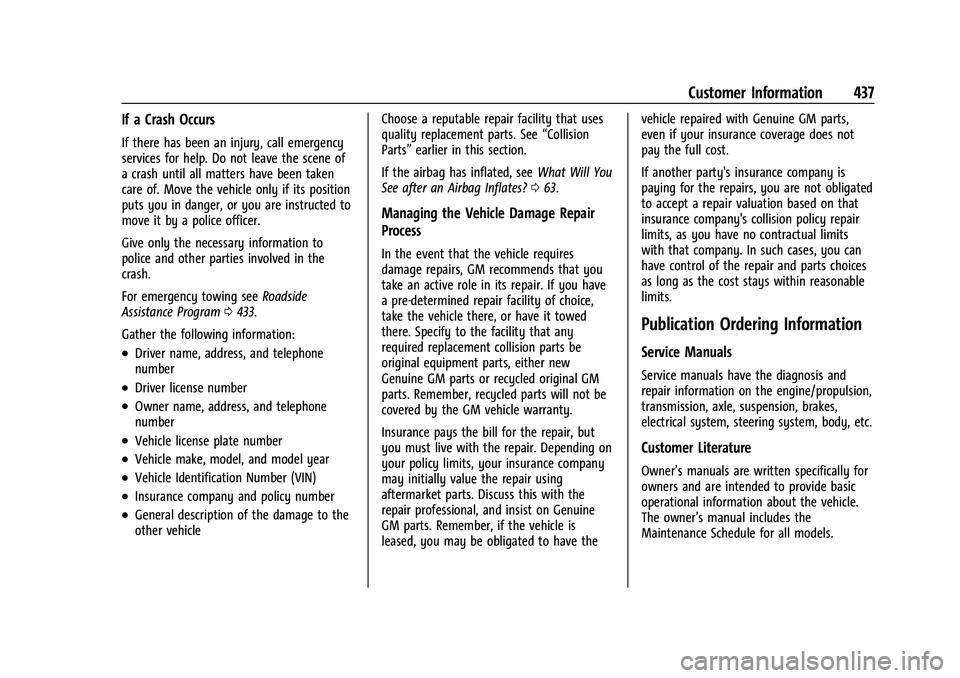

Customer Information 437
If a Crash Occurs
If there has been an injury, call emergency
services for help. Do not leave the scene of
a crash until all matters have been taken
care of. Move the vehicle only if its position
puts you in danger, or you are instructed to
move it by a police officer.
Give only the necessary information to
police and other parties involved in the
crash.
For emergency towing seeRoadside
Assistance Program 0433.
Gather the following information:
.Driver name, address, and telephone
number
.Driver license number
.Owner name, address, and telephone
number
.Vehicle license plate number
.Vehicle make, model, and model year
.Vehicle Identification Number (VIN)
.Insurance company and policy number
.General description of the damage to the
other vehicle Choose a reputable repair facility that uses
quality replacement parts. See
“Collision
Parts” earlier in this section.
If the airbag has inflated, see What Will You
See after an Airbag Inflates? 063.
Managing the Vehicle Damage Repair
Process
In the event that the vehicle requires
damage repairs, GM recommends that you
take an active role in its repair. If you have
a pre-determined repair facility of choice,
take the vehicle there, or have it towed
there. Specify to the facility that any
required replacement collision parts be
original equipment parts, either new
Genuine GM parts or recycled original GM
parts. Remember, recycled parts will not be
covered by the GM vehicle warranty.
Insurance pays the bill for the repair, but
you must live with the repair. Depending on
your policy limits, your insurance company
may initially value the repair using
aftermarket parts. Discuss this with the
repair professional, and insist on Genuine
GM parts. Remember, if the vehicle is
leased, you may be obligated to have the vehicle repaired with Genuine GM parts,
even if your insurance coverage does not
pay the full cost.
If another party's insurance company is
paying for the repairs, you are not obligated
to accept a repair valuation based on that
insurance company's collision policy repair
limits, as you have no contractual limits
with that company. In such cases, you can
have control of the repair and parts choices
as long as the cost stays within reasonable
limits.
Publication Ordering Information
Service Manuals
Service manuals have the diagnosis and
repair information on the engine/propulsion,
transmission, axle, suspension, brakes,
electrical system, steering system, body, etc.
Customer Literature
Owner’s manuals are written specifically for
owners and are intended to provide basic
operational information about the vehicle.
The owner’s manual includes the
Maintenance Schedule for all models.

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
452 Index
DiagnosticsConnected Services . . . . . . . . . . . . . . . . . . . . 448
Differential, Limited-Slip . . . . . . . . . . . . . . . . . 243
Disabled Vehicle Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . 195
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 20
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Drive Belt Routing, Engine . . . . . . . . . . . . . . . 429
Drive Systems Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . 353
Driver
Assistance Systems . . . . . . . . . . . . . . . . . . . . 272
Information Center (DIC) . . . . . . . . . . . 126, 127
Mode Control . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Mode Control Light . . . . . . . . . . . . . . . . . . . . 122
Teen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Driving Assistance Systems . . . . . . . . . . . . . . . . . . . . 284
Better Fuel Economy . . . . . . . . . . . . . . . . . . . 194
Characteristics and Towing Tips . . . . . . . . 299
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Distracted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Hill and Mountain Roads . . . . . . . . . . . . . . 202 Driving (cont'd)
If the Vehicle is Stuck . . . . . . . . . . . . . . . . . 203
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . 197
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 197
Vehicle Load Limits . . . . . . . . . . . . . . . . . . . . 204
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Dual Automatic Climate Control System . . . . 187
E
ElectricBrake Boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Parking Brake Light . . . . . . . . . . . . . . . . . . . . . 118
Electrical Equipment, Add-On . . . . . . . . . . . . . . . . . . . . 328
System Overload . . . . . . . . . . . . . . . . . . . . . . 360
Electrical System Engine Compartment Fuse Block . . . . . . . 362
Fuses and Circuit Breakers . . . . . . . . . . . . . 361
Instrument Panel Fuse Block . . . . . . 365, 367
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . 341 Engine (cont'd)
Air Filter Life System . . . . . . . . . . . . . . . . . . 341
Check Light (Malfunction Indicator) . . . . . 116
Compartment Overview . . . . . . . . . . . . . . . . 335
Coolant Temperature Gauge . . . . . . . . . . . . 112
Coolant Temperature Warning Light . . . 122
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 343
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 429
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 340
Oil Pressure Gauge . . . . . . . . . . . . . . . . . . . . . 111
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . 123
Overheated Protection
Operating Mode . . . . . . . . . . . . . . . . . . . . . 347
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Power Messages . . . . . . . . . . . . . . . . . . . . . . . 133
Running While Parked . . . . . . . . . . . . . . . . . 220
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . .145
Equipment, Towing . . . . . . . . . . . . . . . . . . . . . . 307
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 440
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145
Extended Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . .32
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 219
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 58

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
Index 453
ExteriorCargo Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Lamp Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Lamps Off Reminder . . . . . . . . . . . . . . . . . . . 139
Lighting Battery Saver . . . . . . . . . . . . . . . . . 146
F
Fan
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Filter Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 341
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Flashers, Hazard Warning . . . . . . . . . . . . . . . . 140
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389
Floor Console Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
Fluid Automatic Transmission . . . . . . . . . . . . . . . 340
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Fog Lamp Light Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Forward Collision Alert (FCA) System . . . . . . . . . . . 284 Four-Wheel Drive . . . . . . . . . . . . . . . . . . . 230, 353
Four-Wheel-Drive
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438
Front Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Heated and Ventilated Seats . . . . . . . . . . . . 49
Locking Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Pedestrian Braking (FPB) System . . . . . . . 288
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Economy, Driving for Better . . . . . . . . . . . 194
Filling a Portable Fuel Container . . . . . . . 298
Filling the Tank . . . . . . . . . . . . . . . . . . . 295, 297
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 295
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Low Fuel Warning Light . . . . . . . . . . . . . . . 124
Management, Active . . . . . . . . . . . . . . . . . . . 219
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 295
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 294
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Full-Size Spare Tire . . . . . . . . . . . . . . . . . . . . . . . 399
Fuses
Engine Compartment Fuse Block . . . . . . . 362
Fuses and Circuit Breakers . . . . . . . . . . . . . 361 Fuses (cont'd)
Instrument Panel Fuse Block . . . . . . 365, 367
G
Garage Door Opener . . . . . . . . . . . . . . . . . . . . . .134
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Gauges Engine Coolant Temperature . . . . . . . . . . . . 112
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 111
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Transmission Temperature . . . . . . . . . . . . . . 113
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 110
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Warning Lights and Indicators . . . . . . . . . 105
General Information Service and Maintenance . . . . . . . . . . . . . . 416
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Glass Replacement . . . . . . . . . . . . . . . . . . . . . . . 355
Global Positioning System (GPS) . . . . . . . . . . 161
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
Index 455
Lamps (cont'd)Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Lane Change Alert (LCA) . . . . . . . . . . . . . . . . . . . . . 290
Keep Assist (LKA) . . . . . . . . . . . . . . . . . . . . . . 292
Keep Assist Light . . . . . . . . . . . . . . . . . . . . . . 120
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . .55
LATCH System
Replacing Parts after a Crash . . . . . . . . . . . 86
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
Lighting
Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Illumination Control . . . . . . . . . . . . . . . . . . . 143
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
Task . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Lights Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 115
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Automatic Emergency Braking (AEB) Disabled . . . . . . . . . . . . . . . . . . . . . . . 120
Brake System Warning . . . . . . . . . . . . . . . . . 118
Charging System . . . . . . . . . . . . . . . . . . . . . . . 116
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 Lights (cont'd)
Cruise Control Light . . . . . . . . . . . . . . . . . . . . 125
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Driver Mode Control . . . . . . . . . . . . . . . . . . . 122
Electric Parking Brake . . . . . . . . . . . . . . . . . . . 118
Engine Coolant Temperature
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . 123
Four-Wheel-Drive . . . . . . . . . . . . . . . . . . . . . . . 119
Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . 125
Gauges and Indicators . . . . . . . . . . . . . . . . . 105
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . 124
Hill Descent Control . . . . . . . . . . . . . . . . . . . 120
Lane Keep Assist . . . . . . . . . . . . . . . . . . . . . . . 120
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . 124
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 114
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Service Electric Parking Brake . . . . . . . . . . . 119
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . 120
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . 122
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Limited-Slip Differential . . . . . . . . . . . . . . . . . . 243
Lock Steering Column . . . . . . . . . . . . . . . . . . . . . . . . 30
Locking Front Axle . . . . . . . . . . . . . . . . . . . . . . . 244 Locking Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . 244
Locks
Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . 20
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 20
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 20
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Low Fuel Warning Light . . . . . . . . . . . . . . . . . .124
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 76
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 46 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424
Maintenance Schedule . . . . . . . . . . . . . . . . . . . .417 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 116
Manual Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227, 229
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Media
Avoiding Untrusted Devices . . . . . . . . . . . . . 157

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
456 Index
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
MessagesEngine Power . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . . . . . 34
Automatic Dimming Rearview . . . . . . . . . . 35
Blind Spot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Interior Rearview . . . . . . . . . . . . . . . . . . . . . . . 35
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 35
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Trailer Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Mode Driver Control . . . . . . . . . . . . . . . . . . . . . . . . . 240
Monitor System, Tire Pressure . . . . . . . . . . . 377
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . . 157
Multi-Point Vehicle Inspection (MPVI) . . . . 419
N
Navigation Connected Services . . . . . . . . . . . . . . . . . . . . 446 Navigation (cont'd)
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Using the System . . . . . . . . . . . . . . . . . . . . . . 159
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . 210
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Off-Road Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Engine Oil Life System . . . . . . . . . . . . . . . . . 340
Engine Oil Pressure Gauge . . . . . . . . . . . . . . 111
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . 123
Older Children, Restraints . . . . . . . . . . . . . . . . . 70
Online Account . . . . . . . . . . . . . . . . . . . . . . . . . . 432
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 440 Additional Information . . . . . . . . . . . . . . . . . 442
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 442
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . 442
Operating Mode Overheated Engine Protection . . . . . . . . . 347
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 Overheated Engine Protection
Operating Mode . . . . . . . . . . . . . . . . . . . . . . . 347
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . 346
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . .148, 149 Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . 5
P
ParkAssist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274, 282
Shifting Into . . . . . . . . . . . . . . . . . . . . . . . 216, 217
Shifting Out of . . . . . . . . . . . . . . . . . . . . . . . . 218
Parking
Brake and P (Park) MechanismCheck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Over Things That Burn . . . . . . . . . . . . . . . . . 219
Parking or Backing
Assistance Systems . . . . . . . . . . . . . . . . . . . . 274
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . 115
Compartment Air Filter . . . . . . . . . . . . . . . . 190
Sensing System . . . . . . . . . . . . . . . . . . . . . . . . . 64
Pedestrian Ahead Indicator . . . . . . . . . . . . . . . 121
Perchlorate Materials Requirements, California . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Phone
Apple CarPlay andAndroid Auto . . . . . . . . . . . . . . . . . . . . 172, 173
