Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16547501) - 2023 - CRC - 6/10/22
66 Instruments and Controls
Instruments and Controls
Controls
Steering Wheel Adjustment . . . . . . . . . . . . 66
Steering Wheel Controls . . . . . . . . . . . . . . . . 67
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Windshield Wiper/Washer . . . . . . . . . . . . . 68
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Power Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Cigarette Lighter . . . . . . . . . . . . . . . . . . . . . . . . 71
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Warning Lights, Gauges, and Indicators
Warning Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . 72
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Engine Oil Pressure Gauge . . . . . . . . . . . . . . 73
Engine Coolant Temperature Gauge . . . . 74
Voltmeter Gauge . . . . . . . . . . . . . . . . . . . . . . . 74
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 75
Airbag Readiness Light . . . . . . . . . . . . . . . . . . 75
Airbag On-Off Light . . . . . . . . . . . . . . . . . . . . . 76
Charging System Light . . . . . . . . . . . . . . . . . . 77
Malfunction Indicator Lamp (Check Engine Light) . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Brake System Warning Light . . . . . . . . . . . 78
Antilock Brake System (ABS) Warning
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Tow/Haul Mode Light . . . . . . . . . . . . . . . . . . 79
Lane Departure Warning (LDW) Light . . . 79
Vehicle Ahead Indicator . . . . . . . . . . . . . . . . 80
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . 80
Traction Control System (TCS)/StabiliTrak Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Tire Pressure Light . . . . . . . . . . . . . . . . . . . . . 80
Engine Oil Pressure Light . . . . . . . . . . . . . . . 81
Low Fuel Warning Light . . . . . . . . . . . . . . . . 81
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . 82
High-Beam On Light . . . . . . . . . . . . . . . . . . . . 82
Cruise Control Light . . . . . . . . . . . . . . . . . . . . 82
Information Displays
Driver Information Center (DIC) . . . . . . . . . 82
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . . . . . . . . . . 86
Engine Power Messages . . . . . . . . . . . . . . . . 86
Vehicle Speed Messages . . . . . . . . . . . . . . . . 87
Vehicle Personalization
Vehicle Personalization . . . . . . . . . . . . . . . . . 87
Controls
Steering Wheel Adjustment
For vehicles with a tilt steering wheel, the
lever is located on the left side of the
steering column.
To adjust the steering wheel:
1. Pull the lever to move the steering wheel up or down into a comfortable
position.
2. Release the lever to lock the steering wheel in place.
Do not adjust the steering wheel while
driving.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16547501) - 2023 - CRC - 6/10/22
72 Instruments and Controls
Instrument Cluster
English Shown, Metric Similar
1.Engine Oil Pressure Gauge 073
2. Speedometer 072
3. Voltmeter Gauge 074
4. Fuel Gauge 072
5. Driver Information Center (DIC) 082
6. Engine Coolant Temperature Gauge
074Speedometer
The speedometer shows the vehicle speed in
kilometers per hour (km/h) and miles per
hour (mph).
Odometer
The odometer shows how far the vehicle has
been driven, in either kilometers or miles.
Trip Odometer
The trip odometer shows how far the
vehicle has been driven since the trip
odometer was last reset.
The trip odometer is accessed and reset
through the Driver Information Center (DIC).
See Driver Information Center (DIC) 082.
Fuel Gauge
Metric

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16547501) - 2023 - CRC - 6/10/22
Instruments and Controls 83
DIC Buttons
The buttons are the trip/fuel, vehicle
information, customization, and set/reset
buttons. The button functions are detailed in
the following pages.
3:Press this button to display the
odometer, trip odometers, fuel range,
average economy, fuel used, timer, average
speed, and digital tachometer.
T: Press this button to display the oil
life, rear park assist, units, tire pressure
readings for vehicles with the Tire Pressure
Monitor System (TPMS), engine hours, Tire
Pressure Monitor System (TPMS)
programming for vehicles with the TPMS and without a Remote Keyless Entry (RKE)
transmitter, and compass zone and compass
calibration on vehicles with this feature.
U:
Press this button to customize the
feature settings on the vehicle. See Vehicle
Personalization 087 for more information.
V:Press this button to set or reset certain
functions and to turn off or acknowledge
messages on the DIC.
Trip/Fuel Menu Items
3: Press this button to scroll through
the following menu items:
Odometer
Press
3until XX km (mi) displays. This
display shows the distance the vehicle has
been driven in either kilometers (km) or
miles (mi).
Trip Odometers
Press
3until A or B displays. This
display shows the current distance traveled
in either kilometers (km) or miles (mi) since
the last reset for each trip odometer. Both
trip odometers can be used at the
same time. Each trip odometer can be reset to zero
separately by pressing
Vwhile the desired
trip odometer is displayed.
The trip odometer has a feature called the
retro-active reset. This can be used to set
the trip odometer to the number of
kilometers (miles) driven since the ignition
was last turned on. This can be used if the
trip odometer is not reset at the beginning
of the trip.
To use the retro-active reset feature, press
and hold
Vfor at least four seconds. The
trip odometer will display the number of
kilometers (km) or miles (mi) driven since
the ignition was last turned on and the
vehicle was moving. Once the vehicle begins
moving, the trip odometer will accumulate
mileage. For example, if the vehicle was
driven 8 km (5 miles) before it is started
again, and then the retro-active reset feature
is activated, the display will show 8 km
(5 miles). As the vehicle begins moving, the
display will then increase to 8.1 km
(5.1 miles), 8.2 km (5.2 miles), etc.
If the retro-active reset feature is activated
after the vehicle is started, but before it
begins moving, the display will show the
number of kilometers (km) or miles (mi) that
were driven during the last ignition cycle.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16547501) - 2023 - CRC - 6/10/22
218 Vehicle Care
such as troughs or ruts, is normal. If the
vehicle is vibrating when driving on a
smooth road, the tires and wheels may
need to be rebalanced. See your dealer for
proper diagnosis.
Wheel Replacement
Replace any wheel that is bent, cracked,
or badly rusted or corroded. If wheel nuts
keep coming loose, the wheel, wheel bolts,
and wheel nuts should be replaced. If the
wheel leaks air, replace it. Some aluminum
wheels can be repaired. See your dealer if
any of these conditions exist.
Your dealer will know the kind of wheel that
is needed.
Each new wheel should have the same
load-carrying capacity, diameter, width,
offset, and be mounted the same way as
the one it replaces.
Replace wheels, wheel bolts, wheel nuts,
or Tire Pressure Monitor System (TPMS)
sensors with new GM original equipment
parts.
{Warning
Using the wrong replacement wheels,
wheel bolts, or wheel nuts can be
dangerous. It could affect the braking and
handling of the vehicle. Tires can lose air
and cause loss of control, resulting in a
crash. Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.
{Warning
Replacing a wheel with a used one is
dangerous. How it has been used or how
far it has been driven may be unknown.
It could fail suddenly and cause a crash.
When replacing wheels, use a new GM
original equipment wheel.
Caution
The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle
ground clearance, and tire or tire chain
clearance to the body and chassis.
Tire Chains
{Warning
Tire chains or other traction devices used
on a vehicle without the proper amount
of clearance can cause damage to the
brakes, suspension, or other vehicle parts.
Use tire chains or traction devices only if
the equipment manufacturer recommends
them for the vehicle tire size combination
and road conditions. Follow the
equipment manfacturer’s instructions. The
area damaged by the tire chains could
cause you to lose control of the vehicle
and you or others may be injured in a
crash. To help avoid damage to the
vehicle, drive slowly, readjust, or remove
the device if it is contacting the vehicle.
Do not spin the vehicle's tires.
Caution
Use tire chains only where legal and only
when necessary. Use chains that are the
proper size for the tires. Install them on
the tires of the rear axle. Do not use
chains on the tires of the front axle.
(Continued)

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16547501) - 2023 - CRC - 6/10/22
248 Service and Maintenance

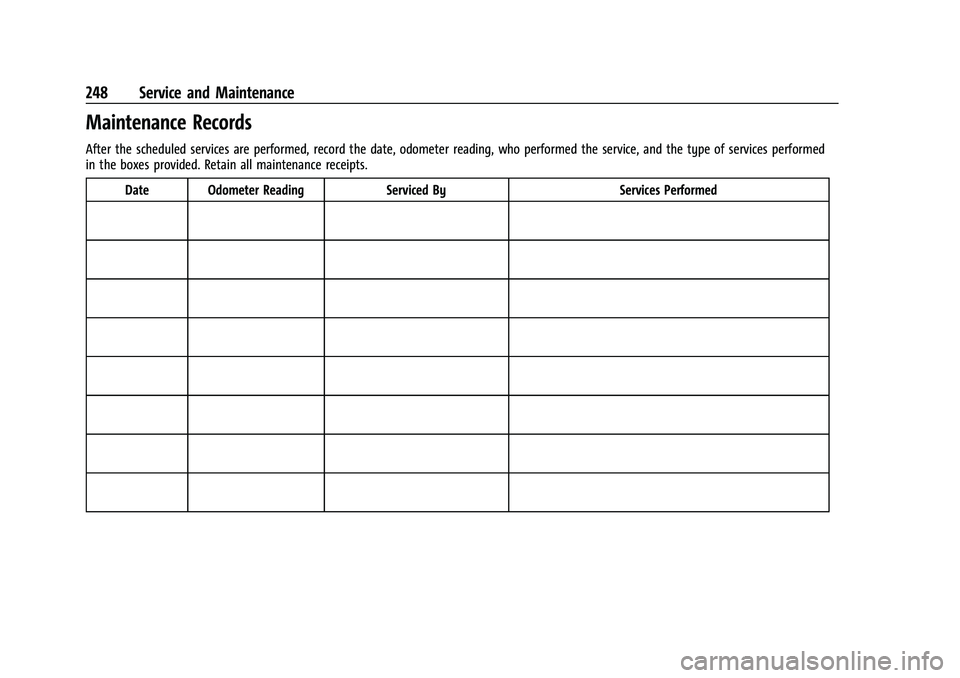

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed
in the boxes provided. Retain all maintenance receipts.Date Odometer Reading Serviced By Services Performed

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16547501) - 2023 - CRC - 6/10/22
256 Customer Information
adaptive equipment required for the vehicle,
such as hand controls or a wheelchair/
scooter lift for the vehicle.
To learn about the GM Mobility program,
see www.gmmobility.com or call the GM
Mobility Assistance Center at 1-800-323-9935.
Text Telephone (TTY) users, please dial the
national 711 relay service and contact
1-800-323-9935.
General Motors of Canada also has a
Mobility program. See www.gm.ca, or call
1-800-GM-DRIVE (800-463-7483) for details.
TTY users call 1-800-263-3830.
Roadside Assistance Program
For U.S.-purchased vehicles, call
1-800-243-8872. (Text Telephone (TTY):
1-888-889-2438.)
For Canadian-purchased vehicles, call
1-800-268-6800.
Service is available 24 hours a day, 365 days
a year.
Calling for Assistance
When calling Roadside Assistance, have the
following information ready:
.Your name, home address, and home
telephone number
.Telephone number of your location
.Location of the vehicle
.Model, year, color, and license plate
number of the vehicle
.Odometer reading and Vehicle
Identification Number (VIN)
.Description of the problem
Coverage
Services are provided for the duration of the
vehicle’s powertrain warranty.
In the U.S., anyone driving the vehicle is
covered. In Canada, a person driving the
vehicle without permission from the owner
is not covered.
Roadside Assistance is not a part of the New
Vehicle Limited Warranty. General Motors
North America and Chevrolet reserve the
right to make any changes or discontinue
the Roadside Assistance program at any
time without notification.
General Motors North America and Chevrolet
reserve the right to limit services or
payment to an owner or driver if they
decide the claims are made too often, or the
same type of claim is made many times.
Services Provided
.Emergency Fuel Delivery:Delivery of
enough fuel for the vehicle to get to the
nearest service station.
.Lock-Out Service: Service to unlock the
vehicle if you are locked out. A remote
unlock may be available if you have
OnStar. For security reasons, the driver
must present identification before this
service is given.
.Emergency Tow from a Public Road or
Highway: Tow to the nearest Chevrolet
dealer for warranty service, or if the
vehicle was in a crash and cannot be
driven. Assistance is not given when the
vehicle is stuck in the sand, mud,
or snow.
.Flat Tire Change: Service to change a flat
tire with the spare tire. The spare tire,
if equipped, must be in good condition
and properly inflated. It is the owner's
responsibility for the repair or
replacement of the tire if it is not covered
by the warranty.
.Battery Jump Start: Service to jump start
a dead battery.
.Trip Interruption Benefits and Assistance:
If your trip is interrupted due to a
warranty event, incidental expenses may

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16547501) - 2023 - CRC - 6/10/22
Index 275
EngineAir Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . 182
Check Light (Malfunction Indicator) . . . . . 77
Compartment Overview . . . . . . . . . . . . . . . . 176
Coolant Heater . . . . . . . . . . . . . . . . . . . . . . . . 133
Coolant Temperature Gauge . . . . . . . . . . . . 74
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 183
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 252
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . . 181
Oil Pressure Gauge . . . . . . . . . . . . . . . . . . . . . 73
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . 81
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Power Messages . . . . . . . . . . . . . . . . . . . . . . . . 86
Running While Parked . . . . . . . . . . . . . . . . . 136
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Enhanced Technology Glass . . . . . . . . . . . . . . . 20
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Equipment, Towing . . . . . . . . . . . . . . . . . . . . . . 167
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 262
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Extended Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . .18
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 34
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Lamps Off Reminder . . . . . . . . . . . . . . . . . . . . 91
Lighting Battery Saver . . . . . . . . . . . . . . . . . . 96F
FanEngine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Fast Idle System . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Filter Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 182
Fixed Mast Antenna . . . . . . . . . . . . . . . . . . . . . 103
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Flashers, Hazard Warning . . . . . . . . . . . . . . . . . 93
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Fluid Automatic Transmission . . . . . . . . . . . . . . . . 181
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . 188
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Forward Collision Alert (FCA) System . . . . . . . . . . . 148
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Front Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 Fuel (cont'd)
Economy, Driving for Better . . . . . . . . . . . . 121
Filling a Portable Fuel Container . . . . . . . 154
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 153
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 153
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Low Fuel Warning Light . . . . . . . . . . . . . . . . 81
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 153
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 152
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Full-Size Spare Tire . . . . . . . . . . . . . . . . . . . . . . . 227
Fuses Engine Compartment Fuse Block . . . . . . . 198
Floor Console Fuse Block . . . . . . . . . . . . . . . 202
Fuses and Circuit Breakers . . . . . . . . . . . . . 198
G
GaugesEngine Coolant Temperature . . . . . . . . . . . . 74
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 73
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Warning Lights and Indicators . . . . . . . . . . . 71
General Information Service and Maintenance . . . . . . . . . . . . . . 241

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16547501) - 2023 - CRC - 6/10/22
Index 277
LATCH, Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Lighter, Cigarette . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Illumination Control . . . . . . . . . . . . . . . . . . . . 94
Lights Airbag On-Off . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 75
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Brake System Warning . . . . . . . . . . . . . . . . . 78
Charging System . . . . . . . . . . . . . . . . . . . . . . . 77
Check Engine (Malfunction Indicator) . . . 77
Cruise Control Light . . . . . . . . . . . . . . . . . . . . . 82
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 81
Gauges and Indicators . . . . . . . . . . . . . . . . . . . 71
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Lane Departure Warning . . . . . . . . . . . . . . . . 79
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . . 81
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 75
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . . 79
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . . 80 Locking Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . .143
Locks
Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cargo Door Relocking . . . . . . . . . . . . . . . . . . . . 12
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 12
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . . 12
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . .81
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . . 51
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 242 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Malfunction Indicator Lamp . . . . . . . . . . . . . . . .77
Manual
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Media
Avoiding Untrusted Devices . . . . . . . . . . . . 103 Messages
Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Mirrors Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Interior Rearview . . . . . . . . . . . . . . . . . . . . . . . 18
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 19
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Trailer Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Monitor System, Tire Pressure . . . . . . . . . . . 209
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . 103
Multi-Point Vehicle Inspection (MPVI) . . . . 244
N
Navigation Connected Services . . . . . . . . . . . . . . . . . . . . 269
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . 129
Noise Control System . . . . . . . . . . . . . . . . . . . . . 191
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Off-Road
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
