20 Keys, Doors, and Windows
A maximum of two remote
starts, or a remote start with
an extension, are allowed
between ignition cycles.
The ignition must be turned on
and then off before the
remote start procedure can be
used again.
Canceling a Remote Start
To cancel a remote start, do
any of the following:
.Press and hold/until the
parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and
then off.
Conditions in Which Remote
Start Will Not Work
The remote start will not
operate if any of the following
occur:
.The remote key is in the
vehicle.
.The ignition is on.
.The hood is not closed.
.The hazard warning flashers
are on.
.There is an emission control
system malfunction.
.The engine coolant
temperature is too high.
.The oil pressure is low.
.Two remote vehicle starts or
a start with an extension
have already been used.
.The vehicle is not in P (Park).
Door Locks
{Warning
Unlocked doors can be
dangerous.
.Passengers, especially
children, can easily open
the doors and fall out of a
moving vehicle. The doors
can be unlocked and
opened while the vehicle is
moving. The chance of
being thrown out of the
vehicle in a crash is
increased if the doors are (Continued)
Warning (Continued)
not locked. So, all
passengers should wear
seat belts properly and
the doors should be
locked whenever the
vehicle is driven.
.Young children who get
into unlocked vehicles may
be unable to get out.
A child can be overcome
by extreme heat and can
suffer permanent injuries
or even death from heat
stroke. Always lock the
vehicle whenever
leaving it.
.Outsiders can easily enter
through an unlocked door
when you slow down or
stop the vehicle. Locking
the doors can help
prevent this from
happening.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
Keys, Doors, and Windows 25
To open a rear door when the
safety lock is on:1. Unlock the door by activating the inside
handle, by pressing the
power door lock switch,
or by using the remote key.
2. Open the door from the outside.
When the safety lock is
enabled, adults and older
children will not be able to
open the rear door from the
inside. Cancel the safety locks
to enable the doors to open
from the inside.
To cancel the safety lock: 1. Unlock the door and open it from the outside.
2. Move the lever up to unlock. Do the same for
the other door.Doors
Liftgate
{Warning
Exhaust gases can enter the
vehicle if it is driven with the
liftgate or trunk/hatch open,
or with any objects that
pass through the seal
between the body and the
trunk/hatch or liftgate.
Engine exhaust contains
carbon monoxide (CO) which
cannot be seen or smelled.
It can cause
unconsciousness and even
death.
If the vehicle must be driven
with the liftgate or trunk/
hatch open:
.Close all of the windows.
.Fully open the air outlets
on or under the
instrument panel.
(Continued)
Warning (Continued)
.Adjust the climate control
system to a setting that
brings in only outside air
and set the fan speed to
the highest setting. See
“Climate Control Systems”
in the Index.
.If the vehicle is equipped
with a power liftgate,
disable the power liftgate
function.
See Engine Exhaust 0265.
Caution
To avoid damage to the
liftgate or liftgate glass,
make sure the area above
and behind the liftgate is
clear before opening it.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
Keys, Doors, and Windows 35
Inclination and Intrusion
Sensors Disable Switch
It is recommended that the
inclination and intrusion
sensors be deactivated if pets
are left in the vehicle or if the
vehicle is being transported.
With the vehicle turned off,
press
oin the overhead
console. The indicator light will
come on momentarily,
indicating that the sensor has
been disabled until the next
time the alarm system is
armed.
Steering Column Lock
If equipped, the steering
column lock is a
theft-deterrent device. This
feature locks the steering
column when the vehicle is
turned off and the driver door
is opened, or when the driver
door is opened and then the
vehicle is turned off. The
steering column unlocks when
the vehicle is turned on. The Driver Information Center
(DIC) may display one of these
messages:
.A message to service the
steering column lock
indicates that an issue has
been detected with the
column lock feature and the
vehicle should be serviced.
.A message that the steering
column is locked indicates
that the engine is running,
but the steering column is
still locked. It is normal for
the column to be locked
during a remote start, but
the column should unlock
after the brake pedal is
pressed and the vehicle is
started. No message will
display during a remote
start.
.A message that the steering
wheel must be turned and
the vehicle must be started
again indicates that the
column lock mechanism is
bound, the column locking
device was unable to unlock
the steering column, and thevehicle did not start. If this
happens, immediately turn
the steering wheel from side
to side to unbind the column
lock. If this does not unlock
the steering column, turn the
vehicle off and open the
driver door to reset the
system. Then turn the
vehicle on and immediately
turn the steering wheel side
to side for about 15 seconds.
In some cases, it may take
significant force to unbind
the column.
To keep the steering column
from binding, straighten the
front wheels before turning
off the vehicle.
Immobilizer
See Radio Frequency
Statement 0477.
Immobilizer Operation
This vehicle has a passive
theft-deterrent system.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
36 Keys, Doors, and Windows
The system does not have to
be manually armed or
disarmed.
The vehicle is automatically
immobilized when the vehicle
is turned off.
The immobilization system is
disarmed when the ignition is
on or in accessory mode and a
valid remote key is present in
the vehicle.
The security light, in the
instrument cluster, comes on if
there is a problem with arming
or disarming the
theft-deterrent system.
The system has one or more
remote keys matched to an
immobilizer control unit in your
vehicle. Only a correctly
matched remote key will startthe vehicle. If the remote key
is ever damaged, you may not
be able to start your vehicle.
When trying to start the
vehicle, the security light may
come on briefly when the
ignition is turned on.
If the engine does not start
and the security light stays on,
there is a problem with the
system. Turn the ignition off
and try again.
If the vehicle will not change
ignition modes (accessory
mode, on, off), and the remote
key appears to be undamaged,
try another remote key. Or,
you may try placing the
remote key in the remote key
pocket located in the center
console. See Remote Key
Operation
09.
If the ignition mode will not
change with the other remote
key or in the remote key
pocket, your vehicle needs
service. If the ignition does
change modes, the first
remote key may be faulty. See your dealer who can service
the theft-deterrent system
and have a new remote key
programmed to the vehicle.
It is possible for the
immobilizer system to learn
new or replacement remote
keys. Up to eight remote keys
can be programmed for the
vehicle. To program additional
remote keys, see
“Programming Remote Keys to
the Vehicle”
under Remote
Key Operation 09.
Do not leave the remote key
or device that disarms or
deactivates the
theft-deterrent system in the
vehicle.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22

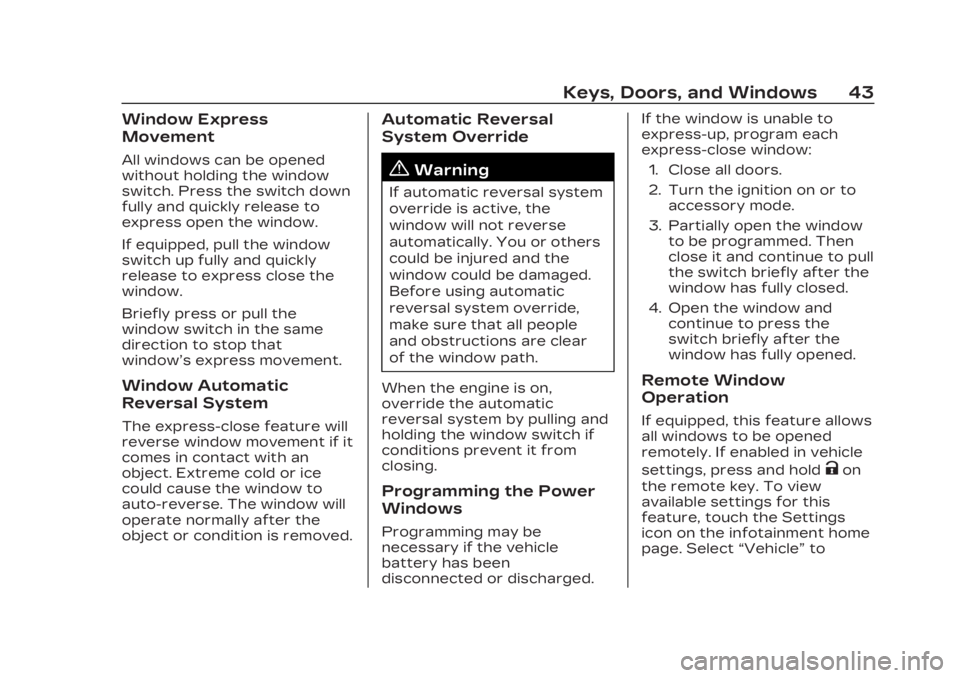

Keys, Doors, and Windows 43
Window Express
Movement
All windows can be opened
without holding the window
switch. Press the switch down
fully and quickly release to
express open the window.
If equipped, pull the window
switch up fully and quickly
release to express close the
window.
Briefly press or pull the
window switch in the same
direction to stop that
window’s express movement.
Window Automatic
Reversal System
The express-close feature will
reverse window movement if it
comes in contact with an
object. Extreme cold or ice
could cause the window to
auto-reverse. The window will
operate normally after the
object or condition is removed.
Automatic Reversal
System Override
{Warning
If automatic reversal system
override is active, the
window will not reverse
automatically. You or others
could be injured and the
window could be damaged.
Before using automatic
reversal system override,
make sure that all people
and obstructions are clear
of the window path.
When the engine is on,
override the automatic
reversal system by pulling and
holding the window switch if
conditions prevent it from
closing.
Programming the Power
Windows
Programming may be
necessary if the vehicle
battery has been
disconnected or discharged. If the window is unable to
express-up, program each
express-close window:
1. Close all doors.
2. Turn the ignition on or to accessory mode.
3. Partially open the window to be programmed. Then
close it and continue to pull
the switch briefly after the
window has fully closed.
4. Open the window and continue to press the
switch briefly after the
window has fully opened.
Remote Window
Operation
If equipped, this feature allows
all windows to be opened
remotely. If enabled in vehicle
settings, press and hold
Kon
the remote key. To view
available settings for this
feature, touch the Settings
icon on the infotainment home
page. Select “Vehicle”to

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
54 Seats and Restraints
Heated and
Ventilated Front
Seats
{Warning
If temperature change or
pain to the skin cannot be
felt, the seat heater may
cause burns. To reduce the
risk of burns, use care when
using the seat heater,
especially for long periods of
time. Do not place anything
on the seat that insulates
against heat, such as a
blanket, cushion, cover,
or similar item. This may
cause the seat heater to
overheat. An overheated
seat heater may cause a
burn or may damage
the seat.
Heated and Ventilated Seat
Buttons Shown, Heated Seat Buttons Similar
If equipped, the buttons are
near the climate controls on
the center stack. To operate,
the engine must be running.
Press
MorLto heat the
driver or passenger seatback
and cushion.
Press
Cor{, if equipped, to
ventilate the driver or
passenger seat. A ventilated
seat has a fan that pulls or
pushes air through the seat.
The air is not cooled. When this feature is off, the
heated and ventilated seat
symbols on the buttons are
white. When a heated seat is
turned on, the symbol turns
red. When a ventilated seat is
turned on, the symbol
turns blue.
Press the button once for the
highest setting. With each
press of the button, the seat
will change to the next lower
setting, and then to the off
setting. The indicator lights
next to the buttons indicate
three for the highest setting
and one for the lowest. If the
heated seats are on high, the
level may automatically be
lowered after approximately
30 minutes.
The passenger seat may take
longer to heat up.
Auto Heated and Ventilated
Seats
If equipped, when the vehicle
is on, this feature will
automatically activate the

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Seats and Restraints 59
If available, the buttons are on
the rear of the center console.
With the engine running, press
MorLto heat the left or right
outboard seat cushion. An
indicator on the climate
control display appears when
this feature is on.
This feature turns on at the
highest setting. With each
press of the button, the
heated seat changes to the
next lower setting, and then
the off setting. Three lights
indicate the highest setting,
and one light indicates the lowest. If the heated seats are
on high, the level may
automatically be lowered after
approximately 30 minutes.
Third Row Seats
{Warning
Using the third row seating
position while the second
row is folded, or pushed
forward in the entry
position, could cause injury
in a sudden stop or crash.
Be sure to return the seat to
the passenger seating
position. Push and pull on
the seat to make sure it is
locked into place.
Caution
Folding a rear seat with the
seat belts still fastened may
cause damage to the seat or
the seat belts. Always
unbuckle the seat belts and
(Continued)
Caution (Continued)
return them to their normal
stowed position before
folding a rear seat.
Power Seatback Folding
(If Equipped)
1. Remove objects on thefloor in front of or on the
second row seat, or in the
seat tracks on the floor.
2. If the second row seat is in the full rear position, adjust
it forward to allow the
third row seat to fold
fully flat.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
68 Seats and Restraints
Adjust the height so that the
shoulder portion of the belt is
on the shoulder and not falling
off of it. The belt should be
close to, but not contacting,
the neck. Improper shoulder
belt height adjustment could
reduce the effectiveness of
the seat belt in a crash. See
How to Wear Seat Belts
Properly063.
Press and hold the release
button while raising or
lowering the height adjuster to
the desired position. After the height adjuster is set
to the desired position, try to
move it down without pressing
the release button to make
sure it has locked into position.
Automatic Seat Belt
Tightening System
The vehicle may have the
Automatic Seat Belt
Tightening System.
Each time the front seat belts
are buckled while the vehicle is
in P (Park) or D (Drive) and the
engine is running or in Auto
Stop (if equipped), the system
may activate to tighten the
seat belts.
The system also activates
during emergency braking
and/or sudden driving
maneuvers and releases when
driving conditions return to
normal.
The system will not activate if
the Traction Control/
Electronic Stability Control
system is not functioningproperly. See Traction
Control/Electronic Stability
Control
0276. If there is a
problem with the Automatic
Seat Belt Tightening System, a
message displays on the
Driver Information Center
(DIC). If a system unavailable
message displays repeatedly
or if a service message
displays, see your dealer.
Other seat belt functions are
not affected by the Automatic
Seat Belt Tightening System.
Seat Belt Pretensioners
This vehicle has seat belt
pretensioners for the front
outboard occupants. Although
the seat belt pretensioners
cannot be seen, they are part
of the seat belt assembly.
They can help tighten the seat
belts during the early stages
of a moderate to severe
frontal, near frontal, or rear
crash if the threshold
conditions for pretensioner
activation are met. Seat belt
