2023 CADILLAC CT5 spark plugs

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/10/22
Driving and Operating 361
in reduced performance and
driveability. If heavy knocking
is heard when using gasoline
rated at 91 or greater, the
engine needs service.
Do not use any fuel labeled
E85 or FlexFuel. Do not use
gasoline with ethanol levels
greater than 15% by volume.
Recommended Fuel
(LGY 3.0L V6 and
LT4 6.2L V8 Engines)
Premium unleaded gasoline
meeting ASTM specification
D4814 with a posted octane
rating (R+M)/2 of 91 or greater
is required. The use of the
correct fuel is an important
part of the proper
maintenance of the vehicle
and a condition of the vehiclewarranty. If heavy knocking is
heard when using gasoline
rated at 91 or greater, the
engine needs service.
Do not use any fuel labeled
E85 or FlexFuel. Do not use
gasoline with ethanol levels
greater than 15% by volume.
Prohibited Fuels
Caution
Do not use fuels with any of
the following conditions;
doing so may damage the
vehicle and void its
warranty:
.For vehicles that are not
FlexFuel, fuel labeled
greater than 15% ethanol
by volume, such as
mid-level ethanol blends
(16–50% ethanol), E85,
or FlexFuel.
.Fuel with any amount of
methanol, methylal,
ferrocene, and aniline.
These fuels can corrode
(Continued)
Caution (Continued)
metal fuel system parts or
damage plastic and rubber
parts.
.Fuel containing metals
such as
methylcyclopentadienyl
manganese tricarbonyl
(MMT), which can damage
the emissions control
system and spark plugs.
.Fuel with a posted octane
rating of less than the
recommended fuel. Using
this fuel will lower fuel
economy and
performance, and may
decrease the life of the
emissions catalyst.
Fuels in Foreign
Countries
The U.S., Canada, and Mexico
post fuel octane ratings in
anti-knock index (AKI). For fuel
not to use in a foreign country,
see Prohibited Fuels 0361.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
472 Service and Maintenance
may also be needed if you
notice reduced airflow,
windows fogging up,
or odors. Your local GM
Service location can help you
determine when it is the
right time to replace your
filter.
Every 72 000 km (45,000 mi)
.Change rear axle fluid,
if equipped with limited slip
differential. Do not directly
power wash the transfer
case and/or front/rear axle
output seals. High pressure
water can overcome the
seals and contaminate the
transfer case fluid.
Contaminated fluid will
decrease the life of the
transfer case and/or axles
and should be replaced.
Every 96 000 km (60,000 mi)
.Replace spark plugs. Inspect
spark plug wires and/or
boots. Every 156 000 km
(97,500 mi)
.Change transfer case fluid,
if equipped with AWD. Do
not directly power wash the
transfer case and/or front/
rear axle output seals. High
pressure water can
overcome the seals and
contaminate the transfer
case fluid. Contaminated
fluid will decrease the life of
the transfer case and/or
axles and should be
replaced.
Every 161 000 km
(100,000 mi)
.Replace hood and/or body
lift support gas struts. Or
every 10 years, whichever
comes first. See Gas Strut(s)
0 408. Every 240 000 km
(150,000 mi)
.Change rear axle fluid,
without limited slip
differential. Do not directly
power wash the transfer
case and/or front/rear axle
output seals. High pressure
water can overcome the
seals and contaminate the
transfer case fluid.
Contaminated fluid will
decrease the life of the
transfer case and/or axles
and should be replaced.
.Change front axle fluid,
if equipped with AWD. Do
not directly power wash the
transfer case and/or front/
rear axle output seals. High
pressure water can
overcome the seals and
contaminate the transfer
case fluid. Contaminated
fluid will decrease the life of
the transfer case and/or
axles and should be
replaced.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Service and Maintenance 473
.Drain and fill engine cooling
system. Or every six years,
whichever comes first. See
Cooling System0392.
Severe Conditions
Requiring More Frequent
Maintenance*
.Public service, military,
or commercial use vehicles
to include the following:
‐ Ambulances, police cars,
and emergency rescue
vehicles.
‐ Civilian vehicles such as
light duty pick-up trucks,
SUVs, and passenger cars
that are used in military
applications.
‐ Recovery vehicles such as
tow trucks and flatbed
single vehicle carriers or
any vehicle that is
consistently used in towing
trailers or other loads.
‐ High use commercial
vehicles such as courier
delivery vehicles, private
security patrol vehicles, or any vehicles that
operate on a 24–hour
basis.
‐ Any vehicle consistently
operated in a high sand or
dust environment such as
those used on oil pipelines
and similar applications..Vehicles that are regularly
used for short trips of 6 km
(4 mi) or less.
The oil life indicator will show
you when to change the oil
and filter. Under severe
conditions the indicator may
come on before 12 000 km
(7,500 mi).
* Footnote: Under extreme
driving conditions listed
above, it may be necessary
to replace your spark plugs
at more frequent intervals.
For further assistance in
determining the most
suitable service maintenance
intervals for your vehicle,
please contact your
authorized GM Dealer. Extreme service is for
vehicles mainly driven
off-road in four-wheel drive
or used in farming, mining,
forestry, or snow plowing.
Additional Required
Services
—Severe Service
Every 72 000 km (45,000 mi)
.Change automatic
transmission fluid and filter.
.Change manual transmission
fluid. (If equipped)
.Change transfer case fluid,
if equipped with AWD. Do
not directly power wash the
transfer case and/or front/
rear axle output seals. High
pressure water can
overcome the seals and
contaminate the transfer
case fluid. Contaminated
fluid will decrease the life of
the transfer case and/or
axles and should be
replaced.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
478 Service and Maintenance

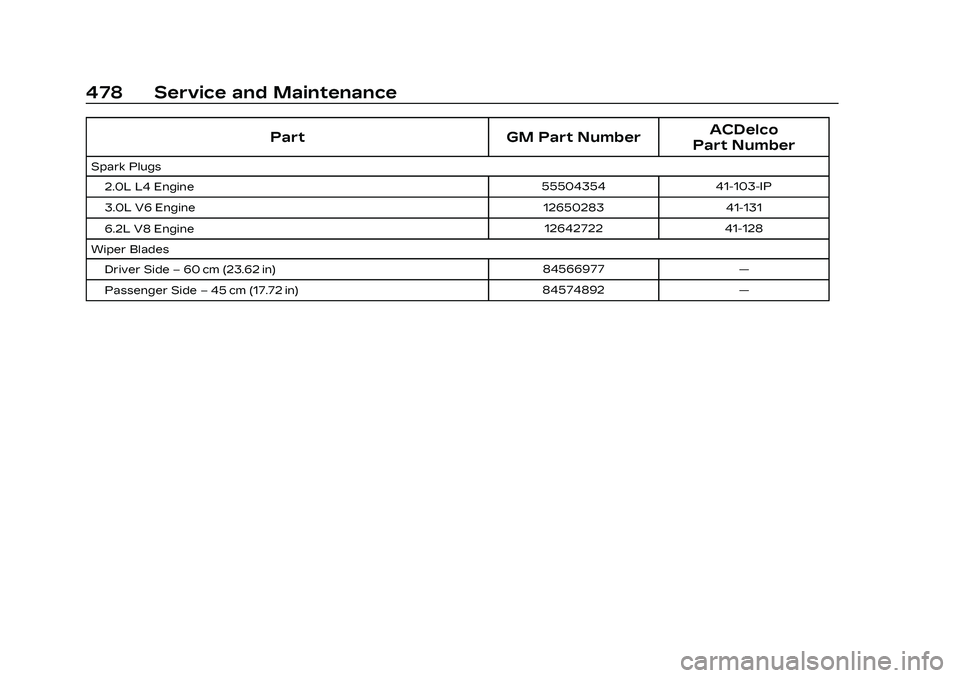

PartGM Part NumberACDelco
Part Number
Spark Plugs
I2.0L L4 Engine 55504354 41-103-IP
I3.0L V6 Engine 12650283 41-131
I6.2L V8 Engine 12642722 41-128
Wiper Blades IDriver Side –60 cm (23.62 in) 84566977
—
IPassenger Side –45 cm (17.72 in) 84574892
—
