Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22

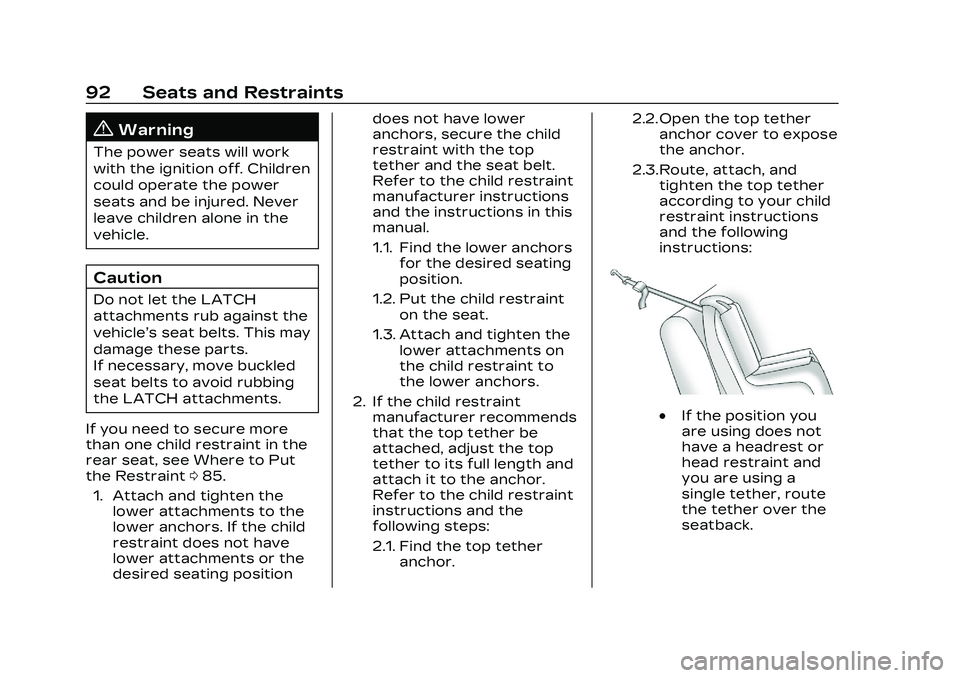

92 Seats and Restraints
{Warning
The power seats will work
with the ignition off. Children
could operate the power
seats and be injured. Never
leave children alone in the
vehicle.
Caution
Do not let the LATCH
attachments rub against the
vehicle’s seat belts. This may
damage these parts.
If necessary, move buckled
seat belts to avoid rubbing
the LATCH attachments.
If you need to secure more
than one child restraint in the
rear seat, see Where to Put
the Restraint 085.
1. Attach and tighten the lower attachments to the
lower anchors. If the child
restraint does not have
lower attachments or the
desired seating position does not have lower
anchors, secure the child
restraint with the top
tether and the seat belt.
Refer to the child restraint
manufacturer instructions
and the instructions in this
manual.
1.1. Find the lower anchors
for the desired seating
position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower attachments on
the child restraint to
the lower anchors.
2. If the child restraint manufacturer recommends
that the top tether be
attached, adjust the top
tether to its full length and
attach it to the anchor.
Refer to the child restraint
instructions and the
following steps:
2.1. Find the top tether anchor. 2.2. Open the top tether
anchor cover to expose
the anchor.
2.3.Route, attach, and tighten the top tether
according to your child
restraint instructions
and the following
instructions:
.If the position you
are using does not
have a headrest or
head restraint and
you are using a
single tether, route
the tether over the
seatback.
Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Seats and Restraints 93
.If the position you
are using does not
have a headrest or
head restraint and
you are using a dual
tether, route the
tether over the
seatback.
.If the position you
are using has an
adjustable headrestor head restraint,
adjust it accordingly
to allow proper
fitment. If you are
using a single tether,
route the tether in
between the
headrest or head
restraint posts.
.If the position you
are using has an
adjustable headrest
or head restraint,
adjust it accordingly
to allow proper
fitment. If you are
using a dual tether,route the tether in
between the
headrest or head
restraint posts.
3. Before placing a child in the child restraint, make
sure it is securely held in
place. To check, grasp the
child restraint at the
LATCH path and attempt
to move it side to side and
back and forth. There
should be no more than
2.5 cm (1 in) of movement
for proper installation.
Replacing LATCH
System Parts After a
Crash
{Warning
A crash can damage the
LATCH system in the
vehicle. A damaged LATCH
system may not properly
secure the child restraint,
resulting in serious injury or
(Continued)
