Vehicle Care 425
Bead:The tire bead
contains steel wires
wrapped by steel cords
that hold the tire onto
the rim.
Bias Ply Tire
:A pneumatic
tire in which the plies are
laid at alternate angles less
than 90 degrees to the
centerline of the tread.
Cold Tire Pressure
:The
amount of air pressure in a
tire, measured in kPa
(kilopascal) or psi (pounds
per square inch) before a
tire has built up heat from
driving. See Tire Pressure
0 427.
DOT Markings
:A code
molded into the sidewall of
a tire signifying that the
tire is in compliance with
the U.S. Department of
Transportation (DOT)
Motor Vehicle Safety
Standards. The DOT code includes the Tire
Identification Number (TIN),
an alphanumeric designator
which can also identify the
tire manufacturer,
production plant, brand,
and date of production.
GVWR
:Gross Vehicle
Weight Rating. See Vehicle
Load Limits 0261.
GAWR FRT
:Gross Axle
Weight Rating for the front
axle. See Vehicle Load
Limits 0261.
GAWR RR
:Gross Axle
Weight Rating for the rear
axle. See Vehicle Load
Limits 0261.
Intended Outboard
Sidewall
:The side of an
asymmetrical tire, that
must always face outward
when mounted on a vehicle. Kilopascal (kPa)
:The
metric unit for air pressure.
Light Truck (LT-Metric)
Tire
:A tire used on light
duty trucks and some
multipurpose passenger
vehicles.
Load Index
:An assigned
number ranging from 1 to
279 that corresponds to
the load carrying capacity
of a tire.
Maximum Inflation
Pressure
:The maximum
air pressure to which a cold
tire can be inflated. The
maximum air pressure is
molded onto the sidewall.
Maximum Load Rating
:
The load rating for a tire at
the maximum permissible
inflation pressure for
that tire.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Vehicle Care 429
Tire Pressure for
High-Speed Operation
{Warning
Driving at high speeds,
160 km/h (100 mph) or
higher, puts additional strain
on tires. Sustained
high-speed driving causes
excessive heat buildup and
can cause sudden tire
failure. This could cause a
crash, and you or others
could be killed. Some
high-speed rated tires
require inflation pressure
adjustment for high-speed
operation. When speed
limits and road conditions
allow the vehicle to be
driven at high speeds, make
sure the tires are rated for
high-speed operation, are in
excellent condition, and are
set to the correct cold tire
inflation pressure for the
vehicle load.Vehicles with tire sizes listed
in the High Speed Operation
Inflation Pressures table
require inflation pressure
adjustment when driving the
vehicle at speeds of 160 km/h
(100 mph) or higher. Set the
cold tire inflation pressure to
the corresponding value in the
table for the tire size on the
vehicle.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Vehicle Care 431
significantly under-inflated tire
causes the tire to overheat
and can lead to tire failure.
Under-inflation also reduces
energy efficiency and tire
tread life, and may affect the
vehicle's handling and
stopping ability.
Please note that the TPMS is
not a substitute for proper tire
maintenance, and it is the
driver's responsibility to
maintain correct tire pressure,
even if under-inflation has not
reached the level to trigger
illumination of the TPMS low
tire pressure telltale.
Your vehicle has also been
equipped with a TPMS
malfunction indicator to
indicate when the system is
not operating properly. The
TPMS malfunction indicator is
combined with the low tire
pressure telltale. When the
system detects a malfunction,
the telltale will flash for
approximately one minute and
then remain continuouslyilluminated. This sequence will
continue upon subsequent
vehicle start-ups as long as
the malfunction exists.
When the malfunction
indicator is illuminated, the
system may not be able to
detect or signal low tire
pressure as intended. TPMS
malfunctions may occur for a
variety of reasons, including
the installation of replacement
or alternate tires or wheels on
the vehicle that prevent the
TPMS from functioning
properly. Always check the
TPMS malfunction telltale
after replacing one or more
tires or wheels on your vehicle
to ensure that the
replacement or alternate tires
and wheels allow the TPMS to
continue to function properly.
See Tire Pressure Monitor
Operation
0431.
See Radio Frequency
Statement 0496.Tire Pressure Monitor
Operation
This vehicle may have a Tire
Pressure Monitor System
(TPMS). The TPMS is designed
to warn the driver when a low
tire pressure condition exists.
TPMS sensors are mounted
onto each tire and wheel
assembly, excluding the spare
tire and wheel assembly. The
TPMS sensors monitor the air
pressure in the tires and
transmit the tire pressure
readings to a receiver located
in the vehicle.
When a low tire pressure
condition is detected, the
TPMS illuminates the low tire
pressure warning light located
on the instrument cluster.
If the warning light comes on,

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
440 Vehicle Care
Administration (NHTSA),
which grades tires by
treadwear, traction, and
temperature performance.
This applies only to
vehicles sold in the United
States. The grades are
molded on the sidewalls of
most passenger car tires.
The Uniform Tire Quality
Grading (UTQG) system
does not apply to deep
tread, winter tires, compact
spare tires, tires with
nominal rim diameters of
10 to 12 inches
(25 to 30 cm), or to some
limited-production tires.
While the tires available on
General Motors passenger
cars and light trucks may
vary with respect to these
grades, they must also
conform to federal safety
requirements andadditional General Motors
Tire Performance Criteria
(TPC) standards.
Quality grades can be
found where applicable on
the tire sidewall between
tread shoulder and
maximum section width.
For example:
Treadwear 200 Traction AA
Temperature A
All Passenger Car Tires
Must Conform to Federal
Safety Requirements In
Addition To These Grades.
Treadwear
The treadwear grade is a
comparative rating based
on the wear rate of the tire
when tested under
controlled conditions on a
specified government test
course. For example, a tire
graded 150 would wear one
and one-half (1½) times aswell on the government
course as a tire graded
100. The relative
performance of tires
depends upon the actual
conditions of their use,
however, and may depart
significantly from the norm
due to variations in driving
habits, service practices
and differences in road
characteristics and climate.
Traction
The traction grades, from
highest to lowest, are AA,
A, B, and C. Those grades
represent the tire's ability
to stop on wet pavement
as measured under
controlled conditions on
specified government test
surfaces of asphalt and
concrete. A tire marked C
may have poor traction
performance. Warning: The
traction grade assigned to

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22

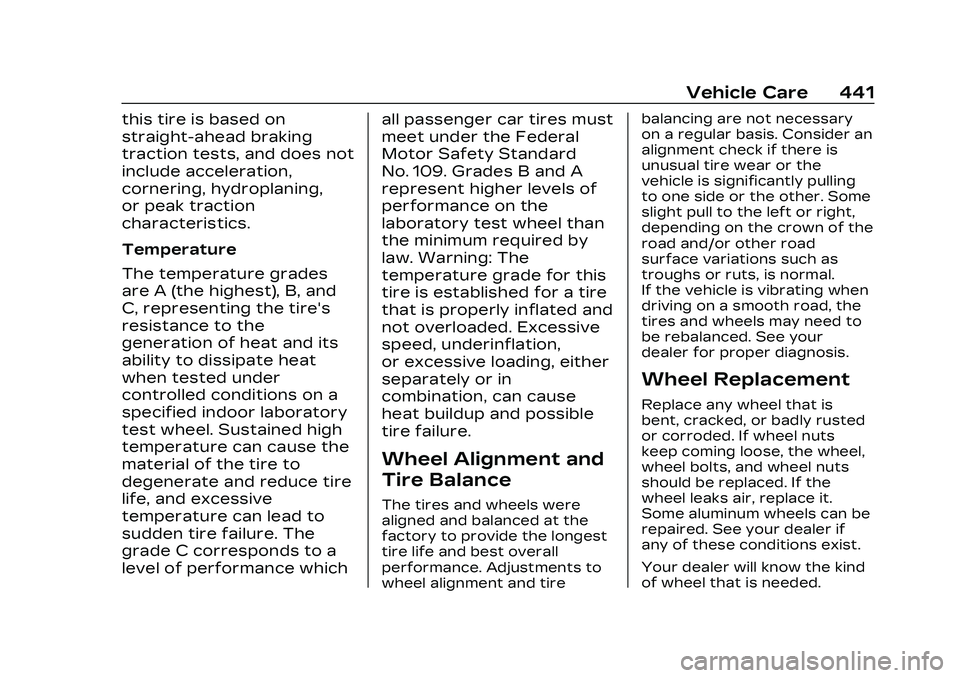

Vehicle Care 441
this tire is based on
straight-ahead braking
traction tests, and does not
include acceleration,
cornering, hydroplaning,
or peak traction
characteristics.
Temperature
The temperature grades
are A (the highest), B, and
C, representing the tire's
resistance to the
generation of heat and its
ability to dissipate heat
when tested under
controlled conditions on a
specified indoor laboratory
test wheel. Sustained high
temperature can cause the
material of the tire to
degenerate and reduce tire
life, and excessive
temperature can lead to
sudden tire failure. The
grade C corresponds to a
level of performance whichall passenger car tires must
meet under the Federal
Motor Safety Standard
No. 109. Grades B and A
represent higher levels of
performance on the
laboratory test wheel than
the minimum required by
law. Warning: The
temperature grade for this
tire is established for a tire
that is properly inflated and
not overloaded. Excessive
speed, underinflation,
or excessive loading, either
separately or in
combination, can cause
heat buildup and possible
tire failure.
Wheel Alignment and
Tire Balance
The tires and wheels were
aligned and balanced at the
factory to provide the longest
tire life and best overall
performance. Adjustments to
wheel alignment and tire balancing are not necessary
on a regular basis. Consider an
alignment check if there is
unusual tire wear or the
vehicle is significantly pulling
to one side or the other. Some
slight pull to the left or right,
depending on the crown of the
road and/or other road
surface variations such as
troughs or ruts, is normal.
If the vehicle is vibrating when
driving on a smooth road, the
tires and wheels may need to
be rebalanced. See your
dealer for proper diagnosis.
Wheel Replacement
Replace any wheel that is
bent, cracked, or badly rusted
or corroded. If wheel nuts
keep coming loose, the wheel,
wheel bolts, and wheel nuts
should be replaced. If the
wheel leaks air, replace it.
Some aluminum wheels can be
repaired. See your dealer if
any of these conditions exist.
Your dealer will know the kind
of wheel that is needed.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Vehicle Care 443
Warning (Continued)
If traction devices are used,
install them on the tires of
the drive axle only.
If a Tire Goes Flat
It is unusual for a tire to blow
out while driving, especially if
the tires are maintained
properly. If air goes out of a
tire, it is much more likely to
leak out slowly. See Tires
0418 for additional
information. But if there ever
is a blowout, here are a few
tips about what to expect and
what to do:
If a front tire fails, the flat tire
creates a drag that pulls the
vehicle toward that side. Take
your foot off the accelerator
pedal and grip the steering
wheel firmly. Steer to maintain
lane position, and then gently
brake to a stop, well off the
road, if possible. A rear blowout, particularly on
a curve, acts much like a skid
and may require the same
correction as used in a skid.
Stop pressing the accelerator
pedal and steer to straighten
the vehicle. It may be very
bumpy and noisy. Gently brake
to a stop, well off the road,
if possible.
The vehicle has no spare tire,
no tire changing equipment,
and no place to store a tire.
If the vehicle has run-flat tires,
there is no need to stop on
the side of the road to change
a flat tire. See Run-Flat Tires
0
420.
If the vehicle has self-sealing
tires, see Self-Sealing Tires
0 420. Tread punctures
typically will not cause tires to
lose air. However, if the vehicle
does get a flat tire, there is no
spare tire, tire changing
equipment, or place to store a
tire. Contact Roadside
Assistance for help.
{Warning
Driving on a flat tire will
cause permanent damage to
the tire. Re-inflating a tire
after it has been driven on
while severely underinflated
or flat may cause a blowout
and a serious crash. Never
attempt to re-inflate a tire
that has been driven on
while severely underinflated
or flat. Have your dealer or
an authorized tire service
center repair or replace the
flat tire as soon as possible.
{Warning
Special tools and
procedures are required to
service a run-flat tire.
If these special tools and
procedures are not used,
injury or vehicle damage may
occur. Always be sure the
proper tools and
(Continued)

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
466 Vehicle Care
not use bleach or fabric
softener. Rinse thoroughly and
air dry before next use.
Caution
Do not attach a device with
a suction cup to the display.
This may cause damage and
would not be covered by the
vehicle warranty.
Instrument Panel, Leather,
Vinyl, Other Plastic
Surfaces, Low Gloss Paint
Surfaces, and Natural
Open Pore Wood
Surfaces
Use a soft bristle brush to
remove dust from knobs and
crevices on the instrument
cluster. Use a soft microfiber
cloth dampened with water to
remove dust and loose dirt.
For a more thorough cleaning,
use a soft microfiber cloth
dampened with a mild soap
and water solution.
Caution
Soaking or saturating
leather, especially
perforated leather, as well
as other interior surfaces,
may cause permanent
damage. Wipe excess
moisture from these
surfaces after cleaning and
allow them to dry naturally.
Never use heat, steam,
or spot removers. Do not
use liquids that contain
alcohol or solvents on
leather seats. Do not use
cleaners that contain
silicone or wax-based
products. Cleaners
containing these solvents
can permanently change the
appearance and feel of
leather or soft trim, and are
not recommended.
Do not use cleaners that
increase gloss, especially on
the instrument panel.
Reflected glare can decrease visibility through the
windshield under certain
conditions.
Caution
Use of air fresheners may
cause permanent damage to
plastics and painted
surfaces. If an air freshener
comes in contact with any
plastic or painted surface in
the vehicle, blot immediately
and clean with a soft cloth
dampened with a mild soap
solution. Damage caused by
air fresheners would not be
covered by the vehicle
warranty.
Cargo Cover and
Convenience Net
If equipped, wash with warm
water and mild detergent. Do
not use chlorine bleach. Rinse
with cold water, and then dry
completely.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Service and Maintenance 469
Service and
Maintenance
General Information
General Information . . . . . . 469
Maintenance Schedule
Maintenance Schedule . . . 471
Multi-Point Vehicle
Inspection (MPVI)
Multi-Point VehicleInspection (MPVI) . . . . . . . . 474
Special Application
Services
Special ApplicationServices . . . . . . . . . . . . . . . . . . . . 475
Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . 476
Maintenance Replacement Parts . . . . . . 477
Maintenance Records
Maintenance Records . . . . 479
General
Information
Your vehicle is an important
investment. This section
describes the required
maintenance for the vehicle.
Follow this schedule to help
protect against major repair
expenses resulting from
neglect or inadequate
maintenance. It may also help
to maintain the value of the
vehicle if it is sold. It is the
responsibility of the owner to
have all required maintenance
performed.
Your dealer has trained
technicians who can perform
required maintenance using
genuine replacement parts.
They have up-to-date tools
and equipment for fast and
accurate diagnostics. Many
dealers have extended
evening and Saturday hours,
courtesy transportation, and
online scheduling to assist
with service needs. Your dealer recognizes the
importance of providing
competitively priced
maintenance and repair
services. With trained
technicians, the dealer is the
place for routine maintenance
such as oil changes and tire
rotations and additional
maintenance items like tires,
brakes, batteries, and wiper
blades.
Caution
Damage caused by improper
maintenance can lead to
costly repairs and may not
be covered by the vehicle
warranty. Maintenance
intervals, checks,
inspections, recommended
fluids, and lubricants are
important to keep the
vehicle in good working
condition.
Do not have chemical
flushes that are not
approved by GM performed
(Continued)
