2023 CADILLAC CT4 display

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22

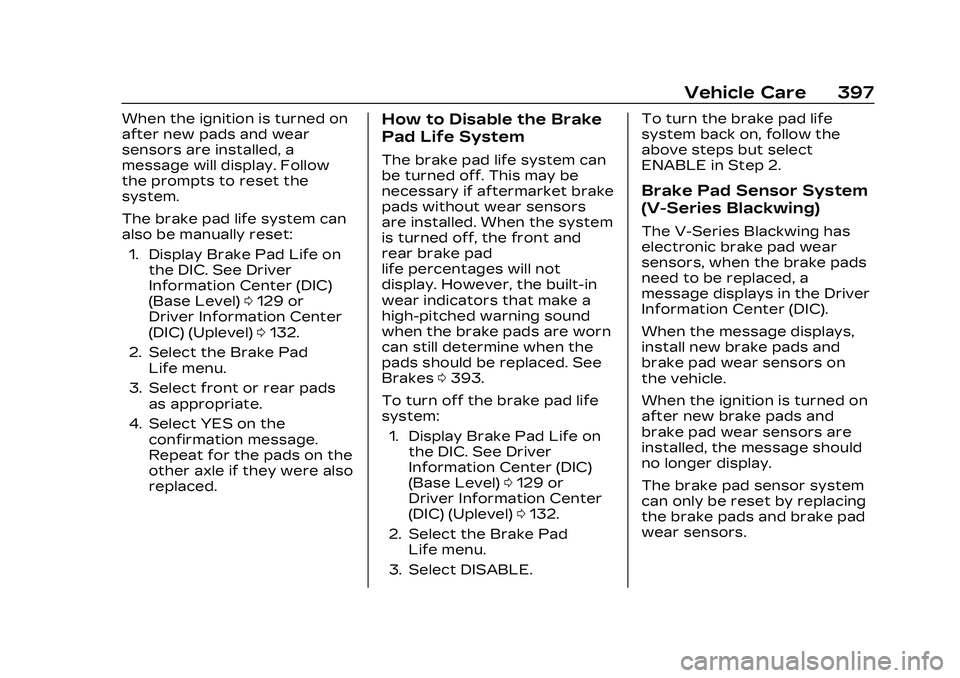

Vehicle Care 397
When the ignition is turned on
after new pads and wear
sensors are installed, a
message will display. Follow
the prompts to reset the
system.
The brake pad life system can
also be manually reset:1. Display Brake Pad Life on the DIC. See Driver
Information Center (DIC)
(Base Level) 0129 or
Driver Information Center
(DIC) (Uplevel) 0132.
2. Select the Brake Pad Life menu.
3. Select front or rear pads as appropriate.
4. Select YES on the confirmation message.
Repeat for the pads on the
other axle if they were also
replaced.How to Disable the Brake
Pad Life System
The brake pad life system can
be turned off. This may be
necessary if aftermarket brake
pads without wear sensors
are installed. When the system
is turned off, the front and
rear brake pad
life percentages will not
display. However, the built-in
wear indicators that make a
high-pitched warning sound
when the brake pads are worn
can still determine when the
pads should be replaced. See
Brakes 0393.
To turn off the brake pad life
system: 1. Display Brake Pad Life on the DIC. See Driver
Information Center (DIC)
(Base Level) 0129 or
Driver Information Center
(DIC) (Uplevel) 0132.
2. Select the Brake Pad Life menu.
3. Select DISABLE. To turn the brake pad life
system back on, follow the
above steps but select
ENABLE in Step 2.
Brake Pad Sensor System
(V-Series Blackwing)
The V-Series Blackwing has
electronic brake pad wear
sensors, when the brake pads
need to be replaced, a
message displays in the Driver
Information Center (DIC).
When the message displays,
install new brake pads and
brake pad wear sensors on
the vehicle.
When the ignition is turned on
after new brake pads and
brake pad wear sensors are
installed, the message should
no longer display.
The brake pad sensor system
can only be reset by replacing
the brake pads and brake pad
wear sensors.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 401
Wiper Blade
Replacement
Windshield wiper blades
should be inspected for wear
and cracking. See
Maintenance Schedule0469.
Replacement blades come in
different types and are
removed in different ways. For
proper type and length, see
Maintenance Replacement
Parts 0475.
Caution
Allowing the wiper arm to
touch the windshield when
no wiper blade is installed
could damage the
windshield. Any damage that
occurs would not be
covered by the vehicle
warranty. Do not allow the
wiper arm to touch the
windshield.
To replace the windshield
wiper blade: 1. Pull the windshield wiper
assembly away from the
windshield.2. Lift up on the latch in themiddle of the wiper blade
where the wiper arm
attaches.
3. With the latch open, pull the wiper blade down
toward the windshield far
enough to release it from
the J-hooked end of the
wiper arm.
4. Remove the wiper blade.
5. Reverse Steps 1–3 for wiper blade replacement.
Windshield
Replacement
HUD System
The windshield is part of the
HUD system. If the windshield
needs to be replaced, be sure
to get one that is designed for
HUD or the HUD image may
look out of focus.
Driver Assistance
Systems
If the windshield needs to be
replaced and the vehicle is
equipped with a front camera
sensor for the Driver
Assistance Systems, a GM
replacement windshield is
recommended. The
replacement windshield must
be installed according to GM
specifications for proper
alignment. If it is not, these
systems may not work
properly, they may display
messages, or they may not

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
410 Vehicle Care
Fuses Usage
1–
2 Heating, Ventilation, and Air Conditioning
Blower
3 –
4 –
5 Theft Deterrent/ Universal Garage Door
Opener/Overhead
Console/Rain Sensor
6 –
Fuses Usage
7 Air Quality Ionizer
8 Heated Steering Wheel
9 –
10 Electronic Steering Column Lock 1
11 –
12 –
13 –
Fuses Usage
14–
15 –
16 –
17 –
18 Display/Infotainment/ USB/Multi-function
Control Module
19 Sensing and Diagnostic Module/
Automatic Occupant
Sensing/Data Link
Connection/Wireless
Charging Module/
Virtual Key Module
20 Power Steering Column Module/
Electronic Steering
Column Lock 2
21 Driver Monitor System/Performance
Data Recorder
22 –
23 –
24 –
25 USB
26 –
27 –
28 –

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
426 Vehicle Care
transmit the tire pressure
readings to a receiver located
in the vehicle.
When a low tire pressure
condition is detected, the
TPMS illuminates the low tire
pressure warning light located
on the instrument cluster.
If the warning light comes on,
stop as soon as possible and
inflate the tires to the
recommended pressure
shown on the Tire and
Loading Information label. See
Vehicle Load Limits0255.
A message to check the
pressure in a specific tire
displays in the Driver
Information Center (DIC). The
low tire pressure warning light
and the DIC warning message
come on at each ignition cycle
until the tires are inflated to the correct inflation pressure.
Using the DIC, tire pressure
levels can be viewed. For
additional information and
details about the DIC
operation and displays see
Driver Information Center
(DIC) (Base Level)
0129 or
Driver Information Center
(DIC) (Uplevel) 0132.
The low tire pressure warning
light may come on in cool
weather when the vehicle is
first started, and then turn off
as the vehicle is driven. This
could be an early indicator
that the air pressure is getting
low and needs to be inflated to
the proper pressure.
A Tire and Loading
Information label, attached to
your vehicle, shows the size of
the original equipment tires
and the correct inflation
pressure for the tires when
they are cold. See Vehicle
Load Limits 0255, for an
example of the Tire and Loading Information label and
its location. Also see Tire
Pressure
0422.
The TPMS can warn about a
low tire pressure condition but
it does not replace normal tire
maintenance. See Tire
Inspection 0429, Tire Rotation
0 429, and Tires 0413.Caution
Tire sealant materials are
not all the same.
A non-approved tire sealant
could damage the TPMS
sensors. TPMS sensor
damage caused by using an
incorrect tire sealant is not
covered by the vehicle
warranty. Always use only
the GM approved tire
sealant available through
your dealer or included in
the vehicle.
Factory-installed Tire Inflator
Kits use a GM-approved liquid
tire sealant. Using
non-approved tire sealants

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 427
could damage the TPMS
sensors. See Tire Sealant and
Compressor Kit0439 for
information regarding the
inflator kit materials and
instructions.
TPMS Malfunction Light
and Message
The TPMS will not function
properly if one or more of the
TPMS sensors are missing or
inoperable. When the system
detects a malfunction, the low
tire pressure warning light
flashes for about one minute
and then stays on for the
remainder of the ignition cycle.
A DIC warning message also
displays. The malfunction light
and DIC warning message
come on at each ignition cycle
until the problem is corrected.
Some of the conditions that
can cause these to come
on are:
.One of the road tires has
been replaced with the
spare tire. The spare tire
does not have a TPMS sensor. The malfunction light
and DIC message should go
off after the road tire is
replaced and the sensor
matching process is
performed successfully. See
“TPMS Sensor Matching
Process”
later in this section.
.The TPMS sensor matching
process was not done or not
completed successfully after
rotating the tires. The
malfunction light and the DIC
message should go off after
successfully completing the
sensor matching process.
See "TPMS Sensor Matching
Process" later in this section.
.One or more TPMS sensors
are missing or damaged. The
malfunction light and the DIC
message should go off when
the TPMS sensors are
installed and the sensor
matching process is
performed successfully. See
your dealer for service.
.Replacement tires or wheels
do not match the original
equipment tires or wheels. Tires and wheels other than
those recommended could
prevent the TPMS from
functioning properly. See
Buying New Tires
0432.
.Operating electronic devices
or being near facilities using
radio wave frequencies
similar to the TPMS could
cause the TPMS sensors to
malfunction.
If the TPMS is not functioning
properly it cannot detect or
signal a low tire pressure
condition. See your dealer for
service if the TPMS
malfunction light and DIC
message come on and stay on.
Tire Fill Alert (If Equipped)
This feature provides visual
and audible alerts outside the
vehicle to help when inflating
an underinflated tire to the
recommended cold tire
pressure.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 429
tire fill alert feature is not
working, use a tire pressure
gauge.
TPMS Sensor Matching
Process—Auto Learn
Function
Each TPMS sensor has a
unique identification code. The
identification code needs to be
matched to a new tire/wheel
position after rotating the
tires or replacing one or more
of the TPMS sensors. When a
tire is installed, the vehicle
must be stationary for about
20 minutes before the system
recalculates. The following
relearn process takes up to
10 minutes, driving at a
minimum speed of 20 km/h
(12 mph). A dash (-) or pressure
value will display in the DIC.
See Driver Information Center
(DIC) (Base Level) 0129 or
Driver Information Center
(DIC) (Uplevel) 0132. A warning
message displays in the DIC if
a problem occurs during the
relearn process.
Tire Inspection
We recommend that the
tires, including the spare
tire, if the vehicle has one,
be inspected for signs of
wear or damage at least
once a month.
Replace the tire if:
.The indicators at three or
more places around the
tire can be seen.
.There is cord or fabric
showing through the
tire's rubber.
.The tread or sidewall is
cracked, cut, or snagged
deep enough to show
cord or fabric.
.The tire has a bump,
bulge, or split.
.The tire has a puncture,
cut, or other damage that
cannot be repaired well
because of the size or
location of the damage.
Tire Rotation
Tires should be rotated
according to the interval
specified in the
Maintenance Schedule. See
Maintenance Schedule
0 469.
Tires are rotated to
achieve a uniform wear for
all tires. The first rotation is
the most important.
Anytime unusual wear is
noticed, rotate the tires as
soon as possible, check for
proper tire inflation
pressure, and check for
damaged tires or wheels.
If the unusual wear
continues after the
rotation, check the wheel
alignment. See When It Is
Time for New Tires 0431
and
Wheel Replacement 0436.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 463
.Gently blot liquids with a
paper towel. Continue
blotting until no more soil
can be removed.
.For solid soils, remove as
much as possible prior to
vacuuming.
To clean: 1. Saturate a clean, lint-free colorfast cloth with water.
Microfiber cloth is
recommended to prevent
lint transfer to the fabric
or carpet.
2. Remove excess moisture by gently wringing until
water does not drip from
the cleaning cloth.
3. Start on the outside edge of the soil and gently rub
toward the center. Fold
the cleaning cloth to a
clean area frequently to
prevent forcing the soil
into the fabric. 4. Continue gently rubbing
the soiled area until there
is no longer any color
transfer from the soil to
the cleaning cloth.
5. If the soil is not completely removed, use a mild soap
solution followed only by
plain water.
If the soil is not completely
removed, it may be necessary
to use a commercial
upholstery cleaner or spot
lifter. Test a small hidden area
for colorfastness before using
a commercial upholstery
cleaner or spot lifter. If ring
formation occurs, clean the
entire fabric or carpet.
After cleaning, use a paper
towel to blot excess moisture.
Cleaning High Gloss
Surfaces and Vehicle
Information and Radio
Displays
Use a microfiber cloth on high
gloss surfaces or vehicle
displays. First, use a soft
bristle brush to remove dirt
that can scratch the surface.
Then gently clean by rubbing
with a microfiber cloth. Never
use window cleaners or
solvents. Periodically hand
wash the microfiber cloth
separately, using mild soap. Do
not use bleach or fabric
softener. Rinse thoroughly and
air dry before next use.
Caution
Do not attach a device with
a suction cup to the display.
This may cause damage and
would not be covered by the
vehicle warranty.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Service and Maintenance 469
Maintenance
Schedule
Tire Rotation and
Required Services Every
12 000 km (7,500 mi)
Tires are rotated to achieve a
more uniform wear for all tires.
The first rotation is the most
important.
Anytime unusual wear is
noticed, rotate the tires as
soon as possible, check for
proper tire inflation pressure,
and check for damaged tires
or wheels. If the unusual wear
continues after the rotation,
check the wheel alignment.
See When It Is Time for New
Tires0431 and
Wheel Replacement 0436.
.Perform Multi-Point Vehicle
Inspection. See Multi-Point
Vehicle Inspection (MPVI)
0472.
.Lubricate body components.
See Exterior Care 0455.
Additional Required
Services —Normal
Service
Every 12 000 km (7,500 mi)
.Check engine oil level and oil
life percentage. If needed,
change engine oil and filter,
and reset oil life system. Or
when the CHANGE ENGINE
OIL SOON message displays,
have the engine oil and filter
changed within the next
1 000 km/600 mi. If driven
under the best conditions,
the engine oil life system
may not indicate the need
for vehicle service for up to
a year. The engine oil and
filter must be changed at
least once a year and the oil
life system must be reset.
Your trained dealer
technician can perform this
work. If the engine oil life
system is reset accidentally,
service the vehicle within
5 000 km/3,000 mi since the
last service. Reset the oil life system when the oil is
changed. See Engine Oil Life
System
0381.
.When the REPLACE AT
NEXT OIL CHANGE
message displays, the engine
air filter should be replaced
at the next engine oil
change. When the REPLACE
ENGINE AIR FILTER SOON
message displays, the engine
air filter should be replaced
at the earliest convenience.
Reset the engine air filter life
system after the engine air
filter is replaced. See Engine
Air Filter Life System 0383.
Every 36 000 km (22,500 mi)
.Passenger compartment air
filter replacement (or every
24 months, whichever
occurs first). More frequent
replacement may be needed
if the vehicle is driven in
areas with heavy traffic,
poor air quality, areas with
high dust levels or are
sensitive to environmental
allergens. Filter replacement
