2023 CADILLAC CT4 display

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
224 Infotainment System
Configuration indicated above,
please contact the
Manufacturer or contact
QSSC at 175 Terence
Matthews Crescent, Kanata,
Ontario, Canada K2M 1W8
([email protected]).
Linotype
Helvetica is a trademark of
Linotype Corp. registered in
the U.S. Patent and Trademark
Office and may be registered
in certain other jurisdictions in
the name of Linotype Corp. or
its licensee Linotype GmbH.
Usage in text form of each of
the Licensed Trademarks is:
The trademark attribution
requirements for the Licensed
Trademarks may be viewed at
https://www.linotype.com/
2061-19414/trademarks.html.END USER NOTICE
The marks of companies
displayed by this product to
indicate business locations are
the marks of their respective
owners. The use of such
marks in this product does not
imply any sponsorship,
approval, or endorsement by
such companies of this
product.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Climate Controls 225
Climate Controls
Climate Control Systems
Dual Automatic ClimateControl System . . . . . . . . . . . 225
Air Vents
Air Vents . . . . . . . . . . . . . . . . . . . . . 230
Maintenance
Passenger CompartmentAir Filter . . . . . . . . . . . . . . . . . . . . . 231
Service . . . . . . . . . . . . . . . . . . . . . . . . 231
Climate Control Systems
Dual Automatic Climate Control System
The climate control buttons on the center stack and on the
climate control display are used to adjust the heating, cooling,
and ventilation system. Center
Stack Climate Controls
1. ON/OFF (Power)
2. AUTO (Automatic
Operation)
3. Air Delivery Mode Control
4. Driver Temperature Controls 5. Fan Control
6. Passenger Temperature
Controls
7. A/C (Air Conditioning)
8. Recirculation

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
226 Climate Controls
9. SYNC (SynchronizedTemperature)
10. Defrost
11. Rear Window Defogger
Climate Control Display
1. Driver and Passenger Temperature Displays
2. Fan Control
3. Driver and Passenger Temperature Controls 4. Sync (Synchronized
Temperature)
5. Recirculation
6. Air Delivery Mode Control
7. Auto (Automatic Operation)
8. A/C (Air Conditioning)
9. On/Off (Power)
The fan speed, air delivery
mode, air conditioning, driver
and passenger temperatures,
recirculation, and Sync
settings can be controlled by
touching CLIMATE icon on the
infotainment Home Page or
the climate button in the
application tray. A selection
can then be made on the front
climate control page displayed.
See the infotainment manual.
Climate Control Status Display
The climate control status
display appears briefly when
the center stack climate
controls are adjusted.
Climate Control Influence
on Fuel Economy
The climate control system
depends on other vehicle
systems for heat and power
input. Certain climate control
settings can lead to higher
fuel usage.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
228 Climate Controls
control system will turn on and
deliver airflow per the current
setting.
9:Press button up or down
to increase or decrease the
fan speed.
Press AUTO to return to
automatic operation.
Driver and Passenger
Temperature Control : The
temperature can be adjusted
separately for the driver and
passenger.
Press button up or down to
increase or decrease the
driver or passenger
temperature setting.
The driver side or passenger
side temperature display
shows the temperature
setting increasing or
decreasing.
SYNC : Press to link the
passenger and rear climate
temperature settings,
if equipped, to the driver
setting. The SYNC indicator
light will turn on. When the passenger or rear climate
temperature settings are
adjusted, the SYNC indicator
light is off.
Air Delivery Mode Control :
Press
Y,[, orzto change
the direction of the airflow. An
indicator light comes on in the
selected mode button. Multiple
buttons can be selected
simultaneously.
Changing the mode cancels
the automatic operation and
the system goes into manual
mode. Press AUTO to return
to automatic operation.
z: This mode clears the
windows of fog or moisture.
Air is directed to the
windshield and side window
vents. The system
automatically forces outside
air into the vehicle and the air
conditioning compressor will
run, unless the outside
temperature is close to
freezing.
Y: Air is directed to the
instrument panel outlets.
[: Air is directed to the floor
outlets, with some to the
windshield, side window
outlets, outboard panel
outlets, and second row floor
outlets.
0: Press to clear the
windshield of fog or frost
more quickly. Air is directed to
the windshield and the side
window outlets. The air
conditioning compressor also
comes on, unless the outside
temperature is below freezing.
Do not drive the vehicle until
all windows are clear.
See Air Vents 0230.
A/C : Press to turn the air
conditioning system on or off.
An indicator light comes on to
show that the air conditioning
is enabled. If the fan is turned
off, the air conditioner will not
run. The A/C light will stay on

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Climate Controls 229
even if the outside
temperatures are below
freezing.
@:Press to turn on
recirculation. An indicator light
comes on. Air is recirculated to
quickly cool the inside of the
vehicle. It can also be used to
help reduce outside air and
odors that enter the vehicle.
The air conditioning
compressor also comes on
when this mode is activated.
Rear Window Defogger
The rear window defogger
uses a warming grid to remove
fog from the rear window.
K: Press to turn the rear
window defogger on or off. An
indicator light on the button
comes on to show that the
rear window defogger is on.
The rear window defogger
only works when the vehicle is
on. The defogger can be
turned off by turning the
vehicle off or to
accessory mode.
Caution
Using a razor blade or sharp
object to clear the inside
rear window can damage
the rear window defogger.
Repairs would not be
covered by the vehicle
warranty. Do not clear the
inside rear window with
sharp objects.
Heated Mirror : If equipped
with heated outside mirrors,
the mirrors heat to help clear
fog or frost from the surface
of the mirror when the rear
window defog button is
pressed. See Heated Mirrors
0 30.
Remote Start Climate
Control Operation :
If equipped with remote start,
the climate control system
may run when the vehicle is
started remotely. The rear
defog may come on during
remote start based on cold ambient conditions. The rear
defog indicator light does not
come on during a remote start.
If equipped, the heated seats
will turn on if it is cold outside
or the ventilated seats will
turn on if it is hot outside. The
heated and ventilated seat
indicator lights may not come
on during a remote start.
If equipped, the heated
steering wheel will come on in
a remote start if it is cold
outside. The heated steering
wheel indicator light may not
come on.
Ionizer :
If equipped with an
ionizer, this feature helps to
clean the air inside the vehicle
and remove contaminants
such as pollen, odors, and
dust. If the climate control
system is on and the ionizer is
enabled, the ionizer status
indicator will be lit on the
climate control display. To turn
the Ionizer off or on, select

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
230 Climate Controls
Settings > Climate and Air
Quality > Ionizer > Select ON
or OFF.
Sensors
The solar sensor, located in
the defrost grille in the middle
of the instrument panel,
monitors the solar heat. Do
not cover the solar sensor or
the system will not work
properly.
There is also an exterior
temperature sensor behind
the front grille. This sensor
reads the outside air
temperature and helpsmaintain the temperature
inside the vehicle. Any cover
on the front of the vehicle,
could cause a false reading in
the displayed temperature.
The climate control system
uses the information from
these sensors to maintain
comfort settings by adjusting
the outlet temperature, fan
speed, and air delivery mode.
The system may also supply
cooler air to the side of the
vehicle facing the sun. The
recirculation mode will also be
used as needed to maintain
cool outlet temperatures.
Afterblow Feature
If equipped, under certain
conditions, the fan may stay
on or may turn on and off
several times after you turn
off and lock the vehicle. This is
normal.
Air Vents
Adjustable air vents are in the
center and on the sides of the
instrument panel, and on the
rear of the center console
storage.
Move the slider knobs to
change the direction of or to
close off the airflow.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
242 Driving and Operating
2. Front Brake Cooling Duct
Brake Pad Wear Sensors
If equipped, the brake pad
wear sensors need to be
removed from the brake
calipers prior to any track or
racing event. The original
sensors can be reinstalled if
significant brake pad wear is
not observed. Refer to Brake
Pad Life System (If Equipped)
0 396. If the sensors are not
reinstalled after the track
event, install brake pad wear
sensor plugs. See your dealer.
The V-Series Blackwing is
equipped with brake pad wear
sensors which are track
capable and should not be
disabled for track and racing.
A message will display in the
Driver Information Center
(DIC) when the brake pads
show excessive wear.
Brake Fluid
Replace existing brake fluid
with a qualified DOT 4 high
performance brake fluid from a sealed container. Brake fluid
with a dry boiling point >310 °C
(590 °F) is qualified. If high
performance brake fluid is
used, replace it with GM
approved brake fluid before
driving on public roads. If high
performance brake fluid is in
the vehicle and the age of the
brake fluid is over a month old
or unknown, replace the brake
fluid before track events and
competitive driving. Do not use
silicone or DOT 5 brake fluids.
Disconnect the battery before
bleeding the system, replacing
the pads, or any other work.
The battery must be
disconnected to prevent the
brake master cylinder from
pressurizing the hydraulic
system during its automated
self diagnostic tests that may
occur when a door is opened
or the remote key is present.
Check the fluid level before
each competitive driving
event.
Brake System Flushing &
Bleeding
The J55 brake system
requires specific processes
for bleeding and fluid flushing.
These can be found in the
service manual.
Properly bleeding the brake
system is required for proper
operation of the hydraulic
brake system.
Brake Leak Detection
The hydraulic braking system
has advanced diagnostic
capability to help detect
hydraulic leaks, trapped air,
and other performance issues.
These diagnostics are active
when the hydraulic system is
powered. In order to avoid
inadvertently setting a leak
Diagnostic Trouble Code
(DTC), disconnect the battery
before servicing the brake
system.
If the vehicle sets a DTC
related to a brake system leak,
the Brake System Warning

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22

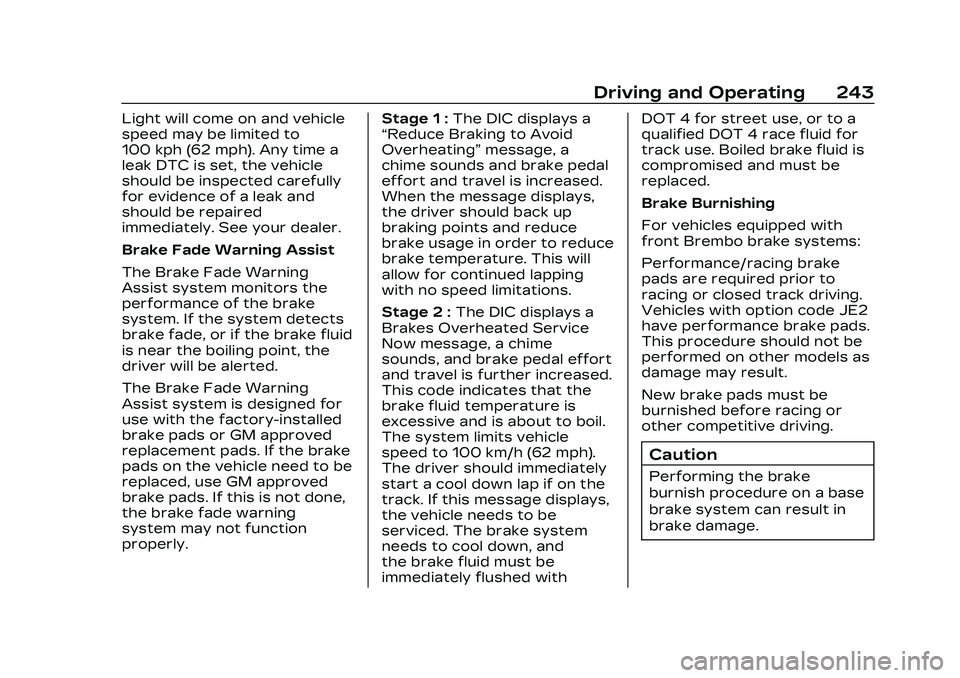

Driving and Operating 243
Light will come on and vehicle
speed may be limited to
100 kph (62 mph). Any time a
leak DTC is set, the vehicle
should be inspected carefully
for evidence of a leak and
should be repaired
immediately. See your dealer.
Brake Fade Warning Assist
The Brake Fade Warning
Assist system monitors the
performance of the brake
system. If the system detects
brake fade, or if the brake fluid
is near the boiling point, the
driver will be alerted.
The Brake Fade Warning
Assist system is designed for
use with the factory-installed
brake pads or GM approved
replacement pads. If the brake
pads on the vehicle need to be
replaced, use GM approved
brake pads. If this is not done,
the brake fade warning
system may not function
properly.Stage 1 :
The DIC displays a
“Reduce Braking to Avoid
Overheating” message, a
chime sounds and brake pedal
effort and travel is increased.
When the message displays,
the driver should back up
braking points and reduce
brake usage in order to reduce
brake temperature. This will
allow for continued lapping
with no speed limitations.
Stage 2 : The DIC displays a
Brakes Overheated Service
Now message, a chime
sounds, and brake pedal effort
and travel is further increased.
This code indicates that the
brake fluid temperature is
excessive and is about to boil.
The system limits vehicle
speed to 100 km/h (62 mph).
The driver should immediately
start a cool down lap if on the
track. If this message displays,
the vehicle needs to be
serviced. The brake system
needs to cool down, and
the brake fluid must be
immediately flushed with DOT 4 for street use, or to a
qualified DOT 4 race fluid for
track use. Boiled brake fluid is
compromised and must be
replaced.
Brake Burnishing
For vehicles equipped with
front Brembo brake systems:
Performance/racing brake
pads are required prior to
racing or closed track driving.
Vehicles with option code JE2
have performance brake pads.
This procedure should not be
performed on other models as
damage may result.
New brake pads must be
burnished before racing or
other competitive driving.
Caution
Performing the brake
burnish procedure on a base
brake system can result in
brake damage.
