2023 ACURA TLX remote start

568
Maintenance
Remote Transmitter Care
Replacing the Remote Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the keyless remote.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.
Models without remote engine start system1 Replacing the Remote Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposalM
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
Battery
23 ACURA TLX-31TGV6200.book 568 ページ ２０２２年８月４日　木曜日　午後１時５９分

569
uuRemote Transmitter Care uReplacing the Remote Battery
Maintenance
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
u It may be helpful to lightly place masking
tape over the remote buttons to hold
them in place.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the transmitter.
3. Press down on the center of the assembly
and remove the battery.
u When removing the button battery, be
careful not to touch parts around it.
4. Make sure to replace the battery with the
correct polarity.
Models with remote engine start system1Replacing the Remote Battery
NOTICE
The Remote transmitter is equipped with two
batteries: A standard replaceable CR2032 coin
button battery and an in tegral non-replaceable
rechargeable battery. To prevent permanent damage
to the rechargeable battery, replace the CR2032
battery every three to four years.
Models with remote engine start system
Battery type: CR2032
Battery
23 ACURA TLX-31TGV6200.book 569 ページ ２０２２年８月４日　木曜日　午後１時５９分

581
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools.................................................. 582
If a Tire Goes Flat
Temporarily Repairi ng a Flat Tire....... 583
Changing a Flat Tire ......................... 598
Engine Does Not Start
Checking the Engine ........................ 605
If the Keyless Remote Battery is Weak.. 606Emergency Engine Stop ................... 607
If the Battery Is Dead Jump Starting Procedure .................. 608
Overheating ...................................... 611
Indicator, Coming On/Blinking If the Engine Oil Pr essure Low Warning
Appears ......................................... 614 If the Charging System Indicator Comes
On ................................................. 615
If the Slow Down! Reduced Stopping Power Warning Appears ................ 615
If the Malfunction Indicator Lamp Comes
On or Blinks ..................................... 616
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 617
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 618
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 619 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 620
If the Transmission System Indicator Blinks along with the Warning Message ...... 621
Fuses .................................................. 622
Emergency Towing ........................... 629If You Cannot Unlock the Fuel Fill Door.. 630If You Cannot Open the Trunk ........ 631
Refueling
Refueling From a Portable Fuel Container ................................... 632
23 ACURA TLX-31TGV6200.book 581 ページ ２０２２年８月４日　木曜日　午後１時５９分

605
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
If you cannot start the engine after checking all the items in the list above, have your vehicle checked by a dealer.
If you must start the vehicle immediately, use an assisting vehicle or booster battery to jump start it.
2If the Battery Is Dead P. 608
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Remote Battery is Weak P. 606
uMake sure the keyless remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 146
Check the fuses.
Check all fuses, or have your vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 628
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 374
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 139
2 Immobilizer System Indicator P. 91
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 97
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 628
If the problem continues:
2Emergency Towing P. 629
23 ACURA TLX-31TGV6200.book 605 ページ ２０２２年８月４日　木曜日　午後１時５９分

606
uuEngine Does Not Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected
If the Keyless Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, the ENGINE START/STOP button flashes,
and the engine won’t start, start the engine as follows:
1.Press the ENGINE START/STOP button.
u The beeper sounds and the ENGINE
START/STOP button flashes for about
30 seconds.
2. Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
remote while the ENGINE START/STOP
button is flashing.
The buttons on the keyless remote should
be facing you.
u The beeper sounds, and the ENGINE
START/STOP button stays on for about
10 seconds.
3. Depress the brake pedal and press the
ENGINE START/STOP button while the
ENGINE START/STOP button is on.
u The engine starts.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
23 ACURA TLX-31TGV6200.book 606 ページ ２０２２年８月４日　木曜日　午後１時５９分

620
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS,
the indicator blinks for about one minute, and then stays on.
If the compact spare tire
* is installed, the indicator will either come on or
it will first blink for abou t one minute, then stay on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
If the compact spare tire
* causes the indicator to come on, change the
tire to a full-size tire.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stay on, change
the tire to a full-size tire. The indi cator goes off after driving for a few
miles (kilometers).
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed levelM
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON and transmission in
( P, while you
adjust tire pressure up or down, the system alerts you
as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for three seconds with
five seconds intervals.
Above recommended pressure: The beeper
sounds and lights flash tw ice every two seconds.
When a certain amount of time has passed since
activation, Tire Fill Assist w ill be canceled until you set
the power mode to OFF.
You cannot use Tire Fill Assist if the engine was
started by the remote engine start, or if there is a
malfunction in the system.
If Tire Fill Assist does not work, use a tire pressure
gauge.
* Not available on all models
23 ACURA TLX-31TGV6200.book 620 ページ ２０２２年８月４日　木曜日　午後１時５９分

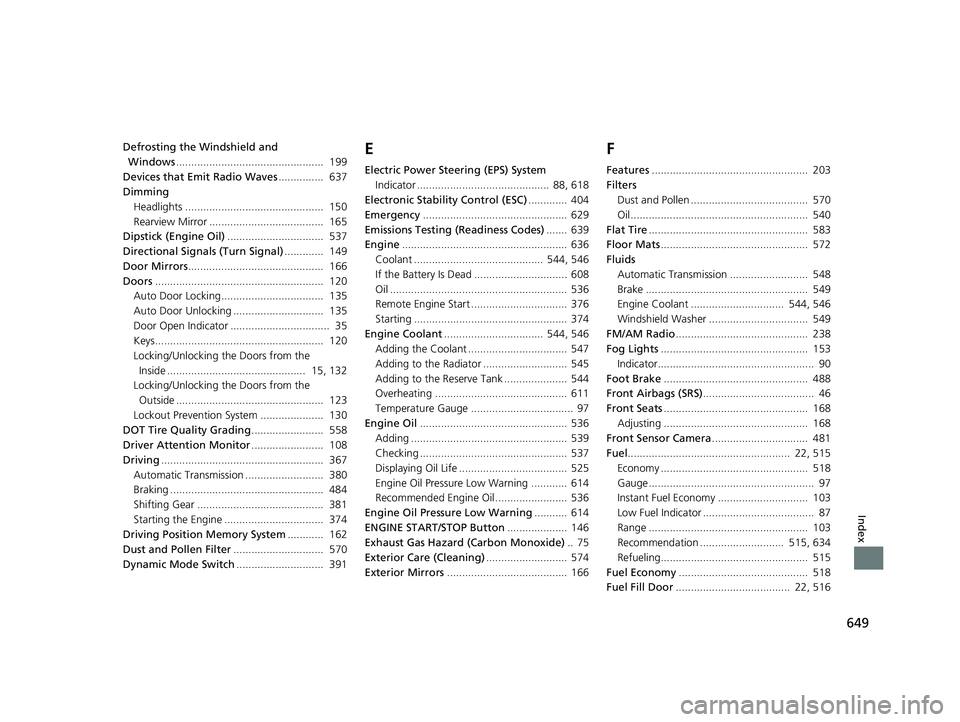

649
Index
Defrosting the Windshield and Windows ................................................. 199
Devices that Emit Radio Waves ............... 637
Dimming Headlights .............................................. 150
Rearview Mirror ...................................... 165
Dipstick (Engine Oil) ................................ 537
Directional Signals (Turn Signal) ............. 149
Door Mirrors ............................................. 166
Doors ........................................................ 120
Auto Door Locking.................................. 135
Auto Door Unlocking .............................. 135
Door Open Indicator ................................. 35
Keys........................................................ 120
Locking/Unlocking the Doors from the Inside .............................................. 15, 132
Locking/Unlocking the Doors from the
Outside ................................................. 123
Lockout Prevention System ..................... 130
DOT Tire Quality Grading ........................ 558
Driver Attention Monitor ........................ 108
Driving ...................................................... 367
Automatic Transmission .......................... 380
Braking ................................................... 484
Shifting Gear .......................................... 381
Starting the Engine ................................. 374
Driving Position Memory System ............ 162
Dust and Pollen Filter .............................. 570
Dynamic Mode Switch ............................. 391E
Electric Power Steering (EPS) System
Indicator ............................................ 88, 618
Electronic Stability Control (ESC) ............. 404
Emergency ................................................ 629
Emissions Testing (Readiness Codes) ....... 639
Engine ....................................................... 636
Coolant ........................................... 544, 546
If the Battery Is Dead ............................... 608
Oil ........................................................... 536
Remote Engine Start ................................ 376
Starting ................................................... 374
Engine Coolant ................................. 544, 546
Adding the Coolant ................................. 547
Adding to the Radiator ............................ 545
Adding to the Reserve Tank ..................... 544
Overheating ............................................ 611
Temperature Gauge .................................. 97
Engine Oil ................................................. 536
Adding .................................................... 539
Checking ................................................. 537
Displaying Oil Life .................................... 525
Engine Oil Pressure Low Warning ............ 614
Recommended Engine Oil ........................ 536
Engine Oil Pressure Low Warning ........... 614
ENGINE START/STOP Button .................... 146
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 574
Exterior Mirrors ........................................ 166
F
Features.................................................... 203
Filters Dust and Pollen ....................................... 570
Oil ........................................................... 540
Flat Tire ..................................................... 583
Floor Mats ................................................. 572
Fluids
Automatic Transmission .......................... 548
Brake ...................................................... 549
Engine Coolant ............................... 544, 546
Windshield Washer ................................. 549
FM/AM Radio ............................................ 238
Fog Lights ................................................. 153
Indicator.................................................... 90
Foot Brake ................................................ 488
Front Airbags (SRS) ..................................... 46
Front Seats ................................................ 168
Adjusting ................................................ 168
Front Sensor Camera ................................ 481
Fuel ...................................................... 22, 515
Economy ................................................. 518
Gauge ....................................................... 97
Instant Fuel Economy .............................. 103
Low Fuel Indicator ..................................... 87
Range ..................................................... 103
Recommendation ............................ 515, 634
Refueling................................................. 515
Fuel Economy ........................................... 518
Fuel Fill Door ...................................... 22, 516
23 ACURA TLX-31TGV6200.book 649 ページ ２０２２年８月４日　木曜日　午後１時５９分

651
Index
Lane Keeping Assist System (LKAS) (Amber) .................................................. 93
Lane Keeping Assist System (LKAS) (White/ Green) .................................................... 93
Lights On .................................................. 90
Low Fuel ................................................... 87
Low Tire Pressure/TPMS ............ 89, 408, 410
M (sequential mode) Indicator/Gear
Selection Indicator................................... 83
Maintenance Minder................................. 92
Malfunction Indicator Lamp .............. 83, 616
Parking Brake and Brake System (Amber) .......................................... 82, 619
Parking Brake and Brake
System (Red) ..................... 80, 81, 617, 619
Safety Support Indicator (Amber) .............. 94
Safety Support Indicator (Green/Gray) ....... 96
Seat Belt Reminder.............................. 37, 87
Security System Alarm............................... 91
Shift Position............................................. 83
Super Handling-All Wheel Drive
TM
(SH-AWD ®) ............................................. 92
Supplemental Restraint System ........... 57, 88
System Message ....................................... 92
Transmission System ................................. 84
Turn Signal and Hazard Warning............... 90
Vehicle Stability Assist
TM (VSA ®) OFF .. 89, 405
Vehicle Stability AssistTM (VSA ®)
System ............................................ 89, 404
Information .............................................. 633
Instant Fuel Economy .............................. 103 Instrument Panel
........................................ 77
Brightness Control ................................... 159
Interior Convenience Items ...................... 189
Interior Lights ........................................... 180
Interior Rearview Mirror .......................... 165
iPad ............................................................ 280
iPhone ....................................................... 280
iPod ................................................... 255, 280
J
Jack (Wheel Nut Wrench) ........................ 601
Jump Starting ........................................... 608
K
Key Number Tag ....................................... 122
Keyless Access System ............................... 123
Keyless Lockout Prevention ..................... 130
Keys ........................................................... 120
Lockout Prevention .................................. 130
Number Tag ............................................ 122
Rear Door Won’t Open ............................ 134
Remote Transmitter ................................. 128
Two-way Keyless Remote ................ 131, 376
Types and Functions ................................ 120
Kickdown (Automatic Transmission) ....... 380
Knee Airbags .............................................. 51
L
Lane Keeping Assist System (LKAS) ......... 449LATCH (Child Seats)
.................................... 66
Legal Information .................................... 294
License Information ................................. 297
Lights ................................................. 150, 550
Automatic ............................................... 151
Bulb Replacement ................................... 550
Chicane
TM Daytime Running Lights .......... 153
Fog Lights ............................................... 153
High Beam Indicator .................................. 90
Interior .................................................... 180
Light Switches ......................................... 150
Lights On Indicator .................................... 90
Turn Signals ............................................ 149
Load Limits ................................................ 371
Locking/Unlocking .................................... 120
Auto Door Locking/Unlocking.................. 135
Childproof Door Locks............................. 134
From Inside ............................................. 132
From Outside .......................................... 123
Keys ........................................................ 120
Using a Key ............................................. 129
Lockout Prevention System ..................... 130
Low Battery Charge ................................. 615
Low Fuel Indicator ...................................... 87
Low Keyless Remote Signal Strength ...... 122
Lower Anchors ............................................ 66
Lubricant Specifications Chart ................. 635
Luggage (Maximum Load Limit) ............. 371
Lumbar Support ....................................... 168
23 ACURA TLX-31TGV6200.book 651 ページ ２０２２年８月４日　木曜日　午後１時５９分
