2023 ACURA TLX check engine

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop
Indicator (Green)●Comes on when Auto Idle Stop is in
operation. The engine automatically shuts
off.
2Auto Idle Stop P. 397
Auto Idle Stop
OFF Indicator
●Comes on when the Auto Idle Stop system
has been turned off by the Auto Idle Stop
system OFF button.
2Auto Idle Stop System ON/OFF P. 399
Auto Idle Stop
System Indicator
(Amber)●Blinks if there is a problem with the Auto Idle
Stop system.●Blinks - Have your vehicle checked by a dealer.
23 ACURA TLX-31TGV6200.book 85 ページ ２０２２年８月４日　木曜日　午後１時５９分

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Immobilizer
System Indicator
●Blinks if the immobilizer system cannot
recognize the key information.•Blinks - You cannot start the engine. Set the
power mode to VEHICLE OFF, then select the ON
mode again.
Depress and hold the brake pedal before setting
the power mode to ON.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by a
dealer.
• Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.
Security System
Alarm Indicator
●Blinks when the security system alarm has
been set.
2 Security System Alarm P. 139
IndicatorCanadian models
Indicator
23 ACURA TLX-31TGV6200.book 91 ページ ２０２２年８月４日　木曜日　午後１時５９分

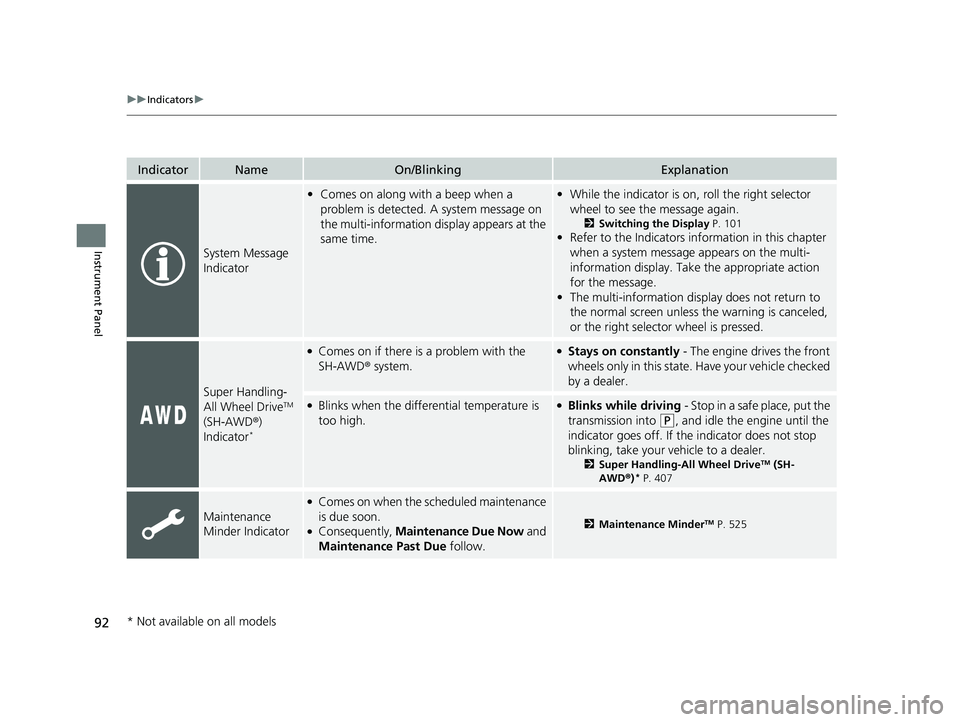

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
System Message
Indicator
•Comes on along with a beep when a
problem is detected. A system message on
the multi-information display appears at the
same time.•While the indicator is on, roll the right selector
wheel to see the message again.
2 Switching the Display P. 101
•Refer to the Indicators in formation in this chapter
when a system message appears on the multi-
information display. Take the appropriate action
for the message.
• The multi-information disp lay does not return to
the normal screen unless the warning is canceled,
or the right selector wheel is pressed.
Super Handling-
All Wheel DriveTM
(SH-AWD ®)
Indicator
*
●Comes on if there is a problem with the
SH-AWD ® system.●Stays on constantly - The engine drives the front
wheels only in this state. Have your vehicle checked
by a dealer.
●Blinks when the differential temperature is
too high.●Blinks while driving - Stop in a safe place, put the
transmission into
(P, and idle the engine until the
indicator goes off. If th e indicator does not stop
blinking, take your ve hicle to a dealer.
2Super Handling-All Wheel DriveTM (SH-
AWD® )* P. 407
Maintenance
Minder Indicator
●Comes on when the scheduled maintenance
is due soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance MinderTM P. 525
* Not available on all models
23 ACURA TLX-31TGV6200.book 92 ページ ２０２２年８月４日　木曜日　午後１時５９分

98
uuGauges and Displays uMulti-Information Display
Instrument Panel
Multi-Information Display
The multi-information display shows inform ation such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
When a warning message displays, please check the message and contact a dealer
to have the vehicle inspected if necessary . Please refer to the pages below if the
Engine Oil Pressure Low , Engine Temperature Too Hot or Slow Down!
Reduced Stopping Power message is displayed.
2If the Engine Oil Pressure Low Warning Appears P. 614
2 Overheating P. 611
2 If the Slow Down! Reduced Stopping Power Warning Appears P. 615
Shows the total number of miles or kilometers that your vehicle has accumulated.
■Sub Display
■Odometer
OdometerOutside Temperature
Compass
*
Dynamic Mode
* Not available on all models
23 ACURA TLX-31TGV6200.book 98 ページ ２０２２年８月４日　木曜日　午後１時５９分

131
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
You can remotely check if your vehicle’s doors
are all locked or any are unlocked using the
keyless remote from extended distances.
Press the lock button, the Amber (LEFT) LED blinks once. After th ree seconds, one of
the following feedback will come:
• Green (center) comes on: Acknowle dges that the doors are locked.
• Red (right) comes on: Acknowledges that doors are not locked, or any door is not
completely closed.
• Red (right) blinks three times: The remote does not receive the door lock status
from the vehicle.
■Checking Door Lock Status*1 Checking Door Lock Status*
Operate the remote in an open space. If there are
buildings or other obstacl es between your vehicle
and the remote, the remote may not work even
within the operable range. However, the range
required for unlocking the tr unk and all the doors as
well as activating the pani c function is the same as
that required for operating the standard keyless
remote.
When checking the door lock status, you can also
start or stop the engine.
2 Remote Engine Start
* P. 376
Red
Green
Amber
Lock Button
* Not available on all models
23 ACURA TLX-31TGV6200.book 131 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued361
uuAcuraLink ®u
Features
You can check the messages that are receiv ed quickly in the shortcut operation.
1. A notification appears and notifies you of a
new message on the B-zone.
2. Select the system status icon then press the
B-zone touchpad.
u The status area list appears on the
A-zone.
u A notification is continuously displayed in
the header area until the new message is
read.
3. Select a new message to open.
u If you have selected the update option
for AcuraLink, follow the directions on
the screen to complete the process.
■AcuraLink Message1 AcuraLink Message
When you update AcuraLink, you must keep the
engine running and maintain a constant connection
with AcuraLink.
If the update is interr upted, the system will
automatically resume the process. If, however, a
week has elapsed since the process was first
interrupted, you must repeat the process from the
beginning.
Notification
New Message
23 ACURA TLX-31TGV6200.book 361 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued365
uuAcuraLink ®u
Features
Your subscribed telematics service provid er can check your vehicle’s condition. For
maximum functionality, download AcuraLink app in your smartphone and connect
it with the vehicle.
■Automatic Collision Notifications
A live agent will reach out and check on you and request that help be sent in the
event of a crash.
■Send Destination
Search for destinations on your phone and instantly beam turn-by-turn directions to
your navigation system
*. Requires In-vehicle Navigation System*.
■Stolen Vehicle Locator
In the event of a stolen vehicle, your vehi cle will help local authorities recover it.
■Remote Start & Stop
Arrive at your vehicle with the engine warmed up and the interior set to a
comfortable temperature.
■Remote Lock & Unlock
Lock and unlock your vehicle with your smartphone.
■Find My Car
Find your parked vehicle and flash/sound your horns remotely using your
smartphone.
■Connection Features1 Connection Features
The contact information of your provider, your user
ID and PIN will be given when you subscribe to
AcuraLink. If you forget any of the above, contact a
Acura dealer, or go to owners.acura.com (U.S.) or
www.acura.ca/owners/acuralink (Canada).
You can also activate the remote door lock/unlock
and vehicle finder features from the Internet or using
your smartphone app. As k a dealer, or visit
owners.acura.com (U.S.) or www.acura.ca/owners/
acuralink (Canada) for details.
1Find My Car
The lights will stop flas hing and horn will stop
sounding under the following:
•When conditions 30 seconds have elapsed.
•You unlock the doors using the remote transmitter.
•You unlock the doors using the keyless access
system.
•You unlock the doors using the built-in key.
•The power mode is set to ACCESSORY or ON.
* Not available on all models
23 ACURA TLX-31TGV6200.book 365 ページ ２０２２年８月４日　木曜日　午後１時５９分

368
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 555
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also, check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
23 ACURA TLX-31TGV6200.book 368 ページ ２０２２年８月４日　木曜日　午後１時５９分
