2023 ACURA RDX display

Continued141
uuGauges and Displays uMulti-Information Display
Instrument Panel
■Average fuel economy
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android AutoTM P. 327
■Navigation
1Average fuel economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 359
1Range
The driving range displayed is only an estimate and
may differ to the actual distance the vehicle can
travel.
1 Navigation
You can cancel the drivin g guidance by pressing and
holding the right selector wheel.
A confirmation screen appe ars when Apple CarPlay
navigation route is active.
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 359
2 To Change Head-Up Display Content P. 150
Turn-by-turn directions may not be available for all
apps.
23 ACURA RDX-31TJB6400.book 141 ページ ２０２２年８月４日　木曜日　午後１時５１分

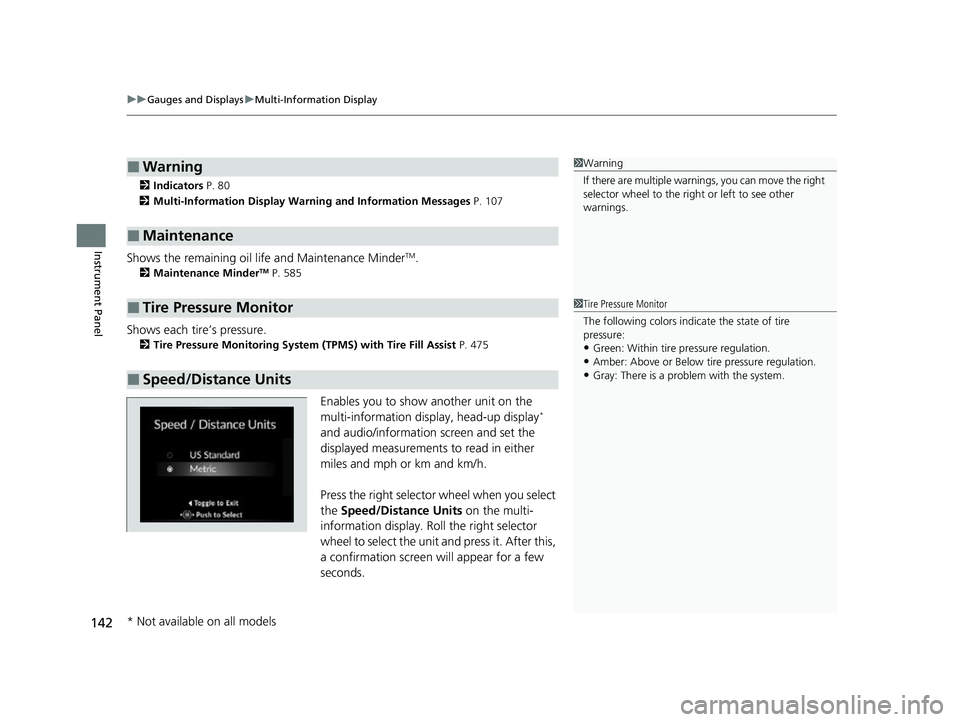

uuGauges and Displays uMulti-Information Display
142
Instrument Panel
2 Indicators P. 80
2 Multi-Information Display Warning and Information Messages P. 107
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 585
Shows each tire’s pressure.
2Tire Pressure Monitoring System (TPMS) with Tire Fill Assist P. 475
Enables you to show another unit on the
multi-information display, head-up display*
and audio/information screen and set the
displayed measurements to read in either
miles and mph or km and km/h.
Press the right selector wheel when you select
the Speed/Distance Units on the multi-
information display. Roll the right selector
wheel to select the unit and press it. After this,
a confirmation screen will appear for a few
seconds.
■Warning
■Maintenance
■Tire Pressure Monitor
■Speed/Distance Units
1 Warning
If there are multiple warnings, you can move the right
selector wheel to the right or left to see other
warnings.
1 Tire Pressure Monitor
The following colors indicate the state of tire
pressure:
•Green: Within tire pressure regulation.•Amber: Above or Below tire pressure regulation.
•Gray: There is a problem with the system.
* Not available on all models
23 ACURA RDX-31TJB6400.book 142 ページ ２０２２年８月４日　木曜日　午後１時５１分

143
uuGauges and Displays uMulti-Information Display
Continued
Instrument Panel
Press the right selector wheel when you select
the Sport Gauge Settings on the multi-
information display.
Roll the right selector wheel to select the
setting and press it.
■Turbo Meter
When the turbo is producing boost, this meter
indicates boost pressure is building.
■Sport Gauge Settings
23 ACURA RDX-31TJB6400.book 143 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuGauges and Displays uMulti-Information Display
144
Instrument Panel
■G-meter
A red circle moves around to indicate where your vehicle is currently receiving a
lateral force while driving.1 G-meter
The meter does not display a lateral force larger than
1.2 G.
If there is a problem with the VSA® system, the G-
meter will not track the lateral force acting on the
vehicle.
When decelerated while moving forward
When accelerated while reversing
When accelerated wh ile moving forward
When decelerated while reversing
Real-time lateral
force (red)
When steering
to the right
When steering
to the left
Lateral forces of the past
three seconds (white)
23 ACURA RDX-31TJB6400.book 144 ページ ２０２２年８月４日　木曜日　午後１時５１分

145
uuGauges and Displays uMulti-Information Display
Continued
Instrument Panel
Occurs, under specified conditions, when seat belts are latched or unlatched.
2 Seat Belt Reminder P. 39
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2Super Handling-All Wheel DriveTM (SH-
AWD ®)* P. 474
■Seat Belts
■SH-AWD ® Torque Distribution Monitor*
* Not available on all models
23 ACURA RDX-31TJB6400.book 145 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuGauges and Displays uMulti-Information Display
146
Instrument Panel
Indicates the status of the Road Departure Mitigation system, CMBSTM, Low Speed
Braking Control* and blind spot information system, such as On, Off, or Failure, by
color and letters.
The following colors indica te the status of any of the above-mentioned systems:
• Green: The system is on.
• Gray: The system is off.
• Amber: There is a probl em with the system.
■Safety Support1Safety Support
If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.
To turn on or off each system, first press and roll the
right selector wheel to select the desired item, and
then press the right selector wheel.
2 Road Departure Mitigation On and Off
P. 532
2 CMBS
TM On and Off P. 490
2 System On and Off P. 499
2 Blind Spot Information System On and Off
P. 481
You can also confirm the st atus of each function by
the color of the safe ty support indicator.
2 Safety Support Indicator (Amber) P. 103
2 Safety Support Indicator (Green/Gray)
P. 106
Even when the Low Speed Braking Control icon is
green, if the parking sensor is turned off for the rear
only, the brake assist will not operate when reversing.
2 Turning off All Rear Sensors P. 560
Models with Low Speed Braking Control
* Not available on all models
23 ACURA RDX-31TJB6400.book 146 ページ ２０２２年８月４日　木曜日　午後１時５１分

147
uuGauges and Displays uMulti-Information Display
Instrument Panel
Area Info for
Road Departure
Mitigation
System Road Departure Mitigation
System Icon and Status Info
Blind Spot Information
System Icon and Status Info
Area Info for Blind
Spot Information
System
Area Info for
Low Speed
Braking Control Low Speed Braking Control
Icon and Status Info
CMBSTM Icon
and Status Info
Area Info for
CMBS
TM
Models with Low Speed Braking Control
23 ACURA RDX-31TJB6400.book 147 ページ ２０２２年８月４日　木曜日　午後１時５１分

148
uuGauges and Displays uHead-Up Display*
Instrument Panel
Head-Up Display*
Shows the currently selected Driving View information, navigation, audio and phone
information, etc. You can choose which it ems are displayed using the left selector
wheel on the steering wheel. They are displayed when the power mode is in ON.
2To Change Head-Up Display Content P. 150
The display can be moved up and down to become level with your eyes.
To raise or lower the head-up display : Press and hold the or button until
the desired position is reached.
1 Head-Up Display*
When you unlock and open the driver’s door with a
remote transmitter or keyless access system, the
head-up display adjusts auto matically to one of the
two preset positions.
34
/ Button34Head-Up Display Press and hold the button
to raise the display.3
Press and hold the button
to lower the display.4
* Not available on all models
23 ACURA RDX-31TJB6400.book 148 ページ ２０２２年８月４日　木曜日　午後１時５１分
