2023 ACURA INTEGRA keyless

Continued435
uuWhen Driving uStarting the Engine
Driving
1. Depress and hold the brake pedal, then press the ENGINE START/STOP button.
2. Keeping your right foot on the br ake pedal, put the transmission into
(D. Select
(R when reversing.
3. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
u Make sure the parking brake and brake system indicator (red) goes off.
2 Parking Brake P. 584
■Starting to Drive1Starting to Drive
Engine Restart Function
If the engine stalls, full y depress the clutch pedal
within three seconds. The engine may automatically
restart under certain conditi ons. Otherwise, follow
the standard procedure. 2 Starting the Engine P. 430
The engine stops when th e transmission is taken out
of
( P before the ENGINE START/STOP button is
pressed. Follow step 1 when starting to drive.
You can also release the parking brake by pressing
the electric parking brake sw itch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the
electric parking brake switch than by releasing it with
the accelerator pedal.
Manual transmission models
Continuously variable transmission models
When the engine was started using the button on
the keyless remote
All models
Continuously variable transmission models
When the engine was started using the button on the keyless remote
When the engine was started in any case
23 ACURA INTEGRA-313S56000_03.book 435 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

448
uuWhen Driving uAcura Integrated Dynamics System
Driving
■Mode descriptions
Each mode has been crafted for different driving styles according to the following chart.
■Next start-up mode
The mode for the next start-up is saved according to the following chart. Each keyless remote has its own mode saved.
ModeFunctionGauge Color
COMFORTMaximizes driver comfort through decreased steering effortBlue
NORMALBalanced response for everyday useWhite
SPORTEnhances vehicle response through increased steering effort, heightened
throttle response, and modifi ed active sound control
When in SPORT, the Auto Idle Stop System w ill stay disabled regardless of
the Auto Idle Stop OFF button
2Auto Idle Stop P. 455
Red
Last Dynamic ModeNext Dynamic Mode
COMFORTCOMFORT
NORMAL or SPORTNORMAL
23 ACURA INTEGRA-313S56000_03.book 448 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

452
uuWhen Driving uAcura Integrated Dynamics System
Driving
■Next start-up mode
The mode for the next start-up is saved according to the following chart. Each keyless remote has its own mode saved.
Last Dynamic ModeNext Dynamic Mode
COMFORTCOMFORT
NORMAL, or SPORTNORMAL
INDIVIDUAL (via COMFORT )COMFORT
INDIVIDUAL (via NORMAL , or SPORT)NORMAL
23 ACURA INTEGRA-313S56000_03.book 452 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

453
uuWhen Driving uAcura Integrated Dynamics System
Continued
Driving
You can customize the INDIVIDUAL settings linked to your current keyless remo te. Each keyless remote has its own settings.
1. Press and hold the INDIVIDUAL button or select Customize to enter INDIVIDUAL mode and open the INDIVIDUAL settings.
u You can also select from Customized F eatures on the 9-in. Color Touchscreen.
2Selecting the Dynamic Mode P. 450
2 Customized Features P. 359
2.Select the setting category.
3. Select the desired setting.
■Customizing the INDIVIDUAL Settings
23 ACURA INTEGRA-313S56000_03.book 453 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

653Continued
Maintenance

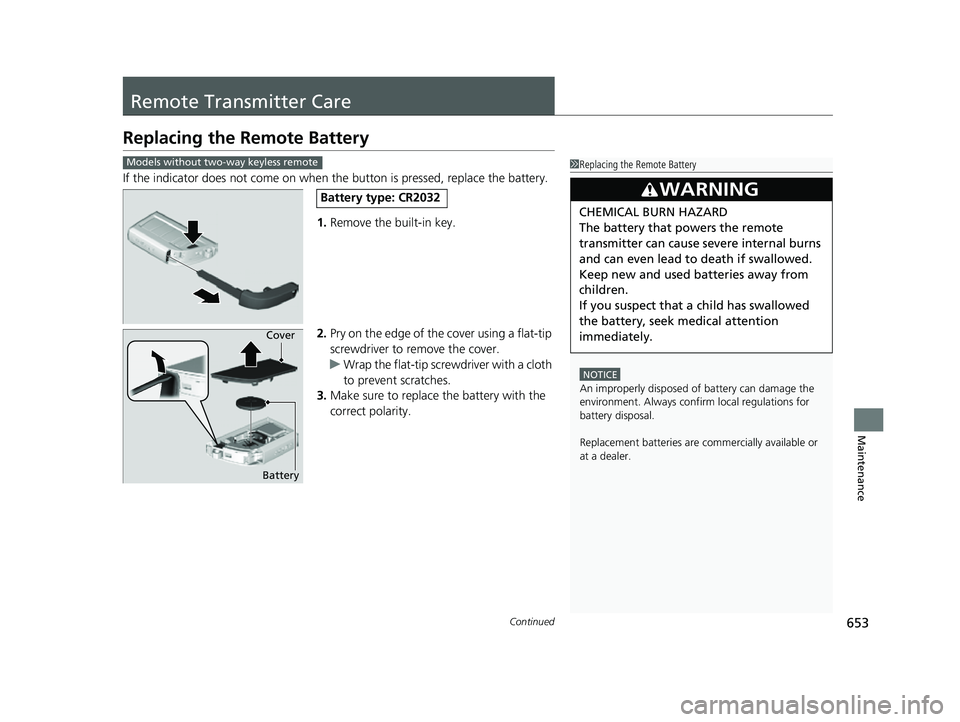

Remote Transmitter Care
Replacing the Remote Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
3. Make sure to replace the battery with the
correct polarity.
1Replacing the Remote Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposalM
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Models without two-way keyless remote
Battery type: CR2032
Battery Cover
23 ACURA INTEGRA-313S56000_03.book 653 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuRemote Transmitter Care uReplacing the Remote Battery
654
Maintenance
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
3. Make sure to replace the battery with the
correct polarity.
Models with two-way keyless remote1 Replacing the Remote Battery
NOTICE
The Remote transmitter is equipped with two
batteries: A standard replaceable CR2032 coin
button battery and an in tegral non-replaceable
rechargeable battery. To prevent permanent damage
to the rechargeable battery, replace the CR2032
battery every three to four years.
Models with two-way keyless remote
Battery type: CR2032
Battery Cover
23 ACURA INTEGRA-313S56000_03.book 654 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

665
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 666
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 667
Changing a Flat Tire ......................... 682
Engine Does Not Start Checking the Engine ........................ 689
If the Keyless Remote Battery is Weak .. 691Emergency Engine Start ................... 692
Emergency Engine Stop ................... 693
If the Battery Is Dead
Jump Starting Procedure .................. 694
Shift Lever Does Not Move .............. 696Overheating
How to Handle Overheating............. 697
Indicator, Coming On/Blinking If the Engine oil pressure low Warning Appears ......................................... 699
If the Charging System Indicator Comes On ................................................. 700
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 700
If the Brake System Indicator (Red) Comes On or Blinks ................................... 701
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 703
If the Electric Power Steering (EPS) System Indicator Comes On......................... 702
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 704
Fuses
Fuse Locations ................................. 705
Inspecting and Changing Fuses ........ 709
Emergency Towing ........................... 711
If You Cannot Unlock the Fuel Fill Door.. 712If You Cannot Open the Hatch ........ 713
Refueling ........................................... 714
23 ACURA INTEGRA-313S56000_03.book 665 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

689Continued
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the driver information interface.
●If the To start, touch start button with emblem side of remote message appears
2If the Keyless Remote Battery is Weak P. 691
uMake sure the keyless remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 172
Check the fuses.
Check all fuses, or have your vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 709
Check the battery.
Have the battery checked by a dealer.
2Battery P. 651
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 If the Battery Is Dead P. 694
Depending on the situation, it may be possible to
temporarily start the engine using the emergency
start procedure. 2 Emergency Engine Start P. 692
23 ACURA INTEGRA-313S56000_03.book 689 ページ ２０２２年３月１８日　金曜日　午前１１時４７分
