2023 ACURA INTEGRA sensor

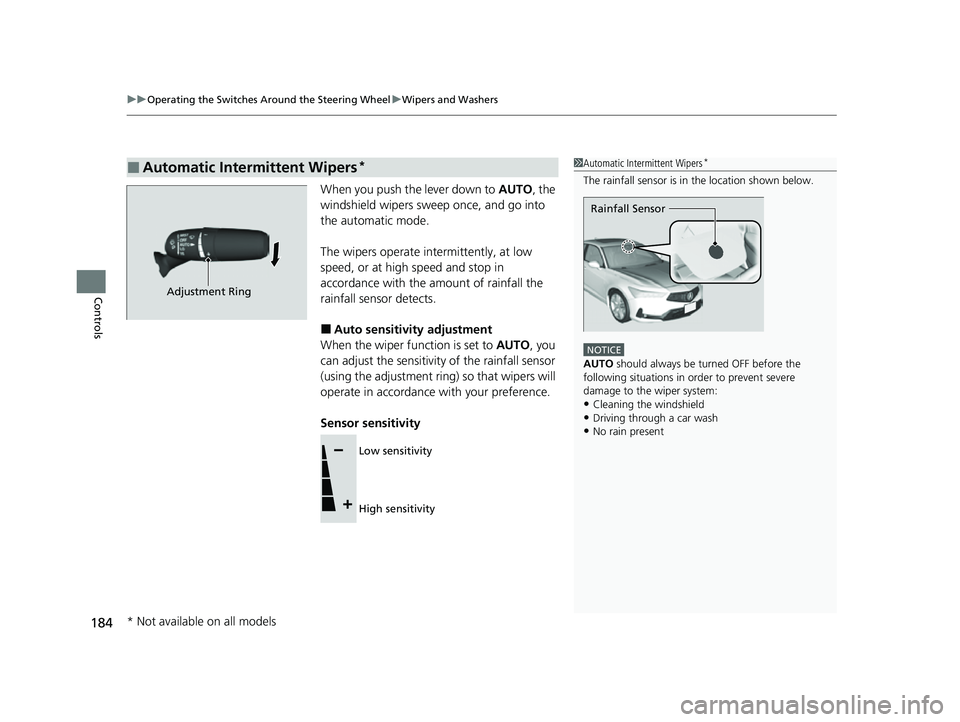

uuOperating the Switches Around the Steering Wheel uWipers and Washers
184
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stop in
accordance with the am ount of rainfall the
rainfall sensor detects.
■Auto sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
NOTICE
AUTO should always be turned OFF before the
following situations in order to prevent severe
damage to the wiper system:
•Cleaning the windshield•Driving through a car wash
•No rain present
Rainfall Sensor
Adjustment Ring
Low sensitivity
High sensitivity
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 184 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

189
Controls
Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you. Press
the button to turn this function on and off.
When activated, the indicator comes on.
■Automatic Dimming Rearview Mirror
1Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors befo re you start driving.
2 Front Seats P. 191
1Automatic Dimming Rearview Mirror
The auto dimming function cancels when the
transmission is in
(R.
Button/Indicator
Sensor
23 ACURA INTEGRA-313S56000_03.book 189 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

195
uuSeats uRear Seats
Continued
Controls
Rear Seats
The rear seats can be folded down separa tely to allow for additional storage space.
Pull the release lever and fold down the seat-
back.
■Folding Down the Rear Seats1 Folding Down the Rear Seats
The rear seat-back(s) can be folded down to
accommodate bulkier items in the cargo area.
To lock a seat-back upright, push it backwards until it
locks, so that the red tabs in the release lever go
down.
When returning the seat-back to its original position,
push it firmly back.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 65
Make sure all items in the cargo area or items
extending to the rear seats are properly
secured. Loose items can fly forward if you have
to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Release Lever
Red Tab
23 ACURA INTEGRA-313S56000_03.book 195 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

223
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Sensor
Sensor
23 ACURA INTEGRA-313S56000_03.book 223 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

372
uuCustomized Features u
Features
■Customization flow
Press the button.
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Traffic Sign Recognition System Display Setting
Road Departure Mitigation Setting
Lane Keeping Assist Suspend Beep
Blind Spot Inf–
Traffic Sign Recognition System Speed Limit Warning
Speed Limit Warning Threshold Setting
Driver Attention Monitor
Driver Assist System Setup
Select Vehicle Settings .
Rev Match System*
Rear Sensor Setting
Head-up Warning
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 372 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

376
uuCustomized Features u
Features
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Traffic Sign Recognition
System Speed Limit
Warning Enables over speed limit warning when speed limi
t is exceeded.
2Traffic Sign Recognition System P. 574ON*1/OFF
Speed Limit Warning
Threshold SettingSelect speed limit warning threshol d based on personal preference.
2Traffic Sign Recognition System P. 574
Speed Limit*1/
Speed Limit+3mph /
Speed Limit+5mph /
Speed Limit+10mph
(When mph is selected)
Speed Limit
*1/
Speed Limit+5km/h /
Speed Limit+10km/h /
Speed Limit+15km/h
(When km/h is selected)
Driver Attention Monitor Changes the setting for the driver attention monitor.
2
Driver Attention Monitor P. 117
OFF/Tactile Alert /Tactile
And Audible Alert*1
Rev Match System*Selects On/Off the rev match system.
2 Rev Match System P. 445ON*1/OFF
Rear Sensor Setting
Selects to turn ON or OFF the rear Parking Sensor. This selection will
also affect the rear Low Speed Braking Control.
2 Parking Sensor System* P. 598
2 Low Speed Braking Control* P. 493, 499
ON*1/OFF
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 376 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

423
Driving
This chapter discusses driving and refueling.
Before Driving................................... 424
Towing a Trailer ................................ 429
When Driving
Starting the Engine .......................... 430
Precautions While Driving................. 438
Continuously Variable Transmission*... 439Shifting .................................... 440 , 444Acura Integrated Dynamics System .. 447, 449Auto Idle Stop .......................... 455, 461Vehicle Stability AssistTM (VSA®), aka
Electronic Stability Control (ESC),
System ........................................ 466
Agile Handling Assist ....................... 468 Limited Slip Differential (LSD) ........... 469
Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist .......................... 470
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 472
Blind Spot Information System ......... 474
AcuraWatch
TM................................... 478
Collision Mitigati on Braking SystemTM
(CMBSTM) ....................................... 481
Low Speed Braking Control*.... 493, 499
Adaptive Cruise Control (ACC) with Low Speed Follow
*............................... 504
Adaptive Cruise Control (ACC)*....... 525 Lane Keeping Assist System (LKAS).... 545
Traffic Jam Assist
*........................... 557
Road Departure Miti gation System... 566
Traffic Sign Recognition System ....... 574
Front Wide View Camera ................. 581
Sonar Sensors
*................................ 583
Braking .............................................. 584
Parking Your Vehicle ........................ 596
Multi-View Rear Camera .................. 606
Refueling ........................................... 608
Fuel Economy and CO
2 Emissions .... 611
Turbo Engine Vehicle ....................... 612
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 423 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

426
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 45
•Make sure that the indicators in the in strument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 84
