Description
3-1
3
EAU10411

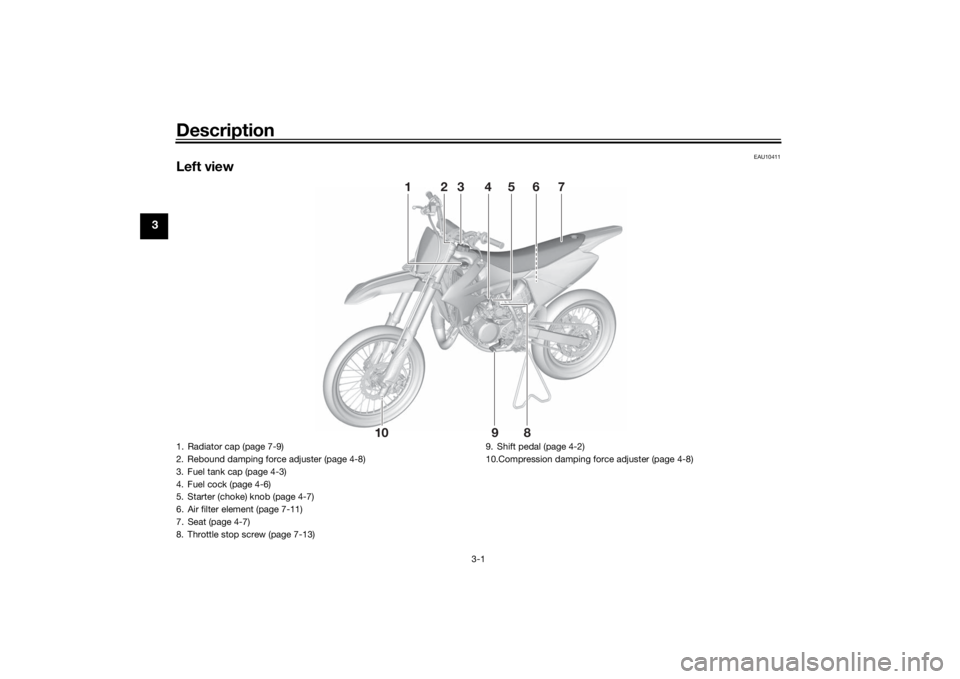

Left view
10
9
8
3
24
1
5
6
7
1. Radiator cap (page 7-9)
2. Rebound damping force adjuster (page 4-8)
3. Fuel tank cap (page 4-3)
4. Fuel cock (page 4-6)
5. Starter (choke) knob (page 4-7)
6. Air filter element (page 7-11)
7. Seat (page 4-7)
8. Throttle stop screw (page 7-13)9. Shift pedal (page 4-2)
10.Compression damping force adjuster (page 4-8)UB4B83E0.book Page 1 Thursday, September 9, 2021 8:47 AM

Operation and important rid ing points
6-1
6
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU41508
En gine break-in
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performin g maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while usin g the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer perform
service.TIPBefore starting the engine for the first
time, the air filter must be lubricated.
(See page 7-11.)En gine break-in proced ure
1. Fill the fuel tank with a break-in oil- fuel mixture as follows. 2. Start and warm up the engine.
Check the operation of the con-
trols and the engine stop switch.
(See page 4-1.)
3. Operate the motorcycle in the lower gears at moderate throttle
openings for 5 to 8 minutes. Stop
the engine and check the spark
plug condition (see page 7-7); it
will show a rich condition during
break-in.
4. Allow the engine to cool. Restart the engine and operate the motor-
cycle as in the step above for 5
minutes. Then, very briefly shift to
the higher gears and check the
full-throttle response. Stop the en-
gine and check the spark plug.
5. After again allowing the engine to cool, restart and run the motorcy-
cle for 5 more minutes. Full throttle
and the higher gears may be used,
but sustained full-throttle opera-
tion should be avoided. Stop the
engine and check the spark plug
again.
6. Allow the engine to cool, remove the cylinder head and cylinder,
and inspect the piston and cylin-Recommen ded 2-stroke en gine oil:
YA M A L U B E 2 R
Mixin g ratio ( gasoline to oil):
15:1
UB4B83E0.book Page 1 Thursday, September 9, 2021 8:47 AM

Operation and important ri din g points
6-2
6
der. Remove any high spots on
the piston with #600-grit wet
sandpaper. Clean all components
and carefully reassemble the cyl-
inder head and cylinder.
7. Drain the break-in oil-fuel mixture from the fuel tank and refill with
the normal oil-fuel mixture. (See
page 4-3.)
8. Start the engine and check its power delivery and throttle re-
sponse throughout all gear rang-
es. Stop the engine and check the
spark plug condition. It should be-
gin to lighten in color.
9. Restart the motorcycle and ride it for about 10 to 15 more minutes.
Stop the engine and check the
spark plug condition. (See page
7-7.)
10. Lastly, thoroughly check the mo- torcycle for loose parts, oil leak-
age and any other problems.
Check all fittings and fasteners
and tighten as necessary.
TIPBe sure to inspect and make adjust-
ments thoroughly. In particular, check
control cable slack, drive chain slack
and for loose spokes.Notes on en gine overhauls
If the following parts have been re-
placed, they must be broken in as fol-
lows.  Piston, rings or transmission
gears: 30 minutes of break-in op-
eration at half-throttle or less.
 Cylinder or crankshaft: 60 minutes
of break-in operation is necessary.TIPObserve the condition of the engine
carefully during break-in operation.NOTICE
ECA10271
If any en gine trou ble shoul d occur
d urin g the en gine break-in perio d,
imme diately have a Yamaha dealer
check the vehicle.
EAU41308
Startin g an d warmin g up a
col d en gine1. Turn the fuel cock lever to “ON”.
2. Shift the transmission into the
neutral position.
3. Turn the starter (choke) on and completely close the throttle. (See
page 4-7.)
4. Start the engine by pushing the kickstarter lever down.
5. When the engine is warm, turn the starter (choke) off.TIPThe engine is warm when it responds
quickly to the throttle with the starter
(choke) turned off.NOTICE
ECA11043
For maximum en gine life, never ac-
celerate har d when the en gine is
col d!
UB4B83E0.book Page 2 Thursday, September 9, 2021 8:47 AM

Periodic maintenance an d a djustment
7-13
7
EAU42111
A djustin g the car buretorThe carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most
carburetor adjustments should be left
to a Yamaha dealer, who has the nec-
essary professional knowledge and ex-
perience. The adjustment described in
the following section, however, may be
serviced by the owner as part of rou-
tine maintenance.NOTICE
ECA10551
The car buretor has been set an d ex-
tensively teste d at the Yamaha fac-
tory. Chang ing these settin gs
without sufficient technical knowl-
e dge may result in poor perfor-
mance of or d amage to the en gine.
EAU44391
A djustin g the eng ine idlin g
spee dThe engine idling speed must be ad-
justed when necessary.
1. Start the engine and thoroughly warm it up.
2. Turn the throttle stop screw until the engine runs at the lowest pos-
sible speed.
3. To increase the engine idling speed, turn the throttle stop screw
in direction (a). To decrease the
engine idling speed, turn the throt-
tle stop screw in direction (b).
EAU48434
Adjustin g the throttle grip free
playMeasure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, adjust it as fol-
lows.TIPThe engine idling speed must be cor-
rectly adjusted before checking and
adjusting the throttle grip free play.1. Slide the rubber cover back.
2. Loosen the locknut.
1. Throttle stop screw
11
(a)(a)
(b)(b)
(a) (b)
1. Throttle grip free playThrottle
grip free play:
3.0–6.0 mm (0.12–0.24 in)
11
UB4B83E0.book Page 13 Thursday, September 9, 2021 8:47 AM

Periodic maintenance an d a djustment
7-31
7
EAU86420
En gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot. Scal din g hot flui d an d steam may be
b lown out un der pressure, which coul d cause serious injury. Be sure to wait until the en gine has coole d.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly rotate the cap counterclockwise to the
d etent to allow any resi dual pressure to escape. When the hissin g soun d has stoppe d, press d own on the cap
while turnin g it counterclockwise, an d then remove the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended cool-
ant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
UB4B83E0.book Page 31 Thursday, September 9, 2021 8:47 AM

11-1
11
Index
AAir filter element, cleaning .................... 7-11BBrake and clutch levers, checking
and lubricating ................................... 7-23
Brake fluid, changing............................ 7-20
Brake fluid level, checking.................... 7-19
Brake lever.............................................. 4-2
Brake lever free play, checking ............ 7-17
Brake pedal ............................................ 4-3
Brake pedal, checking and lubricating........................................... 7-24CCables, checking and lubricating ......... 7-22
Carburetor, adjusting............................ 7-13
Care ........................................................ 8-1
Clutch lever............................................. 4-1
Clutch lever free play, adjusting ........... 7-16
Coolant ................................................... 7-9DDrive chain, cleaning and lubricating ... 7-22
Drive chain slack .................................. 7-20EEngine break-in ...................................... 6-1
Engine idling speed .............................. 7-13
Engine overheating ............................... 7-31
Engine serial number ............................ 10-1
Engine, starting a warm.......................... 6-3
Engine stop switch ................................. 4-1FFront and rear brake pads, checking ... 7-18
Front fork, adjusting ............................... 4-8
Front fork, bleeding .............................. 4-10
Front fork, checking ............................. 7-25 Fuel ........................................................ 4-3
Fuel cock................................................ 4-6
Fuel tank breather hose ......................... 4-6
Fuel tank cap.......................................... 4-3
HHandlebar switch ................................... 4-1IIdentification numbers ......................... 10-1KKickstarter .............................................. 4-7LLabels, location ...................................... 1-1MMatte color, caution ............................... 8-1PParking ................................................... 6-4
Part locations ......................................... 3-1
Periodic maintenance and lubrication
chart ..................................................... 7-2RRear suspension, lubricating................ 7-24SSafety defects, reporting (For CANADA customers) ......................... 10-2
Safety information .................................. 2-1
Seat ........................................................ 4-7
Shifting ................................................... 6-3
Shift pedal .............................................. 4-2
Shift pedal, checking ........................... 7-18
Shock absorber assembly, adjusting ... 4-11
Sidestand ............................................. 4-14
Spark plug, checking ............................. 7-7
Specifications......................................... 9-1
Starter (choke) knob............................... 4-7 Starting and warming up a cold
engine ................................................... 6-2
Steering, checking ................................ 7-25
Storage ................................................... 8-3
Supporting the motorcycle ................... 7-26
Swingarm pivots, lubricating ................ 7-24
TThrottle grip and cable, checking and lubricating ........................................... 7-23
Throttle grip free play, adjusting ........... 7-13
Tires ...................................................... 7-14
Transmission oil ...................................... 7-8
Troubleshooting .................................... 7-29
Troubleshooting chart........................... 7-30VVehicle identification number ............... 10-1WWheel bearings, checking .................... 7-26
Wheel (front).......................................... 7-26
Wheel (rear)........................................... 7-27
Wheels .................................................. 7-16YYPVS system ........................................ 4-14
