WARNING
EWB00164Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel
drive to four-wheel drive or vice versa while
moving may cause the ATV to unexpectedly
handle differently. This could distract the oper-
ator and increase the risk of losing control and
of causing an accident.
EBU18286Throttle leverPush the throttle lever to increase engine speed.
Spring tension returns the lever to the rest position
when released. Always check that the throttle le-
ver returns normally before starting the engine. 1. Throttle lever
2WD
4WD
1
UB5K64E0.book Page 18 Thursday, September 16, 2021 9:00 AM
Page 46 of 174

5-19
5
EBU18325Speed limiterThe speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum.
Adjusting the speed limiter1. Loosen the locknut.
2. To increase the maximum engine poweravailable and the maximum speed of the ATV,
turn the adjusting screw in direction (a). To
decrease the maximum engine power avail-
able and the maximum speed of the ATV, turn the adjusting screw in direction (b). Do not
turn the adjusting screw out more than 12
mm (0.47 in) or the throttle cable could be
damaged. Always make sure the throttle lever
free play is adjusted to 3.0–5.0 mm (0.12–
0.20 in). (See page 9-41.) WARNING! Im-
proper adjustment of the speed limiter and
throttle could cause throttle cable damage
or improper throttle operation. You could
lose control, resulting in an accident.
[EWB00242]

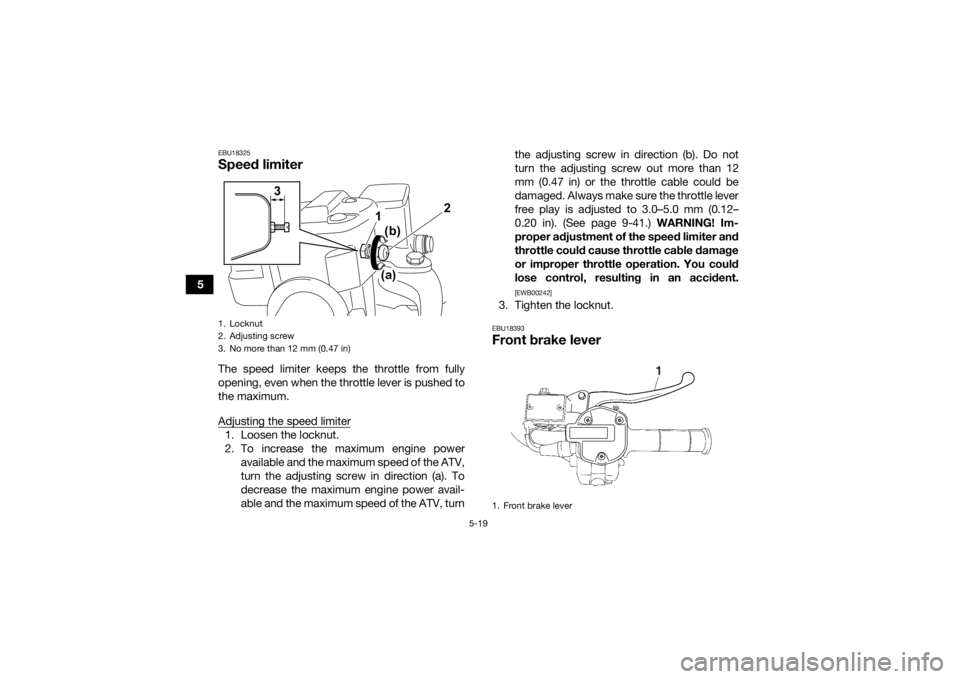

3. Tighten the locknut.EBU18393Front brake lever
1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
2
1
3
(b)
(a)
1. Front brake lever
UB5K64E0.book Page 19 Thursday, September 16, 2021 9:00 AM
Page 48 of 174
5-21
5
EBU18614Drive select leverThe drive select lever is used to shift the transmis-
sion into the low-range, high-range, neutral, re-
verse and park positions. See page 7-2 for drive
select lever operation.
EBU37980Fuel tank capRemove the fuel tank cap by turning it counter-
clockwise.
WARNING
EWB02522Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions. 1. Before refueling, turn off the engine and besure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinity
1. Drive select lever
1
1. Fuel tank cap
1
UB5K64E0.book Page 21 Thursday, September 16, 2021 9:00 AM
Page 49 of 174

5-22
5
of sparks, open flames, or other sources of
ignition such as the pilot lights of water heat-
ers and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the pump nozzle into the fuel
tank filler hole. Stop filling when the fuel
reaches the bottom of the filler tube. Because
fuel expands when it heats up, heat from the
engine or the sun can cause fuel to spill out of
the fuel tank. 3. Wipe up any spilled fuel immediately.
NOTICE: Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plastic
parts.
[ECB00982]
4. Turn the fuel tank cap fully clockwise to make sure it is securely closed.EBU38651FuelMake sure there is sufficient gasoline in the tank
before starting off. Refuel if necessary.
WARNING
EWB02532Gasoline is poisonous and can cause injury or
death. Handle gasoline with care. Never siphon
gasoline by mouth. If you should swallow some
gasoline or inhale a lot of gasoline vapor, or get
some gasoline in your eyes, see your doctor
immediately. If gasoline spills on your skin,
wash with soap and water. If gasoline spills on
your clothing, change your clothes.
1. Fuel tank filler tube
2. Maximum fuel level
2
1
UB5K64E0.book Page 22 Thursday, September 16, 2021 9:00 AM
Page 53 of 174

5-26
5
TIPA drain plug is fitted at the bottom of the storage
compartment. If any water collects in the storage
compartment, remove the drain plug, drain the
water, and then install the drain plug. EBU18964Front carrierDo not exceed the load limit of 50.0 kg (110 lb)
for the front carrier.
Do not exceed the maximum load of 240.0 kg
(530 lb) for the ATV.
EBU18974Rear carrierDo not exceed the load limit of 90.0 kg (198 lb)
for the rear carrier.
Do not exceed the maximum load of 240.0 kg
(530 lb) for the ATV.EBU1914AFront and rear shock absorbers
(YFM700FWBD)The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
WARNING
EWB00401Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling
and loss of stability, which could lead to an ac-
cident. Adjust the spring preload as follows.
Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension.
1. Storage compartment drain plug
1
UB5K64E0.book Page 26 Thursday, September 16, 2021 9:00 AM
Page 55 of 174
5-28
5
EBU39230Winch
WARNING
EWB04350To reduce the risk of injury or death, read and
follow the Winch Owner’s Manual prior to use.
Never let anyone come between the winch and
pulled object or the winch and anchor point.
Do not use the winch unless all bystanders are
Front spring preload setting:
Minimum (soft):1 (YFM700FWBD)
Standard: 2 (YFM700FWBD)
Maximum (hard): 5 (YFM700FWBD)
Rear spring preload setting: Minimum (soft):1 (YFM700FWBD)
Standard: 2 (YFM700FWBD)
Maximum (hard): 5 (YFM700FWBD)1. Winch
2. Hook
3. Hook strap
4. Fairlead
1
3
2
4
UB5K64E0.book Page 28 Thursday, September 16, 2021 9:00 AM
Page 59 of 174

6-1
6
EBU19203
PRE-OPERATION CHECKS
EBU19227Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00482Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Before using this vehicle, check the following points:
ITEMROUTINE PAGE
Fuel • Check fuel level in fuel tank,
and add recommended fuel if neces-
sary.
• Check fuel line for leakage. Correct if necessary. 5-22, 6-3
Engine oil • Check oil level in engine, and add recommended oil to specified
level if necessary.
• Check ATV for oil leakage. Correct if necessary. 6-3, 9-19
Final gear oil • Check ATV for oil leakage. Correct if necessary. 6-3, 9-24
Differential gear oil • Check ATV for oil leakage. Correct if necessary. 6-3, 9-26
Coolant • Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.
• Check cooling system for leakage. Correct if necessary. 6-3, 9-28
UB5K64E0.book Page 1 Thursday, September 16, 2021 9:00 AM
Page 62 of 174

6-4
6Brake fluid leakage (front brake)
Check to see if any brake fluid is leaking out of the
hose, joint or brake fluid reservoir of the front
brake. Apply the brake firmly for one minute. If the
lever moves slowly inward, there may be a leak in
the brake system. If there is any leakage, the brake
system should be checked by a Yamaha dealer.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance,
check the brake pads and friction plates for wear.
(See page 9-42.)
EBU19762Throttle leverCheck the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.EBU38663TiresCheck and adjust the tire pressure before each
ride. Check tires for wear and damage. Tire pressure
A low-pressure tire gauge is included as standard
equipment. Make two measurements of the tire
pressure and use the second reading. Dust or dirt
in the gauge could cause the first reading to be in-
correct.
Tire pressure must be checked and set when the
tires are cold. The tire pressure should be the
same on both sides, and must be adjusted ac-
cording to vehicle loading conditions. Set the tire
pressure as specified below.
WARNING! Opera-
tion of this vehicle with improper tire pressure
may cause severe injury or death from loss of
1. Low-pressure tire gauge
2. Tire air valve
2
1
UB5K64E0.book Page 4 Thursday, September 16, 2021 9:00 AM
