2022 YAMAHA FX SVHO bluetooth

Important manual information
EJU47031
Radio law certified country list
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.
and any use of such marks by Enovation Controls is under license.
*: Regulatory certification information is located within the software of this device. To view
the regulatory information: Power on the device > Press “Settings” > Then scroll and click
on “Regulatory Info” and you will be taken directly to the page.
Area CountryBluetooth AreaCountryBluetooth
Canada “ Australia*
“
USA “ New Zealand*
“
Austria “
Belgium “ Brazil*
“
Bulgaria “ Chile
“
Croatia “ Colombia
“
Cyprus “ Peru
“
Czech Republic “ Uruguay
“
Denmark “
Estonia “
Finland “
France “ Bahrain
“
Germany “ Jordan*
“
Kuwait “
Lebanon “
Greece “ Oman
“
Hungary “ Qatar
“
Ireland “ Saudi Arabia
“
Italy “ United Arab Emirates
“
Latvia “
Lithuania “
Luxembourg “
Malta “ Brunei
“
Netherlands “ China*
“
Poland “ Indonesia
“
“
Hong Kong
Portugal “ Japan*
“
Malaysia “
Romania “ Philippines*
“
Slovakia “ Singapore*
“
Slovenia “ South Korea*
“
Spai

n “ Taiwan*
“
Sweden “ Thailand
“
Viet Nam “
Israel*
“
Moldova “
Norway “
Russia “
Serbia “ Turkey
“
Ukraine “
United Kingdom “
North America
EU
Other Europe Oceania
South America
Middle East
Asia
UF3X73E0.book Page 2 Wednesday, October 6, 2021 9:04 AM

Instrument operation
43
EJU46651Display notification information
Incoming call information and incoming mes-
sage information received by a device com-
municating via Bluetooth can be displayed on
the multifunction information center.
The multifunction display center displays in-
coming call information received by a com-
municating device as notification information.
You can also use the multifunction informa-
tion center to answer incoming calls from
your device and view messages that arrive on
your device.
TIP
The call function is available on the Audio
model only.
If you do not respond to the incoming call in-
formation or incoming message information,
the “ ” or “ ” icon is displayed in additional
information or “Phone Manager”.
TIP
Select the icon displayed on “Phone Manag-
er” to display the detailed information.
To answer an incoming call:
To answer an incoming call on your device,
select the call button “ ” in the notification
information.
TIP
To end an incoming call, select the hang up
button “ ”.
To check incoming messages:
To display messages received on your device
with the multifunction information center,
select “ ” on the notification information.
TIP
Received notification information is hidden
after a certain period of time or if you
select “ ” on the notification information.
1Notification information
+1 (234) 567-8910INCOMING CALL
Yep!+1 (234) 567-8910
1
11
1/1
Dismiss AllOK
This is a test to send a text.
Sender’s name
UF3X73E0.book Page 43 Wednesday, October 6, 2021 9:04 AM

Instrument operation
54
EJU46730
Media screen “ ” (equipped models)
Select “ ” on the screen tab bar to display
the media screen.
The media screen displays track information
for the track currently being played with a de-
vice connected via Bluetooth in the center
display.
TIP
Selecting the play/pause button switches the
displayed button. To connect the watercraft
with a device via Bluetooth, see page 57.
EJU46740
Setting menu screen “ ”
The following settings can be checked and
changed on the setting menu screen.
“PIN Setting”
“Display”
“Units”
“Language”
“Clock”
“Wellness”
“Notifications”
“Phone Manager”
“Map Settings”
“Factory Reset”
“Regulatory Info”
EJU46751Changing the PIN (“PIN Settings”)
The PIN can be changed to any 4-digit num-
ber.
To change the PIN:
(1) Enter the current PIN code, and
select “ ”.
1Rewind/previous track button
2 Play/Pause button
3 Fast forward/track skip button
4 Volume adjustment slider
Bluetooth
TitleArtist
123
4
Settings
Pin Setting
Display
Units
Language
123
456
789
Cancel0
Enter Current PIN
UF3X73E0.book Page 54 Wednesday, October 6, 2021 9:04 AM

Instrument operation
57
(2) Select “Confirm”.
EJU46812Notification settings (“Notifications”)
Change the notification information settings
for devices connected to the PWC via Blue-
tooth. Select from “Enabled” and “Disabled”
for the following notification settings.
“Text Messages”
“Phone Calls”
“Media Remote” (equipped models)
TIP
Notifications from devices are supported in
the following languages: English, French,
Spanish, German, Italian, Portuguese,
Greek, Swedish, and Japanese.
See page 43 for the method for displaying
notification information.
EJU46820Phone management (“Phone
Manager”)
Open “Phone Manager”, and set the device
to connect to the watercraft via Bluetooth.
The following settings can be performed with
“Phone Manager”.
Display a list of registered devices
Start communication with a registered de-
vice
Stop communication with a connected de-
vice
Register a new device
Change the order of priority for communi-
cating devices
Delete information for a registered device
Display information for incoming calls re-
ceived by a connected device
TIP
To display information on incoming calls re-
ceived by a connected device, see page 43.
To start communication with a registered
device:
(1) Select “ ” to display a list of registereddevices.
1“Confirm”
WellnessConfirm
CONFIRM RESET
Hrs0.0
1
Notifications
Enabled
Enabled
Enabled
Text Messages
Phone Calls
Media Remote
Bluetooth Devices
No Device Connected
UF3X73E0.book Page 57 Wednesday, October 6, 2021 9:04 AM

Instrument operation
58
(2) Choose a device from the device list tocommunicate with via Bluetooth, and
select “ ”.
TIP
When Bluetooth communication starts,
“Connected” is displayed.
To stop communication with a connect-
ed device:
(1) Select “ ” to display a list of registereddevices.
(2) Select the “ ” for the device being communicated with.
To register a new device to the water-
craft:
(1) Select “ ” to display a list of registereddevices.
(2) Select “ ”, then select “OK”. (3) Activate the pairing mode for the device
to be registered.
(4) Select the device you want to register from the displayed devices available for
registration.
TIP
A pairing request is sent to the device, and
a pairing confirmation message appears on
the device.
Select the device you want to register to
automatically start communication with the
device.
(5) Select “OK”.
1Device list
Device name 1
Device name 2
Device name 3
Devices
1
Device name 1
Device name 2
Device name 3
Devices
1“OK”
OK
Add Phone
Please put mobile phone in pairing mode.
1
Device name 1
Add DevicePairing...Cancel
UF3X73E0.book Page 58 Wednesday, October 6, 2021 9:04 AM

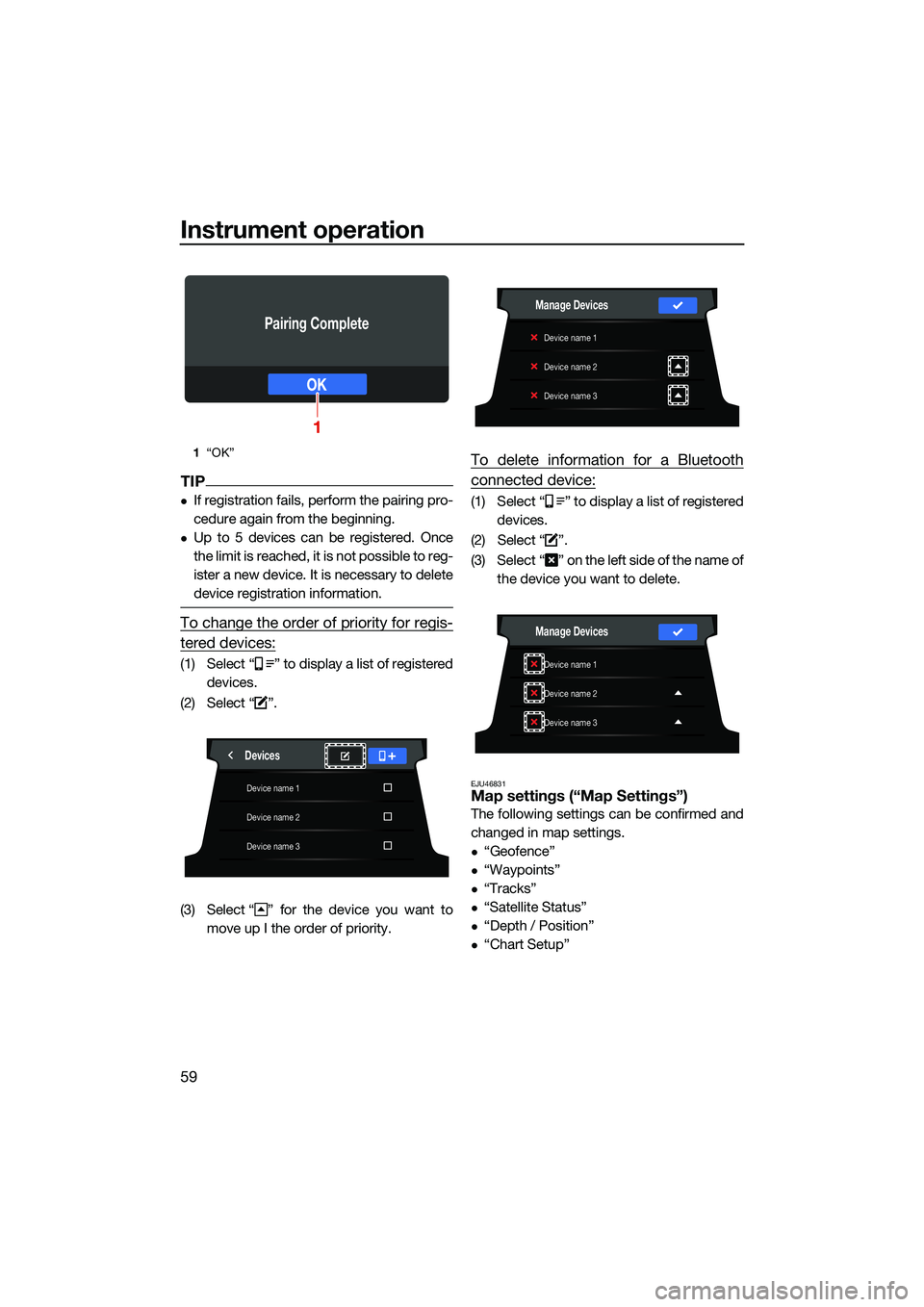

Instrument operation
59
TIP
If registration fails, perform the pairing pro-
cedure again from the beginning.
Up to 5 devices can be registered. Once
the limit is reached, it is not possible to reg-
ister a new device. It is necessary to delete
device registration information.
To change the order of priority for regis-
tered devices:
(1) Select “ ” to display a list of registereddevices.
(2) Select “ ”.
(3) Select “ ” for the device you want to move up I the order of priority.
To delete information for a Bluetooth
connected device:
(1) Select “ ” to display a list of registereddevices.
(2) Select “ ”.
(3) Select “ ” on the left side of the name of the device you want to delete.
EJU46831Map settings (“Map Settings”)
The following settings can be confirmed and
changed in map settings.
“Geofence”
“Waypoints”
“Tracks”
“Satellite Status”
“Depth / Position”
“Chart Setup”
1“OK”
OK
Pairing Complete
1
Device name 1
Device name 2
Device name 3
Devices
Device name 1
Device name 2
Device name 3
Manage Devices
Device name 1
Device name 2
Device name 3
Manage Devices
UF3X73E0.book Page 59 Wednesday, October 6, 2021 9:04 AM

Instrument operation
66
If the watercraft goes outside the set area
while the “GeoFence” function is activated,
another warning “ ” is displayed.EJU46302
Audio system (equipped models)
This model is equipped with an audio system
that can be connected via Bluetooth.
EJU46940Audio control
This model is equipped with an audio control
to operate the audio system.
Voice command button
Activates the voice command function.
TIP
See page 67 for more information on voice
command function.
1Speaker
1 USB charger
2 12V DC outlet
3 Audio control
4 Cursor button
5 Play/Pause button
6 Voice command button
11
21
4
5
3
6
UF3X73E0.book Page 66 Wednesday, October 6, 2021 9:04 AM

Instrument operation
67
Play/Pause button
Press this button to play or pause.
Cursor button “ / ”
Press these buttons to skip to the previous or
next track.
Cursor button “ / ”
Press these buttons to adjust the volume.
TIP
Playing music may stop to save power to
start the engine.
See page 57 for how to connect watercraft
to your device via Bluetooth.
EJU46951Voice command
Activates the voice command function of the
device that connects to watercraft. To use
voice command, select the voice command
button on the audio control.
To end voice command, select the hang up
button.
TIP
Voice commands may not be available de-
pending on the device connected to the wa-
tercraft.
1Voice command button
1 Hang up button
1
Voice Command00:00:00
1
