Pre-operation checks
89
EJU42181Throttle lever checks
Operate the throttle lever several times to
make sure that operation is smooth through-
out the whole range. Also, make sure that the
throttle lever returns automatically to its fully
closed (idle) position when released.
EJU45351Yamaha Security System checkMake sure that the Yamaha Security System
operates properly. (See page 24 for Yamaha
Security System setting procedures.)
EJU32666Engine shut-off cord (lanyard) check
Make sure that the engine shut-off cord (lan-
yard) is not damaged. If the cord is damaged,
replace it. WARNING! Never try to repair
the engine shut-off cord (lanyard) or tie it
together. The engine shut-off cord (lan-
yard) may not pull free when the operator
falls off, allowing the watercraft to conti-
nue to run and cause an accident.
[EWJ01222] EJU46050
Switch checksECJ01311
Do not run the engine over 4000 r/min on
land. Also, do not run the engine for more
than 15 seconds without supplying water,
otherwise the engine could overheat.
Check the engine start/stop switch and the
engine shut-off switch for proper operation.
(See page 24 for information on operating
each switch.)
1
Clip
2 Engine shut-off switch
3 Engine shut-off cord (lanyard)
12
3
UF3X73E0.book Page 89 Wednesday, October 6, 2021 9:04 AM
Pre-operation checks
90
To check the operation of the switches:
(1) If the lock mode is selected for theYamaha Security System setting, selectthe unlock mode. (See page 24 for
Yamaha Security System setting proce- dures.)
(2) Push the engine start/stop switch to make sure that the engine starts.
(3) As soon as the engine starts running, push the engine start/stop switch to
make sure that the engine stops immedi-
ately.
(4) Restart the engine, and then pull the en- gine shut-off cord (lanyard) to remove
the clip from the engine shut-off switch
to make sure that the engine stops im-
mediately.
EJU47010Electric trim system check
Turn on the multifunction information center,
and then operate the “TRIM/T.D.E.” switch.
Check that the jet thrust nozzle moves up and
down properly and that the trim setting indi-
cator change according to the operation of
the switch. (See page 40 for information on
turning on the multifunction information cen-
ter without starting the engine and page 31
for information on the electric trim system.)
EJU40102Storage compartment checks
Make sure that the storage compartments
are not damaged and that water has not col-
lected in the compartments. (See page 72 for
information on the storage compartments.)
EJU41082Fire extinguisher holder, cover, and band
checks
Make sure that the fire extinguisher holder,
cover, and band are not damaged and that
the cover is securely held in place using the
band. (See page 75 for information on the fire
extinguisher holder, cover, and band.)
EJU32544Fire extinguisher check
Check that there is a full fire extinguisher on
board.
To check the fire extinguisher, see the in-
structions supplied by the fire extinguisher
manufacturer. Always keep the fire extin-
guisher secured in the holder with its cover in
place.
1 Engine start/stop switch
1
UF3X73E0.book Page 90 Wednesday, October 6, 2021 9:04 AM
Operation
95
is attached correctly. If the engine
shut-off cord (lanyard) is not attached
correctly, it may not pull free when the
operator falls off, allowing the water-
craft to continue to run and cause an
accident.
[EWJ00583]
(4) With the throttle lever released, push theengine start/stop switch (red button) to
start the engine. (See page 24 for infor-
mation on operating the engine
start/stop switch.)
EJU46080Stopping the engine
Release the throttle lever, and then push the
engine start/stop switch (red button) to stop
the engine. WARNING! You need throttle to
steer. Shutting the engine off can cause
you to hit an obstacle you are attempting to avoid. A collision could result in severe
injury or death.
[EWJ00602]
EJU32874
Leaving the watercraft
If leaving the watercraft, remove the clip from
the engine shut-off switch to prevent acci-
dental starting or unauthorized operation by
children or others.
EJU43411Operating the watercraft
When the throttle lever is squeezed, the “F”
(forward) shift indicator will be displayed and
the watercraft will move forward. While the
“F” (forward) shift indicator is displayed, the
watercraft will move forward at trolling speed
even if the throttle lever is in the fully closed
(idle) position. (See page 29 for shift system
operation procedures.)
1 Clip
2 Engine shut-off switch
3 Engine shut-off cord (lanyard)
12
3
UF3X73E0.book Page 95 Wednesday, October 6, 2021 9:04 AM
Operation
100
(3) Pull yourself up onto the boarding plat-form and grasp the handgrip, and then
move to the seat and sit astride.
(4) Attach the engine shut-off cord (lanyard) to your left wrist, and then attach the clip
to the engine shut-off switch.
(5) Grip the handlebars with both hands and place both feet on the floor of the foot-
well.
(6) Look in all directions, start the engine, and then start off slowly.
EJU43260Boarding with passenger(s)EWJ01800
Severe internal injuries can occur if wa-
ter is forced into body cavities as a re-
sult of being near the jet thrust nozzle.
Do not start the engine until the passen-
gers are seated with their feet on the
floor of the footwell and are securely holding on to the person in front of them
or to the handgrip provided.
Before boarding the watercraft, make
sure that the engine is stopped. If the
engine is running, the reverse gate may
move down and a person boarding
could be pinched.
The heavier the total weight of the operator
and passenger(s), the more difficult it will be
to balance the watercraft. Do not operate the
watercraft when the total weight exceeds 240
kg (530 lb) including any cargo.
To board with passenger(s):
(1) Board as noted in the previous section
“Boarding alone”.
(2) Grip the handlebars with both hands and place both feet on the floor of the foot-
well.
(3) Have the first passenger move to the rear of the watercraft.
UF3X73E0.book Page 100 Wednesday, October 6, 2021 9:04 AM
Operation
103
(3) Start the engine and operate the water-craft at planing speed to drain the bilge
water from the engine compartment.
(See page 81 for information on draining
the bilge water. If the engine does not
start, see “Towing the watercraft” on
page 122 or “Submerged watercraft” on
page 122.) NOTICE: Do not run the en-
gine at full throttle for at least 1 minute
after the engine has been restarted.
Bilge water in the engine compart-
ment can splash into the engine,
which can result in severe damage.
[ECJ00554]
EJU43282
Beaching and docking the watercraft
To beach the watercraft:
(1) Make sure that there are no boats, swim- mers, or obstacles near the beach. (2) Release the throttle lever to reduce
speed about 125 m (410 ft) before you
reach the intended beaching area.
(3) Slowly approach the beach using the throttle lever and RiDE lever to control
the watercraft speed. NOTICE: Never
run the engine in water that is less
than 60 cm (2 ft) deep from the bottom
of the watercraft, otherwise pebbles
or sand could be sucked into the jet
intake, causing impeller damage and
engine overheating.
[ECJ00473]
(4) After reaching land, stop the engine, and then get off the watercraft and pull it up
on the beach.
To dock the watercraft:
(1) Make sure that there are no boats, swim-mers, or obstacles near the dock.
(2) Release the throttle lever to reduce speed about 125 m (410 ft) away from
the dock.
(3) Slowly approach the dock using the throttle lever and RiDE lever to control
the watercraft speed.
(4) After coming alongside the dock, stop the engine, and then get off the water-
craft.
EJU37194Operating in weeded areas
Always avoid using your watercraft in areas
where weed growth is thick. If operating in
weeded areas is unavoidable, alternately
squeeze the throttle lever and relax your grip
on the throttle lever to vary the engine speed.
Weeds tend to become clogged more when
operating at a steady speed and at trolling
speed. If weeds may have clogged the intake
area, clean the jet intake. (See page 120 for
information on the jet intake.)
UF3X73E0.book Page 103 Wednesday, October 6, 2021 9:04 AM
Operation
104
EJU40242After removing the watercraft from
the water
ECJ01311
Do not run the engine over 4000 r/min on
land. Also, do not run the engine for more
than 15 seconds without supplying water,
otherwise the engine could overheat.
After operating and removing the watercraft
from the water, promptly discharge the re-
maining water from the cooling water pas-
sages.
To discharge water from the cooling wa-
ter passages:
(1) Make sure that the area around the wa- tercraft is clear, and then start the en-
gine.
(2) Discharge the remaining water out of the cooling water passages by alternately
squeezing and releasing the throttle lever
quickly for 10 to 15 seconds.
(3) Stop the engine.
UF3X73E0.book Page 104 Wednesday, October 6, 2021 9:04 AM

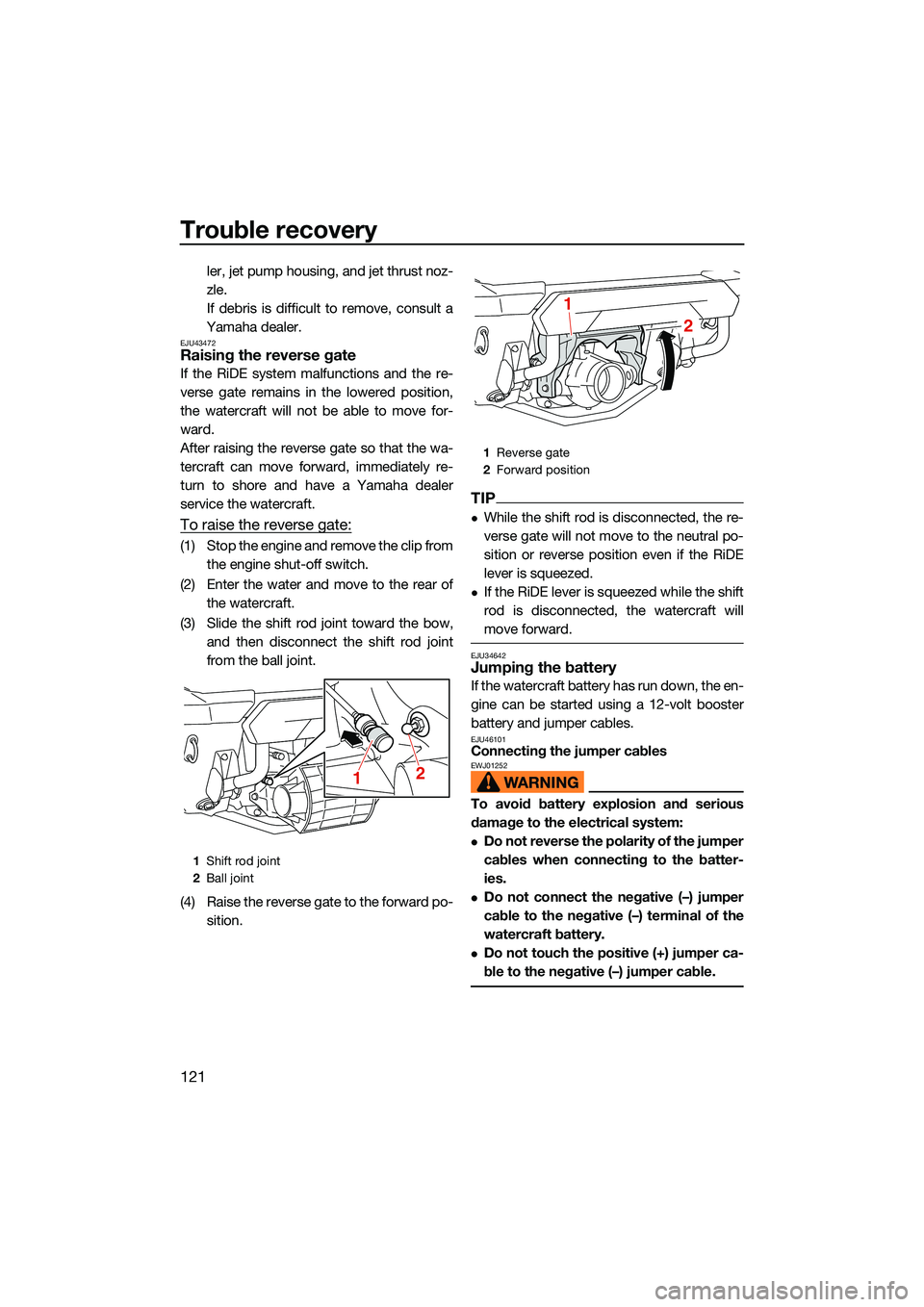

Trouble recovery
121
ler, jet pump housing, and jet thrust noz-
zle.
If debris is difficult to remove, consult a
Yamaha dealer.
EJU43472Raising the reverse gate
If the RiDE system malfunctions and the re-
verse gate remains in the lowered position,
the watercraft will not be able to move for-
ward.
After raising the reverse gate so that the wa-
tercraft can move forward, immediately re-
turn to shore and have a Yamaha dealer
service the watercraft.
To raise the reverse gate:
(1) Stop the engine and remove the clip from the engine shut-off switch.
(2) Enter the water and move to the rear of the watercraft.
(3) Slide the shift rod joint toward the bow, and then disconnect the shift rod joint
from the ball joint.
(4) Raise the reverse gate to the forward po- sition.
TIP
While the shift rod is disconnected, the re-
verse gate will not move to the neutral po-
sition or reverse position even if the RiDE
lever is squeezed.
If the RiDE lever is squeezed while the shift
rod is disconnected, the watercraft will
move forward.
EJU34642Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
EJU46101Connecting the jumper cablesEWJ01252
To avoid battery explosion and serious
damage to the electrical system:
Do not reverse the polarity of the jumper
cables when connecting to the batter-
ies.
Do not connect the negative (–) jumper
cable to the negative (–) terminal of the
watercraft battery.
Do not touch the positive (+) jumper ca-
ble to the negative (–) jumper cable.
1Shift rod joint
2 Ball joint
1 2
1
Reverse gate
2 Forward position
2
1
UF3X73E0.book Page 121 Wednesday, October 6, 2021 9:04 AM
124
Index
A
Accessory outlet ...................................... 68
Adjustable tilt steering system ................. 26
Adjustable tilt steering system checks .... 88
After removing the watercraft from the water ................................................... 104
Audio control............................................ 66
Audio system (equipped models) ............ 66
B
Battery care............................................ 106
Battery checks ......................................... 87
Battery, jumping..................................... 121
Beaching and docking the watercraft .... 103
Beverage holder ....................................... 74
Bilge water check..................................... 87
Bilge water, draining ................................ 81
Bilge water, draining on land ................... 81
Bilge water, draining on water ................. 81
Boarding alone ......................................... 99
Boarding and starting off from a dock ... 102
Boarding the watercraft ........................... 99
Boarding with passenger(s) ................... 100
Bow eye ................................................... 71
Bow storage compartment ...................... 72
Builder’s plate ............................................ 3
C
Capsized watercraft ............................... 102
Changing the PIN ..................................... 54
Cleaning ................................................. 108
Cleaning the watercraft .......................... 106
Cleat ......................................................... 71
Cooling water pilot outlet check .............. 92
Cooling water pilot outlets ....................... 27
Craft Identification Number (CIN)............... 1
Cruise assist............................................. 37
Cruising limitations................................... 10
D
Depth contour and safety contour settings (“Depth/Position”) ................... 62
Display ..................................................... 42
Display clock change ............................... 55
Display notification information................ 43
Display settings ........................................ 55
Displaying the time since the last maintenance ......................................... 56 Drive control mode................................... 36
Drive control mode screen ....................... 53
Dual Rope Hooks ..................................... 72
E
Electric trim system.................................. 31
Electric trim system check ....................... 90
Emergency procedures .......................... 120
Engine break-in ........................................ 83
Engine compartment check ..................... 86
Engine cover, removing and installing ... 110
Engine idling speed check ....................... 92
Engine lock screen ................................... 63
Engine oil.................................................. 79
Engine oil and oil filter ............................ 114
Engine oil level check ............................... 87
Engine oil requirements ........................... 79
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 89
Engine shut-off switch ............................. 25
Engine start/stop switch .......................... 24
Engine unit check ..................................... 87
Enjoy your watercraft responsibly ............ 18
Equipment ................................................ 69
F
Fire extinguisher check ............................ 90
Fire extinguisher holder and cover........... 75
Fire extinguisher holder, cover, and
band checks ......................................... 90
Flushing the cooling water passages..... 105
Fuel .......................................................... 77
Fuel level check........................................ 86
Fuel requirements .................................... 77
Fuel system checks ................................. 86
G
GeoFence ................................................. 51
GeoFence settings (“GeoFence”)............. 60
Getting to know your watercraft .............. 93
Glossary, watercraft ................................. 19
Glove compartment ................................. 73
H
Handgrip .................................................. 70
Hazard information................................... 14
Home screen ............................................ 44
Hood check .............................................. 91
Hull and deck check ................................ 91
UF3X73E0.book Page 124 Wednesday, October 6, 2021 9:04 AM
