2022 VOLKSWAGEN ID.5 tow

x
Carry out pairing only when the v ehicle
is stationary. When some mobile devices are paired,
a PIN is shown on the display of the
mobile de

vice. To finish the pairing proce-
dure, enter this PIN on the Infotainment sys-
tem.
Bluetooth pairing via NFC
NFC is not available in all countries and vehi-
cle models. Depending on the vehicle equip-
ment, NFC is not available in every vehicle
with a wireless charging function.
Prerequisites for one-off pairing:
q NFC technology and a stowage compart-
ment with wireless charging function are
installed in the vehicle.
q NFC is activated on the mobile device. 1. Touch
Select mobile telephone.
2. Unlock the mobile device.
3. Place the mobile device correctly on the stowage area for the wireless charging
function.
4. Continue and confirm Bluetooth pairing in accordance with the displays on the
mobile device and Infotainment system.
The mobile device is paired with the Infotain-
ment system.
The wireless charging function is deac-
tivated while the Infotainment system
is in the
Known mobile phones menu. The wireless
charging function will be reactivated when
you leave the menu.
Managing connections
Prerequisites:
q The mobile device is paired and connec-
ted. 1. Touch
HOME
Mobile devices.
2. Touch the technology desired for the connection. . The mobile device with active
connection is marked.
2.

Touch the name of the desired mobile
device. Other mobile devices then auto-
matically have a passive connection.
User profiles
An individual user profile is automatically cre-
ated for every paired mobile device. Data
from the mobile device are stored in the user
profile, e.g. contact details. A maximum of
ten user profiles can be stored in the Info-
tainment system simultaneously.
Deleting a user profile .
The user profiles are located in the area
Select mobile telephone or Mobile devices.
Active
Passive
Mobile phone interface 24911A012720AB

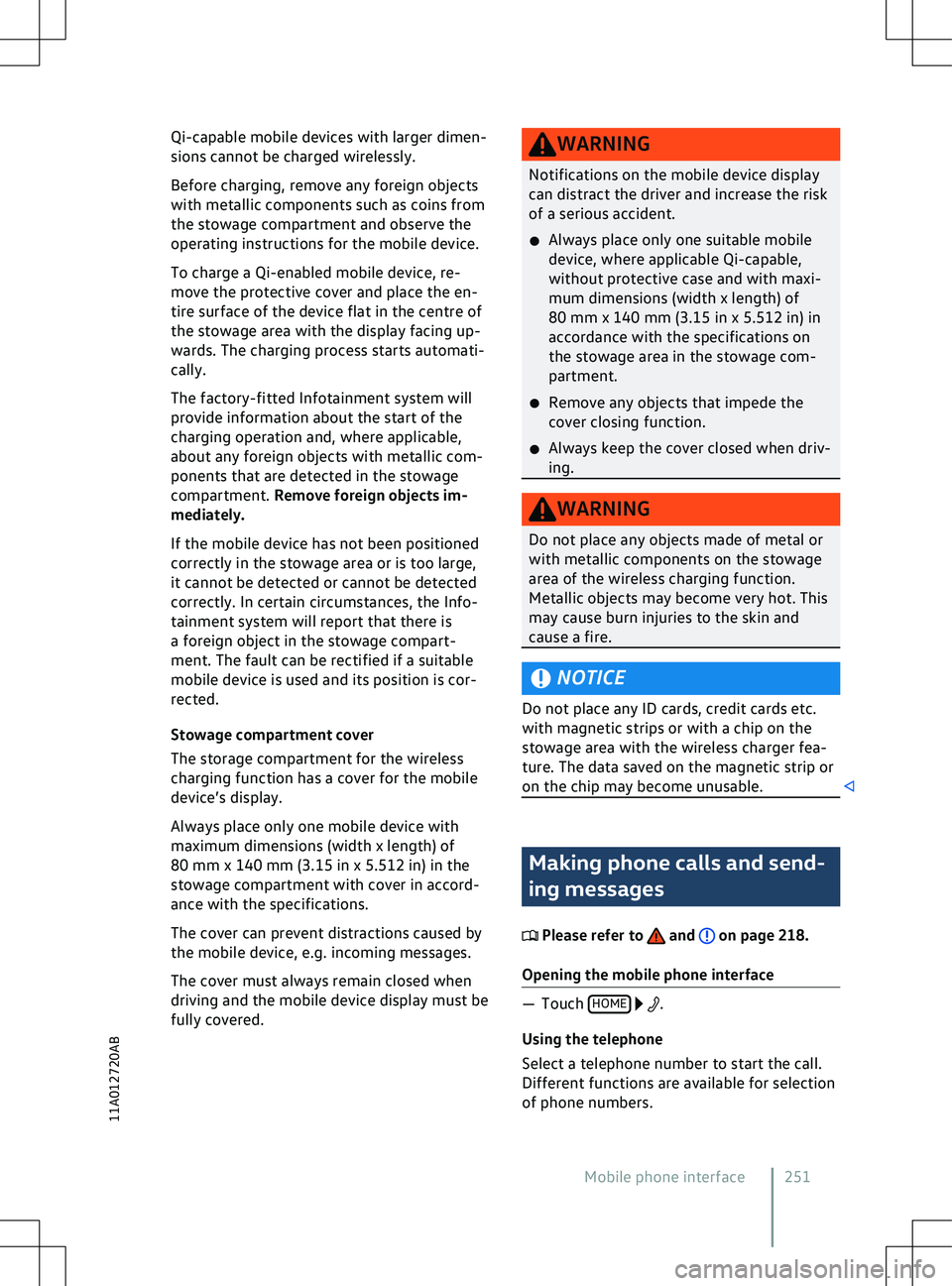

Qi-capable mobile devices with larger dimen-
sions cannot be charged wirelessly.
Bef
ore charging, remove any foreign objects
with metallic components such as coins from
the stowage compartment and observe the
operating instructions for the mobile device.
To charge a Qi-enabled mobile device, re-
move the protective cover and place the en-
tire surface of the device flat in the centre of
the stowage area with the display facing up-
wards. The charging process starts automati-
cally.
The factory-fitted Infotainment system will
provide information about the start of the
charging operation and, where applicable,
about any foreign objects with metallic com-
ponents that are detected in the stowage
compartment. Remove foreign objects im-
mediately.
If the mobile device has not been positioned
correctly in the stowage area or is too large,
it cannot be detected or cannot be detected
correctly. In certain circumstances, the Info-
tainment system will report that there is
a foreign object in the stowage compart-
ment. The fault can be rectified if a suitable
mobile device is used and its position is cor-
rected.
Stowage compartment cover
The storage compartment for the wireless
charging function has a cover for the mobile
device

Transporting items
Stowing luggage and
loads Stowing luggage saf
ely in the vehicle

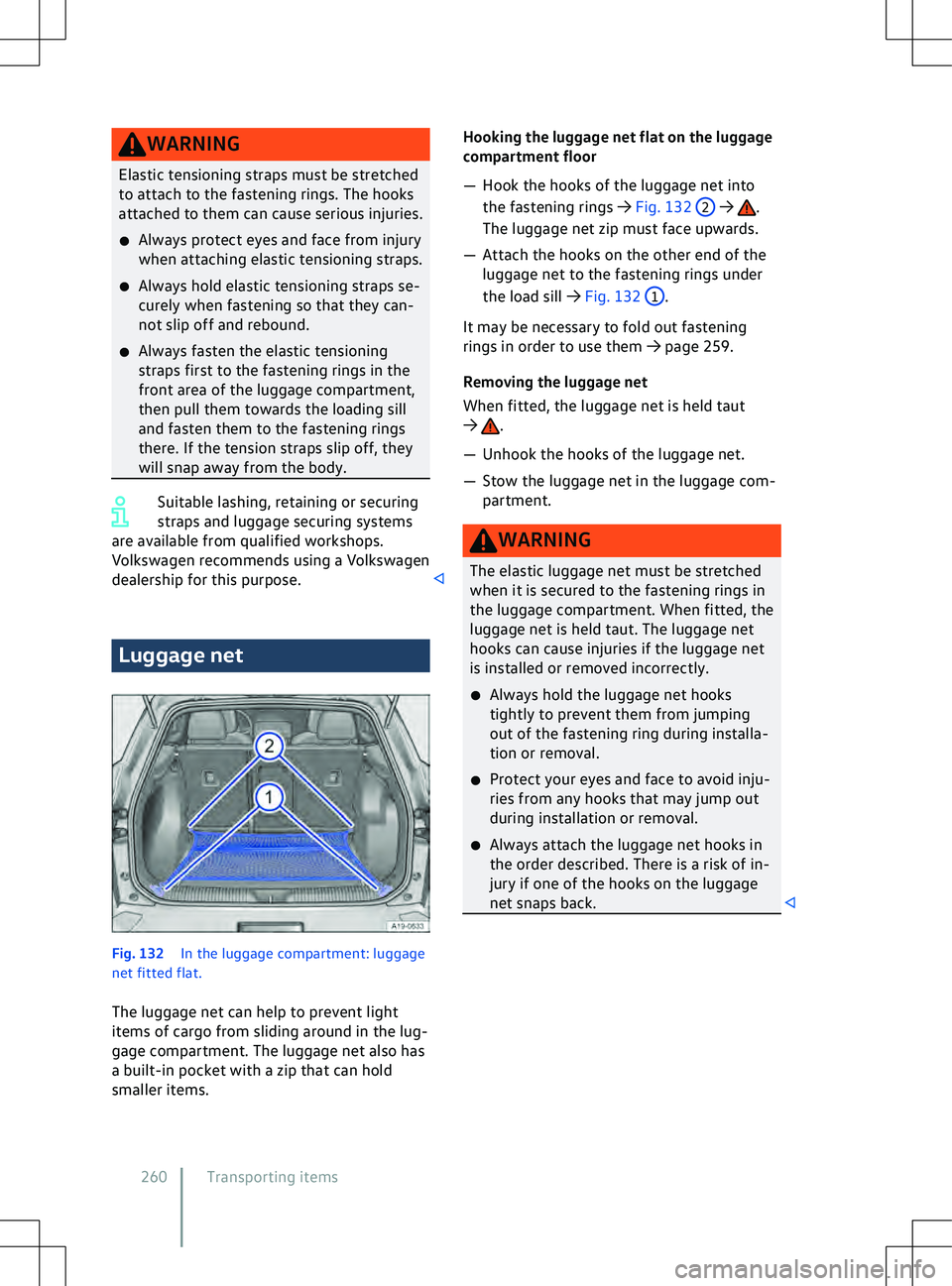

WARNING
Elastic tensioning straps must be stretched
to attach to the fastening rings. The hooks
attached to them can cause serious injuries.
x Always protect eyes and face from injury
when attaching elastic tensioning straps.
x Always hold elastic tensioning straps se-
curely when fastening so that they can-
not slip off and rebound.
x Always fasten the elastic tensioning
straps first to the fastening rings in the
front area of the luggage compartment,
then pull them towards the loading sill
and fasten them to the fastening rings
there. If the tension straps slip off
, they
will snap away from the body. Suitable lashing, retaining or securing
straps and luggage securing systems
are a

vailable from qualified workshops.
Volkswagen recommends using a Volkswagen
dealership for this purpose. Luggage net
Fig. 132
In the luggage compartment: luggage
net fitted flat.
The luggage net can help to pre

vent light
items of cargo from sliding around in the lug-
gage compartment. The luggage net also has
a built-in pocket with a zip that can hold
smaller items. .
The luggage net zip must face upwards.

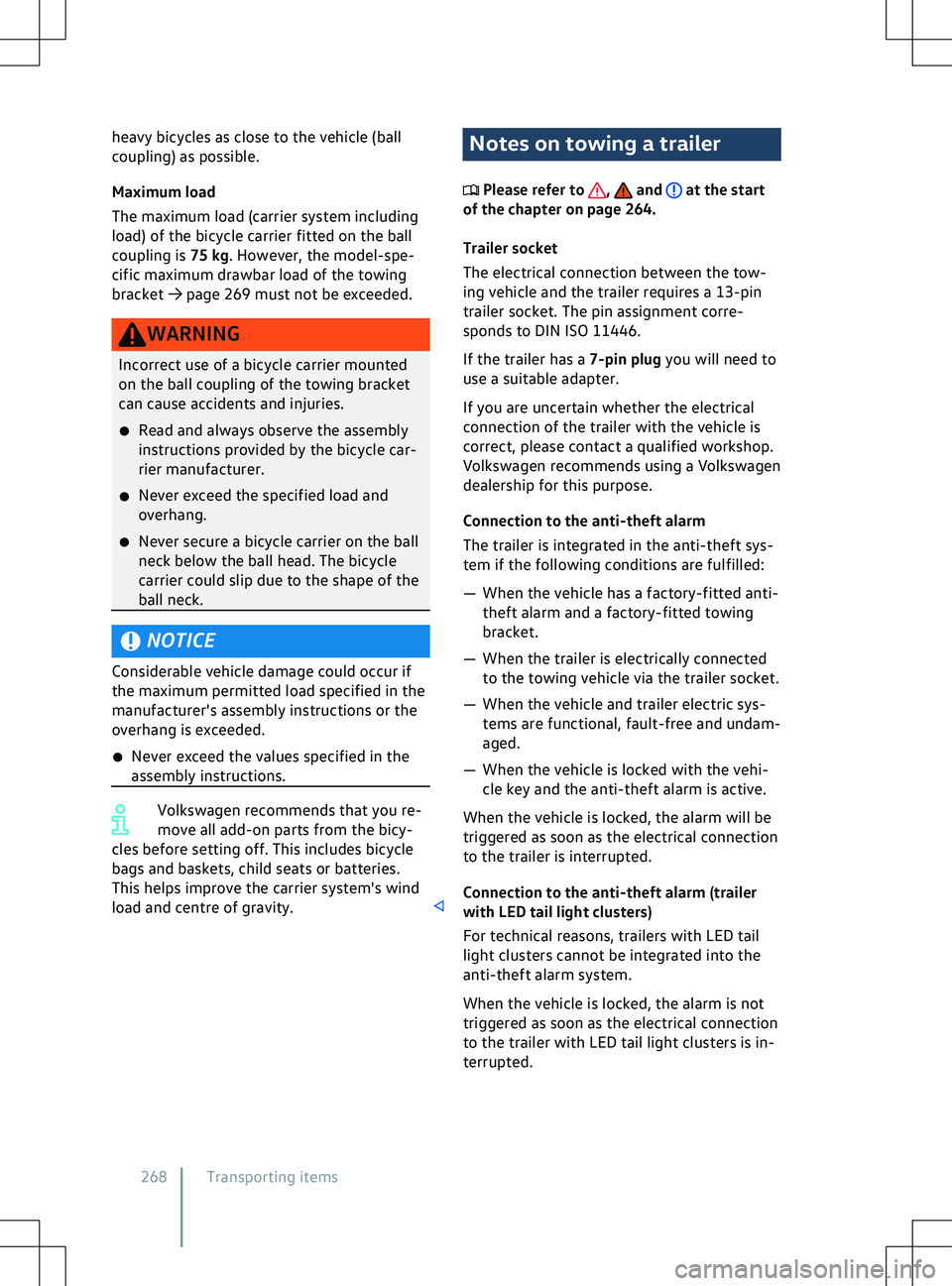

heavy bicycles as close to the vehicle (ball
coupling) as possible.
Maximum load
The maximum load (
carrier system including
load) of the bicycle carrier fitted on the ball
coupling is 75 kg. However, the model-spe-
cific maximum drawbar load of the towing
bracket

vehicle is equipped with the trailer stabi-
lisation system.
x Trailers with a high centre of gra
vity
might tip over before snaking starts.
x Sudden braking procedures could occur
automatically in extreme driving situa-
tions if the trailer socket is being used
without a trailer (e.g. for a bicycle carrier

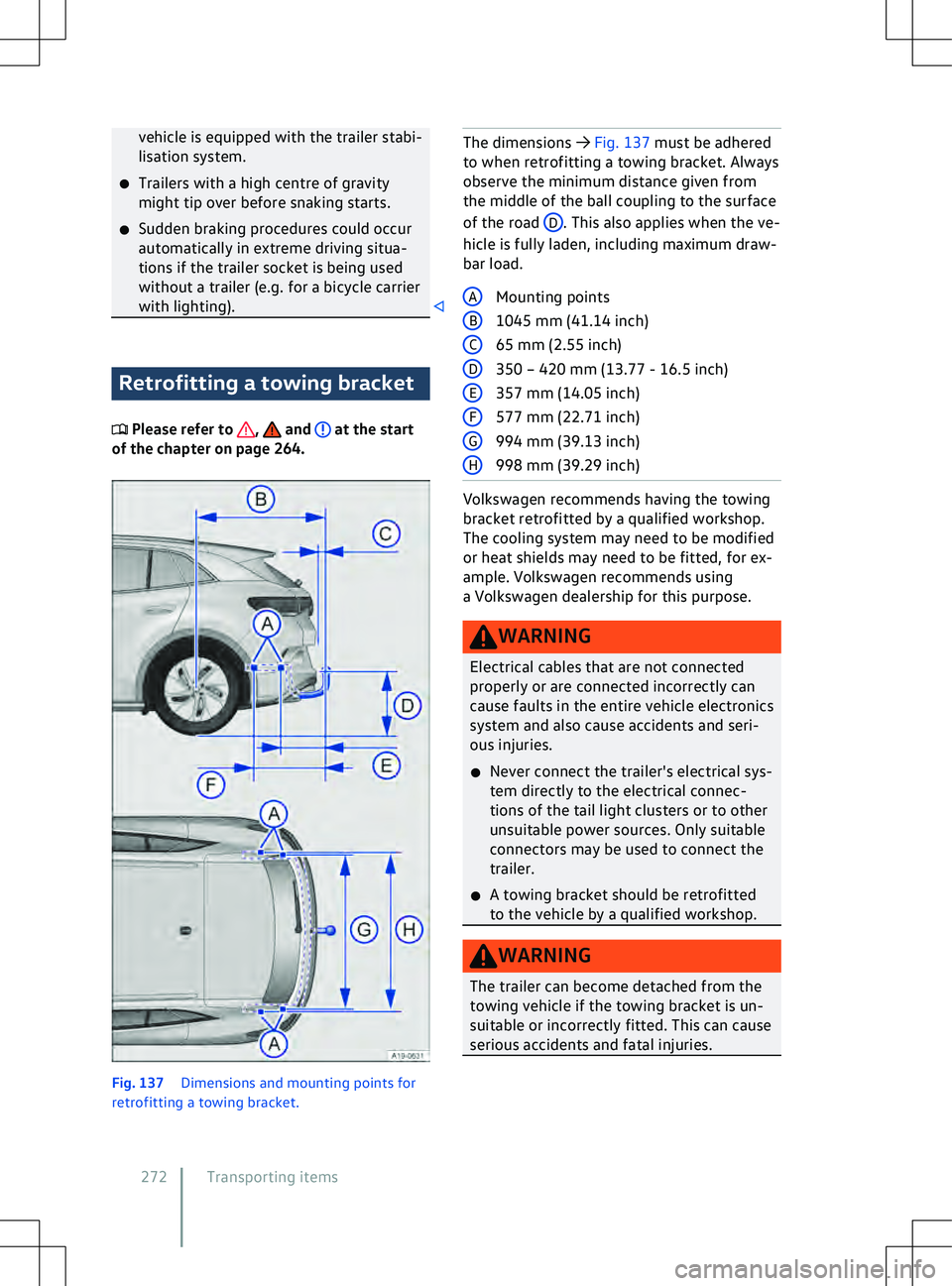

with lighting). Retrofitting a towing bracket
Please refer to , and at the start
of the chapter on page 264. Fig. 137
Dimensions and mounting points f
or
retrofitting a towing bracket. The dimensions

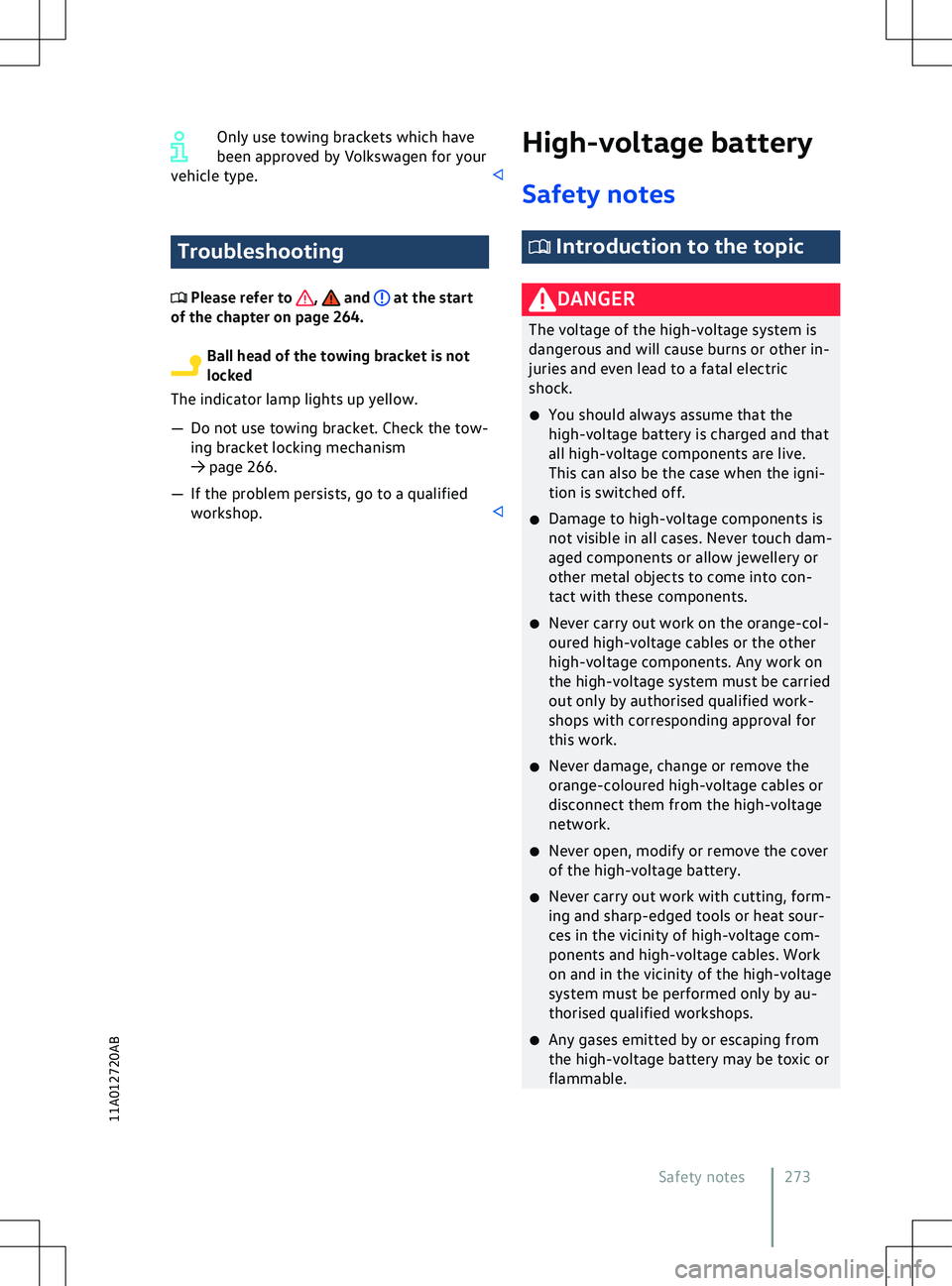

Only use towing brackets which have
been appro
ved by Volkswagen for your
vehicle type. Troubleshooting
Please refer to , and at the start
of the chapter on page 264. Ball head of the towing bracket is not
locked
The indicator lamp lights up yellow.

If and when

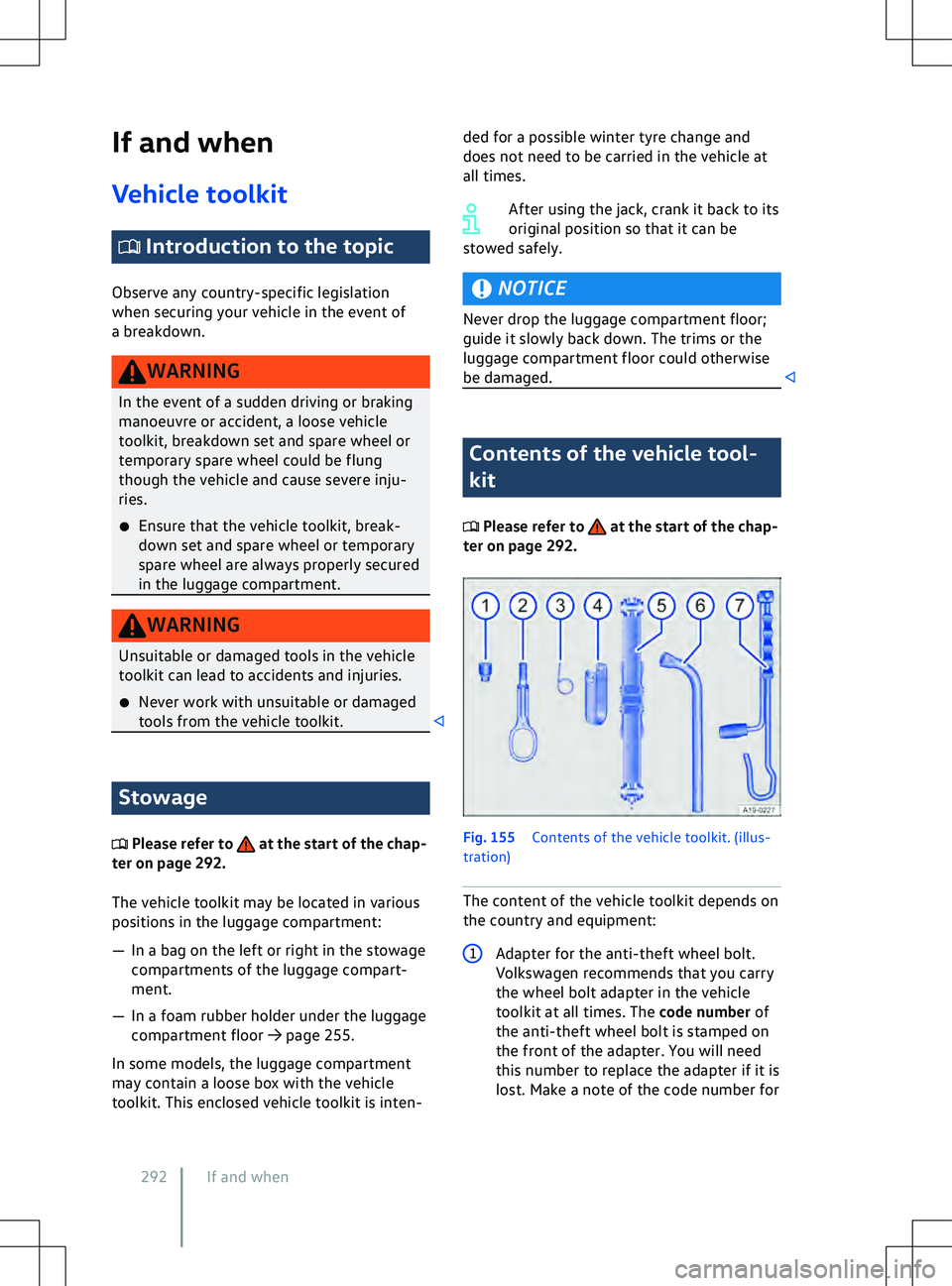

V ehicle toolkit Introduction to the topic
Observ
e any country-specific legislation
when securing your vehicle in the event of
a breakdown. Stowage
Please refer to at the start of the chap-
ter on page 292.
The v

ehicle toolkit may be located in various
positions in the luggage compartment:
