2022 TOYOTA RAV4 PLUG-IN HYBRID air conditioning

415
6
6-1. Using the air conditioning system and defogger
Interior features
OThe outside temperature is extremely
low
OWhen the hybrid system is cool (for
example, after being left for a long time in low temperatures)
QWindshield defogger
When defogging the windshield using
the Remote Air Conditioning System, defogging may be insufficient due to the power being restricted more than during
normal air conditioning operation. Also, the outside of the windshield may fog up due to the outside temperature, humidity
or air conditioning set temperature.
QUsing the heater via the Remote Air Conditioning System
OWhen the outside temperature is low, heating may feel insufficient due to restricted operation of the air condi-
tioning.
OWhen the outside heat exchanger
becomes frosted over, heating perfor- mance may decline due to automati-cally switching to the frost removal
operation. ( P.406)
QSecurity feature
Any unlocked doors will be automatically locked when the system is operating.
The emergency flashers flash to indicate that the doors have been locked or the system has been turned off.
QConditions affecting operation
 P.222
QWhile the Remote Air Conditioning System is operating
ODepending on the operating condition of the Remote Air Conditioning Sys-tem, the air conditioning compressor
or cooling fan may spin and an operat- ing noise may be heard.However, this does not indicate a mal-
function.
OThe air conditioning operation
switches, etc. will not operate while the Remote Air Conditioning System is operating.
QElectronic key battery depletion
 P.200
QWhen the electronic key battery is fully depleted
 P.486
QCustomization
Setting (e.g. Operation using “A/C” on the wireless remote control) can be changed. (Customizable features:
 P.569)
WARNING
QPrecautions for the Remote Air Conditioning System
ODo not use the system if people are in the vehicle. Even when the system is in use, the
internal temperature may still reach a high or low level due to features such as the automatic shut-off.
Children and pets left inside the vehicle may suffer heatstroke dehy-dration or hypothermia, or could
result in death or serious injury.
ODepending on the surrounding envi-
ronment, signals from the wireless switch may transmit further than expected. Pay appropriate attention
to the vehicle’s surroundings and use the switch only when neces-sary.
ODo not operate “A/C” on the wire-less remote control if the hood is
open. The air conditioning may operate unintentionally and objects may be drawn into the electrical
cooling fan.
NOTICE
QTo prevent the hybrid battery (traction battery) from being dis-charged
Use “A/C” on the wireless remote control only when necessary.

4166-1. Using the air conditioning system and defogger
*: If equipped
Turns the heated steering wheel
on/off
The indicator light comes on when the
heated steering wheel is operating.
QOperation condition
The power switch is in ON.
Heated steering
wheel*/Front seat heat-
ers*/Front seat heaters
and ventilators*/Rear
seat heaters
 Heated steering wheel
Warm up the grip of the steering
wheel
 Front seat heaters
Warm up the front seat uphol-
stery
 Front seat ventilators
Maintain good ventilation by pull-
ing air through the Front seat
upholstery
 Rear seat heaters
Warm up the rear seat upholstery
WARNING
QTo prevent minor burn injuries
Care should be taken if anyone in the following categories comes in contact with the steering wheel or seats when
the heater is on:
OBabies, small children, the elderly, the sick and the physically chal-
lenged
OPersons with sensitive skin
OPersons who are fatigued
OPersons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
QTo prevent causes of overheat-ing and minor burn injuries
Observe the following precautions
when using a seat heater:
ODo not cover the seat with a blanket or cushion when using the seat
heater.
ODo not use seat heater more than
necessary.
NOTICE
QTo prevent damage to the seat heaters and seat ventilators
Do not put heavy objects that have an uneven surface on the seat and do not stick sharp objects (needles,
nails, etc.) into the seat.
QTo prevent 12-volt battery dis-
charge
Do not use the functions when the hybrid system is off.
Heated steering wheel

417
6
6-1. Using the air conditioning system and defogger
Interior features
Turns the seat heaters on/off
1 High temperature
2 Low temperature
When the seat heater is on, the
indicator illuminates on the seat
heater switch.
When not in use, put the switch in
the neutral position. The indicator
will turn off.
Turns the front seat heaters and
ventilators on/off
Each time the switch is pressed, the
operation condition changes as follows.
Hi (3 segments lit)  Mid (2 segments
lit)  Lo (1 segment lit)  Off
1Turns the seat heater on
The level indicators (yellow) light
up during operation.
2 Turns the seat ventilator on
The level indicators (green) light up
during operation.
QOperation condition
The power switch is in ON.
QAir conditioning system-linked
control mode
When a seat ventilator is set to Hi, the fan speed of the seat ventilator may
increase according to the fan speed of the air conditioning system.
QCustomization
Seat ventilation blower level can be cus-
tomized. (Customizable features: P.580)
Turns the seat heaters on/off
The indicator light comes on when
the seat heater is operating.
Operating the front seat
heaters
Operating the front seat
heaters and ventilators
Operating the rear seat heat-
ers
A
A

4186-1. Using the air conditioning system and defogger
QOperation condition
The power switch is in ON.

7
441
7
Maintenance and care
Maintenance and care
7-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ............... 442
Cleaning and protecting the
vehicle interior ................ 445
7-2. Maintenance
Maintenance requirements 448
7-3. Do-it-yourself maintenance
Do-it-yourself service precau-
tions ................................ 450
Hood ................................. 452
Positioning a floor jack...... 453
Engine compartment ........ 455
12-volt battery ................... 460
Tires.................................. 463
Tire inflation pressure ....... 472
Wheels.............................. 473
Air conditioning filter ......... 475
Cleaning the DC/DC Con-
verter air intake vent and filter
....................................... 479
Wiper insert replacement .. 482
Electronic key battery ....... 486
Checking and replacing fuses
....................................... 488
Light bulbs ........................ 491

445
7
7-1. Maintenance and care
Maintenance and care

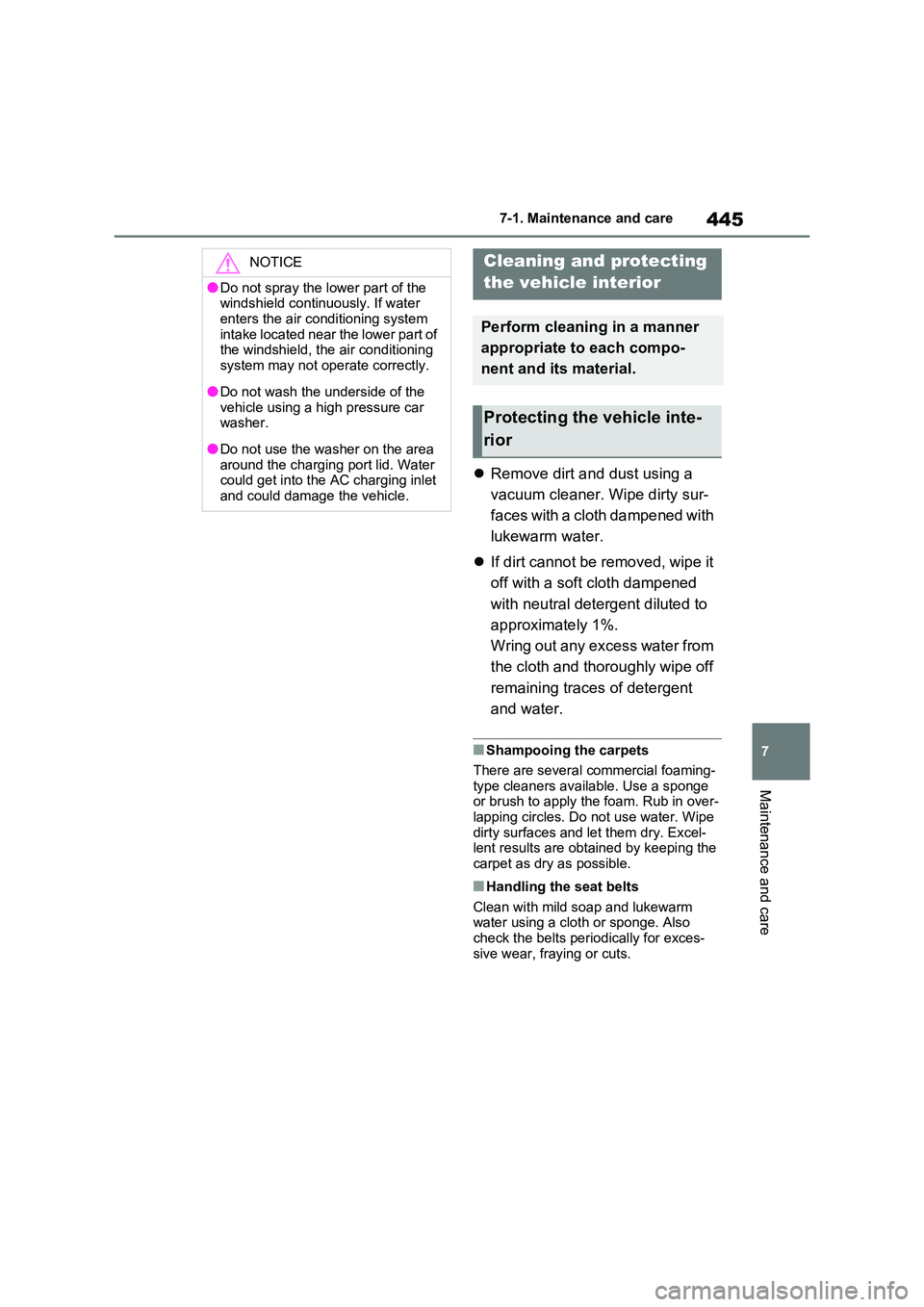

 Remove dirt and dust using a
vacuum cleaner. Wipe dirty sur-
faces with a cloth dampened with
lukewarm water.
 If dirt cannot be removed, wipe it
off with a soft cloth dampened
with neutral detergent diluted to
approximately 1%.
Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent
and water.
QShampooing the carpets
There are several commercial foaming-
type cleaners available. Use a sponge or brush to apply the foam. Rub in over-lapping circles. Do not use water. Wipe
dirty surfaces and let them dry. Excel- lent results are obtained by keeping the carpet as dry as possible.
QHandling the seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the belts periodically for exces-
sive wear, fraying or cuts.
NOTICE
ODo not spray the lower part of the windshield continuously. If water
enters the air conditioning system intake located near the lower part of the windshield, the air conditioning
system may not operate correctly.
ODo not wash the underside of the
vehicle using a high pressure car washer.
ODo not use the washer on the area around the charging port lid. Water could get into the AC charging inlet
and could damage the vehicle.
Cleaning and protecting
the vehicle interior
Perform cleaning in a manner
appropriate to each compo-
nent and its material.
Protecting the vehicle inte-
rior

451
7
7-3. Do-it-yourself maintenance
Maintenance and care
WARNING
QWhen working on the engine compartment
OMake sure that “IGNITION ON” on the multi-information display and the “READY” indicator are both off.
OKeep hands, clothing and tools away from the moving fan.
OBe careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc. right after driving as they may be hot. Oil and other flu-ids may also be hot.
ODo not leave anything that may burn easily, such as paper and
rags, in the engine compartment.
ODo not smoke, cause sparks or
expose an open flame to fuel. Fuel fumes are flammable.
OTake care because brake fluid can harm your hands or eyes and dam-age painted surfaces. If fluid gets
on your hands or in your eyes, flush the affected area with clean water immediately. If you still experience
discomfort, consult a doctor.
QWhen working near the electric
cooling fan or radiator grille
Be sure the power switch is off. With the power switch in ON, the
electric cooling fan may automatically start to run if the air conditioning is on and/or the coolant temperature is
high. ( P.458)
QSafety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc., from getting in your eyes.
NOTICE
QIf you remove the air cleaner fil-ter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt in the air.
QIf the fluid level is low or high
It is normal for the brake fluid level to
go down slightly as the brake pads wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refill- ing, it may indicate a serious problem.

459
7
7-3. Do-it-yourself maintenance
Maintenance and care
Without level gauge
Type A: If any washer does not
work, the washer tank may be
empty. Add washer fluid.
Type B: If any washer does not
work or the warning message
appears on the multi-information
display, the washer tank may be
empty. Add washer fluid.
With level gauge
If the washer fluid level is at “LOW”,
add washer fluid.
QUsing the gauge (if equipped)
The washer fluid level can be checked
by observing the position of the level on the liquid-covered holes in the gauge.
If the level falls below the second hole
from the bottom (the “LOW” position), refill the washer fluid.
Current fluid level
WARNING
QWhen the hybrid system is hot
Do not touch the radiator or con-
denser as they may be hot and cause serious injuries, such as burns.
QWhen the electric cooling fan is operating
Do not touch the engine compart-
ment.
With the power switch in ON, the electric cooling fan may automatically
start to run if the air conditioning is on and/or the coolant temperature is high. Be sure the power switch is off
when working near the electric cool- ing fan or radiator grille.
Checking and adding the
washer fluid
WARNING
QWhen adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as
washer fluid contains alcohol and may catch fire if spilled on the hybrid system, etc.
A
