2TABLE OF CONTENTS
For your information...................8
Reading this manual ................ 13
How to search .......................... 14
Pictorial index .......................... 16
1-1. For safe use Before driving ................... 28
For safe driving ................ 29
Seat belts ......................... 31
SRS airbags ..................... 35
Front passenger occupant classification system ...... 45
Exhaust gas precautions.. 50
1-2. Child safety Riding with children .......... 51
Child restraint systems..... 52
1-3. Emergency assistance Safety Connect ................ 66
1-4. Theft deterrent system Engine immobilizer system....................................... 71
Alarm................................ 72
2-1. Instrument cluster Warning lights and indicators....................................... 76
Gauges and meters (with 4.2- inch display) ................... 82
Gauges and meters (with 7- inch display) ................... 85
Multi-information display .. 89Fuel consumption information
....................................... 99
3-1. Key information Keys .............................. 102
3-2. Opening, closing and lock- ing the doors
Side doors ..................... 107
Back door ...................... 113
Smart key system .......... 127
3-3. Adjusting the seats Front seats .................... 132
Rear seats ..................... 133
Driving position memory 135
Head restraints .............. 138
3-4. Adjusting the steering wheel and mirrors
Steering wheel............... 141
Inside rear view mirror ... 142
Digital Rear-view Mirror . 144
Outside rear view mirrors .................................... 153
3-5. Opening, closing the win- dows and moon roof
Power windows ............. 155
Moon roof ...................... 158
Panoramic moon roof .... 161
4-1. Before driving Driving the vehicle ......... 167
Cargo and luggage ........ 173
Vehicle load limits.......... 176
1For safety and security
2
Vehicle status
information and
indicators
3Before driving
4Driving
6TABLE OF CONTENTS
8-1. Essential informationEmergency flashers ...... 612
If your vehicle has to be stopped in an emergency.................................... 612
If the vehicle is submerged or water on the road is rising.................................... 613
8-2. Steps to take in an emer- gency
If your vehicle needs to be towed........................... 615
If you think something is wrong .......................... 620
Fuel pump shut off system .................................... 621
If a warning light turns on or a warning buzzer sounds 622
If a warning message is dis- played.......................... 633
If you have a flat tire...... 637
If the engine will not start 646
If you lose your keys ..... 648
If the electronic key does not operate properly (vehicles
with smart key system) 648
If the vehicle battery is dis- charged ....................... 650
If your vehicle overheats 654
If the vehicle becomes stuck .................................... 6569-1. Specifications
Maintenance data (fuel, oil level, etc.) .................... 660
Fuel information............. 672
Tire information ............. 674
9-2. Customization Customizable features... 684
9-3. Initialization Items to initialize ............ 696
10-1.For owners Reporting safet y defects for
U.S. owners ................. 698
Reporting safet y defects for
Canadian owners ........ 699
Seat belt instructions for Canadian owners (in
French) ........................ 699
SRS airbag instructions for Canadian owners (in
French) ........................ 701
Headlight aim instructions for Canadian owners (in
French) ........................ 708
What to do if... (Trouble- shooting) ..................... 712
Alphabetical Index ........ 715
8When trouble arises9Vehicle specifications
10For owners
Index
17Pictorial index
Precautions against winter season ......................................P.362
To prevent freezing (windshield wiper de-icer)
*...................P.520
Precautions against car wash (R ain-sensing windshield wipers)
*
............................................................... ..............................P.557
Replacing the wiper insert ..................................... ...............P.594
Fuel filler door ............................................... .....................P.219
Refueling method ............................................... ..................P.219
Fuel type/fuel tan k capacity .................................................P.662
Tires ....................................................................................P.579
Tire size/inflation pressure ................................... ................P.667
Winter tires/tire chain ........................................ ...................P.362
Checking/rotation/tire pressure warning system
*.................P.579
Coping with flat tires......................................... ....................P.637
Hood ....................................................................................P.569
Opening ........................................................ .......................P.569
Engine oil ..................................................... ........................P.662
Coping with overheat ........................................... ................P.654
Warning messages ..............................................................P.633
Headlights..................................................... ......................P.207
Turn signal lights ...............................................................P.200
Parking lights .....................................................................P.207
Daytime running lights .. ....................................................P.207
Side marker lights ............................................. .................P.207
Fog lights
*............................................................... ............P.433
Stop lights/tail lights/turn s ignal lights ....................P.200, 207
Tail lights .................................................... ........................P.207
Back-up lights
Light bulbs of the exterior lights for driving
(Replacing method: P .604, Watts: P.670)
E
F
G
H
I
J
K
L
M
N
O
19Pictorial index
■Instrument panel
Engine switch .............................................................P.191, 192
Starting the engine/changing the modes .............P.191, 192, 195
Emergency stop of the engin e .............................................P.612
When the engine will not start ................................. .............P.646
Warning messages
*1............................................................P.6 33
Shift lever.................................................... ........................P.197
Changing the shift position.................................... ...............P.198
Precautions against towing ..................................................P.615
When the shift lever does not move............................. ........P.198
Meters ......................................................... ....................P.82, 85
Reading the meters/adjusting the instrument panel light ............................................................... ..............P.82, 84, 85, 88
Warning lights/indicator lights ................................ ................P.76
When the warning lights come on ................................ ........P.622
Multi-information display . ...................................................P.89
Display ........................................................ ...........................P.89
A
B
C
D
20Pictorial index
When the warning messages are displayed ........................P.633
Turn signal lever ................................................................P.200
Headlight switch ................................................................P.207
Headlights/parking lights/tail lights/
license plate lights/daytime running lights .................... ........P.207
Fog lights
*1............................................................... ............P.433
Windshield wiper and washer switch ..............................P.214
Rear window wiper and washer switch ...........................P.217
Usage.......................................................... .................P.214, 217
Adding washer fluid ..............................................................P.578
Warning messages ..............................................................P.633
Emergency flasher switch ....................................... ..........P.612
Hood lock release lever ........................................ .............P.569
Tilt and telescopic steering lock release lever ................P.141
Adjustment ..................................................... ......................P.141
Air conditioning system ............................. ...............P.508, 514
Usage.......................................................... .................P.508, 514
Rear window defogger ........................................... ......P.509, 516
Audio
*1............................................................... .................P.371
Audio Plus
*1, 2
Premium Audio*1, 2
Fuel filler door opener lever .................................. ............P.220
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.
E
F
G
H
I
J
K
L
291-1. For safe use
1
For safety and security
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P.132)
Adjust the seat so that you
can depress the pedals fully
and so that your arms bend
slightly at the elbow when
gripping the steering wheel.
( P.132)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( P.138)
Wear the seat belt correctly.
( P.32)
WARNING
■Before driving
●Check that the floor mat is
securely fixed in the correct
place with all the provided
retaining hooks (clips). Be espe-
cially careful to perform this
check after cleaning the floor.
●With the engine stopped and
the shift lever in P, fully depress
each pedal to the floor to make
sure it does not interfere with
the floor mat.
For safe driving
For safe driving, adjust the
seat and mirror to an appro-
priate position before driv-
ing.
Correct driving posture
A
B
C
D
331-1. For safe use
1
For safety and security

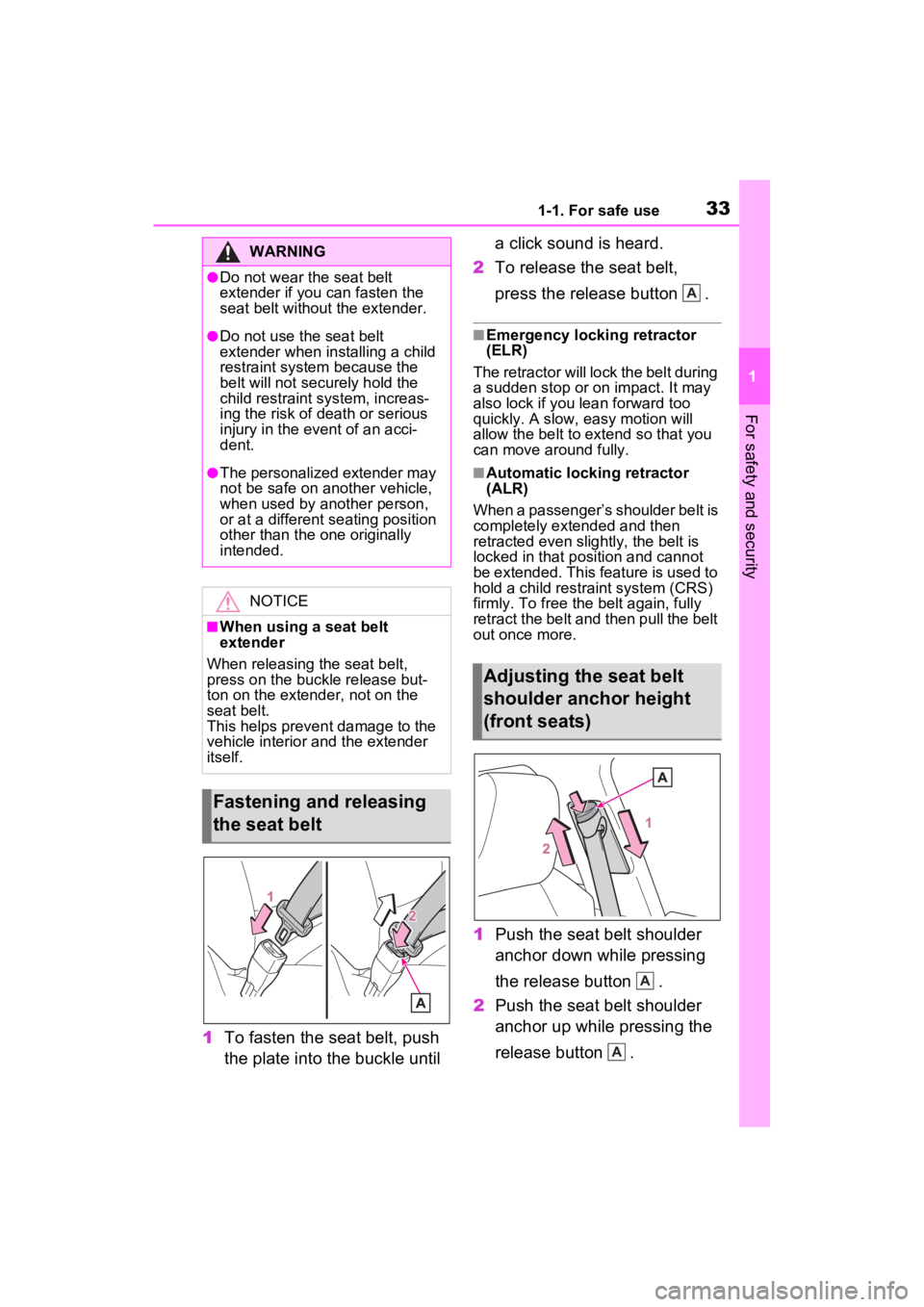

1To fasten the seat belt, push
the plate into the buckle until a click sound is heard.
2 To release the seat belt,
press the release button .
■Emergency locking retractor
(ELR)
The retractor will lock the belt during
a sudden stop or on impact. It may
also lock if you lean forward too
quickly. A slow, easy motion will
allow the belt to extend so that you
can move around fully.
■Automatic locking retractor
(ALR)
When a passenger’s shoulder belt is
completely extended and then
retracted even slightly, the belt is
locked in that position and cannot
be extended. This feature is used to
hold a child restraint system (CRS)
firmly. To free the belt again, fully
retract the belt and then pull the belt
out once more.
1 Push the seat belt shoulder
anchor down while pressing
the release button .
2 Push the seat belt shoulder
anchor up while pressing the
release button .
WARNING
●Do not wear the seat belt
extender if you can fasten the
seat belt without the extender.
●Do not use the seat belt
extender when installing a child
restraint system because the
belt will not securely hold the
child restraint system, increas-
ing the risk of death or serious
injury in the event of an acci-
dent.
●The personalized extender may
not be safe on another vehicle,
when used by another person,
or at a different seating position
other than the one originally
intended.
NOTICE
■When using a seat belt
extender
When releasing the seat belt,
press on the buckle release but-
ton on the extender, not on the
seat belt.
This helps prevent damage to the
vehicle interior and the extender
itself.
Fastening and releasing
the seat belt
Adjusting the seat belt
shoulder anchor height
(front seats)
A
A
A
341-1. For safe use
Move the height adjuster up and
down as needed until you hear a
click.
The pretensioners help the seat
belts to quickly restrain the
occupants by retracting the seat
belts when the vehicle is sub-
jected to certain types of severe
frontal or side collision or a vehi-
cle rollover.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact or a
rear impact.
■Replacing the belt after the pre-
tensioner has been activated
If the vehicle is involved in multiple
collisions, the pretensioner will acti-
vate for the first collision, but will not
activate for the second or subse-
quent collisions.
WARNING
■Adjustable shoulder anchor
Always make sure the shoulder
belt is positioned across the cen-
ter of your shoulder. The belt
should be kept away from your
neck, but not falling off your
shoulder. Failure to do so could
reduce the amount of protection in
an accident and cause death or
serious injuries in the event of a
sudden stop, sudden swerve or
accident.
Seat belt pretensioners
(front and outboard rear
seats)
WARNING
■Seat belt pretensioners
Observe the following precautions
to reduce the risk of injury in the
event of sudden braking, sudden
swerving or an accident.
Failure to do so may cause death
or serious injury.
●Do not place anything, such as
a cushion, on the front passen-
ger’s seat.
Doing so will disperse the pas-
senger’s weight, which prevents
the sensor from detecting the
passenger’s weight properly. As
a result, the seat belt preten-
sioner for the fr ont passenger’s
seat may not activate in the
event of a collision.
●If the pretensioner has acti-
vated, the SRS warning light will
come on. In that case, the seat
belt cannot be used again and
must be replaced at your Toyota
dealer.
