3935-4. Playing an audio CD and MP3/WMA/AAC discs
5
Audio system
HILUX_OM_OM0K513E_(EE)
O MP3, WMA and AAC playback
When a disc containing MP3, WMA or AAC files is inserted, all files on the
disc are first checked. Once the file check is finished, the first MP3, WMA or
AAC file is played. To make the file check finish more quickly, we recom-
mend you do not write in any files other than MP3, WMA or AAC files or
create any unnecessary folders.
If the discs contain a mixture of music data and MP3, WMA or AAC format
data, only music data can be played.
O Extensions
If the file extensions .mp3, .wma and .m4a are used for files other than
MP3, WMA and AAC files, they will be mistakenly recognized and played
as MP3, WMA and AAC files. This may result in large amounts of interfer-
ence and damage to the speakers.
O Playback
• To play MP3 file with steady sound quality, we recommend a fixed bit rate
of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-ROM, CD-R or CD-RW playback may not be possible in some
instances, depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3,
WMA and AAC files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at all.
• When files other than MP3, WMA or AAC files are recorded on a disc, it
may take more time to recognize the disc and in some cases, playback
may not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks
of Microsoft Corporation in the U.S.A. and other countries.
• This product is protected by certain intellectual property rights of
Microsoft.
Use or distribution of such technology outside of this product is prohibited
without a license from Microsoft.

4045-5. Using an external device
HILUX_OM_OM0K513E_(EE)
Q USB memory
O Compatible devices
USB memory that can be used for MP3, WMA and AAC playback
O Compatible device formats
The following device formats can be used:
• USB communication formats: USB2.0 FS (12mbps)
• File formats: FAT16/32 (Windows)
• Correspondence class: Mass storage class
MP3, WMA and AAC files written in any format other than those listed
above may not play correctly, and their file names and folder names may
not be displayed correctly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels (including the root)
• Maximum number of folders in a device: 3000 (including the root)
• Maximum number of files in a device: 9999
• Maximum number of files per folder: 255
O MP3, WMA and AAC files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by
using MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
AAC is short for Advanced Audio Coding and refers to an audio compres-
sion technology standard used with MPEG2 and MPEG4.
There is a limit to the MP3, WMA and AAC file standards and to the media/
formats recorded by them that can be used.
O MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 32-320 (kbps)
MPEG2 LSF LAYER3: 8-160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural

4065-5. Using an external device
HILUX_OM_OM0K513E_(EE)
O Extensions
If the file extensions .mp3, .wma and .m4a are used for files other than
MP3, WMA and AAC files, they will be skipped (not played).
O Playback
• To play MP3 files with steady s ound quality, we recommend a fixed bit
rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for MP3,
WMA and AAC files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
WARNING
Q While driving
Do not connect USB memory or operate the controls. Doing so may cause
an accident, resulting in death or serious injury.
NOTICE
Q To prevent damage to USB memory
O Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the USB memory.
O Do not push down or apply unnecessary pressure to the USB memory
while it is connected as this may damage the USB memory or its terminal.
O Do not insert foreign objects into the port as this may damage the USB
memory or its terminal.

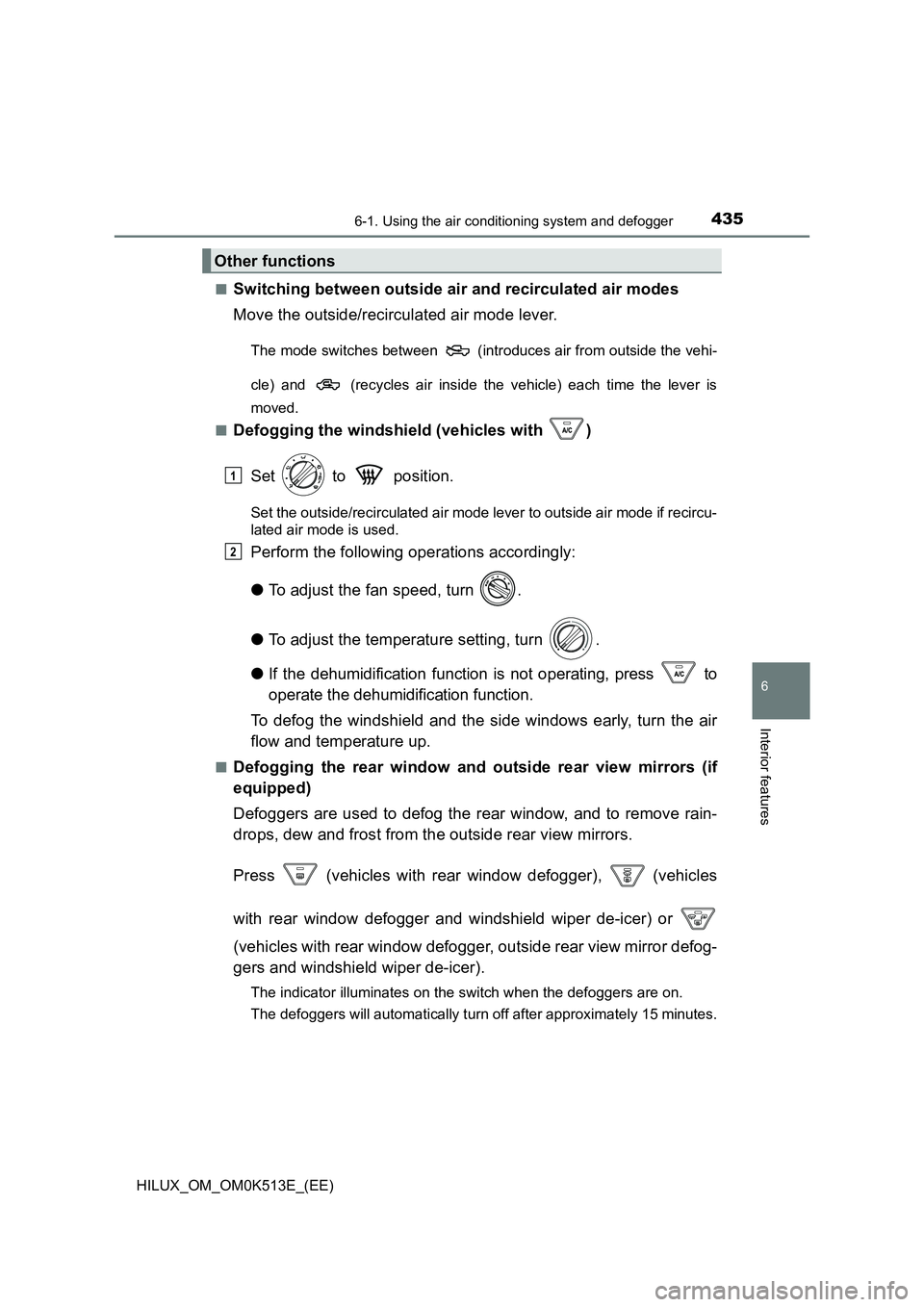

4356-1. Using the air conditioning system and defogger
6
Interior features
HILUX_OM_OM0K513E_(EE)
QSwitching between outside air and recirculated air modes
Move the outside/recirculated air mode lever.
The mode switches between (introduces air from outside the vehi-
cle) and (recycles air inside the vehicle) each time the lever is
moved.
QDefogging the windshield (vehicles with )
Set to position.
Set the outside/recirculated air mode lever to outside air mode if recircu-
lated air mode is used.
Perform the following operations accordingly:
O To adjust the fan speed, turn .
O To adjust the temperature setting, turn .
O If the dehumidification function is not operating, press to
operate the dehumidification function.
To defog the windshield and the side windows early, turn the air
flow and temperature up.
QDefogging the rear window and outside rear view mirrors (if
equipped)
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press (vehicles with rear window defogger), (vehicles
with rear window defogger and windshield wiper de-icer) or
(vehicles with rear window defogger, outside rear view mirror defog-
gers and windshield wiper de-icer).
The indicator illuminates on the switch when the defoggers are on.
The defoggers will automatically turn off after approximately 15 minutes.
Other functions
1
2

4386-1. Using the air conditioning system and defogger
HILUX_OM_OM0K513E_(EE)
QFogging up of the windows
O The windows will easily fog up when the humidity in the vehicle is high.
Turning (if equipped) on will dehumidify the air from the outlets and
defog the windshield effectively.
O If you turn (if equipped) off, the windows may fog up more easily.
O The windows may fog up if the recirculated air mode is used.
Q When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehi-
cle after closing the windows, it is recommended that the air intake mode be
set to outside air mode and the fan speed to any setting except off.
Q Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
Q When the outside temperature falls to nearly 0°C (32°F) (vehicles with
)
The dehumidification function may not operate even when is pressed.
Q Ventilation and air conditioning odors
O To let fresh air in, set the air conditioning system to the outside air mode.
O During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
O To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
Q Air conditioning filter
 P. 514

4436-1. Using the air conditioning system and defogger
6
Interior features
HILUX_OM_OM0K513E_(EE)
QAdjusting the temperature for driver and passenger seats sep-
arately (“DUAL” mode)
To turn on the “DUAL” mode, perform the following either operation:
O Press .
O Turn clockwise (warm) or counterclockwise (cool) to adjust
the temperature.
The indicator comes on when the “DUAL” mode is on.
QSwitching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time the button is pressed.
QDefogging the windshield
Press .
The dehumidification function operates and fan speed increases.
Set to the outside air mode if the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the windshield is
defogged.
The indicator illuminates when the windshield dehumidification
function is on.
Other functions

4446-1. Using the air conditioning system and defogger
HILUX_OM_OM0K513E_(EE)
QDefogging the rear window and outside rear view mirrors (if
equipped)
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press (vehicles with rear window defogger), (vehicles
with rear window defogger and outside rear view mirror defoggers),
(vehicles with rear window defogger and windshield wiper de-
icer) or (vehicles with rear window defogger, outside rear view
mirror defoggers and windshield wiper de-icer).
The indicator illuminates on the switch when the defoggers are on.
The defoggers will automatically turn off after approximately 15 to 60
minutes.
QWindshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
Press or .
The indicator illuminates on the sw itch when the windshield wiper de-
icer is on.
The windshield wiper de-icer will automatically turn off after approxi-
mately 15 to 60 minutes.
QPower heater (if equipped)
This feature is used to heat the engine coolant, speed up warming
of the cab in cold weather, and keep the cab warm.
Press the switch to turn the
power heater on/off
The indicator illuminates on the
switch when the power heater is
on.
If you do not turn the switch to
off, the engine speed may be
increased when the engine is
started.

4466-1. Using the air conditioning system and defogger
HILUX_OM_OM0K513E_(EE)
QUsing automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
Q Fogging up of the windows
O The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
O If you turn off, the windows may fog up more easily.
O The windows may fog up if the recirculated air mode is used.
Q When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehi-
cle after closing the windows, it is recommended that the air intake mode be
set to outside air mode and the fan speed to any setting except off.
Q Outside/recirculated air mode
O Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
O Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
Q Operation of the air conditioning system in Eco drive mode (if equipped)
O In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
• Engine speed and compressor operation controlled to restrict heating/
cooling capacity
• Fan speed restricted when automatic mode is selected
O To improve air conditioning performance, perform the following operations.
• Adjust the fan speed
• Turn off Eco drive mode
• Adjust the temperature setting
Q When the outside temperature falls to nearly 0°C (32°F)
The dehumidification function may not operate even when is pressed.
