2022 TOYOTA HILUX tow

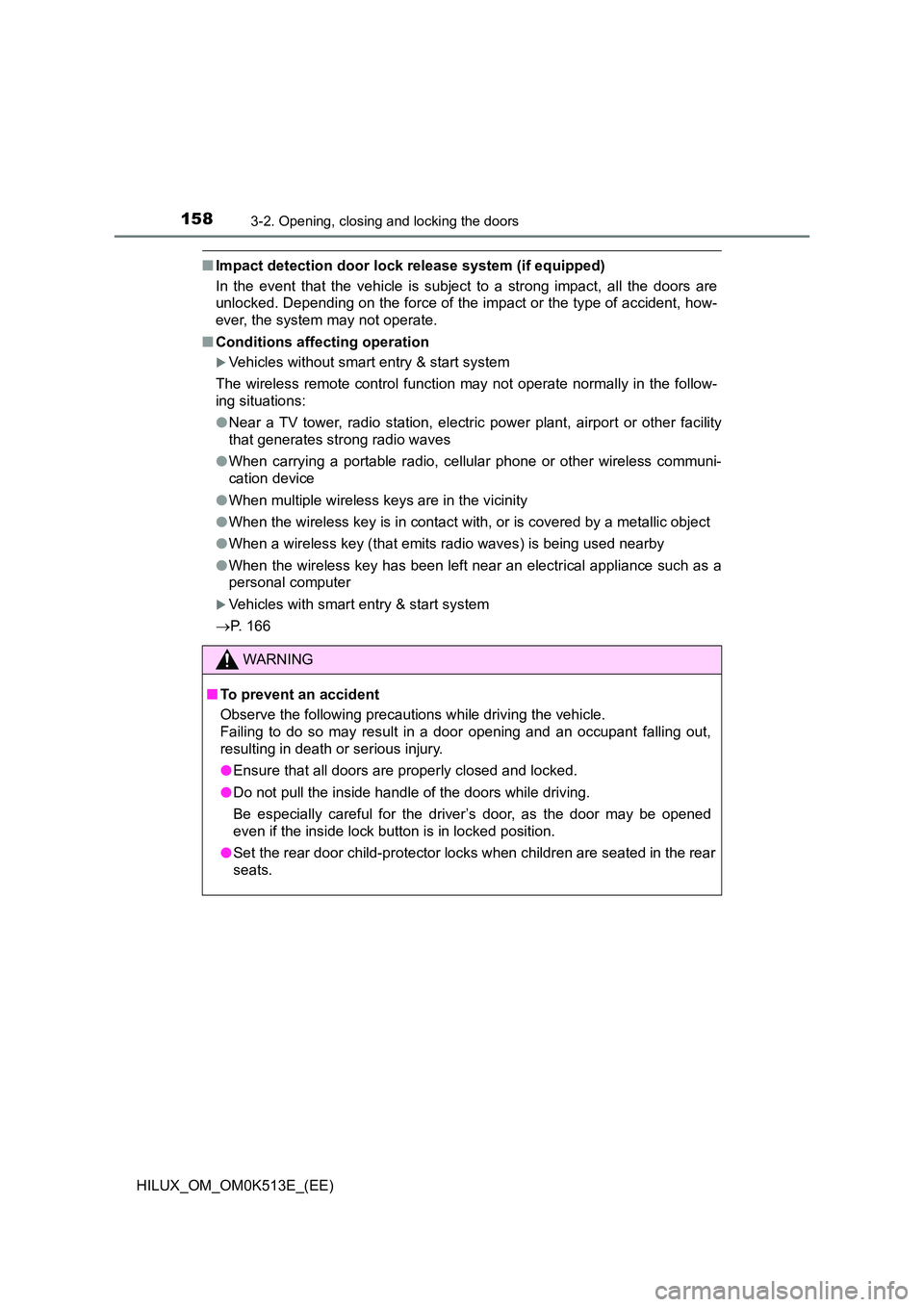

1583-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
QImpact detection door lock release system (if equipped)
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
Q Conditions affecting operation
Vehicles without smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations:
O Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
O When carrying a portable radio, cellular phone or other wireless communi-
cation device
O When multiple wireless keys are in the vicinity
O When the wireless key is in contact with, or is covered by a metallic object
O When a wireless key (that emits radio waves) is being used nearby
O When the wireless key has been left near an electrical appliance such as a
personal computer
Vehicles with smart entry & start system
 P. 166
WARNING
QTo prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
O Ensure that all doors are properly closed and locked.
O Do not pull the inside handle of the doors while driving.
Be especially careful for the driver’s door, as the door may be opened
even if the inside lock button is in locked position.
O Set the rear door child-protector locks when children are seated in the rear
seats.

1603-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
Ta i lg at e
Lock with the master key or the
mechanical key
Unlock with the master key or
the mechanical key
Ty pe A
Unlock the latches and open the
tailgate slowly.
The support stays will hold the tail-
gate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
: If equipped
The tailgate can be locked/unlocked and opened by the follow-
ing procedures.
Locking and unlocking the tailgate (vehicles with key hole)
1
2
Opening the tailgate

1613-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K513E_(EE)
Ty pe B
Pull the handle and open the tail-
gate slowly.
The support stays will hold the tail-
gate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
Release the brackets on the sup-
port stays from the lugs on both
sides as shown in the illustration.
The rear step bumper is for rear
end protection and easier step-up
loading.
Lowering the tailgate (vehicles without rear bumper)
Rear step bumper (if equipped)

1663-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
Q Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and engine immobilizer system from operating properly.
(Ways of coping: P. 600)
O When the electronic key battery is depleted
O Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
O When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
O When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
O When multiple electronic keys are in the vicinity
O When other wireless keys (that emit radio waves) are being used nearby
O When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or pers onal digital assistants (PDAs)
• Digital audio players
• Portable game systems
O If window tint with a metallic content or metallic objects are attached to the
rear window
O When the electronic key is placed near a battery charger or electronic devices

1723-3. Adjusting the seats
HILUX_OM_OM0K513E_(EE)
Rear seats
Unhook the lock release lever.
Pull the seat cushions up and
then pull toward the front of
vehicle.
The seat cushions can be removed
separately.
Pull the head restraint up.
Pull the strap and raise the bot-
tom cushion.
The latch under the bottom cush-
ion will release allowing the bottom
cushion to be raised.
: If equipped
Removing the rear seat cushions (if equipped for smart-cab
models)
1
2
Raising the bottom cushion (double-cab models with integrated
type rear seat)
1
2

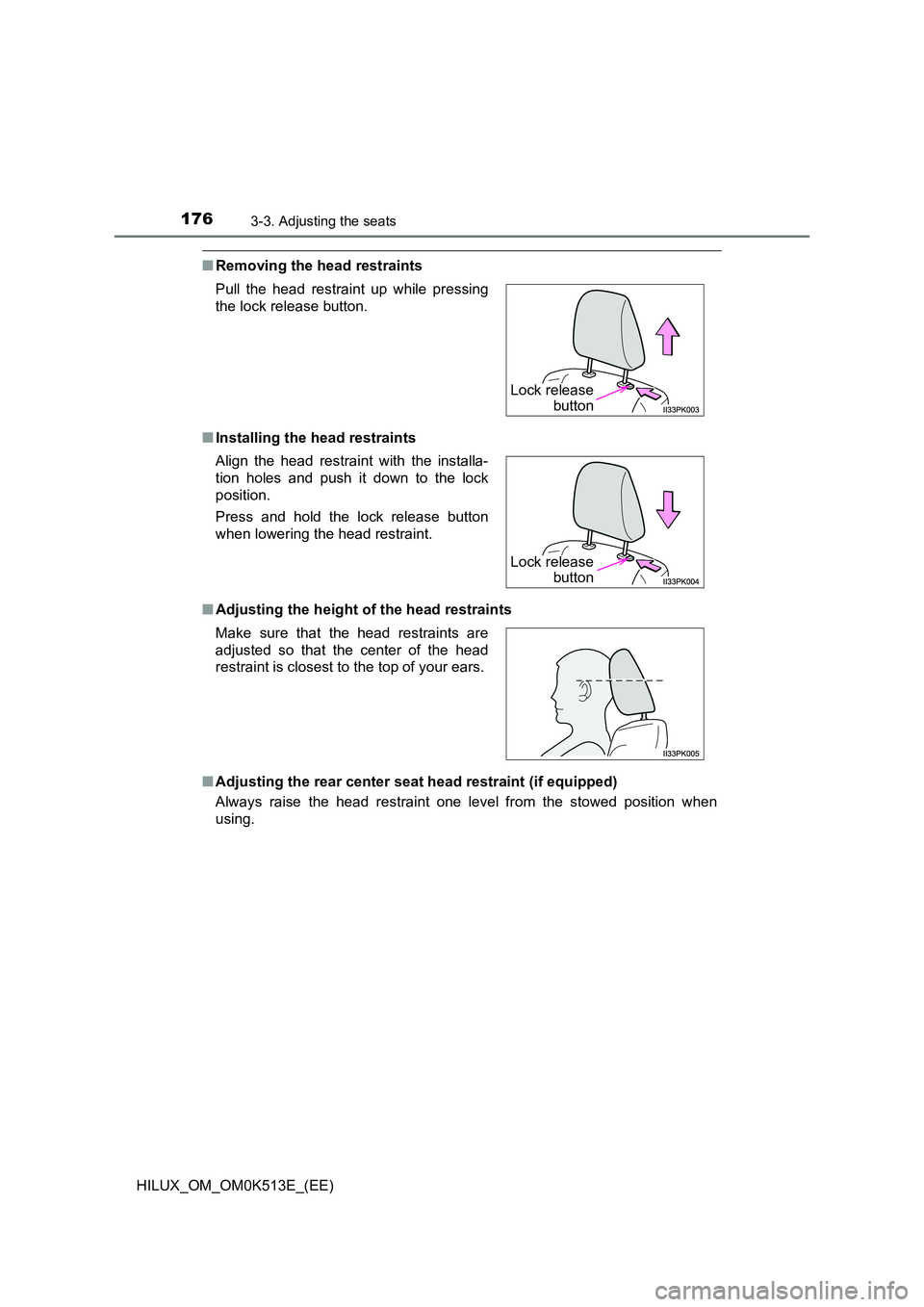

1763-3. Adjusting the seats
HILUX_OM_OM0K513E_(EE)
QRemoving the head restraints
Q Installing the head restraints
Q Adjusting the height of the head restraints
Q Adjusting the rear center seat head restraint (if equipped)
Always raise the head restraint one level from the stowed position when
using.
Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release
button
Lock release
button

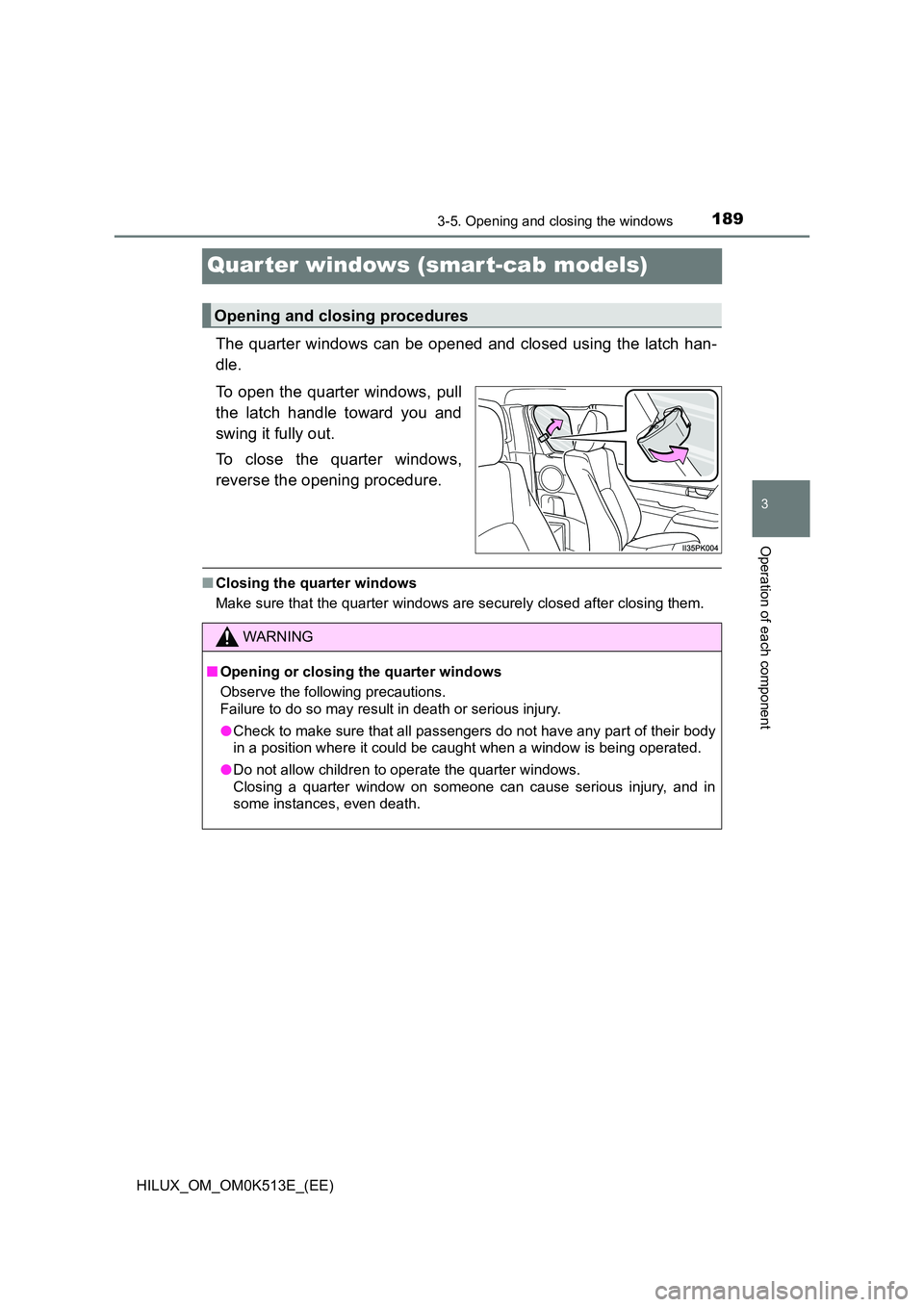

189
3
3-5. Opening and closing the windows
Operation of each component
HILUX_OM_OM0K513E_(EE)
Quar ter windows (smar t-cab models)
The quarter windows can be opened and closed using the latch han-
dle.
To open the quarter windows, pull
the latch handle toward you and
swing it fully out.
To close the quarter windows,
reverse the opening procedure.
Q Closing the quarter windows
Make sure that the quarter windows are securely closed after closing them.
Opening and closing procedures
WARNING
Q Opening or closing the quarter windows
Observe the following precautions.
Failure to do so may result in death or serious injury.
O Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
O Do not allow children to operate the quarter windows.
Closing a quarter window on someone can cause serious injury, and in
some instances, even death.

191
4Driving
HILUX_OM_OM0K513E_(EE)
4-1. Before driving
Driving the vehicle ............. 192
Cargo and luggage ............ 205
Trailer towing (without
towing hitch) .................... 206
Trailer towing (with towing
hitch)................................ 207
4-2. Driving procedures
Engine (ignition) switch
(vehicles without smart
entry & start system)........ 220
Engine (ignition) switch
(vehicles with smart
entry & start system)........ 223
Automatic transmission ..... 231
Manual transmission.......... 239
Turn signal lever ................ 246
Parking brake .................... 247
4-3. Operating the lights
and wipers
Headlight switch ................ 248
Fog light switch .................. 255
Windshield wipers and
washer ............................. 258
4-4. Refueling
Opening the fuel tank
cap ................................... 261
4-5. Using the driving support
systems
Toyota Safety Sense ......... 266
PCS (Pre-Collision
System) ........................... 273
LDA (Lane Departure
Alert With Yaw Assist
Function).......................... 284
RSA (Road Sign Assist)..... 295
Dynamic radar cruise
control .............................. 301
Cruise control..................... 317
Toyota parking
assist-sensor ................... 321
Four-wheel drive
system ............................. 331
Rear differential
lock system ...................... 341
Stop & Start system ........... 345
Driving assist systems ....... 355
Downhill assist control
system ............................. 364
AUTO LSD ......................... 367
DPF (Diesel Particulate
Filter) system ................... 369
4-6. Driving tips
Winter driving tips .............. 374
