2022 TOYOTA HILUX glove box

5157-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

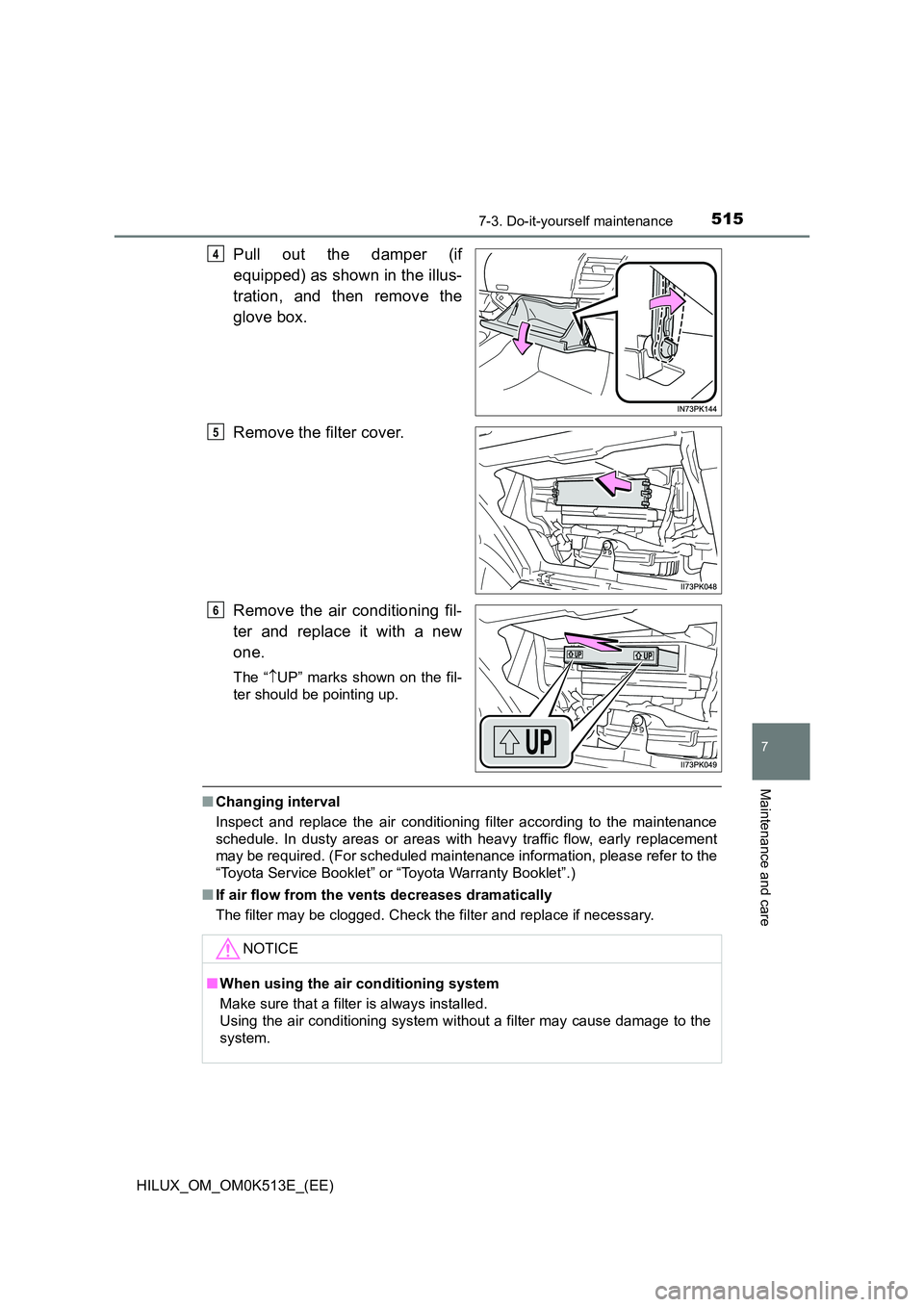

Pull out the damper (if
equipped) as shown in the illus-
tration, and then remove the
glove box.
Remove the filter cover.
Remove the air conditioning fil-
ter and replace it with a new
one.
The “ UP” marks shown on the fil-
ter should be pointing up.
Q Changing interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Toyota Service Booklet” or “Toyota Warranty Booklet”.)
Q If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
4
5
6
NOTICE
Q When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditi oning system without a filter may cause damage to the
system.

5217-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

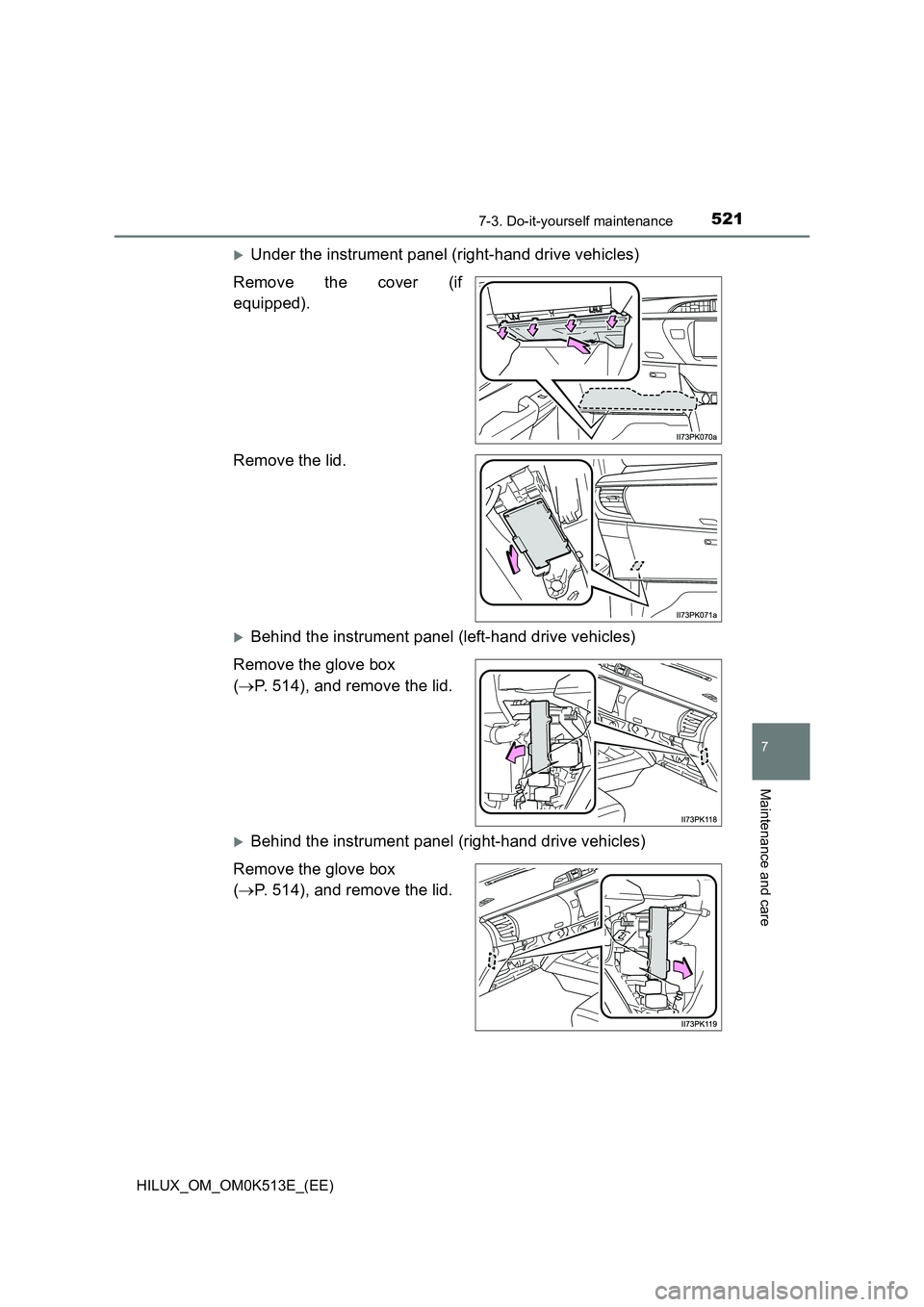

Under the instrument panel (right-hand drive vehicles)
Remove the cover (if
equipped).
Remove the lid.
Behind the instrument panel (left-hand drive vehicles)
Remove the glove box
( P. 514), and remove the lid.
Behind the instrument panel (right-hand drive vehicles)
Remove the glove box
( P. 514), and remove the lid.

665Alphabetical index
HILUX_OM_OM0K513E_(EE)
Gauges...................................... 130
Glove box ................................. 457
Grocery bag hooks .................. 468
Hands-free system
(for cellular phone)*.............. 408
Head restraints......................... 175
Headlights ................................ 248
Light switch ........................... 248
Replacing
light bulbs ... 528, 529, 531, 549
Wattage................................. 642
Heated steering wheel ............. 450
Heaters
Automatic air conditioning
system ................................ 441
Heated steering wheel .......... 450
Manual air conditioning
system ................................ 434
Seat heaters.......................... 450
Outside rear view mirrors ...... 444
High mounted stoplight
Replacing .............................. 549
Hill-start assist control ............ 355
Hood.......................................... 484
Hooks
Coat hooks ............................ 469
Grocery bag hooks................ 468
Retaining hooks (floor mat) ..... 36
Horn .......................................... 179
Identification
Engine................................... 625
Vehicle .................................. 624
Ignition switch (engine
switch) ............................ 220, 223
Auto power off function ......... 227
Changing the engine
switch modes...................... 226
Changing the engine
switch position .................... 221
If your vehicle has to be
stopped in an
emergency.......................... 555
Starting the engine........ 220, 223
Ignition switch light
(engine switch light) ............. 453
Illuminated entry system ........ 455
Immobilizer system ................. 115
Indicators ................................. 122
Initialization
Engine oil maintenance
data .................................... 491
Items to initialize ................... 654
Inside rear view mirror ............ 180
Instrument panel light
control .................................... 132
Intercooler ................................ 493
Intercooler coolant
Capacity ................................ 634
Checking ............................... 492
Preparing and checking
before winter....................... 374
Interior lights............................ 453
Switch ................................... 454
Wattage ................................ 642
G
H
I
*: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
