2022 TOYOTA HILUX USB

381
5
5-1. Basic Operations
Audio system
HILUX_OM_OM0K513E_(EE)
AUX port/USB por t
QiPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if
it is not turned on.
QUSB memory
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
QPortable audio player
Open the cover and connect the portable audio player using an
AUX cable.
Turn on the power of the portable audio player if it is not turned on.
Q AUX port
The AUX port only supports audio input.
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MODE”
button to select “iPod”, “USB” or “AUX”.
Connecting using the AUX port/USB port
WARNING
Q While driving
Do not connect a device or operate the device controls.

401
5
5-5. Using an external device
Audio system
HILUX_OM_OM0K513E_(EE)
Listening USB memor y device
P. 3 8 1
Pause/playback
Selecting a file, fast-forwarding or rewinding
“TUNE•SELECT” knob
Selecting a file
Displaying text message
Displaying folder list
Selecting a folder
Repeat play
Changing the audio source/playback
Random play or back button
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Connecting a USB memory enables you to enjoy music from the
vehicle speakers. Press the “MODE” button until “USB” is dis-
played.
Connecting a USB memory
Control panel
1
2
3
4
5
6
7
8
9
10

4025-5. Using an external device
HILUX_OM_OM0K513E_(EE)
QSelecting folders one at a time
Press () to select the desired
folder.
QSelecting a folder and file from folder list
Press (LIST).
The folder list will be displayed.
Turn and press the knob to select a folder and file.
To return to the previous display, press (BACK).
QReturning to the first folder
Press and hold ( QSelecting a file
Turn the “TUNE•SELECT” knob or press the “SEEK >” or
“< TRACK” button to move up or down to select the desired file.
QFast-forwarding and rewinding files
Press and hold the “SEEK >” or “< TRACK” button until you hear a
beep.
QRandom play
Pressing (RDM) changes modes in the following order: Folder
random All folder randomOff
QRepeat play
Pressing (RPT) changes modes in the following order: File
repeat Folder repeat*Off
*: Available except when “RDM” (random play) is selected
QSwitching the display
Press (TEXT) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold (TEXT) until you hear a beep to display the remain-
ing texts.
Using a USB memory
1
2

4035-5. Using an external device
5
Audio system
HILUX_OM_OM0K513E_(EE)
QUSB memory functions
O Depending on the USB memory that is connected to the system, the device
itself may not be operable and certain functions may not be available. If the
device is inoperable or a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and recon-
necting it once again may resolve the problem.
O If the USB memory still does not begin operation after being disconnected
and reconnected, format the memory.
Q Display
 P. 390
Q Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
MessageCause/Correction procedures
“USB ERROR”
This indicates that the data in the USB mem-
ory cannot be read or that the connected USB
device is not supported.
“ERROR 3”This indicates that the USB memory may be
malfunctioning.
“ERROR 4”This indicates that an over current error has
occurred.
“ERROR 5”
This indicates that the USB memory commu-
nication error has occurred, has a version
error, or that there is no response when USB
memory is inserted (enumeration error).
“NO MUSIC”This indicates that no MP3/WMA/AAC files
are included on the USB memory device.
“Hubs are not supported”This indicates that the hub connect error
occurs.

4045-5. Using an external device
HILUX_OM_OM0K513E_(EE)
Q USB memory
O Compatible devices
USB memory that can be used for MP3, WMA and AAC playback
O Compatible device formats
The following device formats can be used:
• USB communication formats: USB2.0 FS (12mbps)
• File formats: FAT16/32 (Windows)
• Correspondence class: Mass storage class
MP3, WMA and AAC files written in any format other than those listed
above may not play correctly, and their file names and folder names may
not be displayed correctly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels (including the root)
• Maximum number of folders in a device: 3000 (including the root)
• Maximum number of files in a device: 9999
• Maximum number of files per folder: 255
O MP3, WMA and AAC files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by
using MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
AAC is short for Advanced Audio Coding and refers to an audio compres-
sion technology standard used with MPEG2 and MPEG4.
There is a limit to the MP3, WMA and AAC file standards and to the media/
formats recorded by them that can be used.
O MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 32-320 (kbps)
MPEG2 LSF LAYER3: 8-160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural

4055-5. Using an external device
5
Audio system
HILUX_OM_OM0K513E_(EE)

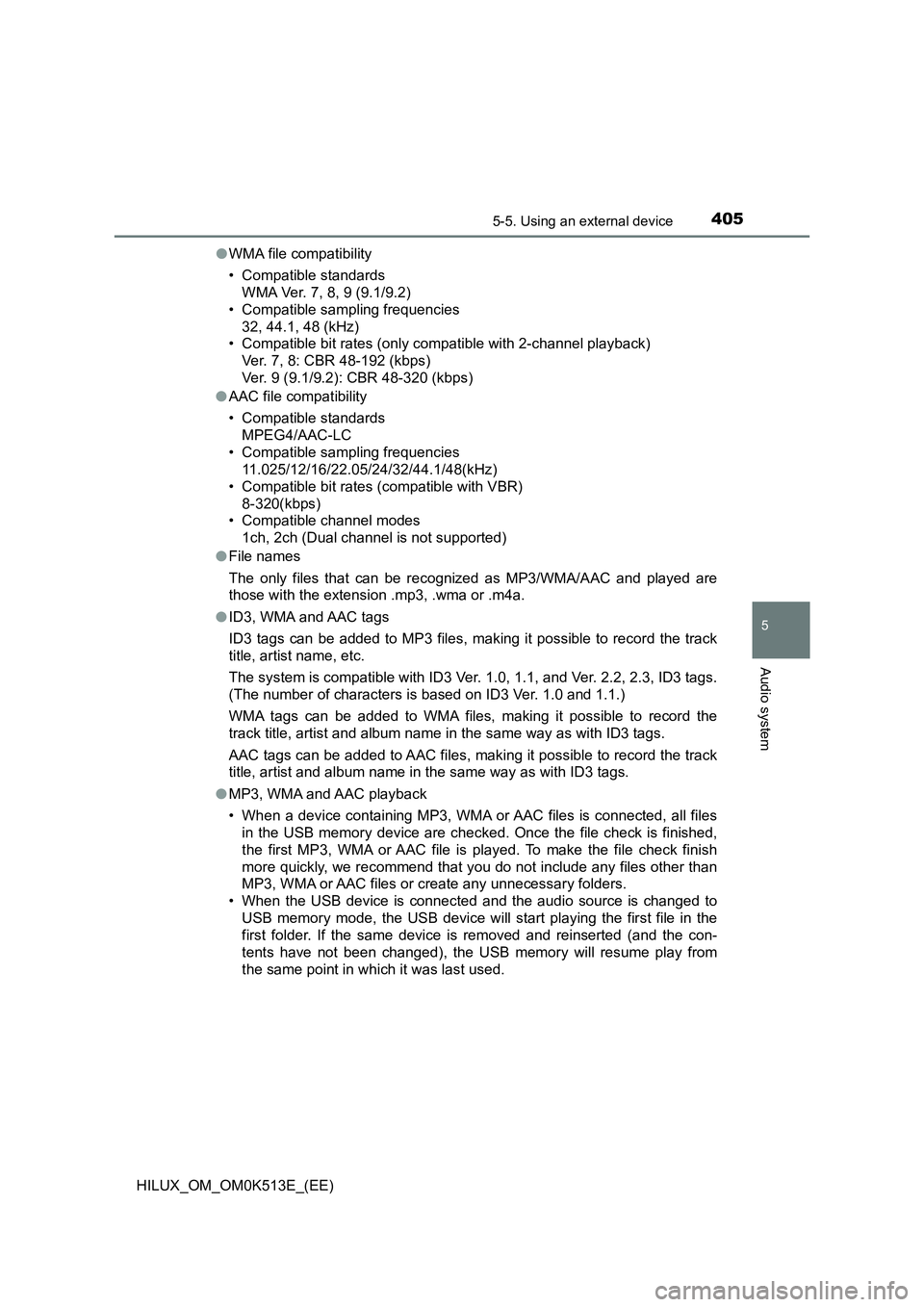

O WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9 (9.1/9.2)
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Ver. 7, 8: CBR 48-192 (kbps)
Ver. 9 (9.1/9.2): CBR 48-320 (kbps)
O AAC file compatibility
• Compatible standards
MPEG4/AAC-LC
• Compatible sampling frequencies
11.025/12/16/22.05/24/32/44.1/48(kHz)
• Compatible bit rates (compatible with VBR)
8-320(kbps)
• Compatible channel modes
1ch, 2ch (Dual channel is not supported)
O File names
The only files that can be recognized as MP3/WMA/AAC and played are
those with the extension .mp3, .wma or .m4a.
O ID3, WMA and AAC tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3, ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title, artist and album name in the same way as with ID3 tags.
AAC tags can be added to AAC files, making it possible to record the track
title, artist and album name in t he same way as with ID3 tags.
O MP3, WMA and AAC playback
• When a device containing MP3, WMA or AAC files is connected, all files
in the USB memory device are checked. Once the file check is finished,
the first MP3, WMA or AAC file is played. To make the file check finish
more quickly, we recommend that you do not include any files other than
MP3, WMA or AAC files or create any unnecessary folders.
• When the USB device is connected and the audio source is changed to
USB memory mode, the USB device will start playing the first file in the
first folder. If the same device is removed and reinserted (and the con-
tents have not been changed), the USB memory will resume play from
the same point in which it was last used.

4065-5. Using an external device
HILUX_OM_OM0K513E_(EE)
O Extensions
If the file extensions .mp3, .wma and .m4a are used for files other than
MP3, WMA and AAC files, they will be skipped (not played).
O Playback
• To play MP3 files with steady s ound quality, we recommend a fixed bit
rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for MP3,
WMA and AAC files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
WARNING
Q While driving
Do not connect USB memory or operate the controls. Doing so may cause
an accident, resulting in death or serious injury.
NOTICE
Q To prevent damage to USB memory
O Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the USB memory.
O Do not push down or apply unnecessary pressure to the USB memory
while it is connected as this may damage the USB memory or its terminal.
O Do not insert foreign objects into the port as this may damage the USB
memory or its terminal.

660Alphabetical index
HILUX_OM_OM0K513E_(EE)
Alphabetical index
A/C..................................... 434, 441
Air conditioning filter.............. 514
Automatic air conditioning
system ................................ 441
Manual air conditioning
system ................................ 434
ABS (Anti-lock Brake
System) .................................. 355
Function ................................ 355
Warning light ......................... 567
Access panels .......................... 159
AdBlue™................................... 500
Capacity ................................ 503
Low AdBlue™ level
warning light ....................... 571
Refilling ................................. 503
Air conditioning filter .............. 514
Air conditioning
system ............................ 434, 441
Air conditioning filter.............. 514
Automatic air conditioning
system ................................ 441
Manual air conditioning
system ................................ 434
Airbags ....................................... 45
Airbag manual on-off
system .................................. 62
Airbag operating
conditions ............................. 53
Airbag precautions for
your child .............................. 47
Airbag warning light .............. 567
Correct driving posture............ 38
Curtain shield airbag
operating conditions ............. 53
Curtain shield airbag
precautions ........................... 49
Front passenger occupant
classification system ............. 57
General airbag
precautions........................... 47
Locations of airbags................ 45
Modification and
disposal of airbags ............... 51
Side airbag operating
conditions ............................. 53
Side airbag precautions .......... 49
Side and curtain shield
airbags operating
conditions ............................. 53
Side and curtain shield
airbags precautions .............. 49
SRS airbags............................ 45
Airbag manual on-off
system ...................................... 62
Alarm ........................................ 117
Antenna ............................ 386, 472
Antennas (smart entry &
start system) .......................... 163
Anti-lock brake system
(ABS) ...................................... 355
Function ................................ 355
Warning light ......................... 567
Armrest ..................................... 469
Audio input............... 395, 401, 407
Audio system ........................... 378
Antenna ........................ 386, 472
Audio input ............................ 381
AUX port ............................... 381
Bluetooth® audio................... 424
CD player ............................. 387
iPod....................................... 395
MP3/WMA disc ..................... 389
Optimal use........................... 382
Portable music
player.................................. 407
Radio .................................... 384
Steering wheel audio
switches.............................. 379
USB memory ........................ 401
AUTO LSD ................................ 367
A
