2022 TOYOTA GR SUPRA load capacity

2463-1. CONTROLS

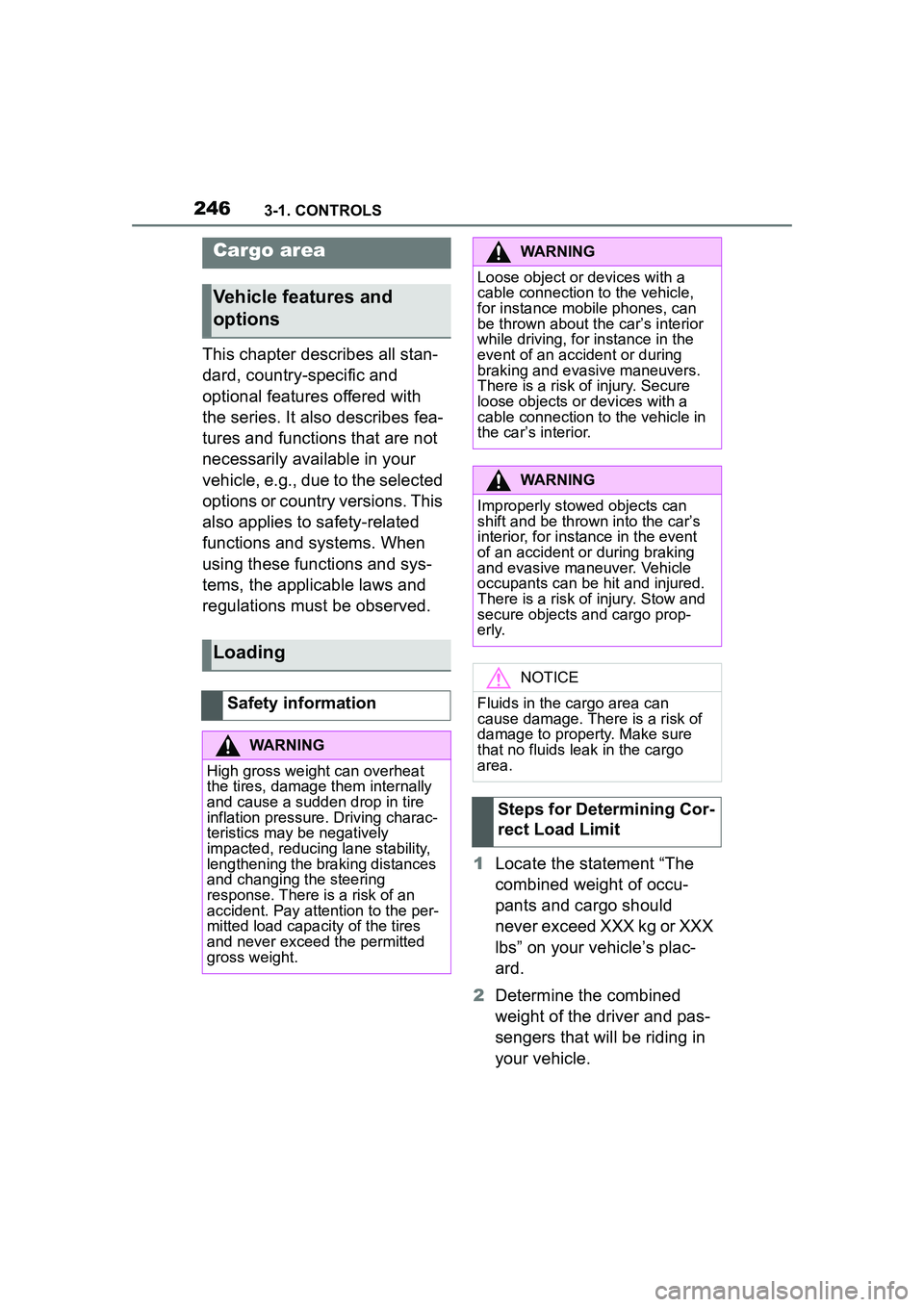

This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures and functions that are not
necessarily available in your
vehicle, e.g., due to the selected
options or country versions. This
also applies to safety-related
functions and systems. When
using these functions and sys-
tems, the applicable laws and
regulations must be observed.1Locate the statement “The
combined weight of occu-
pants and cargo should
never exceed XXX kg or XXX
lbs” on your vehicle’s plac-
ard.
2 Determine the combined
weight of the driver and pas-
sengers that will be riding in
your vehicle.
Cargo area
Vehicle features and
options
Loading
Safety information
WARNING
High gross weight can overheat
the tires, damage them internally
and cause a sudden drop in tire
inflation pressure. Driving charac-
teristics may be negatively
impacted, reducing lane stability,
lengthening the braking distances
and changing the steering
response. There is a risk of an
accident. Pay attention to the per-
mitted load capacity of the tires
and never exceed the permitted
gross weight.
WARNING
Loose object or devices with a
cable connection to the vehicle,
for instance mobile phones, can
be thrown about the car’s interior
while driving, for instance in the
event of an accident or during
braking and evasive maneuvers.
There is a risk of injury. Secure
loose objects or devices with a
cable connection to the vehicle in
the car’s interior.
WARNING
Improperly stowed objects can
shift and be thrown into the car’s
interior, for instance in the event
of an accident or during braking
and evasive maneuver. Vehicle
occupants can be hit and injured.
There is a risk of injury. Stow and
secure objects and cargo prop-
erly.
NOTICE
Fluids in the cargo area can
cause damage. There is a risk of
damage to property. Make sure
that no fluids leak in the cargo
area.
Steps for Determining Cor-
rect Load Limit

2473-1. CONTROLS
3
CONTROLS

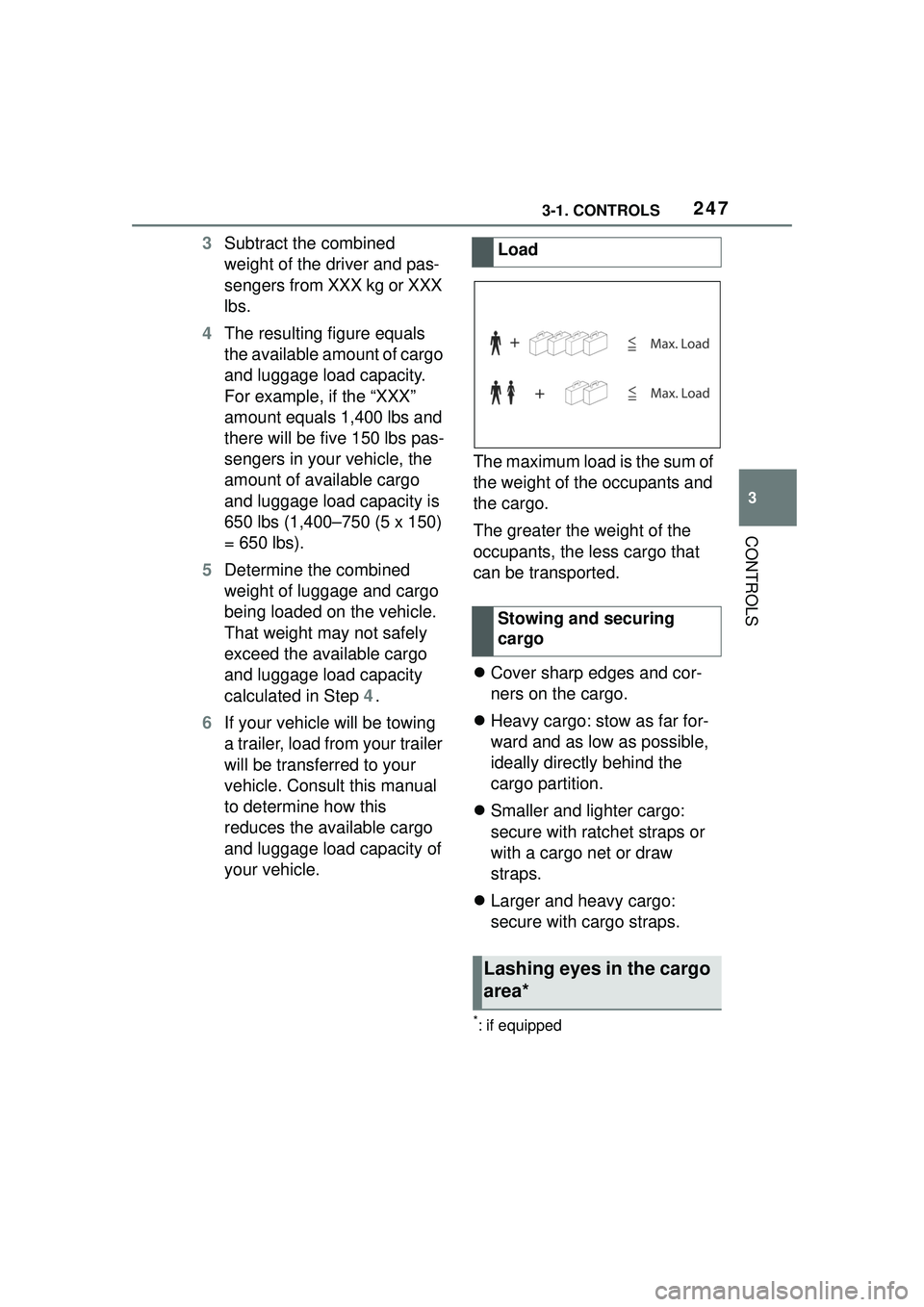

3Subtract the combined
weight of the driver and pas-
sengers from XXX kg or XXX
lbs.
4 The resulting figure equals
the available amount of cargo
and luggage load capacity.
For example, if the “XXX”
amount equals 1,400 lbs and
there will be five 150 lbs pas-
sengers in your vehicle, the
amount of available cargo
and luggage load capacity is
650 lbs (1,400–750 (5 x 150)
= 650 lbs).
5 Determine the combined
weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely
exceed the available cargo
and luggage load capacity
calculated in Step 4.
6 If your vehicle will be towing
a trailer, load from your trailer
will be transferred to your
vehicle. Consult this manual
to determine how this
reduces the available cargo
and luggage load capacity of
your vehicle. The maximum load is the sum of
the weight of the occupants and
the cargo.
The greater the weight of the
occupants, the less cargo that
can be transported.

Cover sharp edges and cor-
ners on the cargo.
 Heavy cargo: stow as far for-
ward and as low as possible,
ideally directly behind the
cargo partition.
 Smaller and lighter cargo:
secure with ratchet straps or
with a cargo net or draw
straps.
 Larger and heavy cargo:
secure with cargo straps.
*: if equipped
Load
Stowing and securing
cargo
Lashing eyes in the cargo
area*

344Alphabetical Index
Alphabetical Index
A
A/C button, see Air conditioning
............................................... 228
ABS, Antilock Brake System . 194
ACC, see Dynamic radar cruise control with full-speed range............................................... 203
Acceleration Assistant, see Launch Control..................... 130
Accessories and parts ............... 6
Activated charcoal filter ........ 231
Active Guard, see Toyota Supra Safety .................................... 172
Adaptive brake assist ............ 195
Adaptive variable suspension ............................................... 224
Additional coolant tank cooling, Capacity ................................ 332
Additives, engine oil types .... 297
Air circulation, see Recircu- lated-air mode....................... 229
Air conditioning ...................... 228
Air distribution, manual ......... 230
Air flow, automatic air condition- ing .......................................... 230
Air outlets, see Ventilation .... 231
Air pressure, tires .................. 264
Airbags .................................... 160
Airbags, indicator and warning light........................................ 162
Alarm system ............................ 92
Alarm, unintentional................. 93
All-season tires, see Winter tires ............................................... 274
Antilock Brake System, ABS . 194
Anti-slip control, see VSC ..... 195
Anti-theft protection, locking .. 79
Anti-theft protection, see Lug bolt lock ................................ 289
Apple CarPlay, connection to the vehicle ..................................... 73 Approved axle load ................331
Approved total weight ............331
Assistance when driving off, see
Hill-start assist control.........195
Assistance with breakdown ..315
AUTO program, automatic air
conditioning ........ ..................229
Auto Start/Stop function ........ 116
Automatic air conditioning ....226
Automatic cruise control with Stop & Go ..............................203
Automatic Curb Monitor, exte- rior mirror ..............................106
Automatic deactivation, front-seat passenger airbags...............................................170
Automatic headlight control ..153
Automatic high-beam .............156
Automatic locking ....................91
Automatic transmission.........126
Automatic transmission, Fluid ...............................................332
Automatic transmission, see Automatic transm ission.......126
Automatic unlocking ................91
Automatic vehicle wash .........322
Autonomous Emergency Brak- ing ..........................................192
Axle loads, weights ................331
B
Backrest curvature, see Lumbar support ................ ....................99
Backrest tilt ...............................99
Backrest, seats .........................96
Backrest, width .........................99
Bar for tow-starting/towing....320
Battery, changing, remote con- trol of the vehicle ....................81
Battery, disposing of ..............306
Battery, vehicle .......................305

353Alphabetical Index
Reversing lights, bulb replace-ment, see Lights and bulbs . 304
Roadside Assistance, see Break- down assistance .................. 315
Roadside parking lights......... 154
Rolling code hand-held transmit- ter........................................... 236
RON recommended fuel grade ............................................... 294
Roof load capacity ................. 331
Roofliner ................................... 39
Rope for tow-starting/towing 320
Rubber components, care ..... 326
S
Safe braking ............................ 255
Safety belt reminder for driver's seat and front passenger seat............................................... 104
Safety belts ............................. 100
Safety belts, care .................... 327
Safety systems, see Airbags . 160
Safety systems, see Toyota Supra Safety ......................... 172
Saving fuel .............................. 257
Screen Mirroring, connection . 74
Screen, see Control Display .... 49
Screwdriver, see Onboard vehi- cle tool kit ............................. 303
Sealant, see Mobility System 275
Seat heating ............................ 108
Seat, see Memory function .... 107
Seating position for children. 111
Seats, front ............................... 96
Securing cargo ....................... 247
Selection list in instrument clus- ter........................................... 145
Selector lever, Automatic trans- mission.................................. 126
Sensors of the vehicle ............. 40
Sensors, care .......................... 327
Service and warranty ................. 7 Service requirements .............141
Service requirements, see Condi-
tion Based Service CBS .......301
SET button, see Cruise control ...............................................199
SET button, see Dynamic radar cruise control with full-speed
range ......................................203
Set speed, see Dynamic radar cruise control with full-speed
range ......................................203
Settings on Control Display ....60
Settings, locking/unlocking .....90
Shift paddles on the steering wheel .....................................126
Side airbag ..............................160
Side protection .......................217
Signaling, horn .........................36
Signals when unlocking, see Confirmation signals from the
vehicle .....................................91
Sitting safely .............................96
Sizes, see Dimensions ...........330
Smallest turning radius..........330
SMS text message, supplemen- tary .........................................135
Snow chains............................280
Socket for OBD Onboard Diagno- sis ..........................................302
Sockets ....................................238
SOS button, see Intelligent emer- gency call ..............................316
Special equipment, see Vehicle features and options ................4
Speed Limit Assist ................. 211
Speed limit display, see Speed Limit Info ...............................143
Speed Limit Info......................143
Sport chassis/suspension, see Adaptive variable suspension...............................................224
Sport displays .........................149
