2022 TOYOTA CAMRY lights

5647-2. Steps to take in an emergency
CAMRY_U
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that lev el for approximately 5 minutes to
recharge the batter y of your vehicle.
Vehicles with a smart key syst em: Open and close any of the doo rs
of your vehicle with the engine switch off.
Vehicles without a smart key system:
Maintain the engine speed of the second vehicle and turn the
engine switch to the “ON” posit ion, then start the vehicle's engine.
Vehicles with a smart key system:
Maintain the engine speed of the second vehicle and turn the
engine switch to IGNITION ON mode, then start the vehicle's
engine.
Once the vehicle’s engine has st arted, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at your Toyota
dealer as soon as possible.
■ Starting the engine when t he battery is discharged
The engine cannot be started by push-starting.
■ To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic .
■ When the battery is removed or discharged
●Information stored in the ECU is cleared. When the battery is d epleted, have
the vehicle inspected at your Toyota dealer.
● Some systems may require initialization. (→P. 614)
■ When removing the battery terminals
When the battery terminals are removed, the information stored in the ECU is
cleared. Before removing the battery terminals, contact your Toyota dealer.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long t ime, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
5
6
7
8

5818-1. Specifications
8
Vehicle specifications
CAMRY_U
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Toyota dealer.
Electrical system
Battery
Specific voltage reading at
68 F (20 C):12.3 V or higher
If the voltage is lower than the standard
value, charge the battery.
(When checking the voltage, after turning
the engine switch off, wait for 30 seconds
with the high beam headlights illuminated,
then turn the high beam headlights off and
check the voltage.)
Charging rates5 A max.
Automatic transaxle
Fluid capacity*
2.5 L 4-cylinder ( A25A-FKS) engine
7.7 qt. (7.3 L, 6.4 Imp. qt.)
3.5 L V6 (2GR-FKS) engine
7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than the above type may cause abnormal
noise or vibration, or damage the transmission of your vehicle.

5898-1. Specifications
8
Vehicle specifications
CAMRY_U
*1: Light bulbs not listed in this table are LED bulbs.
*2: If equipped
Light bulbs*1
Light bulbsBulb No.WTy p e
ExteriorFront side marker
lights (bulb type)
W5W 5 A
Front turn signal/
parking lights
(bulb type) 7444NA 28/8 B
Rear turn signal lights
(bulb type) WY21W 21 B
Rear side maker lights
(bulb type) W5W 5 A
Back-up lights
(bulb type) 921 16 A
InteriorRear interior light
*2
8C
Door courtesy lights
*2 5A
Trunk light 5A
A: Wedge base bulbs (clear)
C: Double end bulbs B: Wedge base bulbs (amber)

6108-2. Customization
CAMRY_U■
Power windows, and moon roof* or panoramic moon roof*
(
 P. 179, 183, 187)
*: If equipped
■
Moon roof* (  P. 183)
*: If equipped
■
Automatic light control system ( P. 231)
FunctionDefault settingCustomized setting
Key linked operationOffOn—O
Wireless remote control
linked operationOffOn (open only)—O
Wireless remote control
linked operation signal
(buzzer)
OnOff—O
12
FunctionDefault settingCustomized setting
Linked operation of com-
ponents when key is
used (open only)
Slide onlyTilt only—O
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only—O
12
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
OO60 seconds
90 seconds
12

6118-2. Customization
CAMRY_U
8
Vehicle specifications
■Lights (P. 2 3 1 )
■Intuitive parking assist* ( P. 336)
*: If equipped
■
BSM (Blind Spot Monitor)* (  P. 330)
*:If equipped
■
RCTA (Rear Cross Traffic Alert)* (  P. 3 4 5 )
*:If equipped
FunctionDefault settingCustomized setting
Daytime running light
system (except Canada)OnOffOO
Windshield wiper linked
headlight illuminationOnOff—O
12
FunctionDefault settingCustomized setting
Detection distance of the
front center sensorFarNear—O
Detection distance of the
rear center sensorFarNear—O
12
FunctionDefault settingCustomized setting
Outside rear view mirror
indicator brightnessBrightDim—O
Notification timing for
presence of approaching
vehicle (sensitivity)
Middle
Early
—OLate
Only when vehicle
detected in blind spot
12
FunctionDefault settingCustomized setting
RCTA buzzer volume21—O3
12

6128-2. Customization
CAMRY_U■

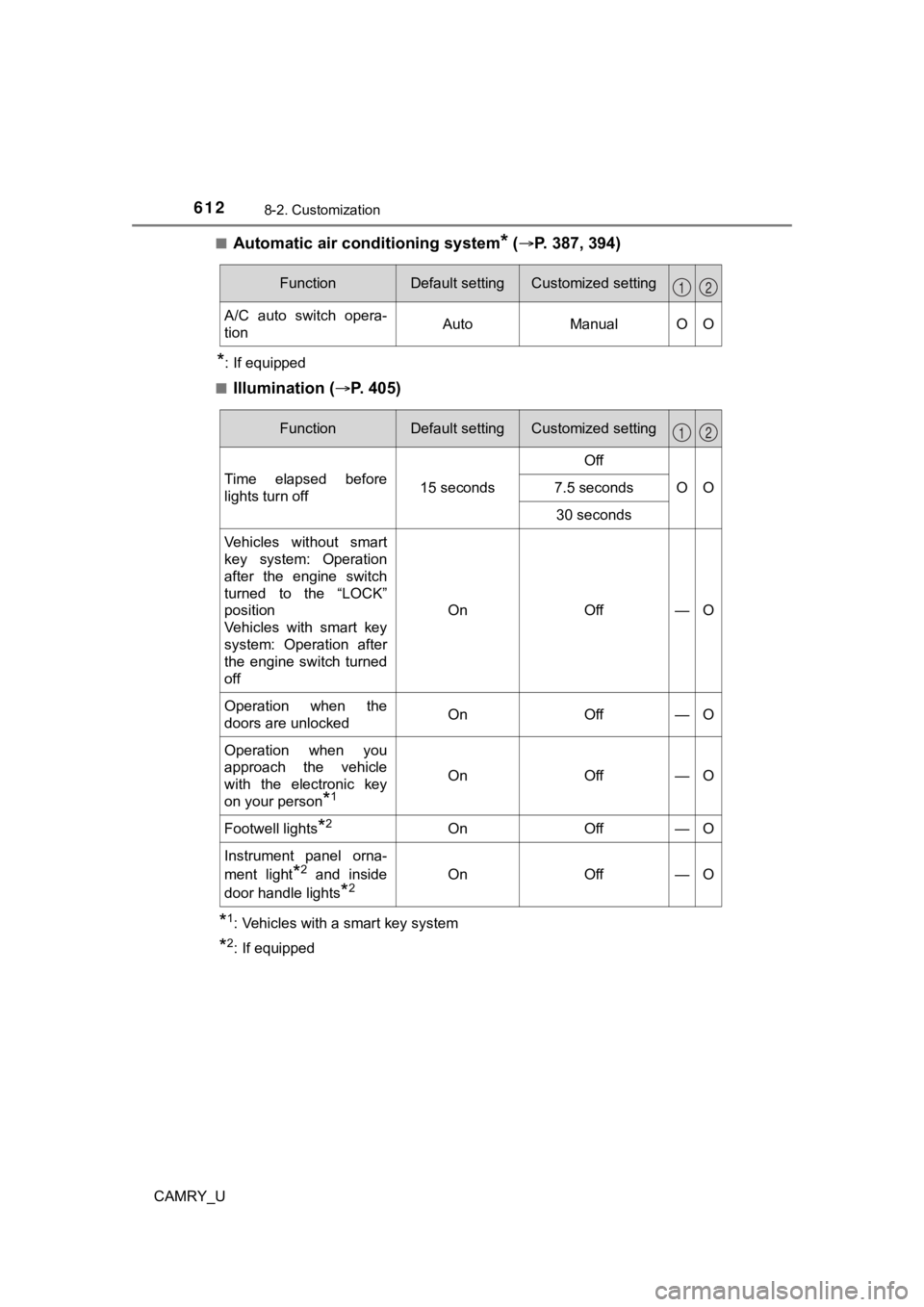

Automatic air c
onditioning system* ( P. 387, 394)
*: If equipped
■
Illumination ( P. 4 0 5 )
*1: Vehicles with a smart key system
*2: If equipped
FunctionDefault settingCustomized setting
A/C auto switch opera-
tionAutoManualOO
12
FunctionDefault settingCustomized setting
Time elapsed before
lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Vehicles without smart
key system: Operation
after the engine switch
turned to the “LOCK”
position
Vehicles with smart key
system: Operation after
the engine switch turned
off
OnOff—O
Operation when the
doors are unlockedOnOff—O
Operation when you
approach the vehicle
with the electronic key
on your person
*1
OnOff—O
Footwell lights*2OnOff—O
Instrument panel orna-
ment light
*2 and inside
door handle lights
*2OnOff—O
12

635Alphabetical index
CAMRY_U
Alarm .......................................... 82
Anchor brackets ........................ 58
Antennas (smart key system)................ 161
Anti-lock Brake System
(ABS) ...................................... 322 Warning light ......................... 528
Approach warning ........... 299, 315
Armrest ..................................... 430
Assist grips .............................. 430
Audio
*
Audio Plus*
Audio system*
Automatic air
conditioning system ..... 387, 394 Air conditioning filter ............. 492
Automatic High Beam ............. 236
Automatic light control
system .................................... 231
Automatic transmission.......... 217
If the shift lever cannot be shifted from P .... 221
Paddle shift switches ............ 219
S mode ................................. 218
Auxiliary boxes ........................ 413 Back-up lights
Replacing light bulb ...... 507, 512
Wattage ................................ 589
Battery ...................................... 469 Battery checking ................... 469
If the battery is discharged ... 562
Preparing and checking before winter ...................... 377
Replacing.............................. 565
Blind Spot Monitor (BSM) ....... 330 Blind Spot Monitor
function............................... 333
Bluetooth®*
Bottle holders .......................... 411
Brake Brake Hold ............................ 229
Fluid ...................................... 583
Parking brake ............... 224, 225
Warning light......................... 528
Brake assist ............................. 322
Brake Hold ............................... 229
Warning light......................... 529
Brake override system ............ 195
Break-in tips ............................ 196
Brightness control
Instrument panel light control .................................. 95
BSM (Blind Spot Monitor) ....... 330 Blind Spot Monitor function............................... 333
B
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

637Alphabetical index
CAMRY_U
Clock ................................... 98, 111
Coat hooks ............................... 431
Condenser ................................ 467
Connected Services
*
Console box ............................. 410
Consumption screen............................. 134, 136
Coolant
Capacity ................................ 580
Checking ............................... 466
Preparing and checking before winter....................... 377
Cooling system ........................ 466 Engine overheating ............... 567
Cruise control Dynamic radar cruise control................................. 306
Dynamic radar cruise control with full-speed range .......... 290
Cup holders.............................. 412
Curtain shield airbags ............... 37
Customizable features ............ 606
Daytime running light
system .................................... 233
Defogger
Outside rear view mirrors ................ 383, 389, 397
Rear window ......... 383, 389, 397
Windshield ............ 383, 389, 397
Dimensions .............................. 574
Dinghy towing .......................... 208 Display
Dynamic radar cruise
control ................................ 306
Dynamic radar cruise control with full-speed range .......... 290
LTA (Lane Tracing Assist) .... 270
Multi-information display .......................... 98, 111
Warning messages ............... 538
Do-it-yourself maintenance .... 455
Door courtesy lights Location ................................ 405
Wattage ................................ 589
Door lock
Doors .................................... 147
Key ....................................... 149
Smart key system ................. 147
Wireless remote control ........ 148
Doors ........................................ 147 Automatic door locking
and unlocking systems ....... 152
Door lock .............................. 151
Outside rear view mirrors ..... 177
Rear door child-protector ...... 152
Side doors ............................ 147
Side windows........................ 179
Drive information..................... 101
Drive-Start Control (DSC) ....... 195
Sudden start restraint control ................................ 195
Driving Break-in tips.......................... 196
Correct posture ....................... 28
Procedures ........................... 194
Winter drive tips .................... 377
DSC (Drive-Start Control) ....... 195
Sudden start restraint control ................................ 195
Dynamic radar cruise
control .................................... 306
D
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
