Starting and Operating7
– CONTINUED –
(0.6 mph) each time by pressing the
cruise control switch to the “+RES” side.
▼
To increase the speed (by acceler-
ator pedal)
1. Depress the accelerator pedal to
accelerate the vehi cle to the desired
speed.
2. Press the cruise control switch to the “-
SET” side once. Now the desired speed is
set and the vehicle will keep running at
that speed without depressing the accel-
erator pedal.
▼To decrease the speed (by the
cruise control switch)
Press the cruise cont rol switch to the “-
SET” side and hold it until the vehicle
reaches the desired speed. Then, release the switch. The vehicle speed at that
moment will be memorized and treated as
the new set speed.
When setting the displayed unit as
“MPH”:
The set speed can be decreased 1 mph
(1.6 km/h) each time by pressing the
cruise control switch to the “-SET” side.
When setting the displayed unit as
“km/h”:
The set speed can be decreased 1 km/h
(0.6 mph) each time by pressing the
cruise control switch to the “-SET” side.
▼
To decrease the speed (by brake
pedal)
1. Depress the brake pedal to release
cruise control temporarily.
2. When the speed decreases to the
desired speed, press the cruise control
switch to the “-SET” side once. Now the
desired speed is set and the vehicle will
keep running at that speed without
depressing the accelerator pedal.
■
Cruise Control Indicator
Light
Refer to "Combination Meter Settings"
 P130.
7-19. Rear View CameraA rear view camera is attached to the
trunk lid. When the ignition switch is in the
“ON” position and the shift lever (MT
models) or select lever (AT models) is set
to “R”, the rear view camera automatically
displays the rear view image behind the
vehicle on the center information display.
702793
WARNING
Since the rear view camera uses a
wide-angle lens, the image on the
monitor is diffe rent from the
actual view in terms of distance.
702799
B5=B8.ERRN 263 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Rear View Camera
265
Starting and Operating7
– CONTINUED –
vehicle. When the lever is set to other
positions, the image before setting to “R”
is displayed.
1. Set the ignition switch to “ON”.
2. Set the shift lever/ select lever to “R”.NOTEThe image of the rear view camera is
horizontally reversed as is the case
with the vehicle inside mirror or the
outside mirror.
 When “Rear Camera Delay Control”
is on, the rear view image from the rear
view camera will be displayed on the
center information display for a certain
amount of time after the shift lever (MT
models) or select lever (AT models) is
shifted from “R” to another position.
When any of the following conditions
are met, the rear view image will be
canceled: - The select lever is shifted to “P”
(AT models)
- The vehicle speed becomes
approximately 5 mph (8 km/h) or
more
- The parking brake is engaged
- 9 seconds have elapsed since
the shift lever (MT models) or select
lever (AT models) was shifted from
“R” to another position To turn the function
on and off, refer to
"General settings" 
P161.
 It may be difficult to see the image of
the rear view camera in the following
cases. This is not a malfunction of the
camera. - The vehicle is in a dark place (at
night, in a tunnel, etc.).
- The vehicle is in an extremely hot
or cold place.
- An object (such as raindrops,
snow, dirt, etc.) that disturbs the
view of the rear view camera sticks
to the lens of the camera.
- Strong light is shining directly on
the camera lens (occasionally, there
are vertical lines on the screen).
■
Viewing Range on the Screen
Range of view
Range of view
CAUTION
The range that can be viewed with
the rear view camera is limited.
Always be sure to check with your
eyes when moving backward and
proceed slowly. Otherwise, it may
cause an accident or injury.
601498601499
B5=B8.ERRN 265 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Rear View Camera

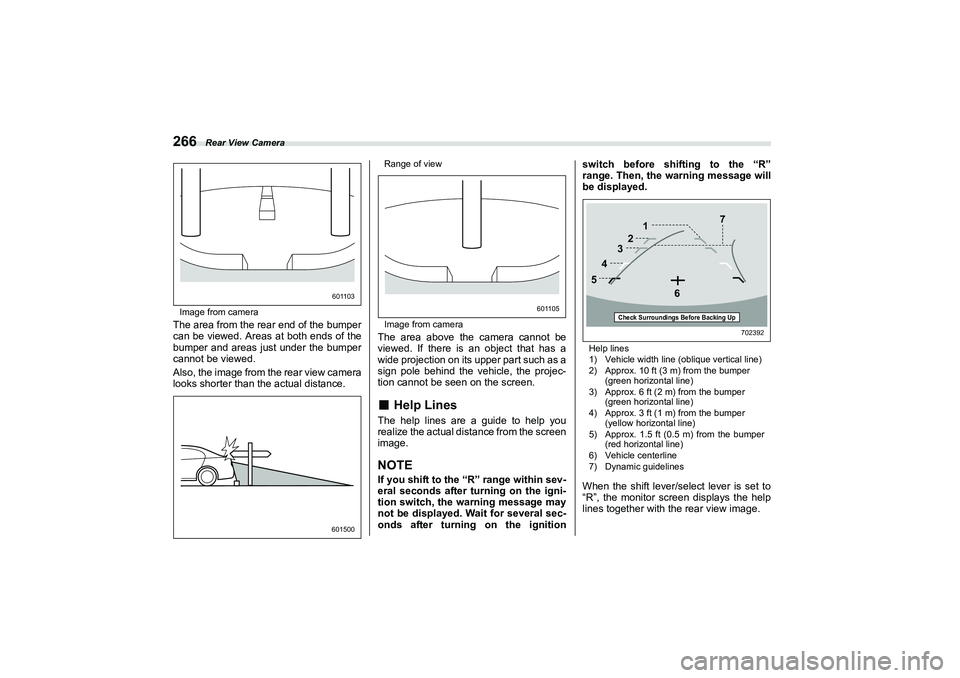

266Image from cameraThe area from the rear end of the bumper
can be viewed. Areas at both ends of the
bumper and areas just under the bumper
cannot be viewed.
Also, the image from the rear view camera
looks shorter than the actual distance.
Range of view
Image from cameraThe area above the camera cannot be
viewed. If there is an object that has a
wide projection on its upper part such as a
sign pole behind the vehicle, the projec-
tion cannot be seen on the screen.■
Help Lines
The help lines are a guide to help you
realize the actual distance from the screen
image.NOTEIf you shift to the “R” range within sev-
eral seconds after turning on the igni-
tion switch, the warning message may
not be displayed. Wait for several sec-
onds after turning on the ignitionswitch before shifting to the “R”
range. Then, the warning message will
be displayed.
Help lines
1) Vehicle width line (oblique vertical line)
2) Approx. 10 ft (3 m) from the bumper
(green horizontal line)
3) Approx. 6 ft (2 m) from the bumper (green horizontal line)
4) Approx. 3 ft (1 m) from the bumper (yellow horizontal line)
5) Approx. 1.5 ft (0.5 m) from the bumper (red horizontal line)
6) Vehicle centerline
7) Dynamic guidelinesWhen the shift lever/select lever is set to
“R”, the monitor screen displays the help
lines together with the rear view image.
601103601500
601105
702392
5 4
3
2 1
6 7
Check Surroundings Before Backing Up
B5=B8.ERRN 266 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

BSD/RCTA (If Equipped)
270driver check the rear and side areas of the
vehicle when moving backward.
If the system detects a vehicle
approaching from either side while moving
backward, it warns the driver of dangers in
the following way.
The BSD/RCTA approach indicator
light(s) on the outside mirror(s) flashes.
 A warning buzzer sounds.
 An icon appears on the center informa-
tion display.
▽ Limitations of the detectability
of RCTA
Since the detectability of RCTA is limited,
the RCTA may not operate properly in
angled parking.
Example 1
1) The detection range of the radar sensors
2) Area out of detection range of the radar sensors
A) Vehicle that may not be detected
B) Parked vehicle
Example 2
1) The detection range of the radar sensors C) Vehicle that may be detected
NOTEThe system may detect that a vehicle
(C) is passing in fr
ont of your vehicle.
Always be sure to check the
surroundings with your eyes when
reversing the vehicle.■
System Operation
▼
Operating conditions
The BSD/RCTA will operate when all of
the following conditions are met.
 The ignition switch is in the “ON” posi-
tion.
 The BSD/RCTA warning indicator and
BSD/RCTA OFF indicator are turned off.
 The vehicle is driven at speeds above
7 mph (12 km/h) (except when reversing).
 The shift lever/select lever is in the “R”
position (RCTA only).
The BSD/RCTA will not operate in the
following situations.
 The BSD/RCTA OFF indicator
appears.
 The vehicle speed is below 6 mph (10
km/h) even when the BSD/RCTA OFF
indicator does not appear (except when
reversing).
701818
2
A B
1
WARNING
An approaching vehicle (A) may not
be detected because the detection
range is limited by the parked vehi-
cle (B). Always be sure to check the
surroundings with your eyes when
reversing the vehicle.
701819
1
C
B5=B8.ERRN 20 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

BSD/RCTA (If Equipped)
275
Starting and Operating7
– CONTINUED –
- When a bicycle carrier or other
item is fitted to the rear of the
vehicle
- When using a chassis dynamom-
eter or free roller device, etc.
- When running the engine and
making the wheels rotate while
lifting up the vehicle
 If the ignition switch is turned to the
“OFF” position, the last known status
of the system is maintained. For
example, if the ignition switch is turned
to the “OFF” positi on with the BSD/
RCTA deactivated, the BSD/RCTA
remains deactivated the next time the
ignition switch is turned to the “ON”
position.
■
Certification for the BSD/
RCTA
 The U.S. and other FCC compliant
countries
FCC ID: OAYSRR3A This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.

Canada-spec. models
CAUTION
FCC WARNINGChanges or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
702883
B5=B8.ERRN 25 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Reverse Automatic Braking (RAB) System (If Equipped)
2801) EyeSight warning indicator
2) RAB warning indicator
3) RAB OFF indicatorThe ignition switch is in the “ON” posi-
tion.
 The EyeSight warning indicator is off.
 The RAB warning indicator is off.
 The RAB OFF indicator is off.
 The select lever is in the “R” position.
Sonar Audible Alarm
 The sonar audible alarm is set to “ON”.
 The vehicle speed is from 0 to 9 mph (0
to 15 km/h).
Automatic Braking
 The automatic braking is set to “ON”.
 The vehicle speed is from 1 to 9 mph
(1.5 to 15 km/h).
NOTE In the following cases, the Reverse
Automatic Braking (RAB) system will
not operate. Promptly contact a
SUBARU dealer to have the system
inspected. - The EyeSight warning indicator
is illuminated.
- The RAB warning indicator is
illuminated.
 In the following cases, the Reverse
Automatic Braking (RAB) system
cannot be operated. - The RAB OFF indicator is illumi-
nated.
 In the following cases, the functions
may not be able to properly work.
Promptly contact a SUBARU dealer to
have the system inspected. - A sticker, paint, or a chemical is
applied to the sonar sensors or the
rear bumper near the sonar sensor.
- The rear bumper is modified.
- The rear bumper has been
removed and attached.
- The ground clearance is
changed due to the vehicle’s
loading condition or modification.
- There is damage to the sonar
sensors or the rear bumper near the
sonar sensor. - The rear bumper is exposed to
strong impact, or the rear bumper is
deformed.
 On a steep hill, the system’s auto-
matic braking ability will be reduced.
 The system is designed to avoid
collisions by automatic hard braking
when the vehicle’s reversing speed is
less than approximately 3 mph (5 km/
h). However, the system does not guar-
antee that the vehicle will be able to
avoid collisions in any situation.
 If the vehicle is reversed at an
extremely slow speed, the driver’s
operation may be prioritized. In this
case, automatic braking will not
operate.
 The system may not be able to
detect and apply the brake with the
following objects. - Sharp or thin objects such as
poles, fences and ropes which may
not reflect the sound wave emitted
from the sonar sensor.
- Objects that are too close to the
rear bumper when the select lever is
set to the “R” position.
- Objects with a surface which
may not reflect the sound wave
emitted from the sonar sensor such
as a chain link fence.
 Objects the system is not designed
to detect and apply brake.
3 1
2
702885
B5=B8.ERRN 20 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

If You Park Your Vehicle in an Emergency
3029-1. If You Park Your Vehiclein an EmergencyThe hazard warning flasher should be
used in day or night to warn other drivers
when you have to park your vehicle under
emergency conditions.
Avoid stopping on the road. It is best to
safely pull off the road if a problem occurs.
The hazard warning flasher can be acti-
vated regardless of the ignition switch
position.
Turn on the hazard warning by pressing
the hazard warning flasher switch. Turn it
off by pressing the switch again.
When the hazard warning flasher are
flashing, the corresponding turn signal
indicator will also flash.
NOTEWhen the hazard warning flasher is on,
the turn signals do not work.
9-2. Maintenance ToolsYour vehicle is equipped with the following
maintenance tools.
Jack
 Jack handle
 Screwdriver
 Towing hook (eye bolt)
 Wheel nut wrench
901197
B5=B8.ERRN 302 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Flat Tires

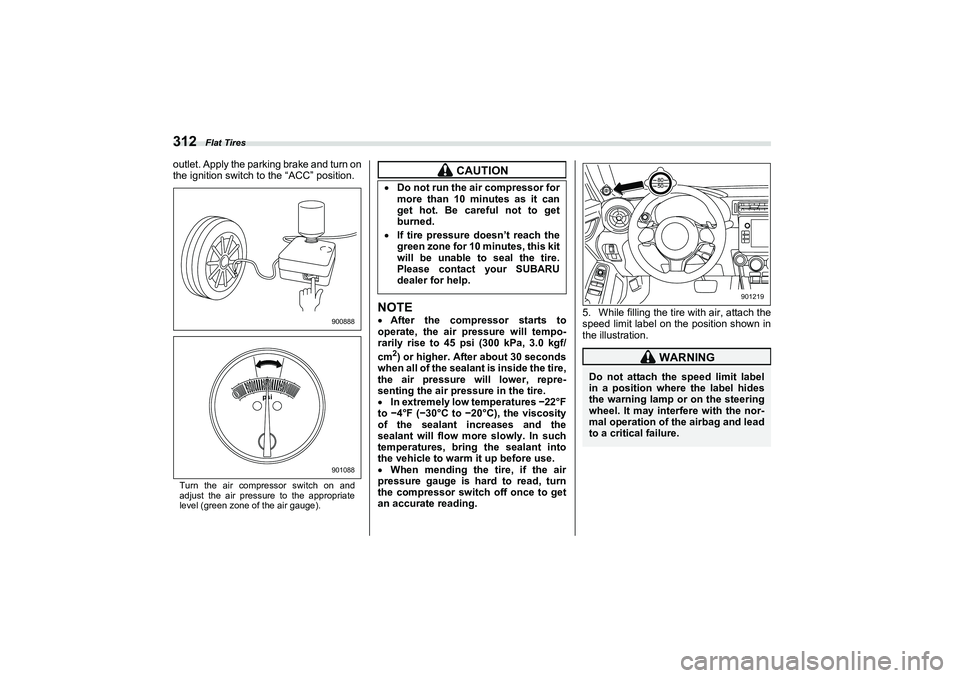

312outlet. Apply the parking brake and turn on
the ignition switch to the “ACC” position.Turn the air compressor switch on and
adjust the air pressure to the appropriate
level (green zone of the air gauge).
NOTEAfter the compressor starts to
operate, the air pressure will tempo-
rarily rise to 45 psi (300 kPa, 3.0 kgf/
cm
2) or higher. After about 30 seconds
when all of the sealant is inside the tire,
the air pressure will lower, repre-
senting the air pressure in the tire.
 In extremely low temperatures −22°F
to −4°F ( −30°C to − 20°C), the viscosity
of the sealant increases and the
sealant will flow more slowly. In such
temperatures, bring the sealant into
the vehicle to warm it up before use.
 When mending the tire, if the air
pressure gauge is hard to read, turn
the compressor switch off once to get
an accurate reading. 5. While filling the tire with air, attach the
speed limit label on the position shown in
the illustration.
900888
psi
4040
20203030
0000
901088
CAUTION

Do not run the air compressor for
more than 10 minutes as it can
get hot. Be careful not to get
burned.If tire pressure doesn’t reach the
green zone for 10 minutes, this kit
will be unable to seal the tire.
Please contact your SUBARU
dealer for help.
WARNING
Do not attach the speed limit label
in a position where the label hides
the warning lamp or on the steering
wheel. It may interfere with the nor-
mal operation of the airbag and lead
to a critical failure.
901219
B5=B8.ERRN 312 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
