2022 SUBARU ASCENT windshield wipers

PURPOSE OF THIS GUIDE
WELCOME................. 4
IMPORTANT SAFETY
INFORMATION.............. 4
OWNER’S RESOURCES....... 4
IN CASE OF EMERGENCY..... 5
TOWING YOUR ALL-WHEEL
DRIVE SUBARU............. 6
ENTRY AND EXIT
KEYLESS ENTRY............ 7
KEYLESS ACCESS WITH
PUSH BUTTON START....... 9
POWER REAR GATE (PRG)....11
INSTRUMENT PANEL........14
GAUGES AND WARNING
LIGHTS
COMBINATION METER.......16
WARNING AND INDICATOR
LIGHTS....................17
CONTROLS
INSTRUMENT PANEL
SWITCHES (LOWER LEFT).....18
AUDIO CONTROLS...........18
ADVANCED ADAPTIVE
CRUISE CONTROL..........19
i/SET SWITCH...............19
VIEW/ENTER SWITCH........20LIGHT CONTROLS...........20
TURN SIGNALS.............21
WINDSHIELD WIPERS........22
REAR WINDOW WIPER.......23
ONE-TOUCH INTERIOR
LIGHTING..................23
OVERHEAD CONSOLE........24
GETTING COMFORTABLE
SEATING...................26
TILT AND TELESCOPIC
STEERING COLUMN.........29
POWER EXTERIOR MIRRORS . . 30
REAR VIEW MIRROR.........31
CABIN VIEW MIRROR.........32
POWER WINDOWS..........32
POWER MOONROOF........33
CLIMATE CONTROL..........34
ACCESSORY CONNECTIONS . . 40
OPERATING THE VEHICLE
IGNITION SWITCH...........41
PUSH-BUTTON IGNITION
SWITCH...................41
STARTING THE VEHICLE......41
DRIVING THE VEHICLE.......42
ELECTRONIC PARKING
BRAKE (EPB)...............43
X-MODE
®..................45
TURNING OFF THE VEHICLE...46
TABLE OF CONTENTS

8Advanced Adaptive Cruise Control (p. 19)
9Multi-Function Display (MFD) (p. 20)
10Windshield Wipers (p. 22)
11SUBARU STARLINK
®Multimedia Touchscreen (p. 61)
12Climate Control System (p. 34)
13CVT Select Lever (p. 42)
INSTRUMENT PANEL
15

VIEW/ENTER SWITCH
Use the arrows to cycle through
useful information in the
Multi-Function Display (MFD).
Navigate to the “Settings” menu
and hold the “VIEW/ENTER”
switch to adjust a number of
settings.
For more information, please
refer to “Instruments and
Controls” in your Owner’s Manual.
LIGHT CONTROLS
1AUTO:Rotate the end of the lever to set
your headlights to automatically turn on
or off, depending on the level of light
outside. When in the “AUTO” position,
the headlights will automatically turn on
when the windshield wipers operate
several times.
NOTE: The sensitivity of the automatic
headlights can be adjusted through the
STARLINK
®multimedia display.
2Parking Lights:Rotate the end of the lever to turn on the instrument panel
illumination, parking lights, side marker lights, tail lights, and license plate lights.
3Headlights:Rotate the end of the lever to turn on the headlights, instrument panel
illumination, parking lights, side marker lights, tail lights, and license plate lights. To
flash the headlights, pull the lever toward you, then release. The high beams will stay
on as long as you hold the lever.
4High Beams:Push the lever forward to change from low beam to high beam. When
set to the “AUTO” position, pushing the lever forward also activates the High Beam
Assist (HBA) system. Pull the lever back to center to return to low beam.
5Fog Lights:If equipped, rotate the dial to turn on the fog lights when the headlights
are on low beams in the “
” or “AUTO” position.
CONTROLS
20

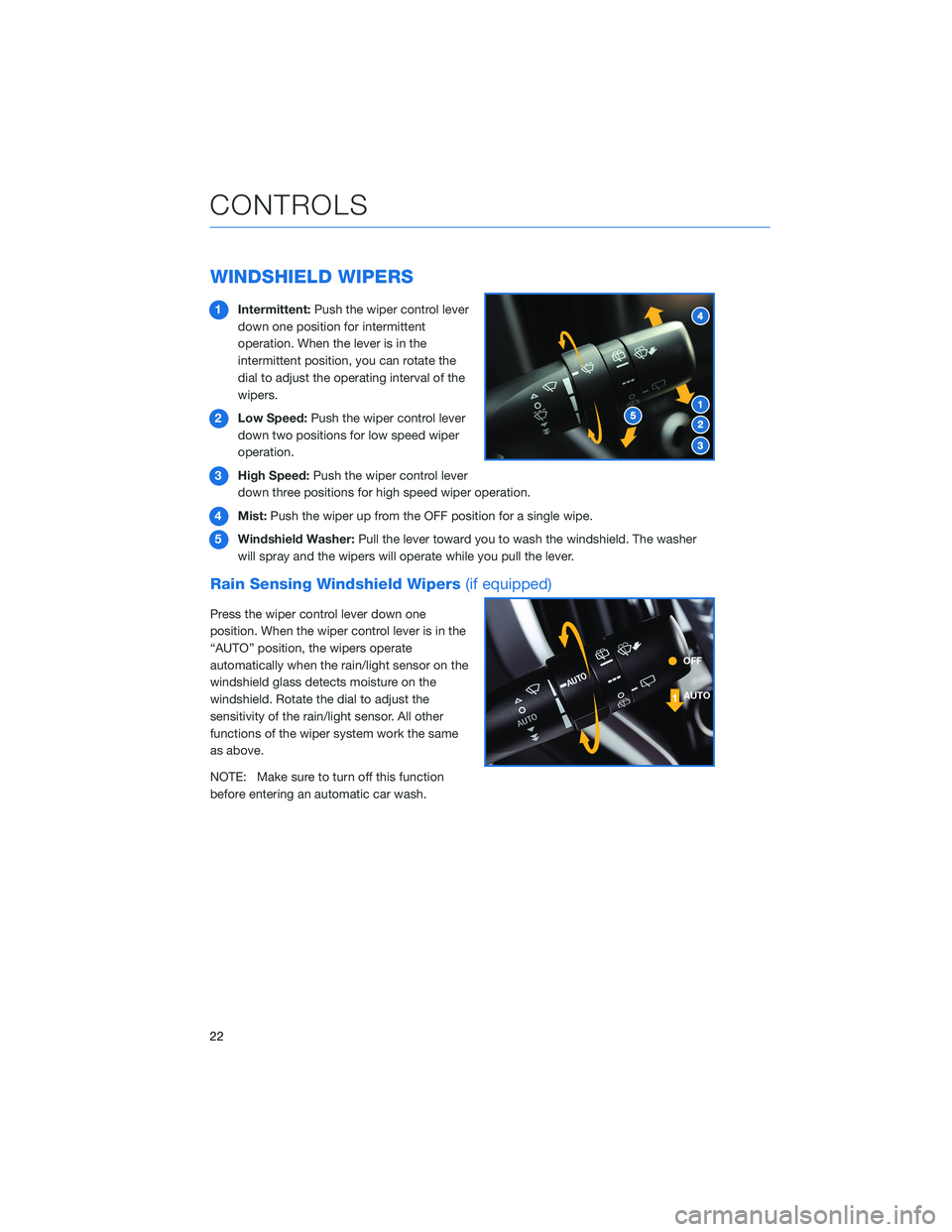

WINDSHIELD WIPERS
1Intermittent:Push the wiper control lever
down one position for intermittent
operation. When the lever is in the
intermittent position, you can rotate the
dial to adjust the operating interval of the
wipers.
2Low Speed:Push the wiper control lever
down two positions for low speed wiper
operation.
3High Speed:Push the wiper control lever
down three positions for high speed wiper operation.
4Mist:Push the wiper up from the OFF position for a single wipe.
5Windshield Washer:Pull the lever toward you to wash the windshield. The washer
will spray and the wipers will operate while you pull the lever.
Rain Sensing Windshield Wipers(if equipped)
Press the wiper control lever down one
position. When the wiper control lever is in the
“AUTO” position, the wipers operate
automatically when the rain/light sensor on the
windshield glass detects moisture on the
windshield. Rotate the dial to adjust the
sensitivity of the rain/light sensor. All other
functions of the wiper system work the same
as above.
NOTE: Make sure to turn off this function
before entering an automatic car wash.
CONTROLS
22

S
SAFETY AND SECURITY OVERVIEW . . 81
SEATING . . . . . ............. 26
Head Restraint Adjustment . .....28
Manual Seats . .............26
Power Driver’s Seat (if equipped) . . . 27
Seatbelt Adjuster ............29
SETTINGS AND UPDATES OVERVIEW . 84
Connect to Home Wi-Fi . . . . . . . . 84
Performing Software Updates.....84
SOUND . . . . . . . . . . . . . . ..... 85
SPARE TIRE . . . . ............ 53
STARTING THE VEHICLE . . . . . . . . . 41
Without Push-button Ignition .....41
With Push-button Ignition.......41
STEERING RESPONSIVE HEADLIGHTS
(SRH) . . . . . . . ........... 103
STEERING WHEEL CONTROLS..... 64
Advanced Adaptive Cruise Control . . 97
Customizing EyeSight
®Settings . . . 98
STEREO CAMERA PRECAUTIONS . . 104
SUBARU STARLINK
®IN-VEHICLE
APPS . . . . . . . ........... 76
aha
®by HARMAN ...........76
Android Auto™ . . . ..........77
Apple CarPlay
®.............77
Pandora®................76
SiriusXM®Travel Link . . . . . . . . . . 77
SUBARU STARLINK®MOBILE APP . . 78
SUBARU STARLINK®WI-FI HOTSPOT . 83
T
TEXT MESSAGES . . . . . ........ 75
TILT AND TELESCOPIC STEERING
COLUMN . . . . . ........... 29TIRE PRESSURE MONITORING SYSTEM
(TPMS) . . . . . . . . . . ........ 59
TOUCHSCREEN . . . . . . . . ...... 63
TOWING YOUR ALL-WHEEL DRIVE
SUBARU................. 6
TRAILER TOWING CAPACITY . . . . . . 58
TURNING OFF THE VEHICLE . . . . . . 46
Without Push-button Ignition . . . . . 46
With Push-button Ignition . . . . . . . 46
TURN SIGNALS . . . . .......... 21
V
VIEW/ENTER SWITCH . . . . . ..... 20
VOICE RECOGNITION.......... 64
Common Commands..........66
Tips....................65
W
WARNING AND INDICATOR LIGHTS . . 17
WELCOME . . . . . . . . . ......... 4
WI-FI . . . . ................ 122
Connecting to a Wi-Fi Network . . . 122
Wi-Fi Hotspot Subscription.....124
WINDSHIELD GLASS AND
DASHBOARD . . ........... 104
WINDSHIELD WIPERS . . . ....... 22
Rain Sensing Windshield Wipers . . . 22
X
X-MODE
®.................. 45
Hill Descent Control (HDC) . . .....45
INDEX
