198Radiator blinds199Fuel filler flap199AdBlue200Petrol201Diesel202Vehicle battery and fuses202Vehicle battery204Using the jump-starting cable205Fuses205Fuses in the dash panel207Fuses in the engine compartment208Wheels208Tyres and rims209All-season or winter tires209Snow chains209SEAL tyres210Spare and emergency spare wheel210Changing the wheel and raising the vehicle212Breakdown kit213Tyre pressure214Tyre pressure monitor214Tyre pressure monitoring system215Wheel bolt cover caps215Full wheel frame216Storage space and interior equipment216Equipment in the boot216Emergency equipment217Storage compartment for the reflective vest217Fasteners in the boot218Bag hooks in the boot218Cargoelements in the luggage compartment218Fastening nets219Sliding hooks219Net partition219Double-sided floor covering219Floor covering in the boot220Roll-up luggage compartment cover220Variable loading floor in the boot221Partition in the boot221Through-loading bag222Overview of passenger compartment223Storage pockets on the inner sides of the
front seats223Parking ticket holder224Bottle tray in the storage compartment of the
front door224Bottle tray in the storage compartment of the
rear door224USBConnections225Hook on the middle body pillar225Glasses compartment225Pen holder226Storage compartment for cards, coins and SD
card226Storage compartment for cards in the storage
area on the driver

Warning lightsFunctionality
WARNING
Disregarding the lighting up of the warning lights and
the associated messages on the display of the instru-
ment cluster can lead to accidents, serious injuries or
damage to the vehicle.
The warning lights in the instrument cluster indicate
certain functions or faults.
The illumination of some of the indicator lights may
be accompanied by acoustic signals and messages in
the instrument cluster display.
Colour display of the indicator lights
Depending on the vehicle equipment, the colour
scheme of the indicator lights may vary. The coolant
indicator light can, e.g. be shown in colour as follows.
- colour display
- black and white display
Additional indicator lights
Depending on the meaning, the additional indicator
light will also light up in the display along with some
of the indicator lights.
- Hazard
- Warning
Warning lights overview
After switching on the ignition, some indicator lights
light up briefly as a function test of the vehicle sys-
tems. If the tested systems are in order, the respec-
tive indicator lights go out a few seconds after the
ignition is switched on or after the engine has been
started.
For further details

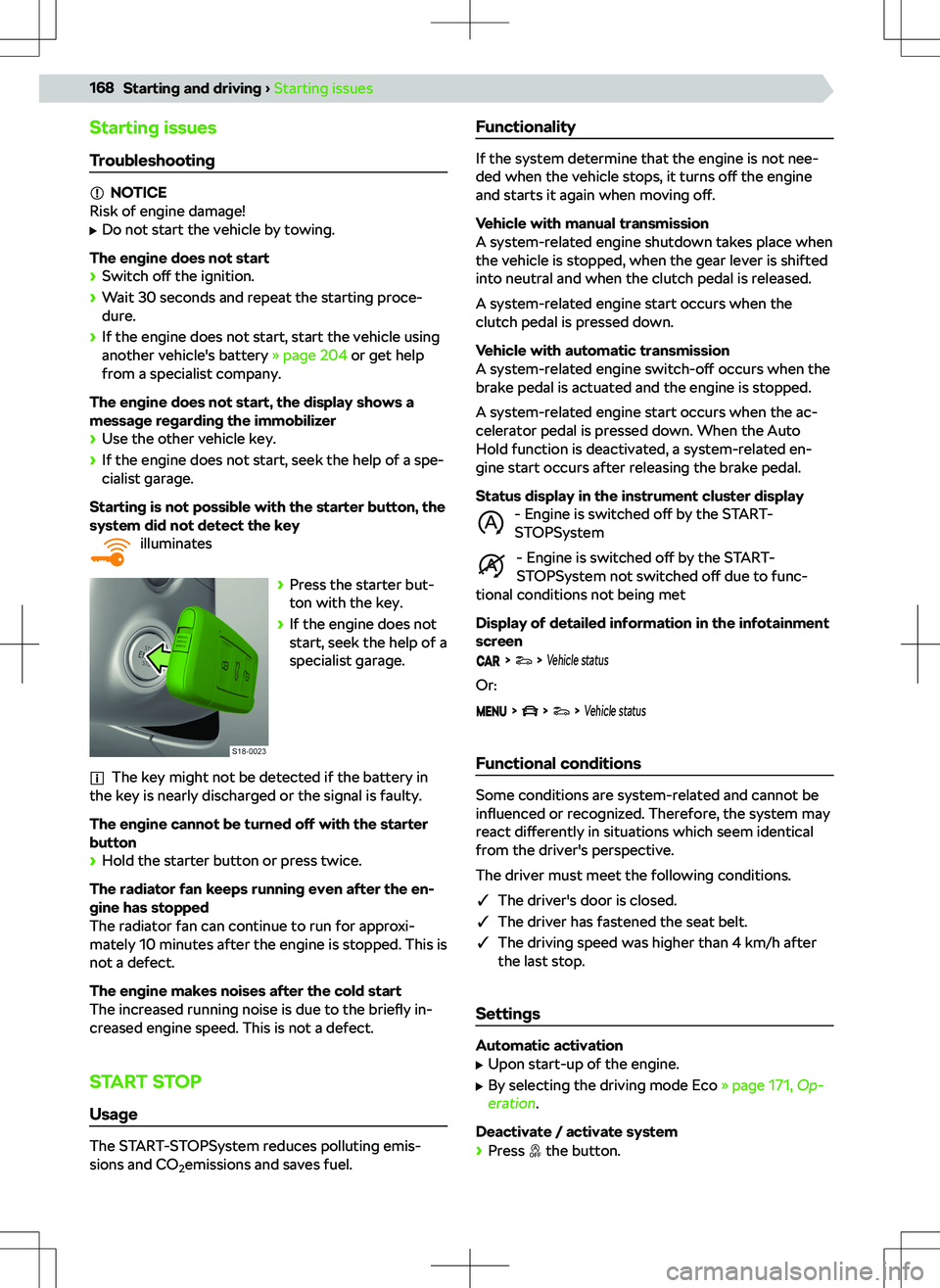

Starting issues
Troubleshooting
NOTICE
Risk of engine damage!

When the system is deactivated, the symbol lights
up in the button .
If a system-related engine switch-o

Driver assist systems
Braking and stabilising systems Overview
Stabilisation control (ESC)
ESC helps to stabilize the vehicle in borderline situa-
tions (e.g. when the vehicle starts to skid). ESC
brakes the individual wheels to maintain the direc-
tion of travel.
flashes - ESC is engaged
ESC Sport
ESC Sport allows for a sportier driving style.
lit up - ESC Sport is activated
Traction control (TCS)
ASR helps to stabilize the vehicle when accelerating
or driving on low-grip roads. ASR reduces the drive
power transmitted to the wheels when the wheels
spin.
flashes - ASR is engaged
Antilock braking system (ABS)
ABS helps maintain control of the vehicle during
emergency braking. An ABS intervention is noticea-
ble by pulsating movements of the brake pedal.
Motor Slip Regulation (MSR)
MSR helps to maintain control of the vehicle in the
event of a sudden reduction in speed, e.g. on icy
roads. If the drive wheels lock, MSR increases the
engine speed. This reduces the braking e

Engine electronics
Troubleshooting
Petrol engine control faulty illuminates
Driving in emergency mode is possible - a
noticeable reduction in engine performance may oc-
cur.

Fuses in the engine compartment
Overview
Access to the fuses

VIN display
The display of VIN takes place in the infotainment
under the following menu item.
Menu item for the Service
Or:
Menu item for the Service
Engine number
The engine number is embossed on the engine block.
Maximum permissible weights
The maximum permissible weights are listed on the
nameplate.
The type plate is located at the bottom of the middle
body pillar of the vehicle.
AMaximum permissible gross weightBMaximum permissible towed weight (towing ve-
hicle and trailer)CMaximum permissible front axle loadDMaximum permissible rear axle load
Maximum permissible towed weight
The specified value is valid for altitudes up to 1000
m above sea level.
The engine output falls as the height increases, as
does the ability to climb.
Therefore, for every additional 1,000 m in height (or
part), the maximum permissible towed weight must
be reduced by 10 %.
The towed weight is made up of the actual weights
of the loaded towing vehicle and the loaded trailer.
Payloads
It is possible to calculate the approximate maximum
payload from the di
