2022 SKODA KAROQ tow

Fatigue detection system248
Tyre pressure monitoring
249
Towing device and trailer
250
Hitch
250
Using hitch
252
General Maintenance
Care and maintenance
255
Service work, adjustments and technical
alterations
255
Cleaning and care
256
Inspecting and replenishing
261
Fuel
261
AdBlue

If your vehicle is left on the road due to an unexpected fault, ywe can provide
services to keep you moving as part of the mobility guarantee, including the
following: breakdown assistance at the breakdown location and towing to the

If there is a fault in the turn signal system, the warning light flashes at twice its
normal rate (does not apply when towing).
When the hazard warning light system is switched on, this will cause all of the
turn signal lights as well as both warning lights to flash.
o Trailer turn signal lights

Manual folding mirrors
The mirror can be manually folded towards the side windows. To put it back to
its original position, it should be folded back from the side window until it audi-
bly clicks into place.
Automatic folding in/back of both mirrors
The exterior mirrors are automatically collapsed after locking the vehicle in the
park position. After unlocking the vehicle, the mirrors are folded back to the
driving position

Luggage compartment coverFig. 139
Remove the luggage compartment cover
Fig. 140
Luggage compartment cover stowed behind the rear seats

The area under the variable loading floor can be used to stow small objects.
The maximum permissible load of the variable loading floor is 75 kg. For the
transport of heavy loads, adjust the variable loading floor in the lower position.
“Parking position”

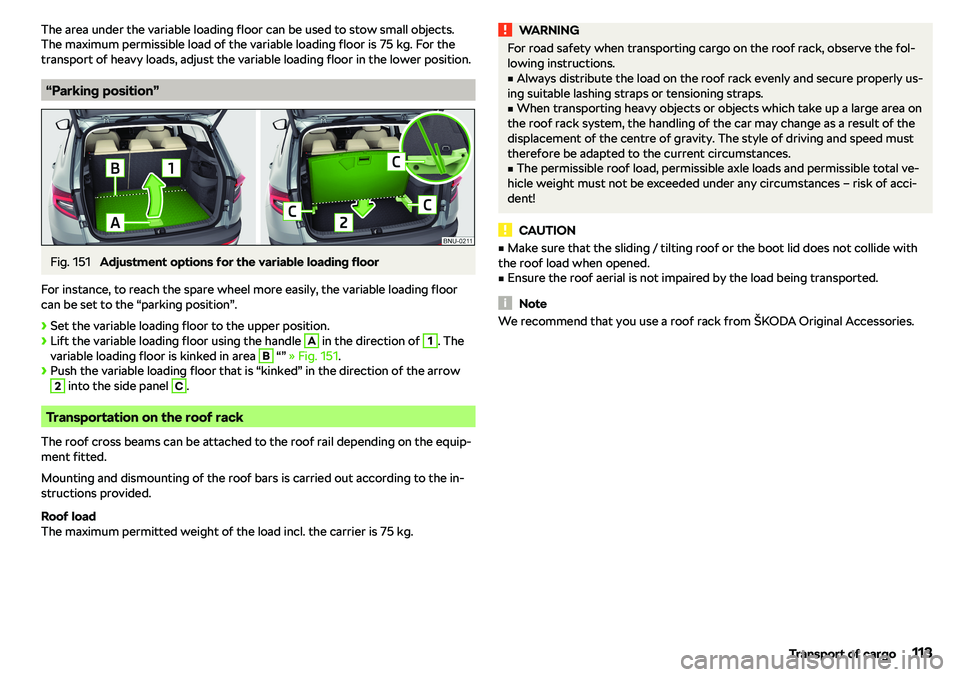

Fig. 151
Adjustment options for the variable loading floor
For instance, to reach the spare wheel more easily, the variable loading floor
can be set to the “parking position”.

Fig. 294
Swivel tow bar

WARNINGAlways properly secure the fire extinguisher, there is a risk of injury in the
event of sudden braking or a vehicle collision.
Vehicle tool kit
Fig. 313
Vehicle tool kit
The box with the tool is located in the emergency or spare wheel area. The ve-
hicle tool kit may be stored in a bag in the luggage compartment.
Depending on the vehicle configuration, it may not contain all the compo-
nents listed in the on-board tool kit.
Adapter for anti-theft wheel bolts
Towing eye
Clamps for removing the wheel trims
Jack with sign
Crank for the jack
Wheel wrench
Extraction pliers for the wheel bolt caps
Breakdown kit
12345678WARNING
v The factory-supplied lifting jack is only intended for your model of vehi-
cle. Under no circumstances attempt to lift other vehicles or loads with this
