2022 SKODA KAROQ display

Tutorial videosFig. 3
Tutorial videos
The operation of some vehicle functions can be displayed in the form of videoinstructions.
Show menu with video instructions

Fuel gaugeFig. 32
Fuel gauge: version 1/version 2
The display only works if the ignition is switched on.
The capacity of the fuel tank is approximately 50 litres for vehicles with front- wheel drive, and approximately 55 litres for vehicles with four-wheel drive.
If the fuel level reaches the reserve level
A
, the

Display in the digital instrument clusterFig. 34
Display versions / example of the classic display
Display versions (from the left)

Some warning lights can be accompanied by acoustic signals and messages in
the display of the instrument cluster.
After switching on the ignition, some warning lights light up briefly as a func-
tion test. If the tested systems are OK, the corresponding warning lights go
out a few seconds after switching on the ignition or after starting the engine.
Warning lights in the display
Depending on the significance, the warning light

Function surfaces and screen display

Note
vIf warning messages are displayed, these messages must first be confirmed
to access the main menu.
v
The display language can also be set in Infotainment

Display warning light AMeaningQuickly flashes green for 2 seconds.The auxiliary heating is blocked, e.g.
because the tank is nearly empty or
there is a fault in the auxiliary heating.Flashes red for 2 seconds.The switch off signal was not re-
ceived.Lights up orange for 2 seconds, then
green or red.The battery is weak, however the
switching on or off signal was re-
ceived.Lights up orange for 2 seconds, then
flashes green or red.The battery is weak, however the
switching on or off signal was not re-
ceived.Flashes orange for 5 seconds.The battery is discharged, however
the switching on or off signal was not
received.
Replace the battery

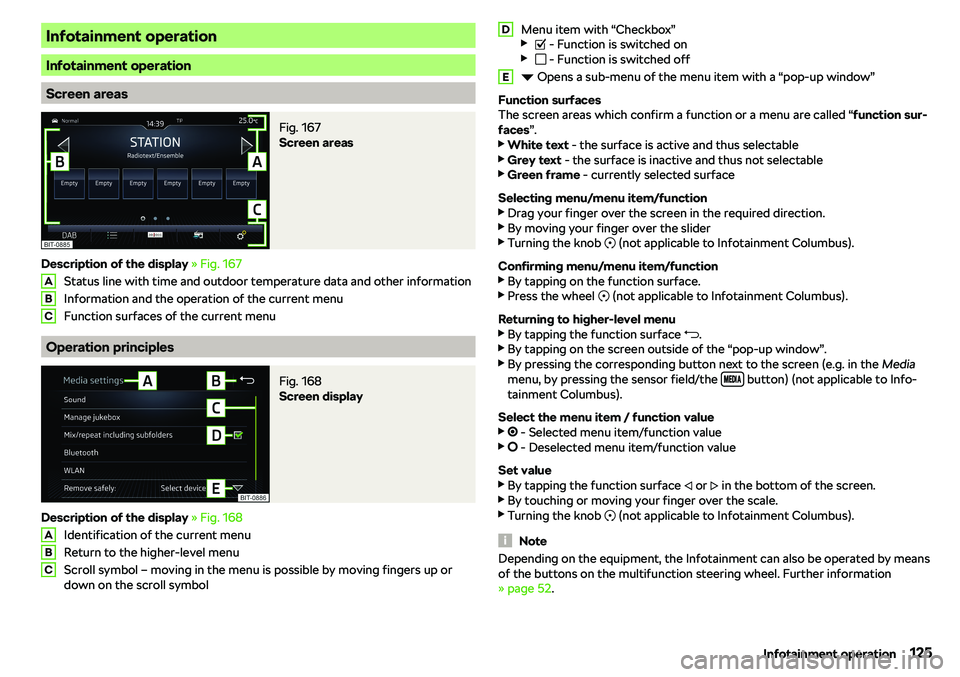

Infotainment operation
Infotainment operation
Screen areas
Fig. 167
Screen areas
Description of the display
