2022 SKODA KAROQ child lock

GroupPassenger seat with activatedfront airbagPassenger seat with deactivated front airbagRear seatsOutsideRear seatCentre a)0
up to 10 kgXU b)UU0
up to 13 kgXU b)UU1
9-18 kgUFUUU2
15-25 kgUFUUU3
22-36 kgUFUUUa)
It is forbidden to install a child seat with a support base on the middle rear seat.
b)
Set the height-adjustable front passenger seat as high up as possible.
UThe seat is suitable for the use of approved child seats in this weight group category “Universal”.UFThe seat is suitable for the use of approved forward-facing child seats in the “Universal” weight group category.XThe seat is not suitable for children in this weight group.Fastening systems
attachment points of the  system
Fig. 27
Labels of the system 
 is a system for securing child seats quickly and safely.
Two locking eyes are located between the seat backrest and the seat cushion
of the outer rear seats and front passenger seat for fixing the  system
child seat in place.
First, remove the caps A in order to access the locking eyes

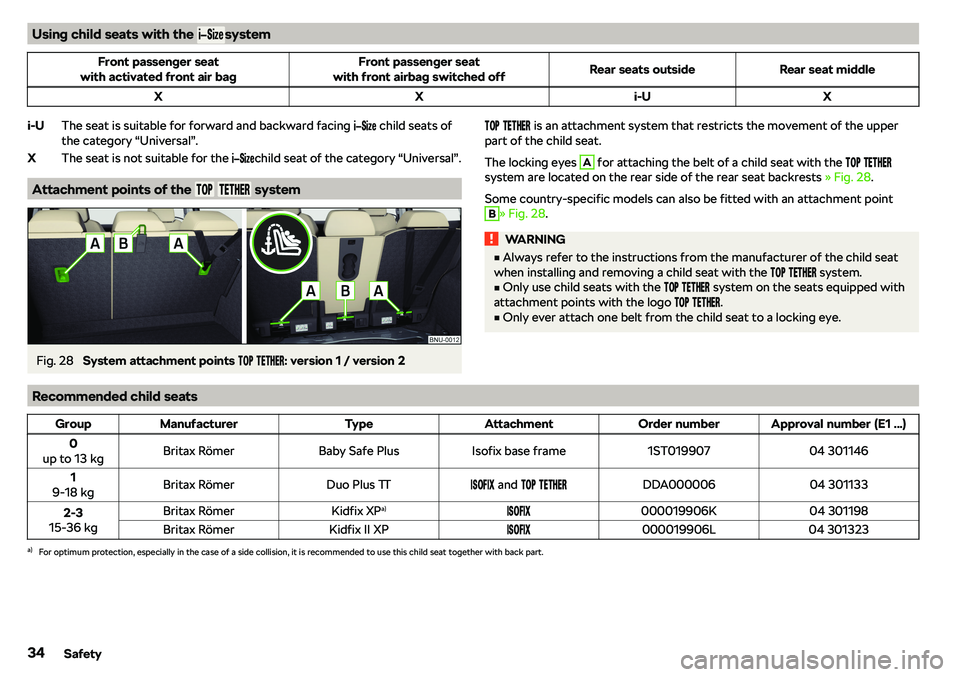

Using child seats with the f fxbsystemFront passenger seat
with activated front air bagFront passenger seat
with front airbag switched offRear seats outsideRear seat middleXXi-UXThe seat is suitable for forward and backward facing f fxb child seats of
the category “Universal”.
The seat is not suitable for the f fxbchild seat of the category “Universal”.
Attachment points of the   system
Fig. 28
System attachment points

 : version 1 / version 2
i-U
X
 is an attachment system that restricts the movement of the upper
part of the child seat.
The locking eyes A
for attaching the belt of a child seat with the  
system are located on the rear side of the rear seat backrests

Child safety lockFig. 51
Rear door: Activate / deactivate child safety device
Fig. 52
Child safety lock with electric
operation

Children and safety29
Child safety lock
62
Child seat
29
Classification31
I-Size34
Installation location31, 34
ISOFIX32, 33
on the front passenger seat30, 31
Place of installation33
TOP TETHER34
Cigarette lighter
103
Cleaning the vehicle Interior
260
Outside258
Washing257
Climatronic
114
air distribution control117
Automatic operation116
Operate in Infotainment116
Operating elements115
Clock Change display
127
Clothes hook
98
Cockpit
37
Lighting75
Columbus external module
124
infotainment Description122
Comfort indicating
72
COMING HOME
74
compartments
92
Compatible sources Pictures
154
Video DVD156
Component protection
256
Computer see multifunction display
52
Conditions for pairing
160
Conference call166
Configuration wizard
129
Connect external device to the Infotainment hotspot
171
Connect Infotainment to the hotspot of the ex- ternal device
171
Convenience operation Tilting / sliding sunroof
69
Coolant
267
Checking268
Refilling268
Temperature display38
Warning light47
CORNER See Fog lights with CORNER function
74
Correct routing of seat belt
22
Correct seating position
19, 21
Crew Protect Assist
242
Cruise Control System
229
Cup holders
95
D
DAB
144
additional information144
Radio Text and images presentation144
Set136, 143
DAB Slideshow
144
Data connection Amundsen
169
CarStick169
Internet169
rSAP170
Data Connection Columbus
169
SIM card170
Data roaming
135
Data transfer of external devices
129
Date133, 141
DAY LIGHT see Daytime running lights
71
Daytime running lights
71
DCC
49, 240
De-icing the windscreen and rear window
78
Deactivation Airbag
28
default settings
199
Default settings
134
Delayed locking of the boot lid See boot lid
64
Delete destination
190
Demo mode
140, 191
Destination Enter destination using the address
181
enter in map182
Favourite190
final destinations183
Home address184
Image with GPS187
Map point182
Memory190
Types of destination search/destination en- try
180
Destination details
190
Destination management Destination details
190
Favourite190
Storage190
Diesel
263
Diesel fuel
263
Diesel particle filter (DPF)
48
Digital clock
51
Digital instrument cluster
39
Code options40
Display40
Map189
306Index

Sets the map display139
Turn the map display on / off178
Digital service schedule
55
Dipped beam
71
Dipstick
267
Directive 2014/53/EU
9
Disclaimer applications
122
external devices122
Mobile phones122
Display Coolant temperature
38
Fuel level39
Gear changes51
In the instrument cluster50
Display of a low temperature
49
Display of the instrument cluster Menus in the display of the instrument clus-ter
54
Display POIs in the map
182
Distance warning
238
Diverting calls
137
Door Child safety lock
62
Emergency locking288
Emergency locking of the driver

Roller blindsee Luggage compartment cover108
Roof Load
113
Roof racks
113
route new route
194
Online Route Import194
route list194
Route
190
Store route193
Route calculation
191
Trailer towing191
Route information
193
route list
194
Route options
139
Route schedule
193
rSAP
160
Data connection170
Running in Brake pads
204
Engine210
Tyres272
S
SafeLock
60
Safe removal of the data source
134, 141
Safety
19
Airbag25
Child safety29
Child seats29
Correct seating position19
Headrests89
I-Size34
ISOFIX32, 33
TOP TETHER34
SAFE, SAFELOCK See SafeLock
60
Save radioSave channel145
Saving electrical energy
210
Saving fuel
210
Scraper
259
Screen see Infotainment screen
124
Screen display
125
SD card
150
Safe removal141
search aim
180
Online goals180
Search Types of destination search/destination en-try
180
Seat belt height adjustment
22
Warning light42, 46
Seat belts
22
Belt tensioners24
fastening and unfastening23
Inertia reels24
Seat electrical adjustment
83
Seats Electrical adjustment
83
Folding front passenger seat85
Front83
Front armrest85
Headrests89
Heating90
Memory Function of the electrically adjustable seat
84
Rear85
Rear seat backrests85
Setting83
Storing in memory of remote control key84
see Instrument cluster see Instrument cluster
38
Selector lever208
Selector lever control
208
Selector lever lock
46
service Images
154
media147
radio144
Service
255
Service interval display55
Warning light50
Service interval
55
Service interval display
55
Service intervals
55
Service schedule
55
Setting Headrests
89
Mirror81
Positions of the variable loading floor112
Seat belt height22
Seats83
Time51
settings Bass tones
133
equalizer133
infotainment133, 141
Reset to factory settings199
Software Update132
sound133
sound system133
surround133
system information132

Traction control (TCS)43
traffic Detail of the traffic report
198
Traffic List of traffic reports
197
Traffic Information (TMC)
198
Traffic jam assistant
245
Traffic program (TP)
146
Traffic reports (TMC)
197
Traffic sign recognition
246
Traffic signs see Traffic sign recognition
246
Trailer Connect and disconnect
252
loading252
Towing a trailer253
Trailer stabilisation system (TSA)
215
Trailer towing
250
navigation191
Trailer towing device Handling
250
Warning message250
Transit point
194
transmitter See main menu
144
Transport Luggage compartment
105
Roof racks113
Towing device and trailer250
Transporting children
29
Triangle
276
TSA
215
TSI
298
Turning off Infotainment
127
Turning on Infotainment
127
Turn signal
72
Turn signal system Warning light
45, 46
Tutorial videos11
Type plate
298
Tyre load capacity
274
Tyre pressure
272
Warning light45
Tyre pressure monitor refer to the tyre pressure monitoring
249
Tyre pressure monitoring
249
Warning light45
Tyre Pressure Monitoring Storing the tyre pressure values and Infotain-ment display
249
Tyre repair
281
Tyres
272
damage272
Explanation of the label274
new272
Tyre pressure272
Tyre size
274
U
Units
134, 141
Unlock Individual settings
61
KESSY59
Unlocking Central locking button
60
in case of emergency287
Remote control59
Unlocking and locking
58
Unlock steering lock
200
Update navigation data
178
Update the navigation data
140
USB
94, 150
Safe removal141
Useful equipment
Clothes hook98
Cup holders95
Removable through-loading bag100
Useful links
2
User account Configuration wizard
129
User profile
137, 143
V
Variable loading floor
112
VarioFlex rear seats
86
vCard
183, 185
Vehicle - Settings
199
Vehicle battery charging
270
Checking the condition270
Safety instructions269
Warning light47
Winter operation270
Vehicle care Exterior
259
Outside258
Vehicle cleaning Exterior
259
Windscreens259
Vehicle condition Auto check control
51
Vehicle dimensions
300
Vehicle height
300
Vehicle Identification Number (VIN)
298
Vehicle length
300
vehicle systems
199
Vehicle tool kit
277
Vehicle width
300
Vest
276
318Index
