2022 NISSAN ROGUE SPORT engine coolant

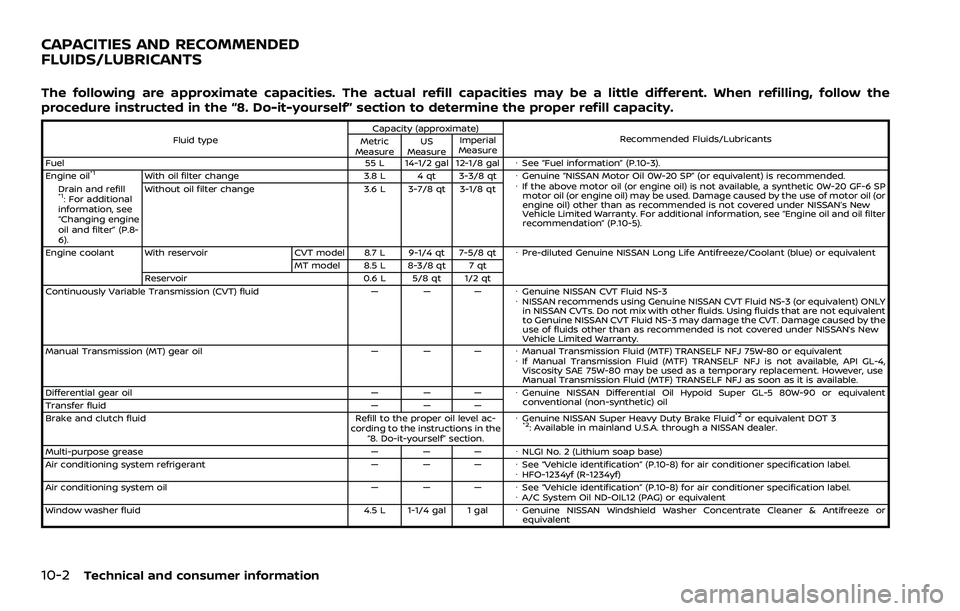

10-2Technical and consumer information
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the
procedure instructed in the “8. Do-it-yourself” section to determine the proper refill capacity.
Fluid typeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Fuel 55 L 14-1/2 gal 12-1/8 gal

See “Fuel information” (P.10-3).
Engine oil
*1With oil filter change 3.8 L 4 qt 3-3/8 qt

Genuine “NISSAN Motor Oil 0W-20 SP” (or equivalent) is recommended.


If the above motor oil (or engine oil) is not available, a synthetic 0W-20 GF-6 SP
motor oil (or engine oil) may be used. Damage caused by the use of motor oil (or
engine oil) other than as recommended is not covered under NISSAN’s New
Vehicle Limited Warranty. For additional information, see “Engine oil and oil filter
recommendation” (P.10-5).
Drain and refill
*1: For additional
information, see
“Changing engine
oil and filter” (P.8-
6). Without oil filter change
3.6 L 3-7/8 qt 3-1/8 qt
Engine coolant With reservoir CVT model 8.7 L 9-1/4 qt 7-5/8 qt

Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
MT model 8.5 L 8-3/8 qt 7 qt
Reservoir 0.6 L 5/8 qt 1/2 qt
Continuously Variable Transmission (CVT) fluid — — —

Genuine NISSAN CVT Fluid NS-3


NISSAN recommends using Genuine NISSAN CVT Fluid NS-3 (or equivalent) ONLY
in NISSAN CVTs. Do not mix with other fluids. Using fluids that are not equivalent
to Genuine NISSAN CVT Fluid NS-3 may damage the CVT. Damage caused by the
use of fluids other than as recommended is not covered under NISSAN’s New
Vehicle Limited Warranty.
Manual Transmission (MT) gear oil — — —

Manual Transmission Fluid (MTF) TRANSELF NFJ 75W-80 or equivalent


If Manual Transmission Fluid (MTF) TRANSELF NFJ is not available, API GL-4,
Viscosity SAE 75W-80 may be used as a temporary replacement. However, use
Manual Transmission Fluid (MTF) TRANSELF NFJ as soon as it is available.
Differential gear oil — — —

Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or equivalent
conventional (non-synthetic) oil
Transfer fluid — — —
Brake and clutch fluid Refill to the proper oil level ac-
cording to the instructions in the “8. Do-it-yourself” section.


Genuine NISSAN Super Heavy Duty Brake Fluid
*2or equivalent DOT 3*2: Available in mainland U.S.A. through a NISSAN dealer.
Multi-purpose grease — — —

NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — —

See “Vehicle identification” (P.10-8) for air conditioner specification label.


HFO-1234yf (R-1234yf)
Air conditioning system oil — — —

See “Vehicle identification” (P.10-8) for air conditioner specification label.


A/C System Oil ND-OIL12 (PAG) or equivalent
Window washer fluid 4.5 L 1-1/4 gal 1 gal

Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalent
CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS
