During starting assistance, alw aysta ke
care toconnect only battery term inals of
identical polarity. #
During starting assistance, obser vethe
sequence described for connecting and
disconnecting the jump leads. #
Do not connect or disconnect the bat-
te ry term inals with the engine running. &
W
WARNI NG
ARNI NGRisk of explosion due toexplo-
sive mixture of gases
An explosive mixture of gases can escape
from the battery during charging and starting
assis tance. #
Fire , naked 0ames, smoking and creating
spar ksmust be avoided. #
Make sure there is adequate ventilation. #
Do not stand overth e batter y. &
W
WARNI NG
ARNI NGRisk of explosion from a frozen
battery
A dischar ged battery may freeze at temp era-
tures slightly abo veor below freezing point.
During starting assistance or battery charging,
battery gas can be released. #
Always allow a battery tothaw before
ch arging it or per form ing starting assis-
ta nce. If
th e indicator/warning lamps in the instrument
cluster do not light up at low temp eratures, it is
ve ry likely that the dischar ged battery has frozen.
In this case you may neither jump-start theve hi-
cle nor charge the batter y.
The service life of a bat tery that has been thawed
may be dramatically shor tened. The starting char-
acteristics may be impaired, especially at low
te mp eratures.
It is recommended that you ha veath awe d battery
ch ecked at a quali/ed specialist workshop. Plug-in h
Plug-in h ybr
ybrid
id
If yo ur vehicle has been star ted with starting
assistance, it may not be possible touse the elec-
tric drive for appr oximately 30 minutes.
St arting assis tance is not considered tobe a nor-
mal operating condition.
All v All v ehicles
ehicles
* NO
NOTE
TEDamage caused bynume rous or
ex tended attem ptsto start the engine Numerous or
extended attem ptsto start the
engine may damage the catalytic con verter
due tonon-combusted fuel. #
Avoid numerous and extended attem pts
to start the engine. Obser
vethefo llowing points during starting assis-
ta nce and when charging the batter y:
R Only use undamaged jump lead/charging
cables with a su1cient cross-section and
insulated term inal clamps.
R Non-insulated parts of thete rm inal clamps
must not come into contact with other me tal 366 366
Breakdown assistance

parts while
the jump lead/charging cable is
connected tothe battery/jump-start connec-
tion point.
R The jump lead/charging cable must not come
into contact with any parts which may mo ve
when the engine is running.
R Always make sure that nei ther you nor the bat-
te ry is electrostatically charge d.
R Keep awa y from /re and naked 0ames.
R Do not lean over the batter y.
Obser vethe additional following points when
ch arging the batter y:
R Only use battery charge rs tested and
appro vedfo r Mercedes-Benz.
R Read the battery charge r's operating inst ruc-
tions before charging the batter y.
Obser vethe additional following points during
starting assistance:
R Starting assis tance may only be pr ovided
using vehicles, batteries or other jump start
devices with a nominal voltage of 12 V.
R The vehicles must not touch. R
V
V ehicles wit ehicles wit h a pe
h a petr
trol engine:
ol engine: jump-start the
ve hicle only when the engine and exhaust sys-
te m are cold. S
S
t
tar
ar ting assist
ting assist ance and c
ance and c har
harging t
ging t he 12 V batt
he 12 V batt ery
ery R
R
eq
eq uir
uir ements:
ements:
R The vehicle is secured with the electric par k-
ing brake.
R V
Vehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: the
transmission is in position j.
R The vehicle and all elect rical consume rsare
switched o..

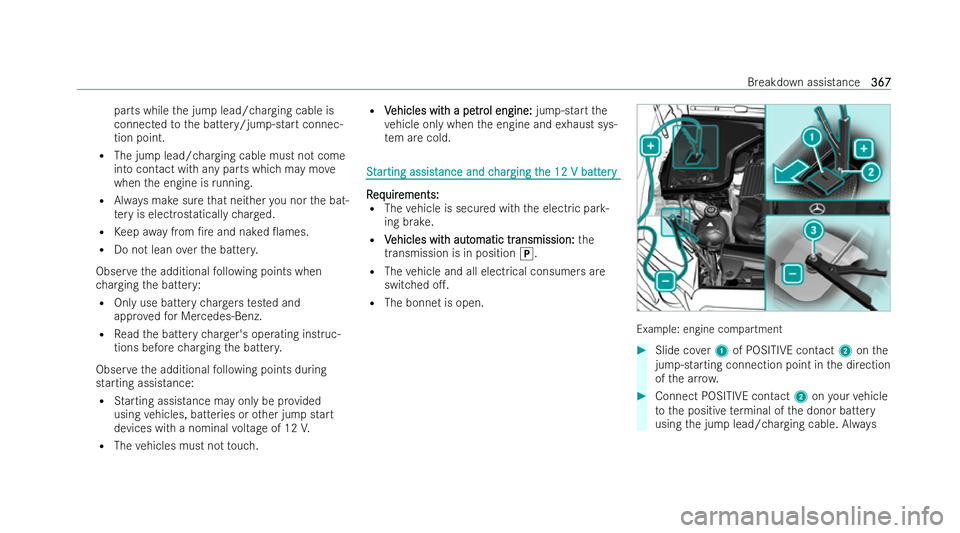

R The bonnet is open. Example: engine compartment
#
Slide co ver1 of POSITIVE contact 2onthe
jump-starting connection point in the direction
of the ar row. #
Connect POSITIVE contact 2onyour vehicle
to the positive term inal of the donor battery
using the jump lead/charging cable. Alw ays Breakd
own assistance
367
367

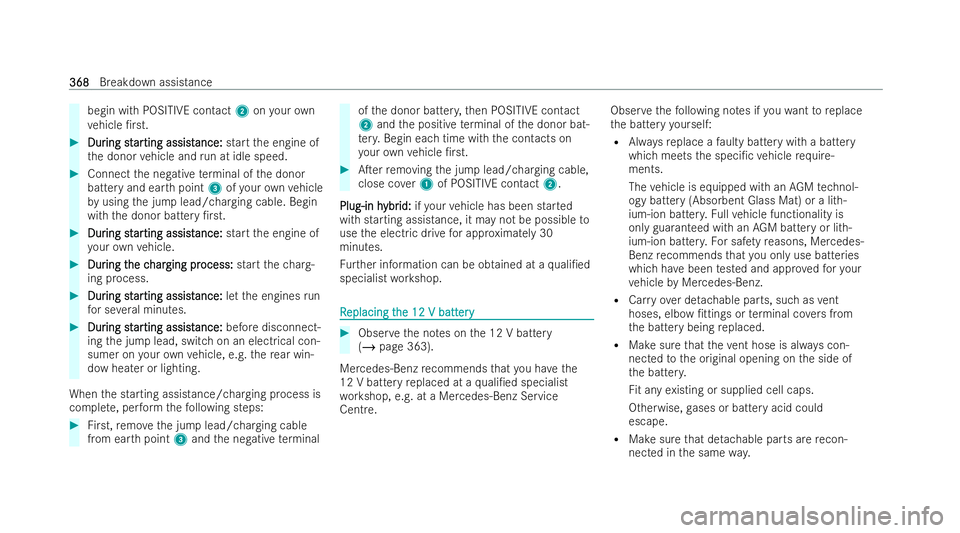

begin with POSITIVE contact
2onyour own
ve hicle /rst. #
Dur
During st
ing st ar
arting assist
ting assist ance:
ance:startthe engine of
th e donor vehicle and run at idle speed. #
Connect the negative term inal of the donor
battery and ear thpoint 3ofyour ow nve hicle
by using the jump lead/charging cable. Begin
with the donor battery /rst. #
Dur
During st
ing st ar
arting assist
ting assist ance:
ance:startthe engine of
yo ur ow nve hicle. #
Dur
During t
ing t he c
he char
harging pr
ging pr ocess:
ocess: startthech arg-
ing process. #
Dur
During st
ing st ar
arting assist
ting assist ance:
ance:letthe engines run
fo r se veral minutes. #
Dur
During st
ing st ar
arting assist
ting assist ance:
ance:before disconnect-
ing the jump lead, switch on an electrical con-
sumer on your ow nve hicle, e.g. there ar win-
dow heater or lighting.
When the starting assistance/charging process is
comple te, per form thefo llowing steps: #
Firs t, re mo vethe jump lead/charging cable
from ear thpoint 3and the negative term inal of
the donor batter y,then POSITIVE contact
2 and the positive term inal of the donor bat-
te ry. Begin each time with the contacts on
yo ur ow nve hicle /rst. #
ATer removing the jump lead/charging cable,
close co ver1 of POSITIVE contact 2.
Plug-in h
Plug-in h ybr
ybr id:
id:ifyo ur vehicle has been star ted
with starting assis tance, it may not be possible to
use the electric drive for appr oximately 30
minutes.
Fu rther information can be obtained at a quali/ed
specialist workshop. R R
eplacing t
eplacing t he 12 V batt
he 12 V batt ery
ery #
Obser vethe no tes on the 12 V battery
(/ page 363).
Mercedes-Benz recommends that you ha vethe
12 V battery replaced at a quali/ed specialist
wo rkshop, e.g. at a Mercedes-Benz Se rvice
Centre. Obser
vethefo llowing no tes if youwa nttoreplace
th e battery yourself:
R Alwaysre place a faulty battery with a battery
which meets the speci/c vehicle requ ire-
ments.
The vehicle is equipped with an AGMtech nol-
ogy bat tery (Absorbent Glass Mat) or a lith-
ium-ion batter y.Fu llve hicle functionality is
only guaranteed with an AGM bat tery or lith-
ium-ion batter y.Fo r saf etyre asons, Mercedes-
Benz recommends that you only use batteries
which ha vebeen tested and appro vedfo ryo ur
ve hicle byMercedes-Benz.
R Carryove r de tach able parts, such as vent
hoses, elbow /ttings or term inal co vers from
th e battery being replaced.
R Make sure that theve nt hose is alw ays con-
nected tothe original opening on the side of
th e batter y.
Fi t any existing or supplied cell caps.
Otherwise, gases or battery acid could
escape.
R Make sure that de tach able parts are recon-
nected in the same way. 368 368
