2022 MERCEDES-BENZ E-CLASS ESTATE trailer

Bicy
Bicy
cle r
cle r ac
ack function
k function &
W
WARNI NG
ARNI NGRisk of an accident if the bicy-
cle rack is used incor rectly
The bicycle rack may become de tach ed from
th eve hicle in thefo llowing cases:
R the permissible load capacity of the trailer
hitch is exceeded.
R the bicycle rack is used incor rectl y.
R the bicycle rack is secured tothe ball neck
beneath the ball head.
Obser vethefo llowing foryo ur ow n sa fety and
th at of other road users:
R always adhere tothe permissible load
capacity of the trailer hitch.
R always obser vethe permissible rear axle
load of theto wing vehicle.
R use the bicycle rack only totransport bicy-
cles. R
always mount the bicycle rack proper lyby
attaching tothe ball head and the ball
neck guide pin, if possible.
R when transporting four bicycles, alw ays
use bicycle rack s which ha veadditional
support on the ball neck guide pin.
R use only bicycle rack s appr oved by
Mercedes-Benz.
R always obser vethe bicycle rack operating
instructions. *
N NOOTE TE Damage toor breakage of the trailer
hitch due tounsuitable or improper lyused
bicycle rack. #
Only use bicycle rack s appr ovedby
Mercedes-Benz prope rly as described
bel ow. *
N
NO
OTE
TE Increased risk of damage toprop-
erty due tofolded-out ball neck #
When the trailer is not coupled or the
bicycle rack is attached, fold in the ball neck or, in
the case of a fully electric
trailer hitch, retract the ball nec k. *
N
NO
OTE
TE The ope rating permit may be in vali-
dated due tothe illegal ins tallation of
trailer hitches The installation – including
retro/tting – of a
non- folding or non-remo vable trailer hitch that
eve n partial lyconceals the license plate or the
lighting system is prohibited. #
Obser vethe applicable legal regulations
fo rth e installation of trailer hitches. Driving and parking
295
295

Tr
ailer hitch (example with additional guide pin)
Depending on the bicycle rack 's design, di.erent
numbers of bicycles can be transpor ted.
The following bicycle rack designs are possible:

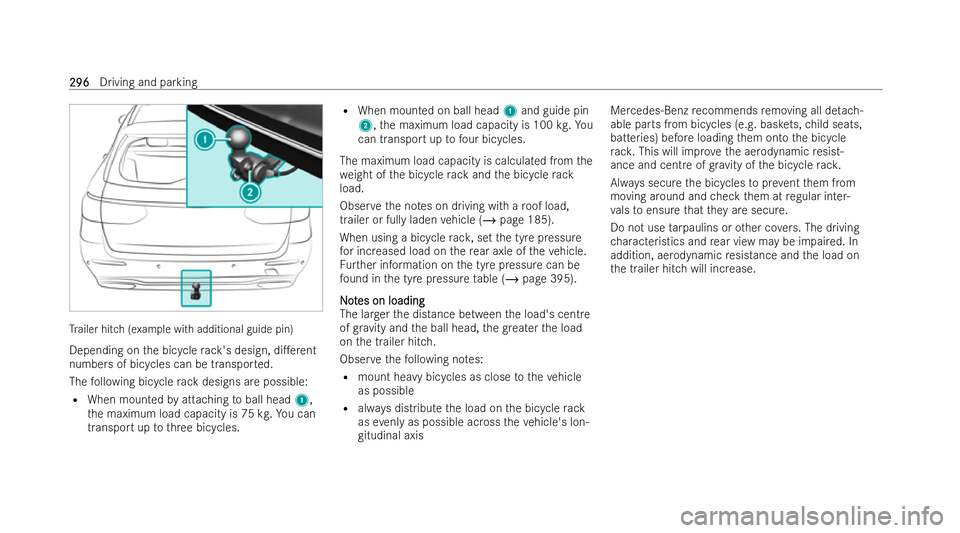

R When mounted byattaching toball head 1,
th e maximum load capacity is 75 kg. You can
transport up tothre e bicycles. R
When mounted on ball head 1and guide pin
2, the maximum load capacity is 100 kg. Yo u
can transport up tofour bicycles.
The maximum load capacity is calculate d fromthe
we ight of the bicycle rack and the bicycle rack
load.
Obser vethe no tes on driving with a roof load,
trailer or fully laden vehicle (/ page 185).
When using a bicycle rack , set the tyre pressure
fo r increased load on there ar axle of theve hicle.
Fu rther information on the tyre pressure can be
fo und in the tyre pressure table (/ page 395).
N
No ot tes on loading
es on loading
The lar gerth e distance between the load's centre
of grav ity and the ball head, thegr eater the load
on the trailer hitch.
Obser vethefo llowing no tes:
R mount heavy bicycles as close totheve hicle
as possible
R always distribute the load on the bicycle rack
as evenly as possible across theve hicle's lon-
gitudinal axis Mercedes-Benz
recommends removing all de tach-
able parts from bicycles (e.g. bask ets, ch ild seats,
batteries) before loading them onto the bicycle
ra ck . This will impr ovethe aerodynamic resist-
ance and cent reofgrav ity of the bicycle rack.
Alw ays secure the bicycles toprev ent them from
moving around and check them at regular inter-
va ls to ensure that they are secure.
Do not use tarp aulins or other co vers. The driving
ch aracteristics and rear view may be impaired. In
addition, aerodynamic resis tance and the load on
th e trailer hitch will increase. 296
296
Driving and parking

Load distribution on
the bicycle rack

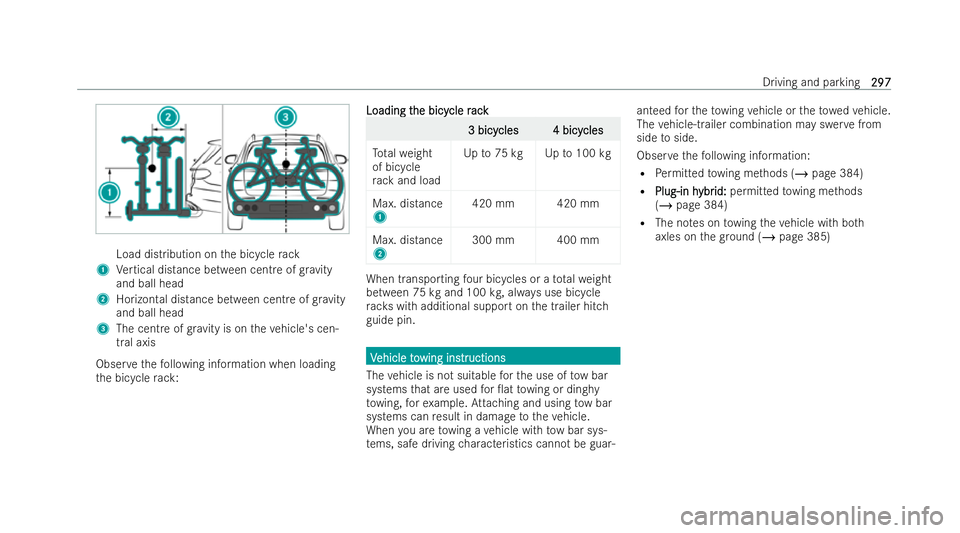

1 Vertical distance between centre of grav ity
and ball head
2 Horizontal distance between centre of grav ity
and ball head
3 The centre of grav ity is on theve hicle's cen-
tral axis
Obser vethefo llowing information when loading
th e bicycle rack: Loading t
Loading t he bicy
he bicycle r
cle rack
ack 3 bicy
3 bicy
cles
cles 4 bicy
4 bicycles
cles
To talwe ight
of bicycle
ra ck and load Up
to75 kg Up to100 kg
Max. distance
1 420 mm 420 mm
Max. distance
2 300 mm 400 mm When transporting
four bicycles or a tota lwe ight
between 75 kg and 100 kg, alw ays use bicycle
ra ck s with additional support on the trailer hitch
guide pin. V V
ehicle to
ehicle towing ins
wing ins tr
tructions
uctions
The vehicle is not suitable forth e use of tow bar
systems that are used for 0at towing or dinghy
to wing, forex ample. Attach ing and using tow bar
systems can result in damage totheve hicle.
When you are towing a vehicle with tow bar sys-
te ms, safe driving characteristics cann otbe guar- anteed
forth eto wing vehicle or theto we dve hicle.
The vehicle-trailer combination may swer vefrom
side toside.
Obser vethefo llowing information:
R Perm itted towing me thods (/ page 384)
R Plug-in h
Plug-in h ybr
ybrid:
id:permitted towing me thods
(/ page 384)
R The no tes on towing theve hicle with bo th
axles on thegr ound (/ page 385) Driving and parking
297
297

T
T
r
railer hitch
ailer hitch
R Obser vethe no tes on care in the trailer hitch
manufacturer's operator manual.
R Do not clean the ball neck with a high-pres-
sure cleaner or sol vent.
R Remo vetraces of rust on the ball (e.g.using a
wire brush).
R Remo vedirt with a lint-free clo th.
R ATer cleaning, lightly oil or grease the ball
head.
% Before using trailers with anti-torsional cou-
pling, obser vethe manufacturer's operator
manual. N
No
ot
tes on car
es on car e of t
e of the int
he int er
erior
ior &
W WARNING
ARNING Risk of injury from plastic parts
breaking o. aTer the use of sol vent-based
ca re products
Care and cleaning products containing sol-
ve nts can cause sur faces in the cockpit to
become porous. When the airbags are
deplo yed, plastic parts may break away. #
Do not use any care or cleaning products
containing sol vents toclean the cockpit. &
W WARNING
ARNING Risk of injury or fatal injuries
from bleached seat belts
Bleaching or dyeing seat belts can se verely
we aken them.
This can, forex ample, cause seat belts to tear
or fail in an accident. #
Never bleach or dye seat belts. To
avo id damage totheve hicle, obser vethefo l-
lowing no tes on cleaning and care:
Seat belts Seat belts R Clean with luk ewarmand soapy water.
R Do not use chemical cleaning agents.
R Do not dry byheating them toove r 80°C or
ex posing them todirect sunlight.
Display
Display
R Switch o. the display and let it cool down. R
Clean the sur face carefully with a micro/bre
clo thand a suitable displ aycare product (TFT-
LC D).
R Do not use any other agents.
Head-up displ ay
Head-up display
R Clean with a soT, non-static, lint-free clo th.
R Do not use cleaning agents.
Plas Plastic tr tic tr im
im
R Clean with a damp micro/bre clo th.
R For heavy soiling: Use a cleaning agent recom-
mended for Mercedes-Benz.
R Do not attach stic kers, /lms or similar materi-
als.
R Do not allow cosmetics, insect repellent or
sun cream tocome in contact with the plastic
trim.
R
R eal w
eal w ood and tr
ood and tr im elements
im elements
R Clean with a micro/bre clo th.
R Blackpiano-lacquer look: Clean with a damp
clo thand soapy water.
R For heavy soiling: Use a cleaning agent recom-
mended for Mercedes-Benz. 368
368
Maintenance and care

&
W
WARNI NG
ARNI NGRisk of accident when towing a
ve hicle which is too heavy
If th eve hicle tobe tow- star ted or towe daway
is heavier than the permissible gross mass of
yo ur vehicle, thefo llowing situations can
occur:
R theto wing eye may become de tach ed.
R theve hicle/trailer combination may
swer veorove rturn. #
Before tow- starting or towing away,
ch eck if theve hicle tobe tow- star ted or
to we dawa yex ceeds the permissible
gr oss mass. If a
vehicle must be tow- star ted or towe dawa y,its
permissible gross mass must not exceed the per-
missible gross mass of theto wing vehicle. #
Information on the permissible gross mass of
th eve hicle can be found on theve hicle identi-
/cation plate (/ page 413).#
V
Vehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: do not
open the driver's door or front passenger door;
the transmission otherwise automati-
cally shiTs toposition j. #
Fitth eto wing eye (/ page 388). #
Fasten theto wing device.
* N
NOOTE
TE Damage due toincor rect connec-
tion of theto w bar #
Only connect theto w rope or tow bar to
th eto wing eyes. #
Deactivate the automatic locking mechanism
(/ page 87). #
Do not activate the HOLD function. #
Deactivate tow- awa y protection
(/ page 105). #
Deactivate Active Brake Assist (/ page 259). #
V
V ehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: shiTto
position i. #
Release the electric parking brake. &
W
WARNING
ARNING Risk of accident due tolimited
saf ety-re lated functions during theto wing
process
Saf ety-re lated functions are limited or no lon-
ge rav ailable in thefo llowing situations:
R theve hicle is switched o..
R the brake system or po wer steering system
is malfunctioning.
R the energy supply or the on-board electri-
cal system is malfunctioning.
When your vehicle is towe daw ay, signi/cantly
more e.ort may be requ ired tosteer and
brake than is normally requ ired. #
Use a tow bar. #
Make sure that the steering wheel can
mo vefreely be fore towing theve hicle
awa y. 386
386
Breakdown assistance

*
N
N O
OTE
TE Damage due toexcessive tractive
po wer If
yo u pull away sharpl y,the tractive po wer
may be too high and theve hicles could be
damaged. #

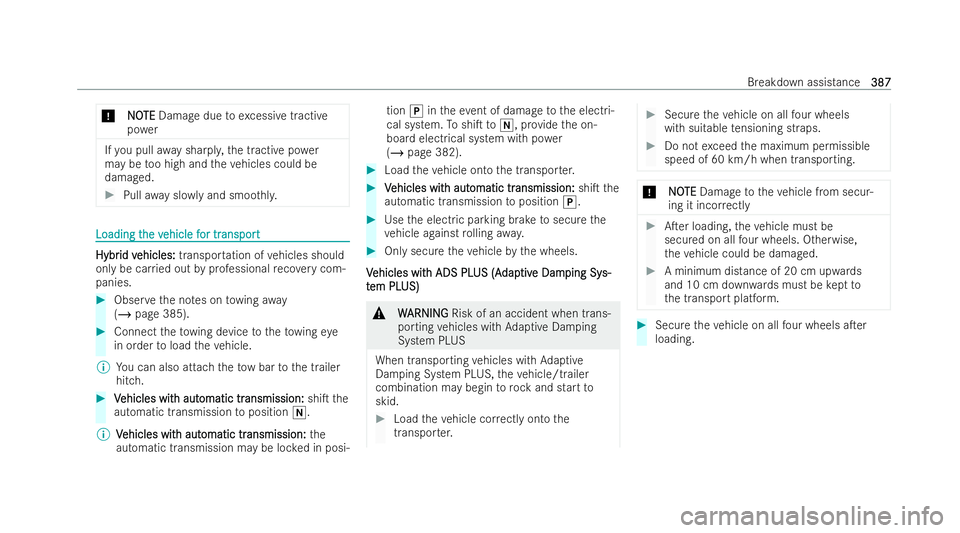

Pull away slo wlyand smoo thly. Loading t
Loading t
he v
he vehicle f
ehicle f or tr
or transport
anspo rt Hybr
Hybr
id v
id vehicles:
ehicles: transpor tation of vehicles should
only be car ried out byprofessional reco very com-
panies. #
Obser vethe no tes on towing away
( / page 385). #
Connect theto wing device totheto wing eye
in order toload theve hicle.
% You can also attach theto w bar tothe trailer
hitch. #
V
Vehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: shiTthe
automatic transmission toposition i.
% V
Vehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: the
automatic transmission may be loc ked in posi- tion
jintheev ent of damage tothe electri-
cal system. ToshiT toi , pr ovide the on-
board electrical system with po wer
( / page 382). #
Load theve hicle onto the transpor ter. #
V
Vehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: shiTthe
automatic transmission toposition j. #
Use the electric parking brake tosecure the
ve hicle against rolling away. #
Only secure theve hicle bythe wheels.
V
V ehicles wit
ehicles wit h ADS PL
h ADS PLUS (A
US (A dap
daptiv
tiv e Dam
e Dam ping Sy
ping Sy s-
s-
t
t em PL
em PL US)
US) &
W
WARNING
ARNING Risk of an accident when trans-
porting vehicles with Adaptive Damping
System PLUS
When transpo rting vehicles with Adaptive
Damping System PLUS, theve hicle/trailer
combination may begin torock and start to
skid. #
Load theve hicle cor rectly onto the
transpor ter. #
Secure theve hicle on all four wheels
with suitable tensioning straps. #
Do not exceed the maximum permissible
speed of 60 km/h when transporting. *
N
NOOTE
TE Damage totheve hicle from secur-
ing it inco rrectly #
ATer loading, theve hicle must be
secured on all four wheels. Otherwise,
th eve hicle could be damaged. #
A minimum dis tance of 20 cm upwards
and 10 cm down wards must be kept to
th e transport platform. #
Secure theve hicle on all four wheels aTer
loading. Breakdown assistance
387
387

V
V
ehicles wit
ehicles wit h a tr
h a trailer hitc
ailer hitc h:
h:vehicles with a trailer
hitch do not ha veare ar brac ketfo rth eto wing
ey e. Fasten theto w bar tothe trailer hitch. #
Make sure that co ver1 engages in the
bumper when youre mo vetheto wing eye.
* N NOOTE TE Damage totheve hicle due toincor-
re ct use of theto wing eye or trailer hitch When a
towing eye or trailer hitch is used to
re co ver a vehicle, theve hicle may be damaged
in the process. #
Only use theto wing eye or trailer hitch to
to w awa y or tow start theve hicle. #
Do not use theto wing eye or trailer hitch
to to wtheve hicle during reco very. T
T
o
o w
w -st
-st ar
arting t
ting t he v
he vehicle
ehicle V V
ehicles wit ehicles wit h aut
h automatic tr
omatic tr ansmission
ansmission
* NO
NOTE
TEDamage tothe automatic transmis-
sion due to tow-starting The au
tomatic transmission may be damaged
in the process of tow- starting vehicles with
automatic transmission. #
Vehicles with automatic transmission
must not be tow- star ted. #
Vehicles with an automatic transmission must
not be tow- star ted. Electr
Electr
ical fuses
ical fuses N
No
ot
tes on electr
es on electr ical fuses
ical fuses &
W
WARNING
ARNING Risk of accident and inju rydue
to ove rloaded lines
If yo u manipulate or bridge a faulty fuse or if
yo ure place it with a fuse with a higher amper-
age, the electric line could be overloaded. This could
result in a /re. #
Alwaysre place faulty fuses with speci-
/ed new fuses containing the cor rect
amperage. *
N
NOOTE
TE Damage due toincor rect fuses Using incor
rect fuses can result in damage to
electrical components or systems or their
functions being considerably restric ted. #
Use only fuses appr ovedfo r Mercedes-
Benz with there spective speci/ed fuse
ra ting. Blown fuses must be
replaced with fuses of the
same rating, whi chyou can recognise bythe col-
our and the label. The fuse ratings and fur ther
information tobe obser ved can be found in the
fuse assignment dia gram.
F
F use assignment diagr
use assignment diagr am:
am:onthe fuse box in the
load compartment (/ page 391). Breakdown assistance
389
389

obser
vethe no tes on cold tyres
(/ page 394).
% The values displa yed in the on-board com-
puter may deviate from those of the tyre pres-
sure gauge as they referto sea le vel.At high
ele vations, the tyre pressure values indicated
by a pressure gauge are higher than those
shown bythe on-board computer. In this case,
do not reduce the tyre pressure.
R
R est
est ar
arting t
ting t he tyr
he tyr e pr
e pressur
essur e monit
e monit or
oring syst
ing syst em
em
R
R eq
eq uir
uir ements:
ements:
R The recommended tyre pressure is cor rectly
set forth ere specti veoperating status on all of
th e wheels (/ page 394).
Re start the tyre pressure monitoring system in the
fo llowing situations:
R The tyre pressure has changed.
R The wheels or tyres ha vebeen changed or
ne wly /tted. On-board computer:
4 Service 5
Tyres #
Swipe down wards on Touch Control on the
leT-hand side of the steering wheel.
The Use current pressures as new reference
values? message is shown in the Instrument
Displa y. #
Torestart, press Touch Control on the leT-
hand side of the steering wheel.
The Tyre press. monitor restarted message is
shown in the Instrument Displa y.
Cur rent wa rning message s are deleted and
th eye llow h warning lamp goes out.
ATer you ha vebeen driving for a few minutes,
th e system checks whe ther the cur rent tyre
pressures are within the speci/ed range. The
cur rent tyre pressures are then accep ted as
re fere nce values and monitored.
Be sure toalso pay attention tothefo llowing rela-
te dto pic:
R Notes on tyre pressure (/ page 394) T
T
yr
yr e pr
e pr essur
essur e loss w
e loss w ar
arning syst
ning syst em
em F
F
unction of t
unction of t he tyr
he tyre pr
e pressur
essur e loss w
e loss w ar
arning syst
ning syst em
em
The tyre pressure loss warning system warnsthe
driver bymeans of display messages when there
is a se vere tyre pressure loss.
Syst
Syst em limits
em limits
The system may be impaired or may not function
particula rly in thefo llowing situations:
R incor rect refere nce values were ta ught in
R sudden pressure loss caused byafo re ign
object penetrating the tyre, forex ample
R aneven pressure loss on more than one tyre
occurs
The system has a restric ted or dela yed function
particular lyin thefo llowing situations:
R poor ground conditions, e.g. snow or grav el
R driving with snow chains
R when adopting a very sporty driving st yle with
high cornering speeds or sudden acceleration
R driving with a very heavy or lar getrailer
R driving with a high load Wheels and tyres
397
397
