2022 MAZDA MODEL CX-5 sensor

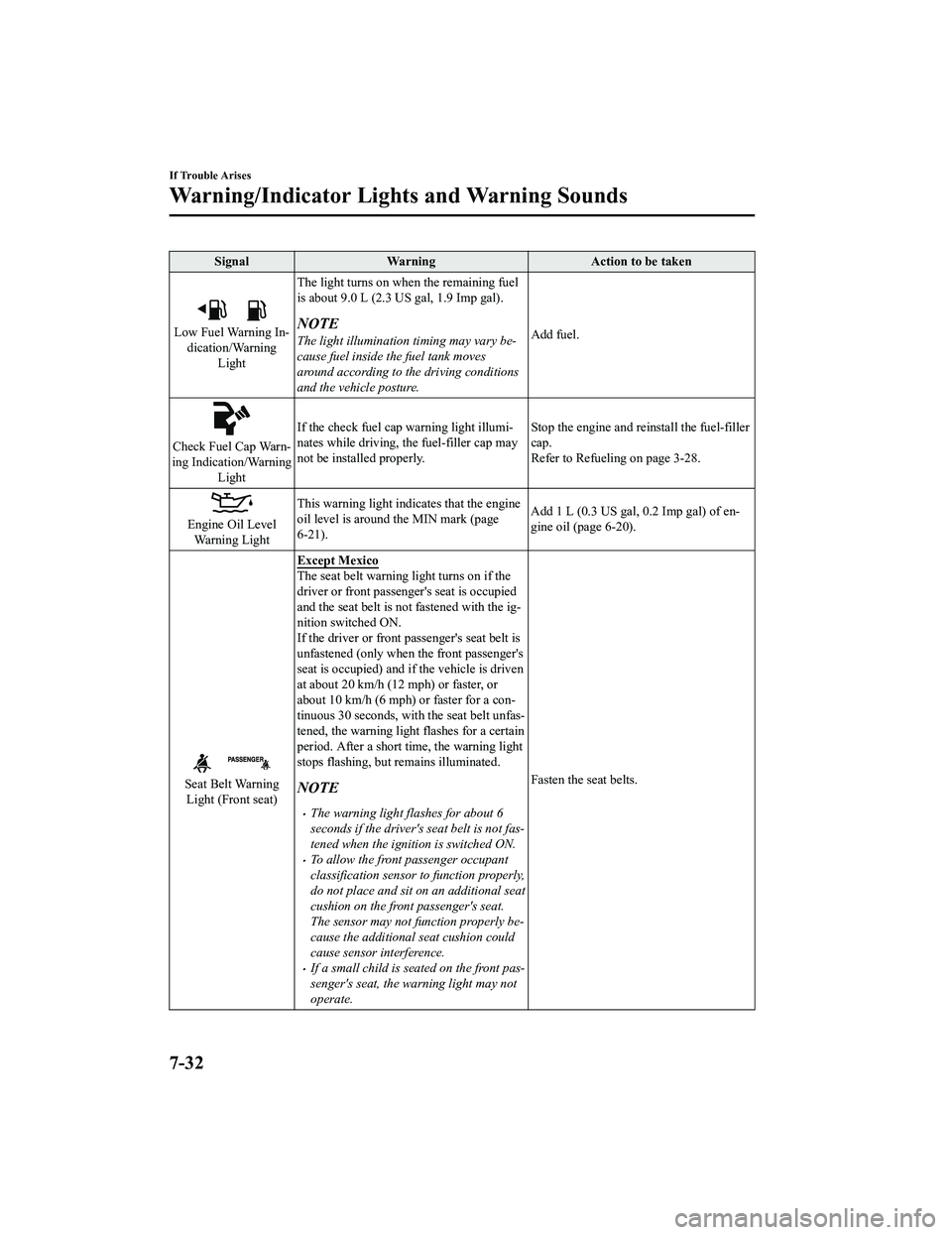

SignalWarning Action to be taken
Low Fuel Warning In‐
dication/Warning Light The light turns on wh
en the remaining fuel
is about 9.0 L (2.3 US gal, 1.9 Imp gal).NOTE
The light illumination timing may vary be ‐
cause fuel inside the fuel tank moves
around according to the driving conditions
and the vehicle posture. Add fuel.
Check Fuel Cap Warn
‐
ing Indication/Warning
Light If the check fuel cap warning light illumi
‐
nates while driving, the fuel-filler cap may
not be installed properly. Stop the engine and reinstall the fuel-filler
cap.
Refer to Refueling on page 3-28.
Engine Oil Level
Warning Light This warning light indicates that the engine
oil level is around the MIN mark (page
6-21).
Add 1 L (0.3 US gal, 0.2 Imp gal) of en
‐
gine oil (page 6-20).
Seat Belt Warning Light (Front seat) Except Mexico
The seat belt warning lig
ht turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the ig ‐
nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and if the vehicle is driven
at about 20 km/h (12 mph) or faster, or
about 10 km/h (6 mph) or faster for a con ‐
tinuous 30 seconds, with the seat belt unfas ‐
tened, the warning light flashes for a certain
period. After a short time, the warning light
stops flashing, but remains illuminated.
NOTE
The warning light fla shes for about 6
seconds if the driver's seat belt is not fas ‐
tened when the ignition is switched ON.
To allow the front passenger occupant
classification sensor to function properly,
do not place and sit on an additional seat
cushion on the front passenger's seat.
The sensor may not function properly be ‐
cause the additional seat cushion could
cause sensor interference.
If a small child is seated on the front pas ‐
senger's seat, the warning light may not
operate. Fasten the seat belts.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-32
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

SignalWarning Action to be taken
Seat Belt Warning
Light (Front seat) Mexico
The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the ig
‐
nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and the vehicle is driven at
a speed faster than about 20 km/h (12 mph),
the warning light flashes. After a short time,
the warning light stops flashing, but re ‐
mains illuminated. If a seat belt remains un ‐
fastened, the warning light flashes again for
a given period of time.
NOTE
Placing heavy items on the front pas‐
senger's seat may cause the front pas ‐
senger's seat belt warning function to op ‐
erate depending on the weight of the
item.
To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause sen ‐
sor interference.
If a small child is seated on the front pas ‐
senger's seat, the warning light may not
operate. Fasten the seat belts.
(Red)
Seat Belt Warning Light (Rear seat) If the rear seat belts are not fastened while
the ignition is switched
ON , the driver and
the passenger are alerted by the warning
light.
The warning light operates even if there is
no passenger on the rear seat.
NOTE
If a rear seat belt is not fastened by a cer ‐
tain period of time after the engine has
been started, the warning light turns off. Fasten the seat belts.
Low Washer Fluid
Level Warning Indica ‐
tion/Warning Light
*
This warning light indicates that little wash ‐
er fluid remains. Add washer fluid (page 6-24).
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-33
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

NOTE
To allow the front passenger occupant
classification sensor to function
properly, do not place and sit on an
additional seat cushion on the front
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
If a small child is seated on the front
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a warning
beep sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
front passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
Placing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning function
to operate depending on the weight of
the item.
To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference.
If a small child is seated on the front
passenger's seat, the warning beep may
not operate.
Rear seat
The warning beep only sounds if a seat
belt is unfastened after being fastened.
▼ Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door
is opened with the
ignition switched to ACC, a beep will be
heard continuously in the cabin to notify
the driver that the ignition has not been
switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
▼ Key Removed from Vehicle Warning
Beep
Vehicles with advanced keyless function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, the beep which
sounds outside of the vehicle will be heard
6 times, the beep which sounds inside the
vehicle will be heard 6 times.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, a
beep will be heard
in the cabin 6 times.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-42
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Warning beep What to check
While the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func ‐
tion) system is operating,
a single beep sound is
heard when “Front Ra ‐
dar Sensor Blocked” is
displayed in the mul ‐
ti-information display. Cancel the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func‐
tion) system if the radar
sensor (front) becomes
dirty. Clean the area
around the radar sensor
(front).
The beep sounds inter ‐
mittently while the vehi ‐
cle is being driven. The distance between
your vehicle and the ve
‐
hicle ahead is too close.
Verify the safety of the
surrounding area and re ‐
duce vehicle speed.
While the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func ‐
tion) system is operating,
a single beep sound is
heard when “ Front Ra ‐
dar Sensor System Mal ‐
function” is displayed in
the multi-information
display. A malfunction in the
system may be indicated.
Check the center display
to verify the problem
and then have your vehi
‐
cle inspected by an Au ‐
thorized Mazda Dealer.
▼ Excessive Speed Warning*
If the vehicle speed exceeds the speed
limit sign displayed on the active driving
display, the warning sound is activated and
the area around the speed limit sign
displayed on the active driving display
flashes 3 times in amber, and if the vehicle
speed continues to exceed the displayed
speed limit sign, the indication stops
flashing and remains on.
▼Collision warning*
If there is a possibility of a collision with a
vehicle ahead or an obstruction at the rear
of the vehicle, the
warning light in the
instrument cluster flashes at the same time
as the warning indication is displayed in
the multi-information display, and a
warning sound is activated intermittently.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-45
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Index
Cleaning the window interiors.....6-57
Instrument panel top (Soft pad)
maintenance................................. 6-56
Leather upholstery
maintenance................................. 6-56
Panel maintenance....................... 6-57
Plastic part maintenance.............. 6-56
Seat belt maintenance..................6-55
Upholstery maintenance.............. 6-55
Vinyl upholstery maintenance..... 6-55
Interior Lights................................... 5-56 Luggage compartment light.........5-56
Map lights....................................5-56
Overhead lights............................5-56
i-ACTIVSENSE.............................. 4-117 Active safety technology........... 4-117
Adaptive Front Lighting System
(AFS)......................................... 4-120
Advanced Smart City Brake Support
(Advanced SCBS)..................... 4-190
Blind Spot Monitoring (BSM) ............
................................................... 4-124
Camera and sensors................... 4-118
Distance Recognition Support System
(DRSS).......................................4-135
Driver Attention Alert (DAA)... 4-139
Forward Sensing Camera
(FSC)......................................... 4-256
High Beam Control System
(HBC)........................................ 4-121
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)..................................... 4-176
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)..................4-145
Pre-crash safety technology....... 4-118
Radar sensors (rear)...................4-264
Radar sensor (front)...................4-261
Rear Cross Traffic Alert
(RCTA)...................................... 4-141Smart Brake Suppor t (SBS)...... 4-200
Smart City Brake Support [Forward]
(SCBS F)................................... 4-193
Smart City Brake Support [Reverse]
(SCBS R)................................... 4-196
Traffic Sign Recognition System
(TSR)......................................... 4-129
Ultrasonic sensor (rear)............. 4-266
360°View Monitor (Mazda Connect
(Type A))................................... 4-202
360°view monitor (Mazda Connect
(Type B))................................... 4-228
i-ACTIV AWD Operation............... 4-114
J
Jack...................................................... 7-4
Jump-Starting.................................... 7-13
K
Keyless Entry System......................... 3-4
Keys.....................................................3-2 Key suspend function.................... 3-9
Transmitter..................................... 3-5
Key Left-in-luggage Compartment
Warning beep (With the advanced
keyless function)............................... 7-43
Key Left-in-vehicle Warning Beep (With
the advanced keyless function)......... 7-43
Key Removed from Vehicle Warning
Beep...................................................7-42
Key Suspend Function........................ 3-9
L
Label Information............................... 9-2
Lane Departure Warning sound........ 7-44
Lane-change Signals......................... 4-79
Lane-keep Assist System (LAS) & Lane
Departure Warning System
(LDWS)........................................... 4-176
Leaving Home Light......................... 4-76
10-6
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Index
P
Parking Sensor System (Mazda Connect
(Type A))......................................... 4-293Obstruction detection
indication................................... 4-297
Parking sensor system
operation.................................... 4-296
Parking sensor warning beep..... 4-299
Sensor detection range.............. 4-295
When warning indicator/beep is
activated..................................... 4-301
Parking Sensor System (Mazda Connect
(Type B))......................................... 4-302 Obstruction detection
indication................................... 4-306
Parking Sensor System
Operation................................... 4-306
Parking sensor warning beep..... 4-308
Sensor detection range.............. 4-304
When warning indicator/beep is
activated..................................... 4-309
Power Liftgate................................... 3-20
Power Liftgate Warning Beep........... 7-43
Power Steering................................ 4-116
Power Steering Warning Buzzer....... 7-44
Power Windows................................ 3-35
R
Radar Sensors (Rear)...................... 4-264
Radar Sensor (Front).......................4-261
Rearview Mirror................................3-32
Rear Coat Hooks............................... 5-74
Rear Cross Traffic Alert (RCTA).... 4-141
Rear Door Child Safety Locks.......... 3-18
Rear Seat........................................... 2-15
Rear View Monitor (Mazda Connect
(Type A))......................................... 4-277 Displayable range on the
screen......................................... 4-279
Picture quality adjustment......... 4-284
Rear view monitor operation..... 4-280
Rear view parking camera
location...................................... 4-278
Switching to the rear view monitor
display........................................4-278
Variance between actual road
conditions and displayed
image......................................... 4-282
Viewing the display................... 4-280
Rear View Monitor (Mazda Connect
(Type B))......................................... 4-285 Displayable range on the
screen......................................... 4-287
Rear view monitor operation..... 4-288
Rear view parking camera
location...................................... 4-286
Switching to the rear view monitor
display........................................4-286
Variance between actual road
conditions and displayed
image......................................... 4-291
Viewing the display................... 4-288
Rear Window Defogger.................... 4-83
Rear Window Washer... .................... 4-83
Rear Window Wiper......................... 4-83
Recommended Oil.............................6-20
Recording of Vehicle Data................ 8-22
Recreational Towing......................... 3-61
Registering Your Vehicle in A Foreign
Country.............................................. 8-18
Replacement Fuse..............................................6-43
Key battery.................................. 6-33
Light bulbs...................................6-39
Tires............................................. 6-36
Wheel........................................... 6-38
Wiper........................................... 6-26
Request Switch Inoperable Warning
Beep (With the advanced keyless
function)............................................ 7-43
10-8
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Index
Temporary spare tire....................6-37
Tire chains................................... 3-49
Tire inflation pressure................. 6-35
Tire rotation................................. 6-36
Uniform tire quality grading system
(UTQGS)..................................... 8-23
Tire Inflation Pressure Warning
Beep...................................................7-44
Tire Information................................ 8-25
Tire Pressure Monitoring System.... 4-273
To w i n g
Recreational towing.....................3-61
Trailer towing (U.S.A. and
Canada)........................................ 3-53
Towing Description........................... 7-19
Traction Control System (TCS)...... 4-106
TCS OFF Indicator Light.......... 4-106
TCS OFF Switch....................... 4-107
TCS/DSC indicator light........... 4-106
Traffic Jam Assist (TJA) Close proximity warning........... 4-167
Display indication......................4-165
Setting the system..................... 4-168
Stop hold control....................... 4-175
Traffic Sign Recognition System
(TSR)............................................... 4-129
Transmitter.......................................... 3-5
Trouble
Battery runs out........................... 7-13
Emergency starting...................... 7-16
Emergency towing....................... 7-19
Flat tire.......................................... 7-3
Overheating................................. 7-17
Parking in an emergency............... 7-2
When Liftgate Cannot be
Opened......................................... 7-46
Turn Signals...................................... 4-78
U
Ultrasonic Sensor (Rear)................. 4-266
USB Power Outlet............................ 5-62
V
Vanity Mirrors................................... 5-55
Vehicle Information Labels................. 9-2
W
Warning Sound is Activated............. 7-41
Advanced Key removed from vehicle
warning beep............................... 7-42
Air bag/front seat belt pretensioner
system warning beep................... 7-41
AUTOHOLD Warning Beep....... 7-43
Blind Spot Monitoring (BSM)
warning beep............................... 7-44
Collision warning...... .................. 7-45
Electric Parking Brake (EPB)
Warning Beep.............................. 7-43
Excessive speed warning.............7-45
Ignition not switched off (STOP)
warning beep............................... 7-42
Key left-in-luggage compartment
warning beep (With the advanced
keyless function)..........................7-43
Key left-in-vehicle warning beep
(With the advanced keyless
function).......................................7-43
Key removed from vehicle warning
beep..............................................7-42
Lane Departure Warning sound... 7-44
Lights-on reminder...................... 7-41
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) system
warnings.......................................7-44
Power Liftgate Warning Beep..... 7-43
Power steering warning buzzer....7-44
Request switch inoperable warning
beep (With the advanced keyless
function).......................................7-43
10-10
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
