2022 MAZDA MODEL 3 SEDAN stop start

with the selector lever in the D or
M position (not in second gear
fixed mode).
3. If the selector lever is in the N or P position, the engine does not
restart when the brake pedal is
released. The engine restarts when
the brake pedal is depressed again
or the selector lever is shifted to the
D, M (not in second gear fixed
mode) or the R position. (For the
purposes of safety, always keep the
brake pedal depressed when
shifting the selector lever while
engine idling is stopped.)
(When the vehicle is stopped by the
MRCC with Stop & Go function/TJA
stop hold control)
1. When the vehicle is stopped by the MRCC with Stop & Go function/
TJA, engine idling stops and
continues to be stopped without
depressing the brake pedal.
2. When the accelerator pedal is depressed or the RES switch is
operated, while the vehicle is
stopped by the MRCC with Stop &
Go function/TJA, the engine will
automatically restart if the selector
lever is in the D/M position (not in
second gear fixed mode).
(When the vehicle is stopped by the
AUTOHOLD function)
1. When the brake pedal is depressed while the vehicle is being driven
and the vehicle comes to a stop,
the i-stop function will operate and
continue to operate even if the
brake is released (except when
driving in the R or M position
second gear fixed mode).
2. The engine restarts automatically when the accelerator pedal is
depressed with the selector lever in
the D/M position (not in second
gear fixed mode).3. If the selector lever is in the N or Pposition, the engine does not
restart when the brake pedal is
released. The engine restarts when
the brake pedal is depressed again
or the selector lever is shifted to the
D, M (not in second gear fixed
mode) or the R position. (For the
purposes of safety, always keep the
brake pedal depressed when
shifting the selector lever while
engine idling is stopped.)
(When using MRCC with Stop & Go
function/TJA)
1. Engine idling stops when the vehicle has decelerated to about 20
km/h (12 mph) or slower while in
headway control using the MRCC
with Stop & Go function/TJA.
2. If it is necessary to accelerate while in headway control using the MRCC
with Stop & Go function/TJA, the
engine restarts automatically.
Operation conditions
Under the following conditions, engine
idling stops and the i-stop indicator
light (green) turns on.
The engine is warmed up.The engine has been started and the
vehicle is driven for a certain period.
The engine is started with the hood
closed.
All doors, liftgate/trunk lid, and
hood are closed.
The driver's seat belt is unfastened
and the driver's door is opened.
The hood is opened.The air conditioner is not operating
with the airflow mode in the
position.The temperature setting dial of the
air conditioner is in a position other
than maximum heating or maximum
cooling (A/C ON) position.
(Automatic climate control system)
When Driving
Start/Stop Engine
4-12
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

The vehicle's interior temperature
and the set temperature for the air
conditioner are nearly the same.
The i-stop warning light (amber) is
not turned on/flashing.
The keyless entry & push button start
system functions are normal.
The brake vacuum is sufficiently high.The battery is in good condition.While vehicle is stopped
The selector lever is in the D or M
position (not in second gear fixed
mode).
The automatic transmission fluid
has warmed up sufficiently.
The automatic transmission fluid
temperature is not abnormally
high.
The steering wheel is almost in the
straight-ahead position (idling may
not stop even with the steering
wheel in the straight-ahead
position if force is applied to the
steering wheel. Release the force
applied to the steering wheel to
stop engine idling).
The vehicle is stopped by
depressing the brake pedal.
The vehicle is not on a steep slope.The vehicle is not stopped
suddenly.
While driving
The selector lever is in the D or M
position (not in second gear fixed
mode).
While drivingThe vehicle is driven at a vehicle
speed of about 40 km/h (25 mph)
or faster after engine idling stops
while driving.
The vehicle is not driven in sport
mode.
The automatic transmission fluid
has warmed up sufficiently.
The automatic transmission fluid
temperature is not abnormally
high.
The steering wheel is almost in the
straight-ahead position (idling may
not stop even with the steering
wheel in the straight-ahead
position if force is applied to the
steering wheel. Release the force
applied to the steering wheel to
stop engine idling).
The vehicle is stopped by
depressing the brake pedal.
The vehicle is not driven on a
slope.
The vehicle is not stopped
suddenly.
NOTE
Under the following conditions, a
period of time is required to stop
engine idling
The battery power is depleted for
some reason such as the vehicle has
not been driven for a long period.
The ambient temperature is high or
low.
After the battery terminals are
disconnected for some reason such
as for battery replacement.
Engine-stop period is short or time
until next engine idle stop is long
The ambient temperature is high or
low.
The battery power is depleted.Power consumption by the vehicle's
electrical parts is high.
Engine restarts automatically while
engine idling is stopped
Under the following conditions, the
engine restarts automatically.
The i-stop OFF switch is pressed until
the beep sounds.
When Driving
Start/Stop Engine
4-13
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

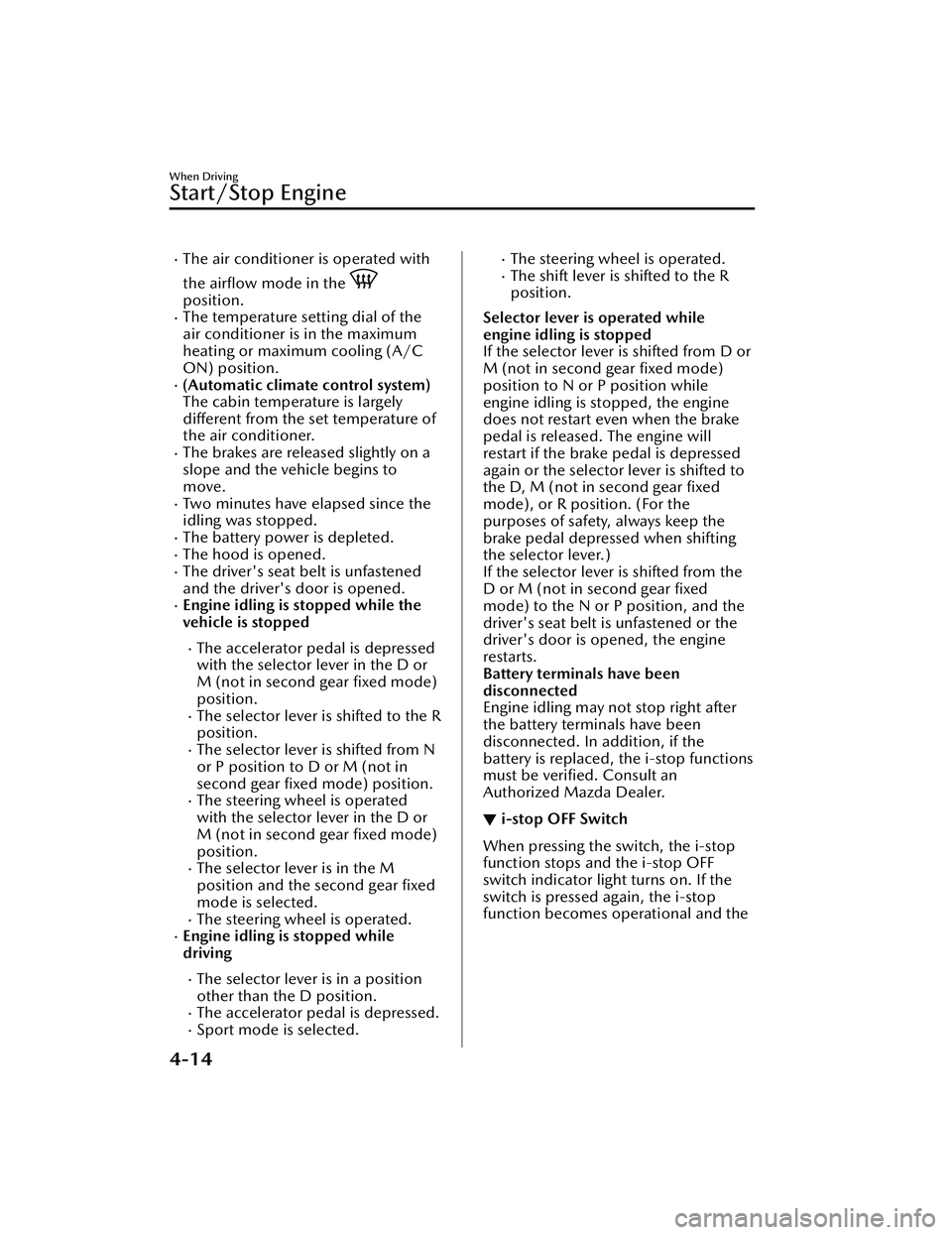

The air conditioner is operated with
the airflow mode in the
position.The temperature setting dial of the
air conditioner is in the maximum
heating or maximum cooling (A/C
ON) position.
(Automatic climate control system)
The cabin temperature is largely
different from the set temperature of
the air conditioner.
The brakes are released slightly on a
slope and the vehicle begins to
move.
Two minutes have elapsed since the
idling was stopped.
The battery power is depleted.The hood is opened.The driver's seat belt is unfastened
and the driver's door is opened.
Engine idling is stopped while the
vehicle is stopped
The accelerator pedal is depressed
with the selector lever in the D or
M (not in second gear fixed mode)
position.
The selector lever is shifted to the R
position.
The selector lever is shifted from N
or P position to D or M (not in
second gear fixed mode) position.
The steering wheel is operated
with the selector lever in the D or
M (not in second gear fixed mode)
position.
The selector lever is in the M
position and the second gear fixed
mode is selected.
The steering wheel is operated.Engine idling is stopped while
driving
The selector lever is in a position
other than the D position.
The accelerator pedal is depressed.Sport mode is selected.
The steering wheel is operated.The shift lever is shifted to the R
position.
Selector lever is operated while
engine idling is stopped
If the selector lever is shifted from D or
M (not in second gear fixed mode)
position to N or P position while
engine idling is stopped, the engine
does not restart even when the brake
pedal is released. The engine will
restart if the brake pedal is depressed
again or the selector lever is shifted to
the D, M (not in second gear fixed
mode), or R position. (For the
purposes of safety, always keep the
brake pedal depressed when shifting
the selector lever.)
If the selector lever is shifted from the
D or M (not in second gear fixed
mode) to the N or P position, and the
driver's seat belt is unfastened or the
driver's door is opened, the engine
restarts.
Battery terminals have been
disconnected
Engine idling may not stop right after
the battery terminals have been
disconnected. In addition, if the
battery is replaced, the i-stop functions
must be verified. Consult an
Authorized Mazda Dealer.
▼ i-stop OFF Switch
When pressing the switch, the i-stop
function stops and the i-stop OFF
switch indicator light turns on. If the
switch is pressed again, the i-stop
function becomes operational and the
When Driving
Start/Stop Engine
4-14
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

i-stop OFF switch indicator light turns
off.
1. Indicator light
NOTE
If the engine is stopped with the i-stop
function stopped, the i-stop function
becomes operational again when the
engine is started the next time.
▼Vehicle Roll Prevention Function
(Automatic transmission)
Vehicles with the i-
stop function are
equipped with a vehicle roll prevention
function. This function prevents the
vehicle from rolling, such as when
releasing the brake pedal while on a
slope under the following conditions:
While engine idling is stopped
(prevents the vehicle from rolling
back)
When the engine restarts after
releasing the brake pedal (prevents
the vehicle's sudden movement due
to vehicle creep), sudden movement
of the vehicle is prevented by
controlling the brakes.
1. Release foot from brake pedal
2. Vehicle brake force maintained
3. Engine restarted
4. Acceleration
When Driving
Start/Stop Engine
4-15
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

WARNING
Do not rely completely on the vehicle
roll prevention function.
The vehicle roll prevention function
is a supplementary function which
operates for a maximum of 2
seconds after releasing the brake
pedal and accelerating the vehicle
from an engine idling stop condition.
Over reliance on the system may
result in an unexpected accident if
the vehicle were to suddenly
accelerate. Before starting to drive
the vehicle, always confirm the safety
of the surroundings and operate the
selector lever, brake pedal, and
accelerator pedal appropriately.
Note that the vehicle may move
suddenly depending on the vehicle's
load or if it is towing something.
 Note that the vehicle may move
suddenly after the vehicle roll
prevention function is released while
the vehicle is under the following
conditions:
 The selector lever is in the N
position.
 If the selector lever is shifted to the
N position and the brake pedal is
released while the i-stop function
is operating, the brake force is
gradually released. To accelerate
the vehicle, release the brake pedal
after the engine restarts and shift
the selector lever to a position
other than the N position.
NOTE
When the vehicle is stopped on a
steep grade, the vehicle roll
prevention function does not
operate because engine idling is not
stopped.
The brake pedal response may
change, sound may occur from the
brakes, or the brake pedal could
vibrate from the operation of the
vehicle roll prevention function.
However, this does not indicate a
malfunction.
▼ i-stop Warning Light (Amber)/
i-stop Indicator Light (Green)
To ensure safe and comfortable use of
the vehicle, the i-stop system
constantly monitors the driver's
operations, the vehicle's interior and
exterior environment, and the
operational status of the vehicle, and
uses the i-stop warning light (amber)
and i-stop indicator light (green) to
inform the driver of various cautions
and warnings.
NOTE
On vehicles equipped with the center
display, the i-stop operation status is
displayed in the fuel efficiency monitor
display.
Refer to the Fuel Efficiency Monitor
section in the Mazda Connect
Owner's Manual.
i-stop warning light (amber)
When the light is turned on
The light turns on when the ignition
is switched ON and turns
off when
the engine is started.
(Manual transmission)
A sound is activated when the door
is opened while the engine idling is
stopped with the shift lever in a
position other than neutral. In this
case, the engine does not restart
When Driving
Start/Stop Engine
4-16
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

automatically to ensure safety. Shift
the shift lever to neutral and start the
engine.
If the i-stop warning light (amber)
remains on while the engine is
running, the battery performance
may have decreased. Have your
vehicle inspected by an Authorized
Mazda Dealer.
NOTE
A problem in the system may be
indicated under the following
conditions. Have your vehicle
inspected by an Authorized Mazda
Dealer.
The light does not turn on when the
ignition is switched ON.
The light continues to remain on
while the engine is running.
When the light is flashing
The light continues to flash if the
system has a malfunction. Have your
vehicle inspected by an Authorized
Mazda Dealer.
i-stop indicator light (green)
When the light is turned on
The light turns on while engine idling is
stopped and turns off when the engine
is restarted.
When Driving
Start/Stop Engine
4-17
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

SignalWarning Refer to
*Trunk lid-Ajar Warning Indication 7-37
*Liftgate-Ajar Warning Indication7-37
Door-Ajar Warning Light
7-37
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few
seconds later or when the engine is started. If the light does not turn on or remains turned on, have
the vehicle inspected at an Authorized Mazda Dealer.
▼ Indication/Indicator Lights
These lights turn on or flash to notify th
e user of the system operation status or a
system malfunction.
Signal Indicator Refer to
(Green)Seat Belt Indicator Light (Rear seat)
2-27
*Front Passenger Air Bag Deactivation Indicator Light2-71
Security Indicator LightImmobilizer
System3-43
Theft-Deterrent System
3-44
Malfunction 7-34
(Green) KEY Indicator Light
4-5
(Green)
*i-stop Indicator Light4-16
Wrench Indication/Indicator Light*14-35
When Driving
Instrument Cluster and Display
*Some models.4-31
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

SignalIndicator Refer to
*Select Mode Indicator Light 4-93
(White)
i-ACTIVSENSE Status Symbol (Warning/Risk Avoidance Support Sys-
tem) 4-98
(Green)
(Amber)
i-ACTIVSENSE OFF Symbol (Warning/Risk Avoidance Support Sys-
tem)
4-98
(Green)
*High Beam Control System (HBC) Indicator Light
4-102
(White)
*Mazda Radar Cruise Control (MRCC) Standby Indication
4-135
*Mazda Radar Cruise Control with Stop & Go function (MRCC with
Stop & Go function) Standby Indication 4-145
*Tra ffi c
Jam Assist (TJA) Standby Indication 4-157
(Green)
*Mazda Radar Cruise Control (MRCC) Set Indication 4-135
*Mazda Radar Cruise Control with Stop & Go function (MRCC with
Stop & Go function) Set Indication 4-145
*Tra ffi c
Jam Assist (TJA) Set Indication 4-157
*Smart Brake Support (SBS) OFF Indicator Light*14-177
(White)
*Cruise Standby Indication 4-225
(Green)
*Cruise Set Indication
4-225
*1 The light turns on when the ignition is switched on for an operation check, and
turns off a few seconds later or when the en gine is started. If the light does not
When Driving
Instrument Cluster and Display
*Some models.4-33
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22
