2022 MAZDA MODEL 3 SEDAN key

(Auto re-lock function)
After unlocking with the touch
sensor, all the doors , fuel-filler lid,
and liftgate will automatically lock if
any of the following operations are
not performed within about 60
seconds.
Opening a door or the liftgate/
trunk lid.
Switching the ignition to any
position other than off.
If your vehicle has a theft-deterrent
system, the hazard warning lights will flash for confirmation.
The time required for the doors to
lock automatically can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼ Locking, Unlocking with
Tra n s m i t te r
The following locations can be locked/
unlocked by operating the keyless
entry system transmitter. Refer to
Keyless Entry System (page 3-4).
All doorsFuel-filler
lidLiftgate
▼Locking, Unlocking with
Door-Lock Switch
Door-lock switch on driver’s and front
passenger's door
The following locations are locked/
unlocked by pressing the door-lock
switch.
All doorsFuel-filler lidLiftgate
Driver's door
1. Unlock
2. Lock
Front passenger's door
1. Unlock
2. Lock
NOTE
To prevent the transmitter from being
left in the vehicle, make sure that you
carry the transmitter before locking.
After locking by pressing the
door-lock switch and when the
liftgate/trunk lid is closed last with
the transmitter left in the vehicle,
only the liftgate/trunk lid is
unlocked.
Locking from the outside using the
door-lock switch
Doors can be locked from the outside
of the vehicle without using the
transmitter.
Before Driving
Doors and Locks
3-16
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

When locking from the outside using
the door-lock switch, press the lock
side of the door-lock switch with all of
the following conditions met and then
close all the doors.
The ignition is switched OFF.Any door is open.
NOTE
To prevent the transmitter from being
left in the vehicle, make sure that the
driver carries the transmitter when
locking the doors with any door
open.
After locking by pressing the
door-lock switch and when all the
doors are closed with the transmitter
left in the vehicle, all the doors,
liftgate, and fuel-filler lid are
unlocked.

Door-lock switch on liftgate (With the
advanced keyless function)
All doors, fuel-filler lid, and the liftgate
can be locked by pressing the
door-lock switch.

When locking using the door-lock
switch, press the door-lock switch with
all of the following conditions met and
then close the liftgate.
You are carrying the transmitter.The ignition is switched OFF.All the doors are closed.
Before Driving
Doors and Locks
3-17
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Operation from outside
To lock any door using its door-lock
knob from the outside, press the
door-lock knob to the lock position
and close the door (holding the door
handle in the open position is not
required).
This does not operate the other door
locks.

NOTE
When locking the door this way:
Be careful not to leave the key inside
the vehicle.
The doors cannot be locked using
the driver's door lock knob if any
door or liftgate is open when the
ignition is switched to ACC or ON.
All the doors, fuel-filler lid , and
liftgate are unlocked when the lock
knob on all the doors is pressed
down to the lock side and all the
doors are closed with the transmitter
left in the vehicle.
▼Rear Door Child Safety Locks
Rear doors that have been locked
using the child safety lock switched to
the lock side cannot be opened from
inside the vehicle.
For child safety, switch the child safety
lock on both rear doors to the lock
side.
When opening a rear door with the
child safety lock switched to the lock
side, pull the outer door handle with
the lock knob inside the vehicle
switched to the unlock side.
1. Auxiliary key (page 3-2)
2. Lock
3. Unlock
Before Driving
Doors and Locks
3-19
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

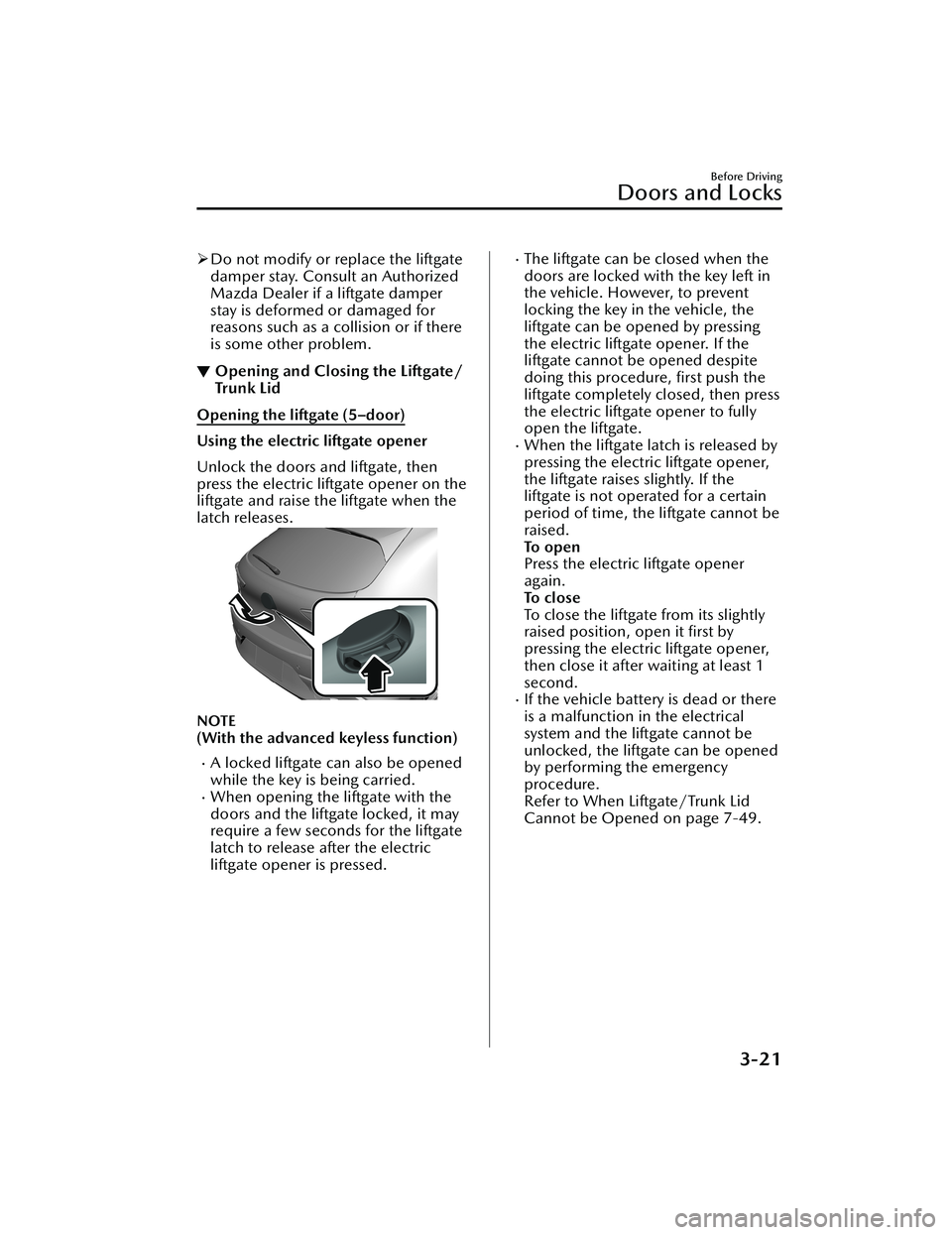

Do not modify or replace the liftgate
damper stay. Consult an Authorized
Mazda Dealer if a liftgate damper
stay is deformed or damaged for
reasons such as a collision or if there
is some other problem.
▼ Opening and Closing the Liftgate/
Trunk Lid
Opening the liftgate (5–door)
Using the electric liftgate opener
Unlock the doors and liftgate, then
press the electric liftgate opener on the
liftgate and raise the liftgate when the
latch releases.
NOTE
(With the advanced keyless function)
A locked liftgate can also be opened
while the key is being carried.
When opening the liftgate with the
doors and the liftgate locked, it may
require a few seconds for the liftgate
latch to release after the electric
liftgate opener is pressed.
The liftgate can be closed when the
doors are locked with the key left in
the vehicle. However, to prevent
locking the key in the vehicle, the
liftgate can be opened by pressing
the electric liftgate opener. If the
liftgate cannot be opened despite
doing this procedure, first push the
liftgate completely closed, then press
the electric liftgate opener to fully
open the liftgate.
When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the
liftgate is not operated for a certain
period of time, the liftgate cannot be
raised.
To o p e n
Press the electric liftgate opener
again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by
pressing the electric liftgate opener,
then close it after waiting at least 1
second.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the liftgate cannot be
unlocked, the liftgate can be opened
by performing the emergency
procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-49.
Before Driving
Doors and Locks
3-21
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

Opening the trunk lid (4–door)
Using the trunk lid release button
Push the trunk lid release button.

Using the electric trunk lid opener
(With the advanced keyless function)
A trunk lid can also be opened while
the key is being carried.
Press the electric trunk lid opener on
the trunk lid, then raise the trunk lid
when the latch releases.

NOTE
When opening the trunk lid with the
doors locked, it may require a few
seconds for the trunk lid latch to
release after the electric trunk lid
opener is pressed.
The trunk lid can be closed when the
doors are locked with the key left in
the vehicle. However, to prevent
locking the key in the vehicle, the
trunk lid can be opened by pressing
the electric trunk lid opener. If the
trunk lid cannot be opened despite
doing this procedure, press the
electric trunk lid opener to fully open
the trunk lid after pushing the trunk
lid completely closed.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the trunk lid cannot be
unlocked, the trunk lid can be
opened by performing the
emergency procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-49.
Closing the liftgate/trunk lid
Lower the liftgate/trunk lid slowly
using the liftgate/trunk lid grip recess,
then push the liftgate/trunk lid closed
using both hands.
Do not slam it. Pull up on the liftgate/
trunk lid to make sure it is secure.
(5–door)
Before Driving
Doors and Locks
3-22
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Removing the luggage compartment
cover
This cover can be removed for more
room.
1. Remove the straps from the hooks.
2. Press the luggage compartmentcover upward from near the pins
and remove the luggage
compartment cover from the pins.
1. Pin

3. Lift the front end of the luggage compartment cover and remove it.
Inside Trunk Release
Lever (4-door)
*
▼Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a
means of escape for children and
adults in the event they become locked
inside the trunk.

No matter how careful adults might be
with keys and locking their cars,
parents should be aware that children
may be tempted to play around
vehicles and use the trunk as a hiding
place.

Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release
lever so that all children can be told
about it in an appropriate way, keeping
in mind that most vehicles do not have
such levers.
WARNING
Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Before Driving
Doors and Locks
3-24*Some models.
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can
not play with them:
Leaving children or animals unattended
in a parked vehicle is dangerous.
Babies left sleeping and children who
lock themselves in cars or trunks can
die very quickly from heat prostration.
Do not leave your children or pets
alone in a car at any time. Do not leave
the car, the rear folding seats or the
trunk unlocked.
▼Opening the Trunk Lid from the
Inside
Slide the inside trunk release lever in
the direction of the arrow. The lever is
made of material that will glow for
hours in the darkness of the trunk
following a brief exposure to ambient
light.

The inside trunk release lever is located
on the inside of the trunk lid.
Before Driving
Doors and Locks
3-25
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

Remote power window operation is
activated under the following
conditions.
All the doors and liftgate are closed.The ignition is switched OFF.
NOTE
The power windows cannot be
opened from the outside of the vehicle
if the power window initialization has
not been completed.
Opening
The windows can be opened for
ventilating the cabin before getting in
the vehicle.
Press the unlock button on the key
quickly and briefly 3 times and then
immediately afterwards, press and
hold the unlock button to open the
windows.
To stop the windows from opening,
release the button. If the operation is
performed from the beginning again,
the windows open.
Moonroof*
▼Moonroof
The moonroof can be opened or
closed when operating the overhead
tilt/slide switch at the front seats.
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Never allow children to play with the
tilt/slide switch:
The tilt/slide switch would allow
children to operate the moonroof
unintentionally, which could result in
serious injury if a child's hands, head
or neck becomes caught by the
moonroof.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in it
as it closes, causing serious injury or
even death.
Before Driving
Windows
3-38*Some models.
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22
