2022 MAZDA MODEL 3 SEDAN fuse

No.FUSE RAT-
ING PROTECTED COMPONENT
F8 15 A Engine control system
F9 15 A
Transmission control system
*
F10 15 A Engine control system
F11 7.5 A Air conditioner
F12 15 A Engine control system
F13 ――
F14 20 A
Front seat warmer
*
F15 ――
F16 15 A For protection of various circuits
F17 ――
F18 15 A For protection of various circuits
F19 60 A Power steering system
F20 15 A Headlight (LH) 1
F21 15 A Headlight (RH) 1
F22 15 A Keyless system
F23 30 A ABS, Dynamic stability control system
F24 15 A Headlight (LH) 2
F25 15 A Headlight (RH) 2
F26 7.5 A On board diagnostics
F27 25 A For protection of various circuits
F28 25 A For protection of various circuits
F29 15 A Windshield washer
F30 15 A Accessory sockets
F31 15 A Horn
F32 ――
F33 ――
F34 ――
F35 50A ABS, Dynamic stability control system
F36 ――
F37 40 A Rear window defogger
F38 50 A For protection of various circuits
F39 ――
F40 40 A Air conditioner
Maintenance and Care
Owner Maintenance
*Some models.6-43
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

No.FUSE RAT-
ING PROTECTED COMPONENT
F41 ――
F42 20 A Windshield wipers
F43 30 A Cooling fan
*
F4430 A Starter
F45 10 A Engine control system
F46 15 A Audio
F47 15 A For protection of various circuits
F48 7.5 A Air bag
F49 15 A Instrument cluster
F50 15 A Room light
F51 25 A Audio
F52 10 A
Moonroof
*
F53 15 A Engine control system
F54 15 A i-ACTIVSENSE
F55 ――
F56 15 A
Electric water pump
*
Maintenance and Care
Owner Maintenance
6-44*Some models.
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Fuse block (Left side)
No.FUSE RAT-
ING PROTECTED COMPONENT
F1 ――
F2 ――
F3 ――
F4 15 A Power door locks (Driver)
F5 15 A Power door locks (Passenger)
F6 ――
F7 ――
F8 ――
F9 30 A Power windows (Driver)
F10 30 A Power windows (Passenger)
F11 30 A
Power seat (Driver)
*
F12 ――
F13 15 A Audio
F14 ――
F15 15 A Liftgate lock
Maintenance and Care
Owner Maintenance
*Some models.6-45
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

No.FUSE RAT-
ING PROTECTED COMPONENT

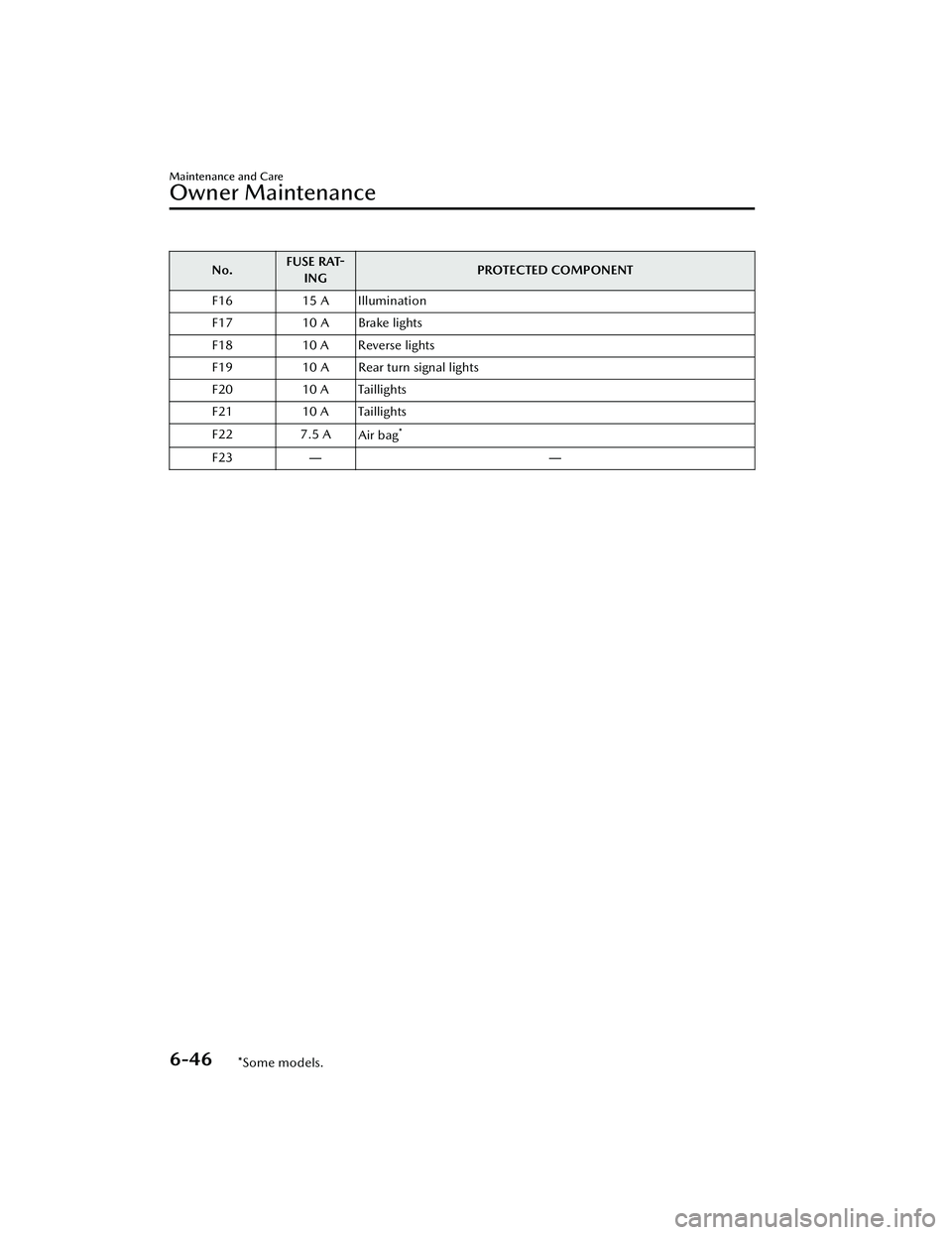

F16 15 A Illumination
F17 10 A Brake lights
F18 10 A Reverse lights
F19 10 A Rear turn signal lights
F20 10 A Taillights
F21 10 A Taillights
F22 7.5 A
Air bag
*
F23 ――
Maintenance and Care
Owner Maintenance
6-46*Some models.
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Temporary spare tire
Tire sizeInflation pressure
T125/70D16 96M
* １420 kPa (60 psi)
T125/80D16 97M
*2420 kPa (60 psi)
*1FWD*2AWD
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12―14 kgf·m, 80 ―108 ft·lbf)
▼Fuses
Refer to Fuses on page 6-39.
Specifications
Specifications
9-11
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22
