4237-2. Steps to take in an emergency
7
When trouble arises
nance is performed. (P.356)
*: Refer to the separate “Scheduled Main-
tenance” or “Owner’s Manual Supple-
ment” for the maintenance interval
applicable to your vehicle.
■If “Maintenance Required Visit Your
Dealer” is displayed (U.S.A. only)
Indicates that all maintenance is required to
correspond to the driven distance on the
maintenance schedule
*.
Comes on approximately 5000 miles
(8000 km) after the message has been
reset. (The indicator will not work properly
unless the message ha s been reset.) Per-
form the necessary maintenance. Please
reset the message after the maintenance is
performed. ( P.356)
*: Refer to the separate “Scheduled Main-
tenance” or “Owner’s Manual Supple-
ment” for the maintenance interval
applicable to your vehicle.
■If “Oil Maintenance Required Soon” is
displayed
Indicates that the en gine oil should be
scheduled to be changed.
Check the engine oil and change it if neces-
sary. After changing the engine oil, make
sure to reset the message. ( P.367)
■If “Oil Maintenance Required” is dis-
played
Indicates that the en gine oil should be
changed.
Check and change the engine oil, and oil fil-
ter by your Lexus deal er. After changing the
engine oil, make sure to reset the message.
(  P.367)
■If a message that in dicates the need for
visiting your Lexus dealer is displayed
The system or part shown on the
multi-information display is malfunctioning.
Have the vehicle inspected by your Lexus
dealer immediately.
■If a message that in dicates the need for
referring to Owner’s Manual is dis-
played
●“Engine Coolant Temp High” is shown on the multi-information display, follow the
instructions. (
P.446)
●If any of the following messages are
shown on the multi-info rmation display, it
may indicate a malf unction. Have the
vehicle inspected by your Lexus dealer
immediately.
• “Access System with Elec. Key Malfunc-
tion”
• “Hybrid System Malfunction”
•“Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
●If any of the following messages are
shown on the multi-info rmation display, it
may indicate a malfun ction. Immediately
stop the vehicle and contact your Lexus
dealer.
• “Braking Power Low”
• “Charging Syst em Malfunction”
• “Oil Pressure Low”
NOTICE
■If “High Power Consumption Partial
Limit On AC/Heater Operation” is
displayed frequently
There is a possible malfunction relating
to the charging system or the 12-volt bat-
tery may be deteriorating. Have the vehi-
cle inspected by your Lexus dealer.

4347-2. Steps to take in an emergency
7Confirm it is not loose after tighten-
ing:
1 Push and pull the tire
2 Try rotating
Visually check to ensure tire is not hung on
surrounding parts.
If looseness or misassembly exists, repeat
steps 2 to 7.
8 Repeat step 7, any time the tire is
lowered or disturbed.
9 Stow the jack and all tools.
■The compact spare tire
●The compact spare tire is identified by the
label “TEMPORARY USE ONLY” on
the tire sidewall. Use the compact spare
tire temporarily, and only in an emer-
gency.
●Make sure to check the tire inflation pres-
sure of the compact spare tire. ( P.458)
■When using the compact spare tire
As the compact spare tire is not equipped
with a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare
tire will not be indicated by the tire pressure
warning system. Also, if you replace the
compact spare tire after the tire pressure
warning light comes on, the light remains
on.
■When the compact spare tire is
equipped
When driving with the compact spare tire
installed, the vehicle he ight will be different
than when driving with standard tires.
■If you have a flat front tire on a road cov-
ered with snow or ice
Install the compact spare tire on one of the
rear wheels of the ve hicle. Perform the fol-
lowing steps and fit tire chains to the front
tires:
1 Replace a rear tire with the compact
spare tire.
2 Replace the flat front tire with the tire
removed from the rear of the vehicle.
3 Fit tire chains to the front tires.
WARNING
■When using the compact spare tire
●Remember that the compact spare tire
provided is specific ally designed for
use with your vehicle. Do not use your
compact spare tire on another vehicle.
●Do not use more than one compact
spare tire simultaneously.
●Replace the compact spare tire with a
standard tire as soon as possible.
●Avoid sudden acceleration, abrupt
steering, sudden braking and shifting
operations that cause sudden engine
braking.
■When the compact spare tire is
attached
The vehicle speed may not be correctly
detected, and the following systems may
not operate correctly:
• ABS & Brake assist
•VSC
•TRAC
• Trailer Sway Control
•EPS
•VDIM
• Adaptive Variable Suspension System (if equipped)
• Dynamic radar cruise control with full-speed range

4477-2. Steps to take in an emergency
7
When trouble arises
and radiator core (radiator) for any
leaks.
Radiator
Cooling fans
If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.
4The coolant level is satisfactory if it
is between the “FULL” and “LOW”
lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
Radiator cap
5 Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
6
Start the hybrid system and turn the
air conditioning system on to check
that the radiator cooling fans oper-
ate and to check for coolant leaks
from the radiator or hoses.
The fans operate when the air conditioning
system is turned on immediately after a
cold start. Confirm that the fans are oper-
ating by checking the fan sound and air
flow. If it is difficult to check these, turn the
air conditioning system on and off repeat-
edly.
(The fans may not operate in freezing tem-
peratures.)
7 If the fans are not operating:
Stop the hybrid system immediately
and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the
nearest Lexus dealer.
8 Check if “Engine Coolant Temp
High Stop in a Safe Place See
Owner's Manual” is shown on the
multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your
Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest
A
B
A
B
C
D

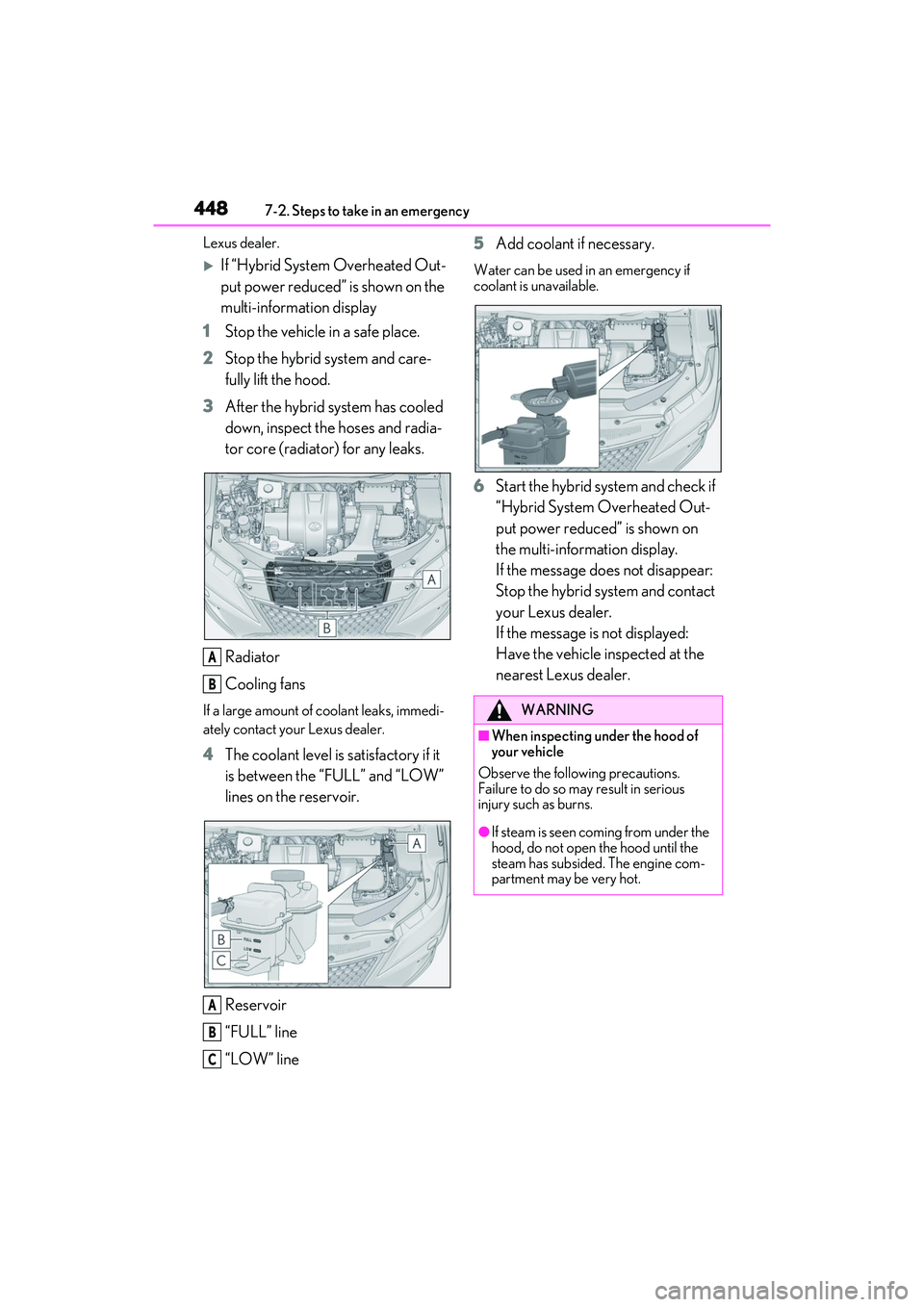

4487-2. Steps to take in an emergency
Lexus dealer.
If “Hybrid System Overheated Out-
put power reduced” is shown on the
multi-information display
1 Stop the vehicle in a safe place.
2 Stop the hybrid system and care-
fully lift the hood.
3 After the hybrid system has cooled
down, inspect the hoses and radia-
tor core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.
4The coolant level is satisfactory if it
is between the “FULL” and “LOW”
lines on the reservoir.
Reservoir
“FULL” line
“LOW” line 5
Add coolant if necessary.
Water can be used in an emergency if
coolant is unavailable.
6Start the hybrid system and check if
“Hybrid System Overheated Out-
put power reduced” is shown on
the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact
your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the
nearest Lexus dealer.
A
B
A
B
C
WARNING
■When inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious
injury such as burns.
●If steam is seen coming from under the
hood, do not open the hood until the
steam has subsided. The engine com-
partment may be very hot.

4497-2. Steps to take in an emergency
7
When trouble arises
1Stop the hybrid system. Shift the
shift lever to P and set the parking
brake.
2 Remove the mud, snow or sand
from around the front wheels.
3 Place wood, stones or some other
material under the front wheels to
help provide traction.
4 Restart the hybrid system.
5 Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.
■When it is difficult to free the vehicle
Press to turn off TRAC.
WARNING
●After the hybrid system has been
turned off, check that the “READY”
indicator is off.
When the hybrid system is operating,
the gasoline engine may automatically
start, or the cooling fans may suddenly
operate even if the gasoline engine
stops. Do not touch or approach rotat-
ing parts such as the fans, which may
lead to fingers or clothing (especially a
tie, a scarf or a muffler) getting caught,
resulting in serious injury.
●Do not loosen the radiator cap and the
coolant reservoir caps while the hybrid
system and radiator are hot.
High temperature steam or coolant
could spray out.
NOTICE
■When adding engine/power control
unit coolant
Add coolant slowly after the hybrid sys-
tem has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too
quickly can cause damage to the hybrid
system.
■To prevent damage to the cooling sys-
tem
Observe the following precautions:
●Avoid contaminating the coolant with
foreign matter (such as sand or dust,
etc.).
●Do not use any coolant additive.
If the vehicle becomes stuck
Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Recovering procedure

4558-1. Specifications
8
Vehicle specifications
■Oil capacity (Drain and refillref-
erence
*)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn
off the hybrid system, wait more than 5
minutes, and check the oil level on the
dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-6A multigrade
engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at
the next oil change. Outside temperature
Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 20 in 0W-20 indicates the vis- cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you
should use.
Lubrication system
With filter
Vehicles with towing pack-
age
5.8 qt. (5.5 L, 4.8 Imp. qt.)
Vehicles without towing
package
5.7 qt. (5.4 L, 4.8 Imp. qt.)
Without fil-
ter5.6 qt. (5.3 L, 4.7 Imp. qt.)
A

508Alphabetical Index
If the fuel filler door cannot be opened.........................................................................438
If the hybrid system will not start ........ 436
If the vehicle is submerged or water on the road is rising......................................403
If you have a flat tire .................................. 424
If you lose your keys.................................438
If you think something is wrong .........409
If your vehicle becomes stuck............. 449
If your vehicle has to be stopped in an
emergency ................................................ 402
If your vehicle needs to be towed .....405
If your vehicle overheats ........................ 446
Energy monitor .....................................99, 100
Engine ACCESSORY mode .............................. 185
Compartment .............................................365
Engine switch.................................................182
Hood................................................................ 363
How to start the hybrid system ............182
Identification number ............................... 453
If the hybrid system will not start ........ 436
If your vehicle has to be stopped in an
emergency ................................................ 402
Ignition switch (power switch) ..............182
Overheating................................................. 446
Power switch .................................................182
Tachometer ..................................................... 83
Engine coolant Capacity .........................................................456
Checking ....................................................... 367
Preparing and checking before winter.........................................................................286
Engine coolant temperature gauge ....... 83
Engine oil Capacity .........................................................455
Checking .......................................................365
Preparing and checking before winter.........................................................................286
Warning light ...................................................411
Engine oil maintenance data .................. 367 Engine switch (power switch) ..................182
If your vehicle has to be stopped in an emergency .................................................402
EPS (Electric Power Steering) .............. 279 Warning light .................................................413
EV drive mode................................................187
EV indicator .......................................................67
Event data recorder (EDR) ........................... 8
F
Flat tire Tire pressure warning system ............. 376
Vehicles with a spare tire....................... 424
Floor mats .......................................................... 24
Fluid Brake ................................................................ 457
Hybrid transmission.................................. 457
Washer .......................................................... 369
Fog lights Switch...............................................................204
Footwell light ...................................................315
Front automatic air conditioning system .......................................................................... 298
Front fog lights Replacing light bulbs................................393
Front passenger footwell hooks ............ 340
Front passenger occupant classification system .............................................................. 39
Front seats Adjustment ......................................................129
Cleaning .........................................................353
Correct driving posture ............................ 25
Driving position memory ........................ 140
Head restraints..............................................143
Memory recall function.............................. 141
Power easy access system .................... 140
Seat heaters ....................................................312
Seat position memory .............................. 140
Seat ventilators ..............................................312
Front side marker light Light switch .................................................... 198
Replacing light bulbs................................393

513Alphabetical Index
Checking ....................................................... 367
Preparing and checking before winter.........................................................................286
Power easy access system ....................... 140
Power outlets ................................................ 338
Power steering (Elect ric power steering
system).......................................................... 279 Warning light .................................................413
Power switch ...................................................182 Auto power off function .......................... 185
Changing the power switch modes . 185
Power switch (engine switch) If your vehicle has to be stopped in an
emergency ................................................ 402
Power windows Door lock linked window operation..152
Jam protection function............................. 151
Operation......................................................... 151
Window lock switch ..................................153
Pre-Collision System (PCS) Function ............................................................218
PCS OFF switch ........................................ 220
Warning light .................................................416
R
Radar cruise control (dynamic radar cruise control with full-speed range)............. 236
Radiator ........................................................... 368
RCTA Function .......................................................... 259
Warning message.....................................260
RCTA (Rear Cross Traffic Alert) ......... 250
RCTA function ............................................. 260
Rear automatic air conditioning system .......................................................................... 309
Rear Cross Traffic Alert (RCTA) ......... 259
Rear door sunshades ................................. 340
Rear fog lights Switch .............................................................. 204
Rear seats ........................................................ 130 Adjustment....................................................... 131
Folding down the rear seatbacks......... 131 Head restraints..............................................143
Seat heaters ....................................................312
Rear side marker lights Light switch .................................................... 198
Replacing light bulbs................................393
Rear turn signal lights Replacing light bulbs....................393, 397
Turn signal lever ...........................................192
Wattage ......................................................... 460
Rear view mirror Inside rear view mirror ..............................147
Outside rear view mirrors...................... 148
Rear window defogger .............................300
Rear window wiper.....................................208
Refueling Capacity .........................................................454
Fuel types .......................................................454
If the fuel filler do or cannot be opened
......................................................................... 438
Opening the fuel tank cap ................... 209
Regenerative braking ....................................67
Remote Touch .............................................. 292
Replacing Electronic key battery ............................. 386
Fuses................................................................ 388
Light bulbs ..................................................... 392
Tires .................................................................. 424
Resetting the message indicating mainte- nance is required ...................................... 356
Rev indicator .................................................... 85
Rev peak............................................................. 85
Road Sign Assist .............. ............................ 234
RSA (Road Sign Assist) ............................ 234
S
Seat belt reminder light.....................413, 414
Seat belts............................................................ 26 Automatic Locking Retractor................. 28
Child restraint system installation ......... 46
Cleaning and maintaining the seat belt..........................................................................353
Emergency Locking Retractor .............. 28
