2022 LEXUS RX350 run flat

13Pictorial index
Precautions for winter season ....................................................................................... P.271
To prevent freezing (windshield wiper de-icer)
*...................................................P.291
Precautions for car wash ............................................................................................... P.337
Fuel filler door .......................................................................................................... P.195
Refueling method .............................................................................................................. P .195
Fuel type/fuel tank capacity ......................................................................................... P.432
Tires.......................................................................................................................... ..P.357
Tire size/inflation pressure ................................................................................P.357, 436
Winter tires/tire chains .................................................................................................... P.2 71
Checking/rotation/tire pressure warning system.............................................. P.357
Coping with flat tires........................................................................................................ P .406
Hood ..........................................................................................................................P .349
Opening ........................................................................................................................ ....... P.349
Engine oil ..................................................................................................................... ......... P.432
Coping with overheating ............................................................................................... P.426
Warning messages .......................................................................................................... P.402
Headlights/front turn signal lights/front side marker lights ............ P.178, 184
Side turn signal lights ............................................................................................. P.178
Parking lights/daytime running lights................ ...............................................P.184
Fog lights/cornering lights
*....................................................................... P.184, 190
Rear side marker lights .........................................................................................P.184
Stop/tail lights ..........................................................................................................P.184
Back-up lights/rear turn signal lights ............. ......................................... P.178, 184
Shifting the shift lever to R ...............................................................................................P.1 74
License plate lights .................................................................................................P.184
*:If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P. 374, Watts: P.437)
E
F
G
H
I
J
K
L
M
N
O

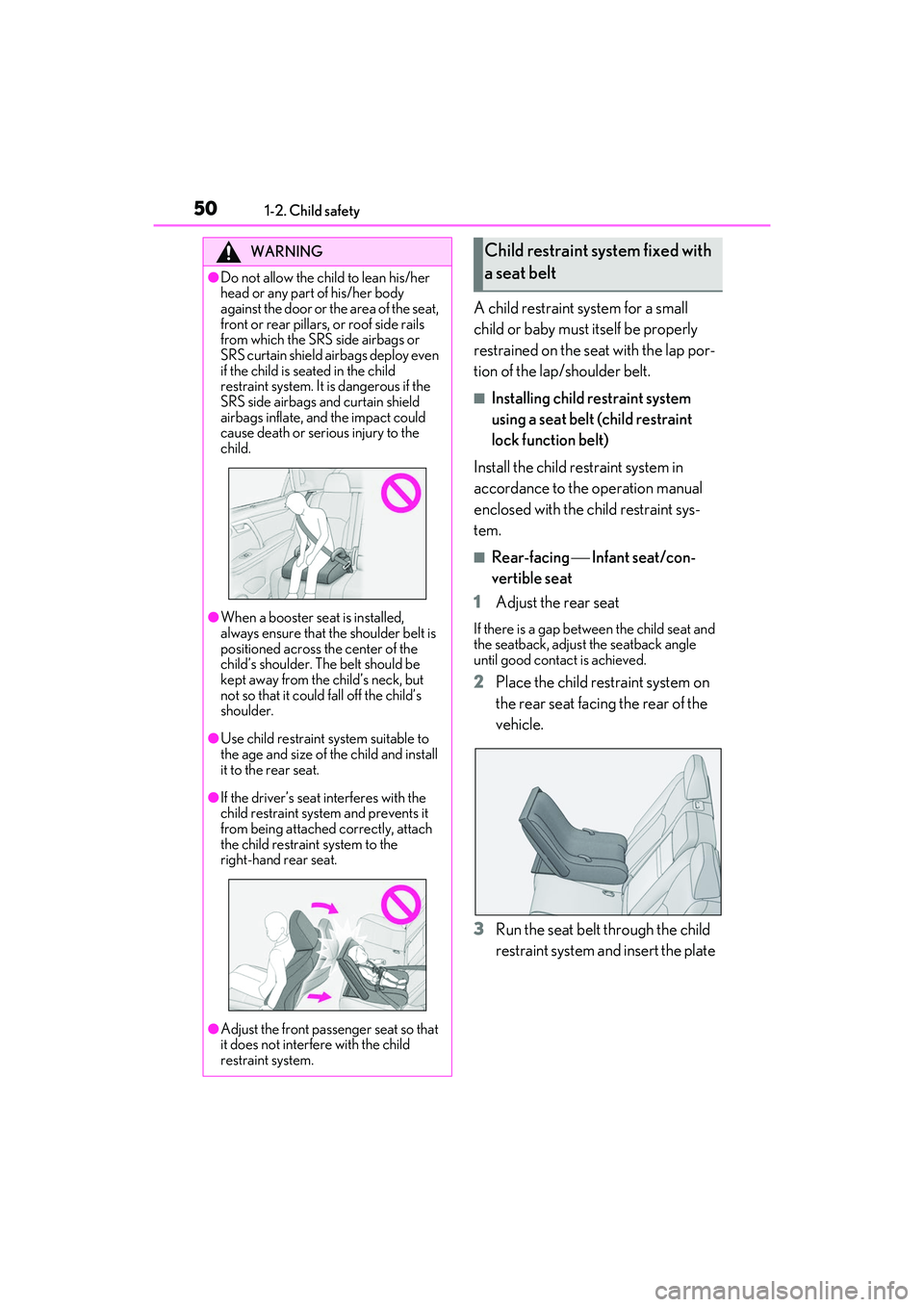

501-2. Child safety
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt.
■Installing child restraint system
using a seat belt (child restraint
lock function belt)
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys-
tem.
■Rear-facing  Infant seat/con-
vertible seat
1 Adjust the rear seat
If there is a gap between the child seat and
the seatback, adjust the seatback angle
until good contact is achieved.
2Place the child restraint system on
the rear seat facing the rear of the
vehicle.
3 Run the seat belt through the child
restraint system and insert the plate
WARNING
●Do not allow the child to lean his/her
head or any part of his/her body
against the door or the area of the seat,
front or rear pillars, or roof side rails
from which the SRS side airbags or
SRS curtain shield ai rbags deploy even
if the child is seated in the child
restraint system. It is dangerous if the
SRS side airbags and curtain shield
airbags inflate, and the impact could
cause death or serious injury to the
child.
●When a booster seat is installed,
always ensure that th e shoulder belt is
positioned across the center of the
child’s shoulder. T he belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
●Use child restraint sy stem suitable to
the age and size of the child and install
it to the rear seat.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the
right-hand rear seat.
●Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
Child restraint system fixed with
a seat belt

3486-3. Do-it-yourself maintenance
Light bulbs
(P.374)
•Bulb with same num-
ber and wattage rat-
ing as original
•Flathead screw- driver
•Wrench
Radiator and con-
denser ( P.354)
Tire inflation pres-
sure (P.363)• Tire pressure gauge
•Compressed air
source
Washer fluid
(P.356)
• Water or washer
fluid containing anti-
freeze (for winter
use)
• Funnel (used only for adding water or
washer fluid)
WARNING
The engine compartment contains many
mechanisms and fluids that may move
suddenly, become hot, or become elec-
trically energized. To avoid death or seri-
ous injury, observe the following
precautions.
■When working on the engine com-
partment
●Keep hands, clothi ng and tools away
from the moving fan and engine drive
belt.
●Be careful not to touch the engine,
radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil
and other fluids may also be hot.
●Do not leave anything that may burn
easily, such as paper and rags, in the
engine compartment.
●Do not smoke, cause sparks or expose
an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
ItemsParts and tools●Be extremely cautious when working
on the battery. It contains poisonous
and corrosive sulfuric acid.
■When working near the electric cool-
ing fan or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION
ON mode, the electric cooling fan may
automatically start to run if the air condi-
tioning is on and/or the coolant tempera-
ture is high. ( P.354)
■Safety glasses
Wear safety glasses to prevent flying or
falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter
removed may cause excessive engine
wear due to dirt in the air.

3917-2. Steps to take in an emergency
7
When trouble arises
Fluid leaks under the vehicle
(Water dripping from the air condi-
tioning after use is normal.)
 Flat-looking tires or uneven tire
wear
 Engine coolant temperature gauge
needle continually points higher
than normal
 Changes in exhaust sound
 Excessive tire squeal when corner-
ing
 Strange noises related to the sus-
pension system
 Pinging or other noises related to
the engine
 Engine missing, stumbling or run-
ning roughly
 Appreciable loss of power
 Vehicle pulls heavily to one side
when braking 
Vehicle pulls heavily to one side
when driving on a level road
 Loss of brake effectiveness, spongy
feeling, pedal almost touches the
floor
If you think something is
wrong
If you notice any of the following
symptoms, your vehicle probably
needs adjustment or repair. Con-
tact your Lexus dealer as soon as
possible.
Visible symptoms
Audible symptoms
Operational symptoms

4067-2. Steps to take in an emergency
in a safe place, shift the shift lever to P
with the engine running and wait until the
message is cleared. If the message is not
cleared, contact your Lexus dealer.
●If the following message is shown on the
multi-information display, it may indicate
a malfunction. Have the vehicle inspected
by your Lexus dealer immediately.
• “Access System with Elec. Key Malfunc-
tion”
●If any of the following messages are
shown on the multi-info rmation display, it
may indicate a malfunction. Immediately
stop the vehicle and contact your Lexus
dealer.
• “Braking Power Low”
• “Charging System Malfunction”
• “Oil Pressure Low”
 Stop the vehicle in a safe place on a
hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P.
 Stop the engine.
 Turn on the emergency flashers.
( P.384)
NOTICE
■If “High Power Co nsumption Partial
Limit On AC/Heater Operation” is
displayed frequently
There is a possible malfunction relating
to the charging system or the battery
may be deteriorating. Have the vehicle
inspected by your Lexus dealer.
If you have a flat tire
Your vehicle is equipped with a
spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P.357
WARNING
■If you have a flat tire
Do not continue drivin g with a flat tire.
Driving even a short distance with a flat
tire can damage the tire and the wheel
beyond repair, which could result in an
accident.
Before jacking up the vehicle

4368-1. Specifications
*: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf) while
the engine is running.
Type A
Brakes
Pedal clearance*3.4 in. (86 mm) Min.
Pedal free play0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Fluid typeFMVSS No. 116 DOT 3 or SAE J1703
FMVSS No. 116 DOT 4 or SAE J1704
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size235/65R18 106V, T165/9 0D18 107M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear tire
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare tire
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Driving at high speeds (above 100 mph [160 km/h]) (in
countries where such speeds are permitted by law)
Add 5 psi (30 kPa, 0.3 kgf/cm
2 or bar) to the front and rear
tires. Never exceed the maximum cold tire inflation pres-
sure indicated on the tire sidewall.
Wheel size18  8J, 18  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

479What to do if... (Troubleshooting)
Is the engine switch in IGNITION
ON mode?
If you cannot release the shift lever by
depressing the brake pedal with the engine
switch in IGNITION ON mode ( P.175)
It is locked automatically to prevent
theft of the vehicle. ( P.171)
 Is the window lock switch pressed?
The power window except for the one at
the driver’s seat cannot be operated if the
window lock switch is pressed. ( P.142)
 The auto power off function will be
operated if the vehicle is left in
ACCESSORY or IGNITION ON
mode (the engine is not running) for
a period of time. ( P.173)
 The seat belt reminder light is flash-
ing
Are the driver and the passengers wearing
the seat belts? ( P.396)
The parking brake indicator is on
Is the parking brake released? ( P.179)
Depending on the situation, other
types of warning buzzer may also
sound. (P.393, 402)
 Did anyone inside the vehicle open
a door during setting the alarm?
The sensor detects it and the alarm sounds.
(P.67)
Do one of the following to stop the
alarms:
 Unlock the doors.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine.
 Is the message displayed on the
multi-information display?
Check the message on the multi-informa-
tion display. ( P.402)
When a warning light turns on or a
warning message is displayed, refer
to P.393, 402.
The steering wheel cannot be
turned after the engine is
stopped
The windows do not open or
close by operating the power
window switches
The engine switch is turned off
automatically
A warning buzzer sounds during
driving
An alarm is activated and the
horn sounds
A warning buzzer sounds when
leaving the vehicle
A warning light turns on or a
warning message is displayed
When a problem has occurred
If you have a flat tire
